SSCV S7000 – C6NO5





Period O/B

:

13th of April 2006 - 18th of April 2006.

Function O/B

:

Witness Annual DP FMEA Trial.


During the Annual DP FMEA Trial 2006 SSCV Saipem 7000 was located at the Amøyfjorden

near Stavanger in Norway.

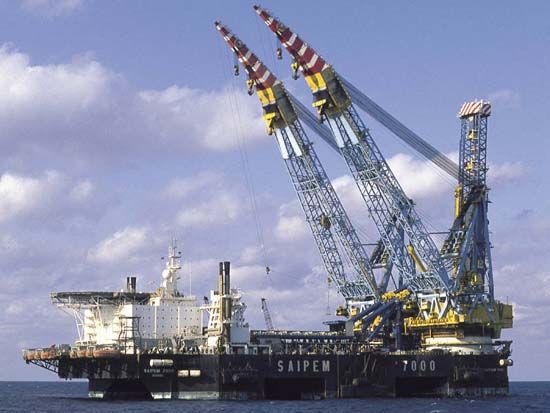

The Basic Function of this Vessel : Semi-Submersible Crane Vessel.



Main Area of Operations : Offshore at J-Lay Pipeline Installation Areas.







General Specifications



Type of Vessel

Semi-Submersible Crane Vessel



Nationality (flag)

Bahamas

Port of Registry

Nassau

Callsign

C6NO5

IMO Number

8501567

Classification Lloyds Register of Shipping



DP (AAA) Lloyds Register; IPD 3 RINA;

Class 3 Norwegian Maritime Directorate notations; fully redundant

Keel laid

Monfalcone, Italy, 1985



Gross Registered Tonnage

117,812

T

Net Tonnage

  35,343

T

Displacement at Maximum Draft

179,941

T

Displacement at Operational Draft

167,500

T

Displacement at Survival Draft

135,000

T

Displacement at Transit Draft

  95,063

T

Light Ship Weight

  80,206

T



Length Overall

  197.95

m

Length between Perpendiculars

  165.00

m

Moulded Breadth (Beam)

    87.00

m

Breadth Overall

    91.60

m

Freeboard

      6.31

m

Maximum Height from Keel

  117.00

m (“A” frame)

Moulded Depth Amidships to Upper Deck

    43.50

m

Maximum Draft

    30.00

m

Operational Draft

    27.50

m

Survival Draft

    18.50

m

Transit Draft

    10.50

m



MMSI Number

309461000





8 x Main Diesel Engine

      Type A420.12

GMT



8 x Ansaldo Main Generator

8 x 5600 kW



4 x Main Diesel Engine

      Type Vasa 16V32D

Wärtsilä



4 x ABB Main Generator

4 x 5600 kW



1 x GMT Emergency Generator

1 x 1100 kW / 440 V





4 x Schottel / Ansaldo Azimuth Thruster

      Type : Non-Retractable, fixed pitch

                 4500SRP

4 x 4500 kW



4 x Schottel / Ansaldo Azimuth Thruster

      Type : Retractable, fixed pitch

                 S2501LSV

4 x 3000 kW



2 x Lips / Ansaldo Azimuth Thruster

      Type : Retractable, fixed pitch

                 FS3500-671/3500MNR

2 x 5550 kW

2 x Schottel / Ansaldo Bow Tunnel Thruster

      Type : Fixed pitch, Reversible, FT 34-2

2 x 2500 kW



Dynamic Positioning

SDP 31 + SDP 11 (BU)



2 x Acoustics

HiPap 500 SSBL /LBL

1 x Light Weight Taut Wire

2 x DGPS (DPS 200 (BU))
