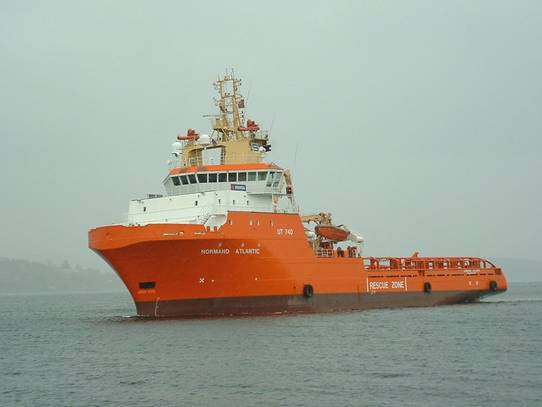

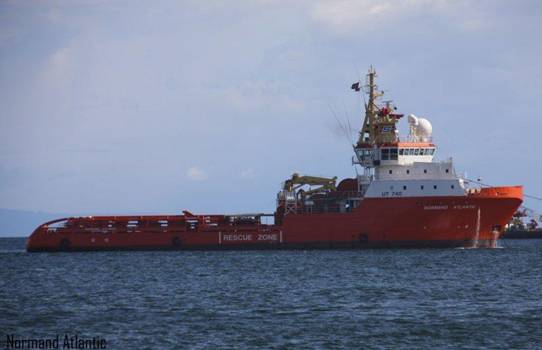

AHTSV NORMAND ATLANTIC – LMDK





Period O/B

:

9th of November 2007 – 17th of November 2007.

Function O/B

:

Update FMEA & Witness Annual DP Trials 2007.


AHTSV Normand Atlantic was located offshore Singapore during the Trial activities.

The Basic Function of this Vessel : Anchor Handling Tug Supply.



Main Area of Operations : Malaysia.





General Specifications



Type of Vessel

Anchor Handling Tug Supply



Nationality (flag)

Norway

Port of Registry

Skudeneshavn

Callsign

LMDK

IMO Number

9155054

Classification DNV



+1A1, ICE C, Tug Supply Vessel, FIFI 1 & 2, Oil Rec, SF, E0, Dynpos AUTR, DK(+) HL(2.5)

Built

Ulstein Verft AS, Ulsteinvik, Norway,

delivery 1997, design UT 740, Hull-nr. 240.



Gross Tonnage

  3,690

MT

Net Tonnage

  1,576

MT

Deadweight

  3,958

MT



Length Overall

  80.40

m

Length Between Perpendiculars

  73.24

m

Moulded Breadth

  18.00

m

Moulded Depth

    9.50

m

Design draught

    7.00

m

Max. Draught midship

    7.786

m



Speed performance

  17.27    kts





4 x Main Diesel Engine, make:

      Wärtsilä Propulsion AS Wichmann,

      type 10V288

4 x 3345 kW / 4,550 hp @ 660 RPM



2 x Shaft Generator,

      make: ABB, type AMG 560L6

      [step-up gear : Hytek Norway]

2 x 3000 kVA @ 1200 RPM / 440V / 60 Hz

1 x Auxiliary Diesel Engine,

      make Caterpillar, type 3412 DITA

1 x 536 kW @ 1800 RPM

1 x Auxiliary Generator,

      make Pay & Brink Stamford,

      type HCM 534D

1 x 625 kVA / 440V / 60 Hz

1 x Auxiliary Diesel Engine,

      make Caterpillar, type 3516 DITA

1 x 1511 kW @ 1800 RPM

1 x Auxiliary Generator,

      make Pay & Brink Stamford,

      type HCM 734G2

1 x 1788 kVA / 440V / 60 Hz

1 x Emergency Diesel Engine,

      make Caterpillar, type DINA 330

1 x 78 kW @ 1800 RPM



1 x Bow Tunnel Thruster,

      make Ulstein, type 375 TV

1 x 1100 kW / 1500 bhp

440V E-motor: Marelli Motori 500 LF 6



1 x Bow Azimuth Thruster,

      make Ulstein, type TCWS 73/50-180,

      retractable [VROS]

1 x 883 kW / 1200 bhp

440V E-motor: Marelli Motori C3M400 LW 4

2 x Stern Tunnel Thruster,

      make Ulstein, type 150 TV

2 x 590 kW / 800 bhp

440V E-motor: Marelli Motori 400 LX 6

2 x Main Gear Box,

      make Volda mek Versted,

      type ACG TS 1250

Gear ratio : 4,78:1

2 x Main Propeller, 4-blade, ø 4270 mm,

      make / type Ulstein Hub 1054/-S, CPP.

2 x 6690 kW in fixed nozzles;

Port Propeller rotation  : counter clockwise

Stbd Propeller rotation : clockwise

2 x High Lift Flap Rudder, make Ulstein

with Tjenford steering gear SR.722.320



Dynamic Positioning

Kongsberg SDP21



VMS / PMS

UMAS / None

DGPS

1 x Seatex DPS116 & 1 x Seatex DPS200

Hydro Acoustic Reference System

1 x HiPap 500

Laserunit Reference System

1 x Fanbeam Mk3
