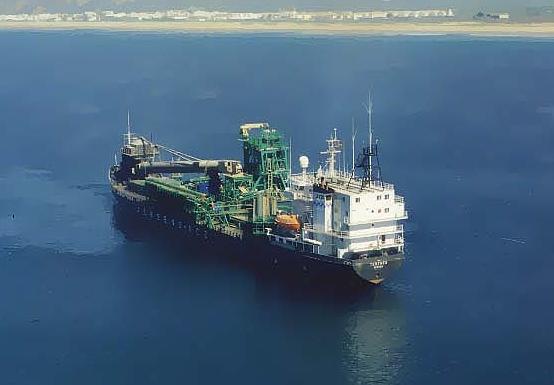

FFPV TERTNES – PGAN





Period O/B

:

26th of April 2007 – 28th of April 2007.

Function O/B

:

CMI / MSA & Annual DP FMEA Trial 2007.


FFPV Tertnes was located in Amsterdam during the Marine Safety Audit and located offshore IJmuiden in the Netherlands during the Annual DP FMEA Trial activities.

The Basic Function of this Vessel : Rock Dumping.



Main Area of Operations : Offshore Northern part of Spain.







General Specifications



Type of Vessel

Flexible Fall Pipe Vessel / Rock Dumper



Nationality (flag)

Dutch

Official Number

19186ZR

Port of Registry

Rotterdam

Callsign

PGAN

IMO Number

831554

Classification DNV

+1A1 Bulk Carrier, ESP, E0, DYNPOS AUTR

Built

Kleven Mek. Verstad A/S, Ulsteinvik, Norway, 1985, yard number 92

Upgrade 1992

Lengthened and modified @ Westamarin shipyard, Kristiansand, Norway

Upgrade July 1998

Additional thrusters and Power Management @ Shipdock Amsterdam

Upgrades 2004 & 2005

Switchboard & Power Management



Gross Registered Tonnage

    7,847

T

Net Tonnage

    3,111

T

Deadweight

  11,546

T



Length Overall

  129.05

m

Length between Perpendiculars

  121.80

m

Moulded Breadth

    20.50

m

Moulded Depth

    11.60

m

Maximum Loaded Draft

      8.65

m



Service Speed

    15.00 kts





MMSI Number

245696000





1 x Single non-reversible 8-cylinder

      Wärtsilä Main Diesel Engine

      Type 8R2D

1 x 2795 kW / 3750 bhp



1 x Shaft Generator

1 x   219 kW /    274 KVA / 440 V @ 60 Hz

1 x Shaft Generator

1 x 1500 kW / 1,875 KVA / 440 V @ 60 Hz

1 x Side step Take reduction gearbox



1 x Liaaen (Rolls Royce Marine) CPP

      Main Propeller

Maximum continuous power rating:

3800 BHP @ 70 RPM

1 x Single Spade Rudder

1 x Tjenford rotary vane steering gear unit



3 x Auxiliary Diesel Engine (Forward) with

      Accompanying Auxiliary Generator

3 x 510 kW / 638 KVA / 440 V @ 60 Hz



2 x Auxiliary Diesel Engine (Mid) with

      Accompanying Auxiliary Generator

2 x 1272 kW / 1590 KVA / 440 V @ 60 Hz

2 x Auxiliary Diesel Engine (Aft) with

      Accompanying Auxiliary Generator

2 x 290 kW / 362.5 KVA / 440 V @ 60 Hz

1 x Auxiliary Diesel Engine (Aft) with

      Accompanying Auxiliary Generator

1 x 510 kW / 638 KVA / 440 V @ 60 Hz

1 x Emergency Generator

1 x 9375 KVA / 7500 kW



2 x Ulstein Bow Tunnel Thruster (BT1/BT2)

      Type 150 TV B, CPP, FSP

  660 kW each



1 x Ulstein Stern Tunnel Thruster (ST3)

      Type 375 TV C, CPP, FSP

1000 kW

1 x Ulstein Stern Tunnel Thruster (ST4)

      Type 150 TV B, CPP, FSP

  660 kW

1 x Brunvoll Retractable Azimuth Thruster

      Type AR-63-LNC-1650 [Forward] (AT6)

  880 kW / 1185 motor rpm / 360 propeller rpm



1 x Brunvoll Retractable Azimuth Thruster

      Type AR-63-LNC-1650 [Aft] (AT5)

  880 kW / 1185 motor rpm / 360 propeller rpm





PMS

GTI, The Netherlands





Dynamic Positioning

Kongsberg SDP 21 Series



Acoustics

1 x HiPap 500

DGPS

2 units
