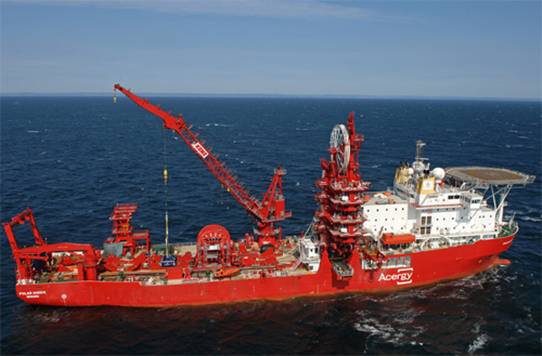

FPSHC POLAR QUEEN – LAEH6





Project Period

:

 30th of July 2007 - 24th of September 2007.

Function O/B

:

 CMID / Update FMEA & Witness DP FMEA Trials 2007.


FPSHC Polar Queen was located in the North Sea area during the FMEA activities.

The Basic Function of this Vessel : Flexible Pipelay & Subsea Heavy Construction.



Main Area of Operations : Offshore, West Africa.





General Specifications



Type of Vessel

Combined Flexible Pipelay &

Subsea Heavy Construction



Nationality (flag)

Norway / NIS

Port of Registry

Bergen

Callsign

LAEH6

IMO Number

9230414

MMSI Number

25746000

Classification Society & Notation



DNV +1A1, E0, DYNPOS-AUTR, W1-OC,

Heldk-S, Dk(+),LCS(DIS)

Built 2001

Hyundai Mipo Dockyard, Ulsan, South Korea

Yard Number

HMD Hull Number 0003



Gross Registered Tonnage

   14502

T

Net Tonnage

     4351

T

Deadweight

   13129

T



Length Overall

  147.90

m

Length between Perpendiculars

  128.60

m

Moulded Breadth

    27.00

m

Moulded Depth to main deck

    13.20

m

Moulded Depth to shelter deck

    17.10

m

Design/Maximum Draft

      8.00

m



Operating Water Depth

0 to 3000 m





Service Speed

    12.0  kts



Maximum Speed

    15.9  kts



4 x Main Diesel Engine,

      make MAN B&W, type 8L32/40

4 x 3840 kW / 5222 BHP @ 720 rpm



4 x Main Generator, make Alstom

4 x 3705 kW / 4.16 kV @ 60 Hz



1 x Harbor Diesel Engine,

      make MAN B&W, type 6L23/30H

1 x   910 kW @ 900 rpm



1 x Harbor Generator

1 x 1137.5 kVA / 450V @ 60 Hz



1 x Emergency Diesel Generator,

      make Cummins Inc.,

      type 6CTA 8.3-D(M)

1 x   750 kW @ 60 Hz





1 x Lips Bow Tunnel Thruster, CPP, FSP,

     Type CT200Z-DP

1 x 1320 kW



2 x Lips Azimuth Thruster, FPP, VSP,

     Type FS15100-350/1510/MNR,

     Retractable

2 x 2000 kW

2 x Alstom Variable Speed Drive MV3000

2 x Lips Main Azimuth Thruster, FPP, VSP,

     Type FS3500-671/MN

2 x 4500 kW

2 x Alstom Variable Speed Drive VDM5000



Dynamic Positioning

Kongsberg Maritime, SDP-22



VMS / PMS

Kongsberg Maritime, SVC 4.0

Acoustics

2 x HiPap 500

DGPS



2 x Seatex DPS 100 (IALA/Spotbeam/Inm-B) &

1 x Seatex Seapath 200 (Spotbeam/Inm-B)
