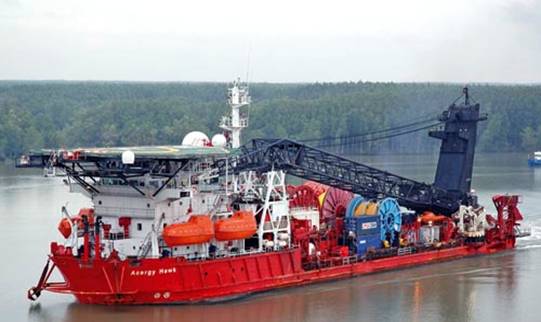

DSV ACERGY HAWK – HPWC





Period O/B

:

14th of February 2008 – 18th of February 2008.

Function O/B

:

Witness Client DP FMEA Class 2 Trials & IMCA CMI MSA.


DSV Acergy Hawk was located near FPSO Agbami, offshore Port Harcourt, Nigeria

during the trial activities of February 2008.



The Basic Function of this Vessel during Survey period: Floatel service for Agbami FPSO.



Main Area of Operations : Offshore Nigeria.







General Specifications



Type of Vessel

Crane Vessel, Subsea construction, Heavy Lift

Nationality (flag)

Panama



Port of Registry

Panama

Official Number

8361-PEXT-3

Callsign

HPWC

IMO Number

7725336

MMSI Number

353941000

Classification DNV

+1A1, HELDK, DYNPOS-AUTR

Built

Mitsubishi Heavy Industries, Kobe, Japan, delivery 1978, building classification by ABS.



Gross Tonnage

  3,860

Mt

Net Tonnage

  1,158

Mt

Deadweight

  4,338

Mt



Length Overall

  94.11

m

Length Between Perpendiculars

  89.62

m

Moulded Breadth

  18.81

m

Depth

    6.71

m

Max. Draft

    5.38

m

Draught (class reg.)

    5.318

m

Operating Draft

    4.4

m



3 x Daihatsu Main Generator Diesel Engine,

      Type 6DS-18A

3 x 400 kW / 440V / 60 Hz



1 x Emergency Generator

1 x 220 kW / 750 KVA GM / 440V / 60 Hz



2 x Kamome Bow Tunnel Thruster,

      type TC-110 DLN, CPP, each driven

      by a Daihatsu Diesel Engine

2 x 1000 bhp / 11.3 tonnes force

@ 700-900 RPM



2 x Kamome Stern Tunnel Thruster,

      type TC-70 DLN, CPP, each driven by

      a Daihatsu Diesel Engine

2 x   850 bhp /   8.3 tonnes thrust

@ 700-900 RPM

2 x Kamome Main Propeller, type CPC-80H

     [port] & CPR-80M [stbd], both CPP,

      each driven by a Daihatsu Main Diesel

      Engine, type 6DSM-32, 450-600 RPM,

      Nigata Reduction gear: MGC 2000 AKH

2 x 2100 bhp / 19.4 tonnes of thrust ahead /

                        10.2 tonnes of thrust astern



Dynamic Positioning

Converteam Series ´A´ Duplex



Acoustic Reference System

Sonardyne USBL acoustic system

DGPS

2 x Thales – Multifix III

Laserunit based Reference System

1 x Fanbeam MDL Mk4

Taut Wire

2 x Cegelec Electric Taut Wire
