Period O/B
|
:
|
4th of
March 2008 – 12th of March 2008.
|
|
Function O/B
|
:
|
Annual DP FMEA
Trials 2008.
|

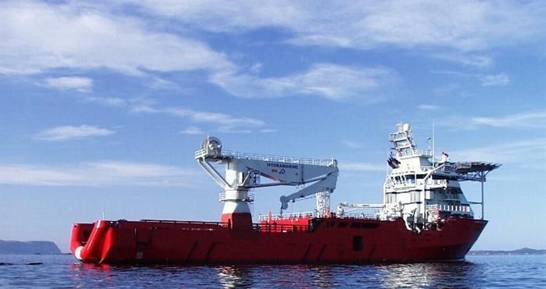

FSMPDSV Skandi Patagonia was located at Cullin near
Total Hidra station, Argentina during the Trial activities.
The
Basic Function of this Vessel : Multipurpose field
supply-, dive/ROV assignments.
Main Area of Operations : Offshore Argentina.
|
|
General Specifications
|
Type of Vessel
|
Multipurpose field supply-, dive/ROV
|
|
|
Nationality (flag)
|
Norway
|
|
Port of Registry
|
Bergen
|
|
Callsign
|
LLFR3
|
|
IMO Number
|
9182203
|
|
MMSI Number
|
257118000
|
|
Classification DNV
|
+1A1, Fire Fighter I, SF, HELDK
DSV-I and III, E0, DYNPOS-AUTR, DK(+) HL(2.5, 2.8)
|
|
Built
|
Hull: Santierul Naval Tulcea SA,
Romania;
Outfitting: Brattvåg Skipsverft
AS, Norway, type MT6016, year of build 2000
|
|
Gross Tonnage
|
4,641
|
Mt
|
|
Net Tonnage
|
1,392
|
Mt
|
|
Deadweight
|
3,722
|
Mt
|
|
Length Overall
|
93.30
|
m
|
|
Length Between Perpendiculars
|
83.40
|
m
|
|
Moulded Breadth
|
19.70
|
m
|
|
Moulded Depth to Main Deck
|
7.45
|
m
|
|
Max. Draught
|
6.00
|
m
|
|
Speed @ 5,2 m draught
|
15,2 knots
|
|
|
2 x Wärtsilä
Main Diesel Engine,
type 8L32
|
2 x 3600 kW / BHP 9792
|
|
|
2 x
Accompanying Main Generator,
make Siemens
|
2 x 1650 kVA / 690V / 60 Hz
|
|
2 x Wärtsilä Main
Diesel Engine,
type 9L20
|
2 x 1530 kW / BHP 4161
|
|
2 x
Accompanying Main Generator,
make Siemens
|
2 x 3820 kVA / 690V / 60 Hz
|
|
1 x Emergency
Diesel Engine,
make AB Volvo Penta,
type TAMD 162C-B
|
1 x 370 kW
|
|
1 x
Accompanying Emergency Generator,
make Siemens
|
1 x 430 kVA
|
|
2 x Bow Tunnel Thruster,
make KaMeWa, FPP, CSP
type 2 200 K/FP
|
|
|
|
1 x Azimuth Thruster,
make Aquamaster, FPP,
CSP, VROS,
retractable, type UL 1
201/4940
|
|
|
Thruster &
Propulsion System:
2 x Stern Azimuth Thruster,
make Aquamaster, FPP,
CSP
type US 5001/4790, ø
3500 mm
counter-rotating dual
propellers
|
2 x 3700 kW with nozzles.
|
|
Dynamic Positioning
|
Kongsberg Simrad, SDP-22 with STC
|
|
|
IVCS / PMS
|
Kongsberg SVC system
|
|
Acoustic Reference System
|
1 x HiPap 500
|
|
DGPS Reference System
|
2 x DPS 100/Glonass + 3 x diff.
demodulator
|
|
Laserunit Reference System
|
1 x Fanbeam 4 MDL
|
|
Light Weight Taut Wire
|
1 x Mk 12 [360 kg]
|
|
