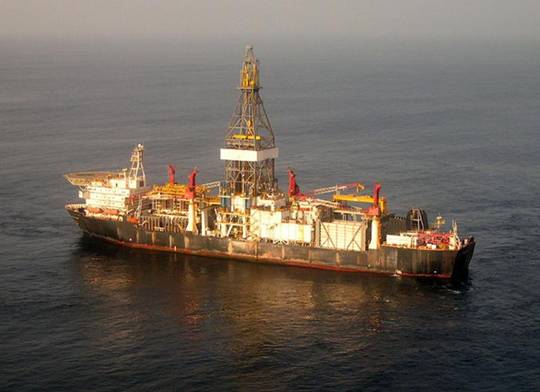

UDWDV GSF JACK RYAN – YJUF6







Period O/B

:

28th of April 2008 – 29th of April 2008.

Function O/B

:

Review Recommendations DP FMEA Trial 2007.


UDWDV Jack Ryan was located offshore Port Harcourt during the Trial activities.

The Basic Function of this Vessel : Ultra-Deepwater Drilling.



Main Area of Operations : Akpo / OML 130, Offshore Nigeria.





General Specifications



Type of Vessel

Ultra-Deepwater Drilling



Nationality (flag)

Vanuatu

Official Number

1561

Port of Registry

Port Vila

Callsign

YJUF6

IMO Number

9190705

Classification ABS



+A1, Drilling Unit, E, +AMS, ACCU, DPS-3 …, R2-S+

Built

Harland & Wolff Shipbuilding & Heavy Industries, Belfast, 2000, Ireland, UK,

SHI HN1739



Gross Registered Tonnage

   47,079

T

Net Tonnage

   14,123

T

Deadweight

   53,100

T

Displacement

   25,694.6

T



Length Overall

      231.30

m

Length between Perpendiculars

      210.00

m

Moulded Breadth

        36.00

m

Moulded Depth (Amidships) to upper deck

        19.00

m

Moulded Operational Summer Draft

          9.50

m

Draft at assigned load line

        11.00

m



Operating Water Depth (as designed)

12,000 ft / 3657.6 m



Operating Water Depth (as outfitted)

10,000 ft / 3048 m



Service Speed

   12.0 kts



Transit Speed

   10.0 kts



MMSI Number

576927000





8 x MAN B&W Main Diesel Engine

      Type 9L32/40

8 x 4275 kW / 5,790 hp @ 720 RPM



8 x ABB Main Generator,

      Model HSG-900-P10-1M1101

8 x 5230 KVA / 4184 KW @ 6,6 KV / 60 Hz



1 x Caterpillar Emergency Diesel Engine

      Type 3516

1 x 1100 kW / 1,536 hp



1 x Emergency Generator, Model SR-4

1 x 1462 kVA /  480V / 60 Hz



6 x KaMeWa Azimuth Thruster, FPP, CSP,

 Retractable, Type Aquamaster UUC 7001

6 x 5000 kW / 6,700 hp





Dynamic Positioning

Nautronix 5003 Series



VMS / PMS

ABB Advant

Acoustics

2 x RS925

DGPS

Trimble / Fugro / Seastar & Deltafix demod-s
