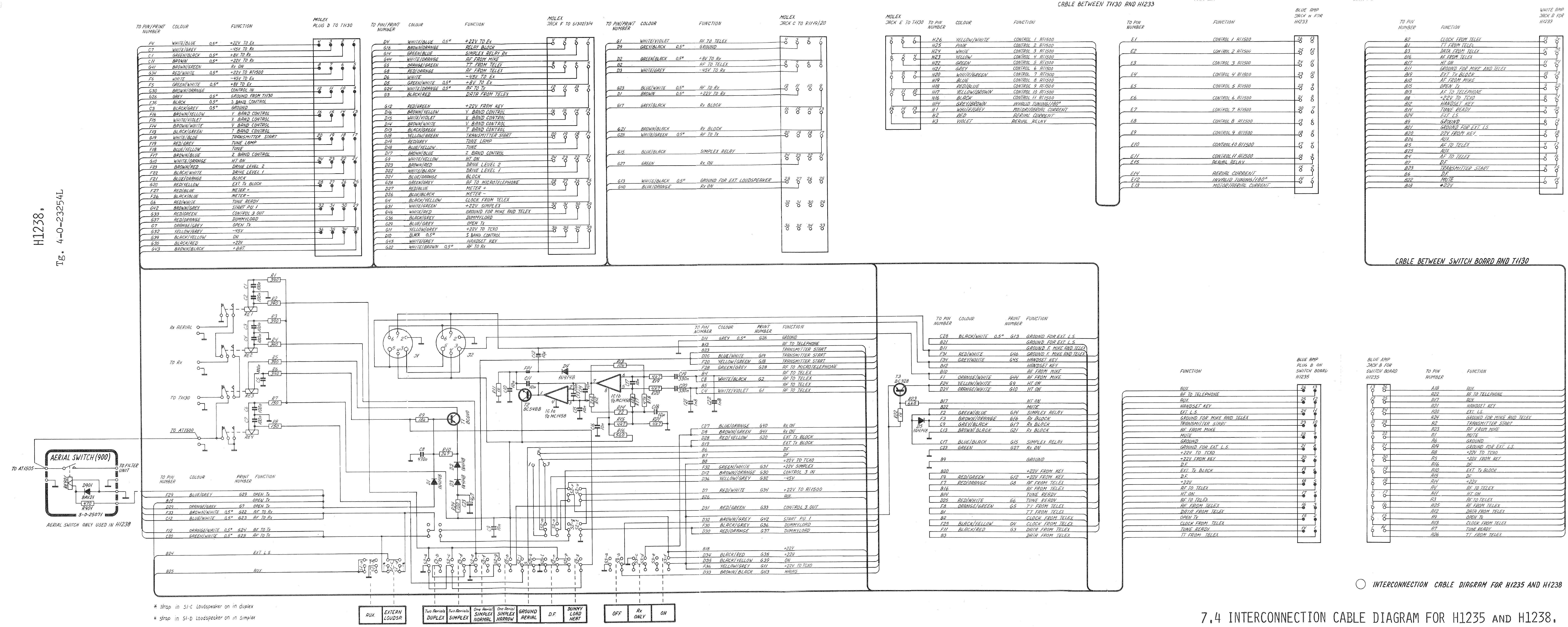

H1238 Interconnection diagram

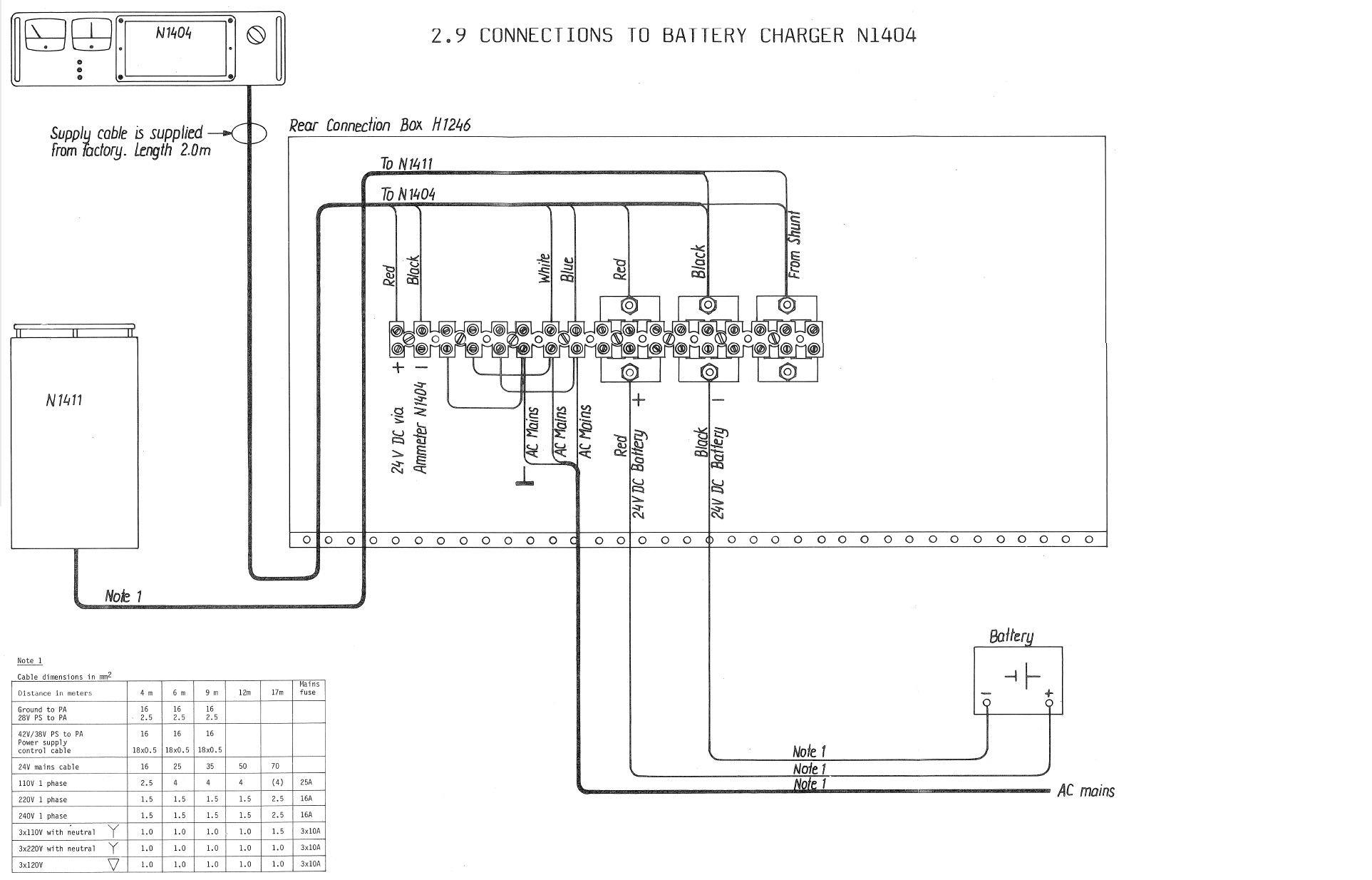

H1238 Connections to battery charger N1404

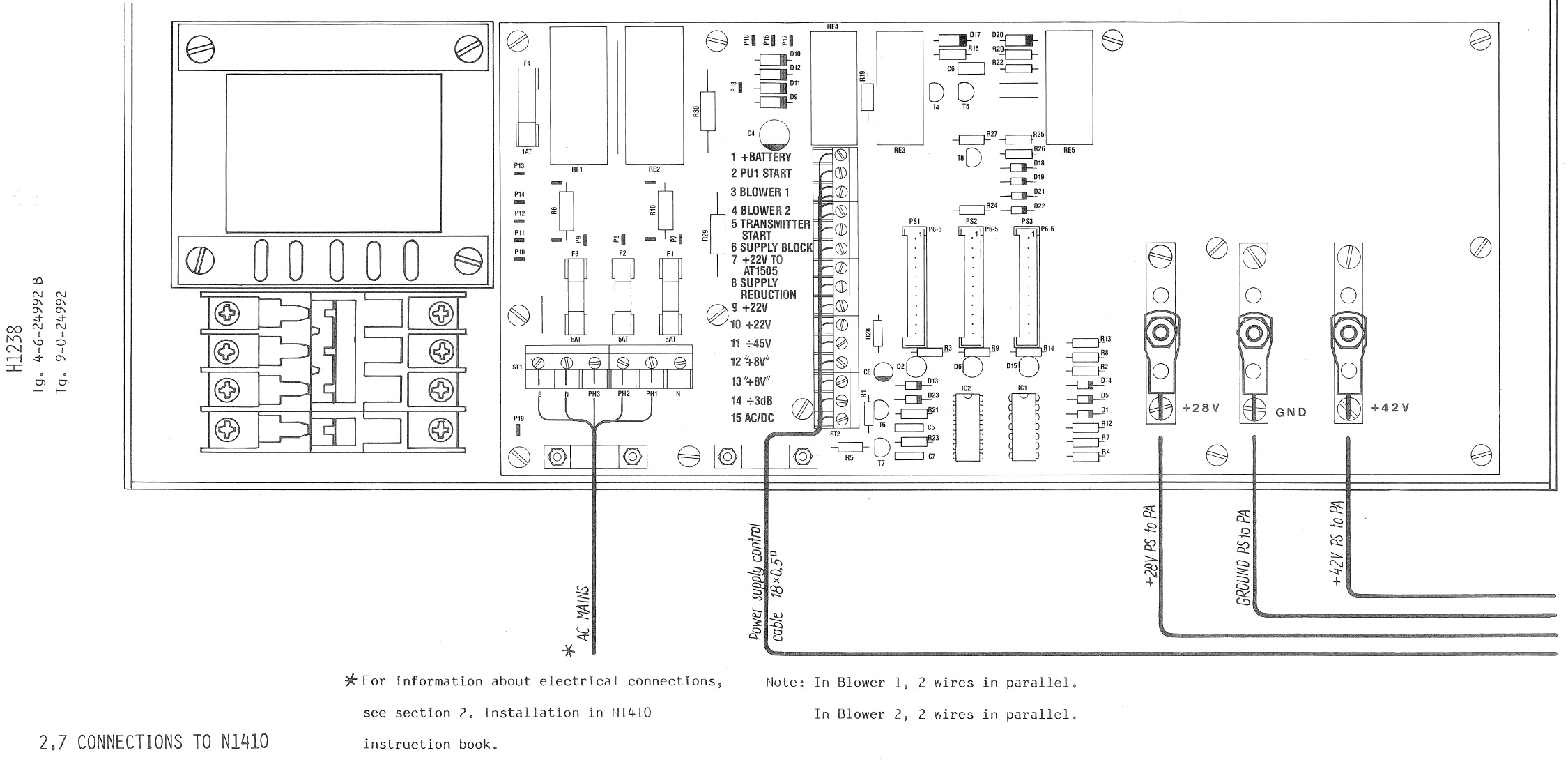

H1238 Connections to N1410

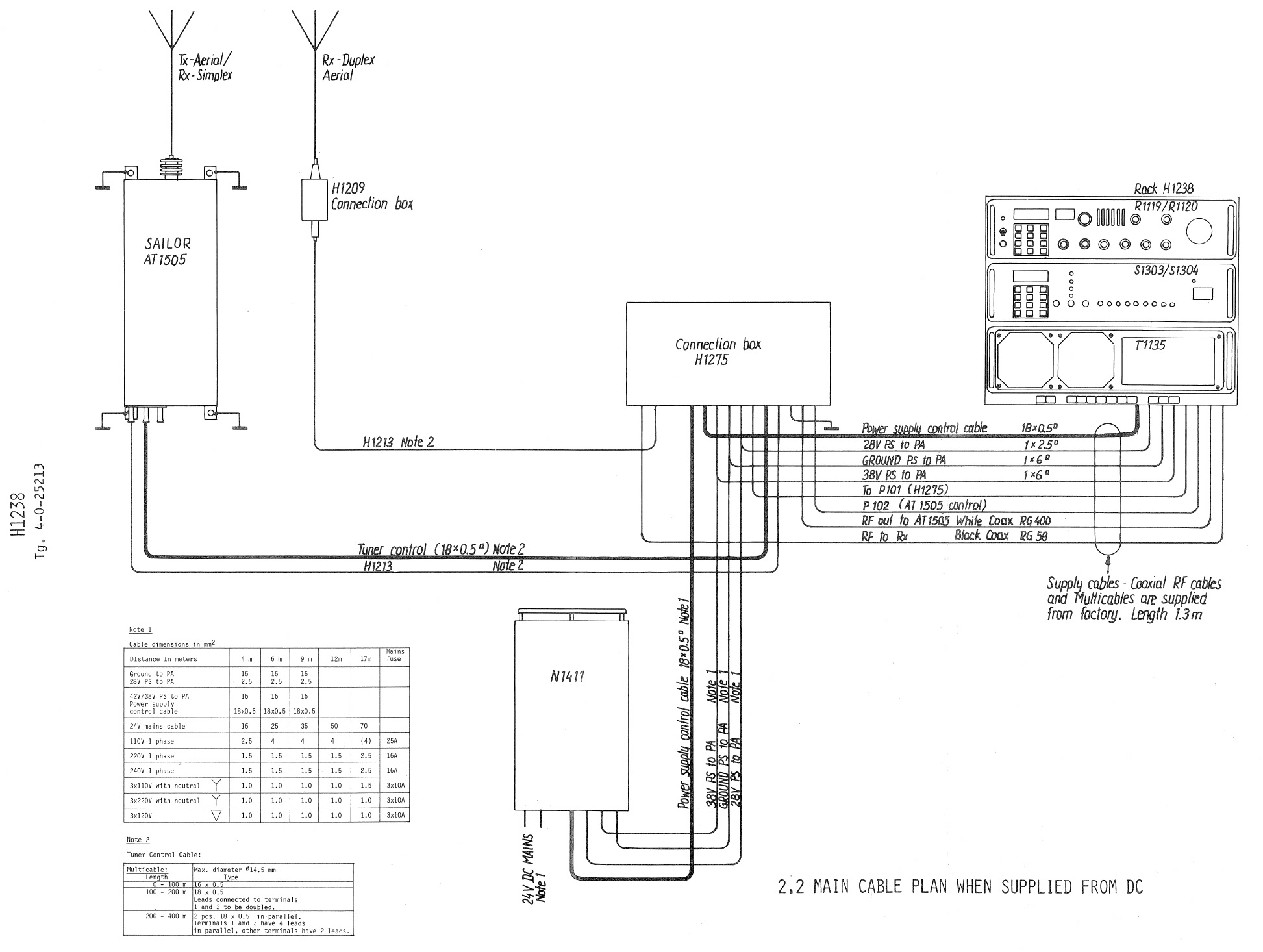

H1238 Main cable plan when supplied from DC

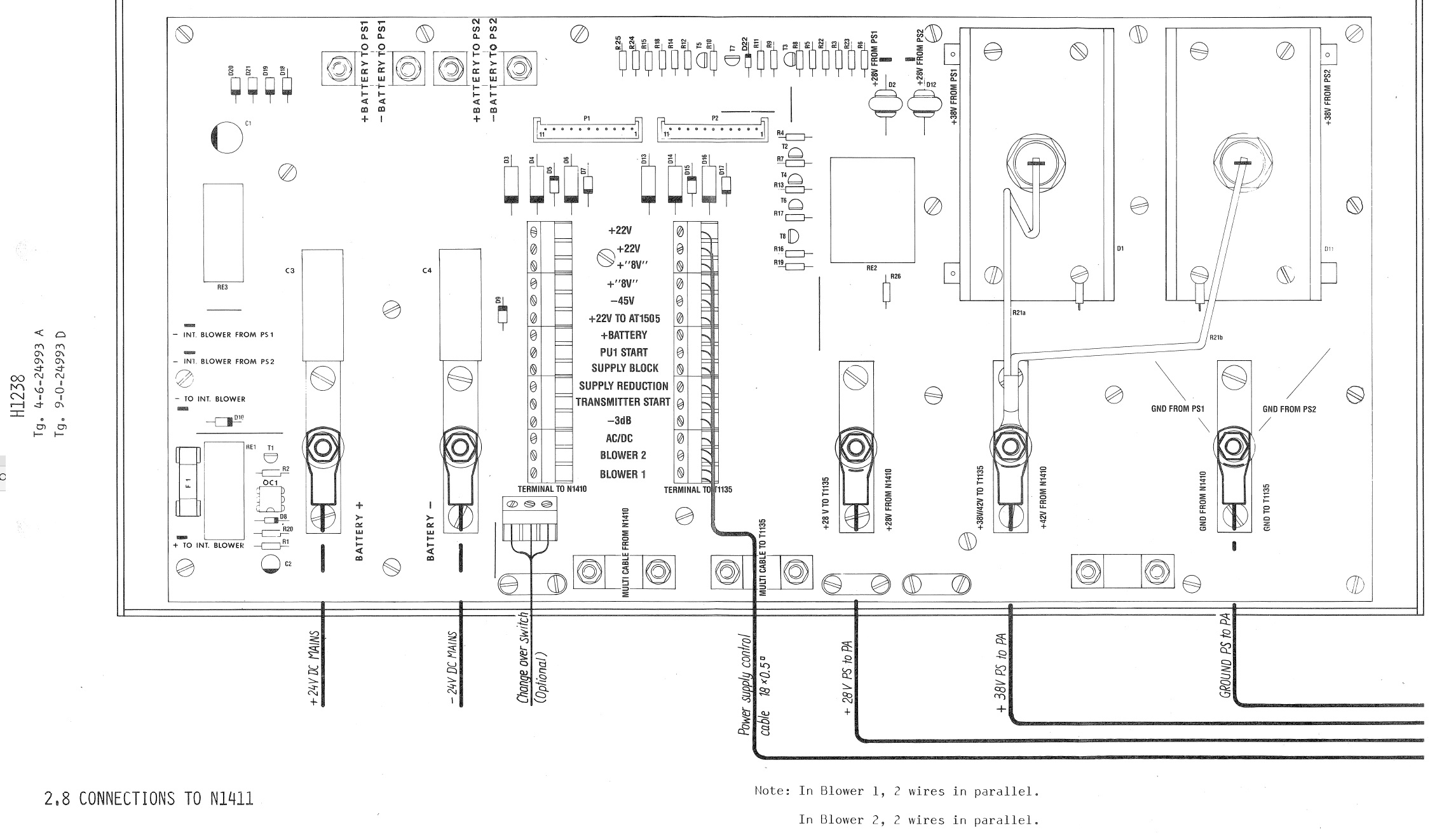

H1238 Connections to N1411

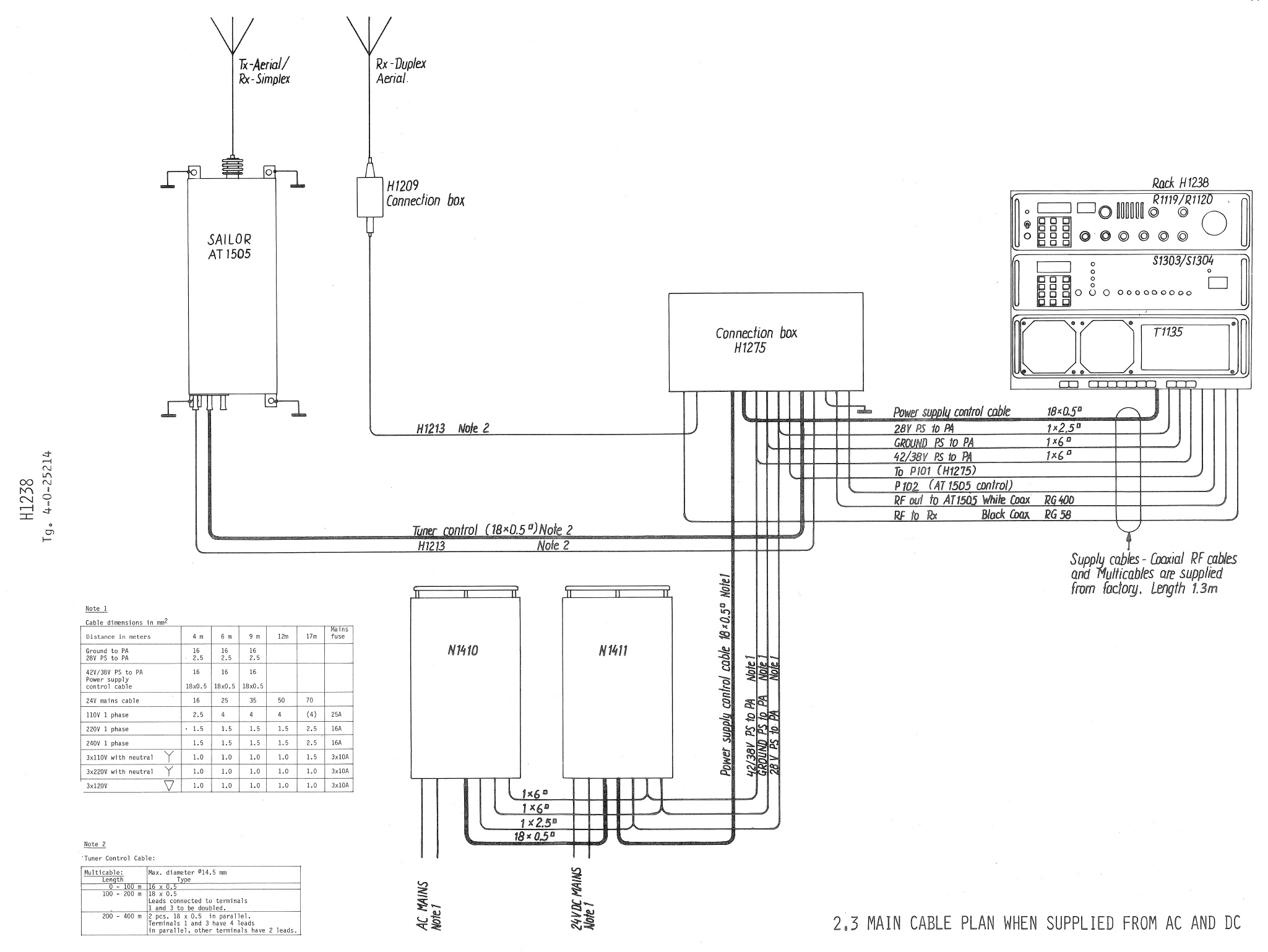

H1238 Main cable plan when supplied from AC and DC

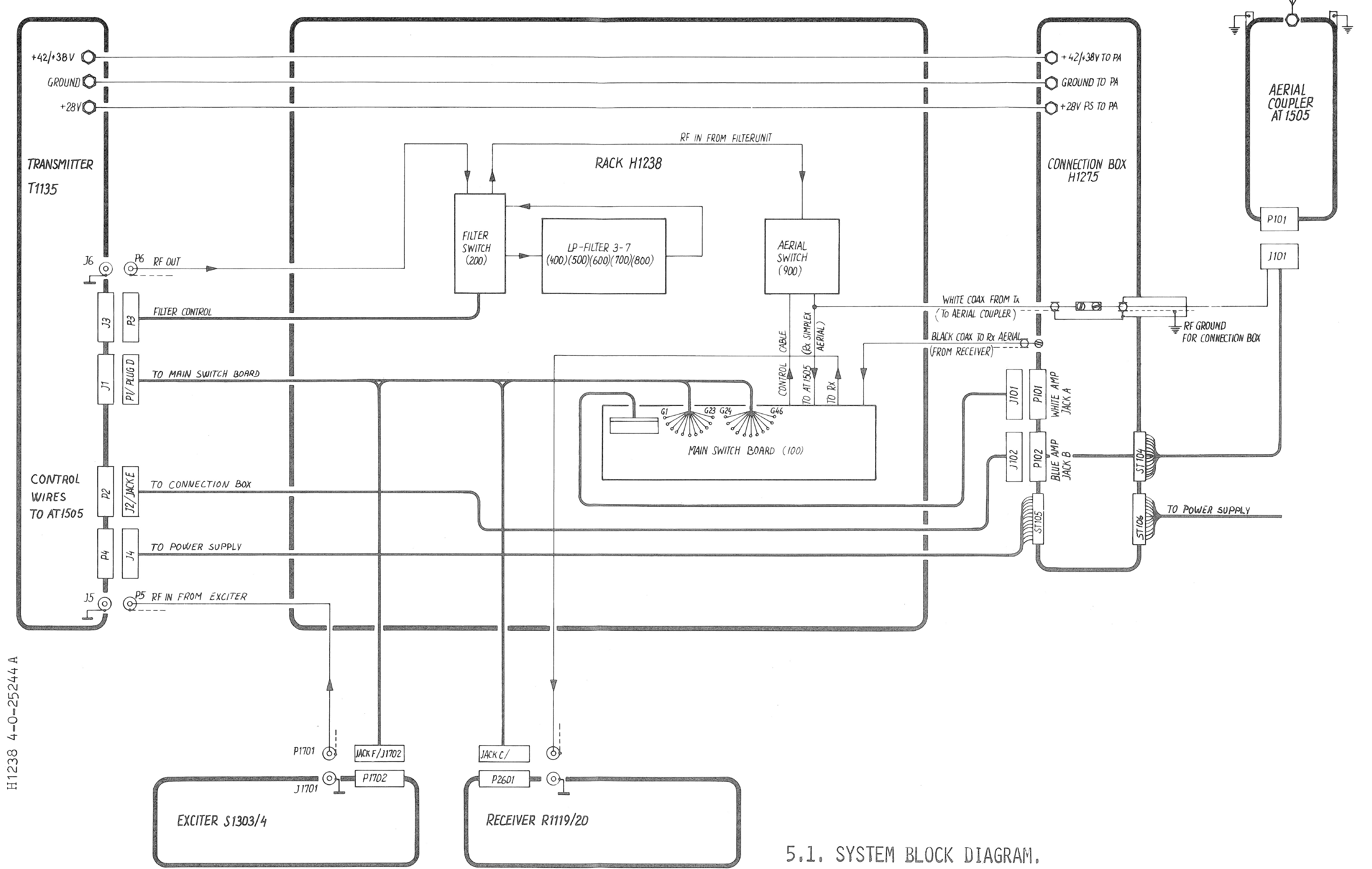

H1238 System block diagram

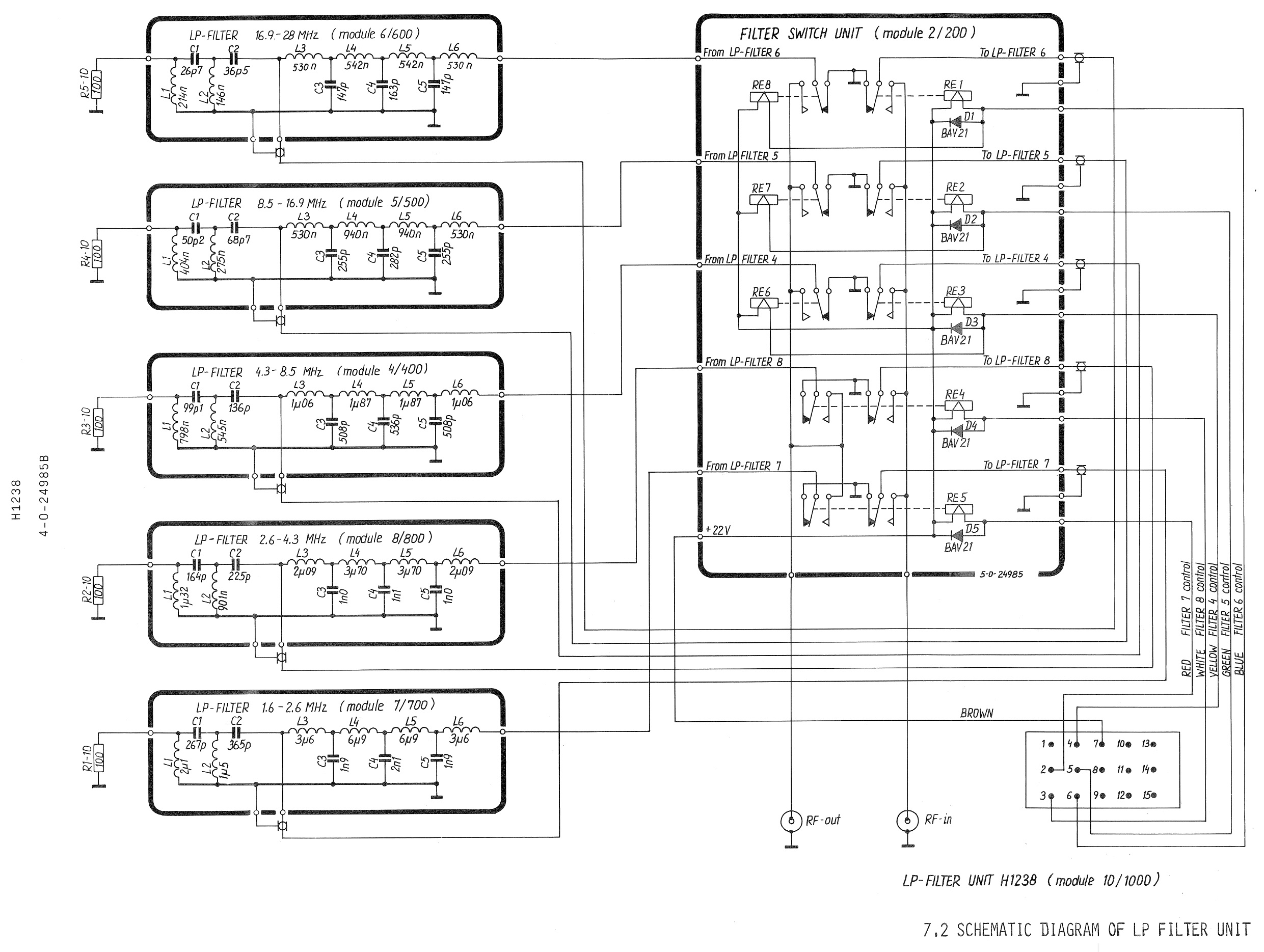

H1238 LF-filter unit (module 10-1000)

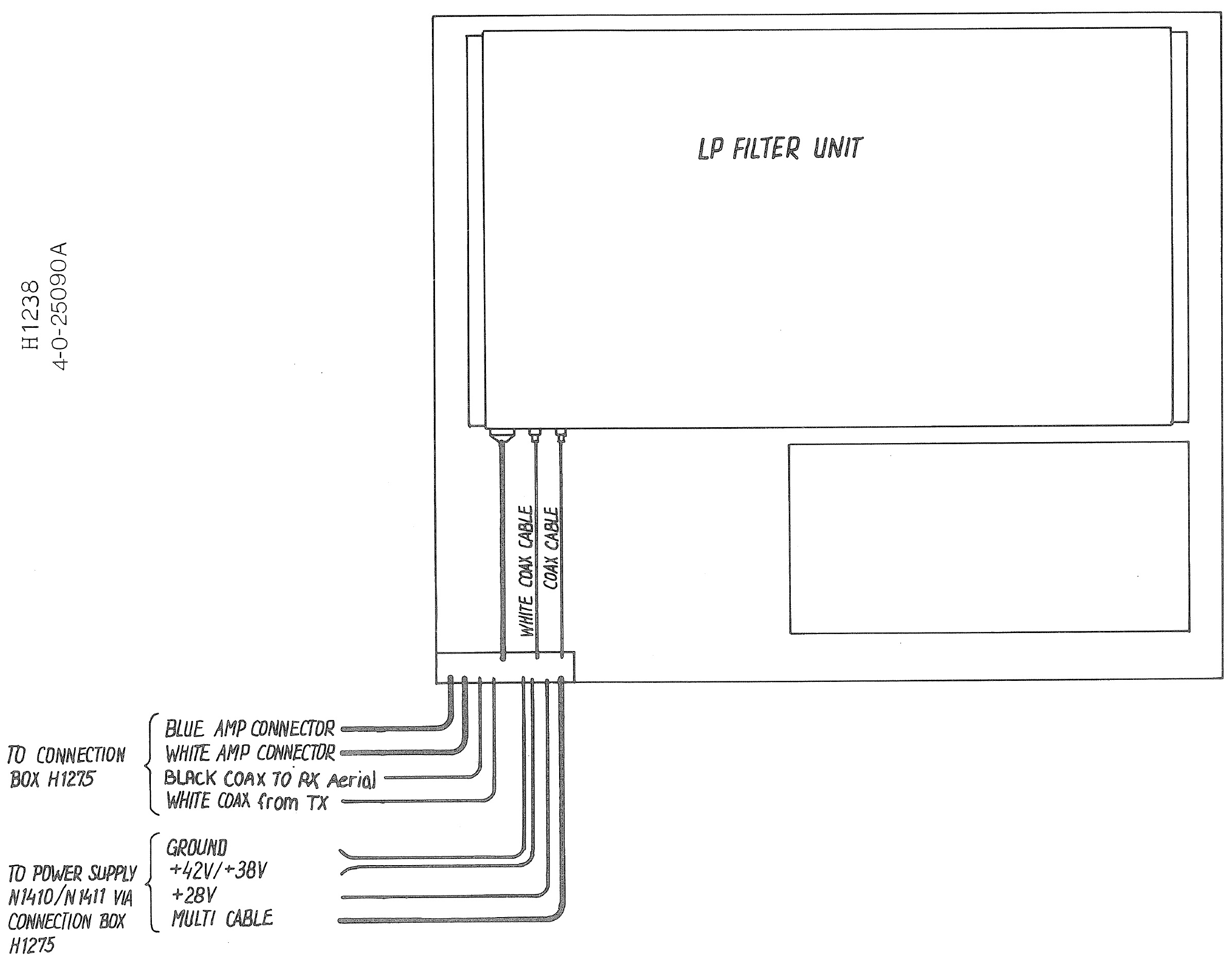

H1238_LP_filter_unit

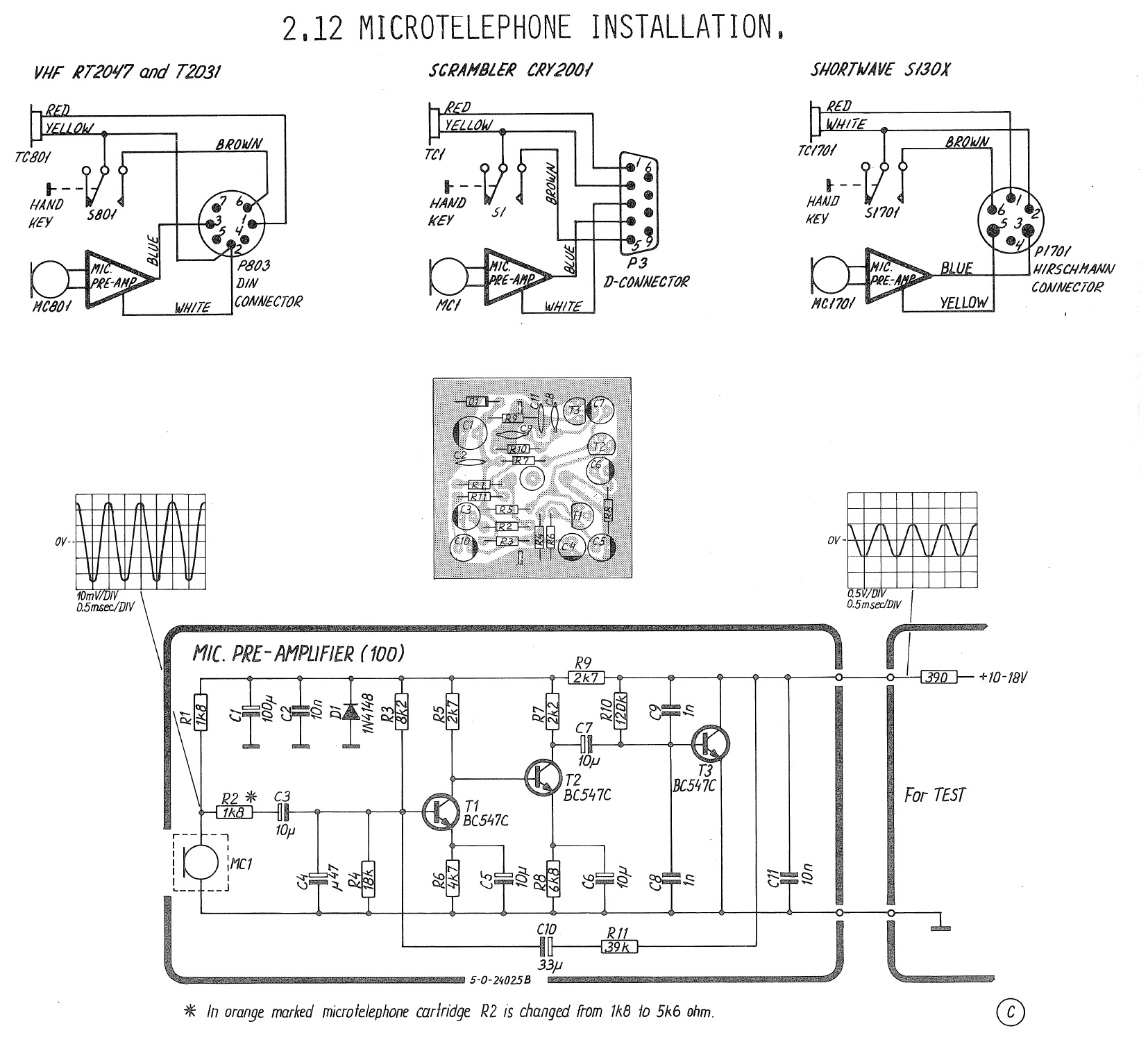

Microphone installation
