Part list Module-1600

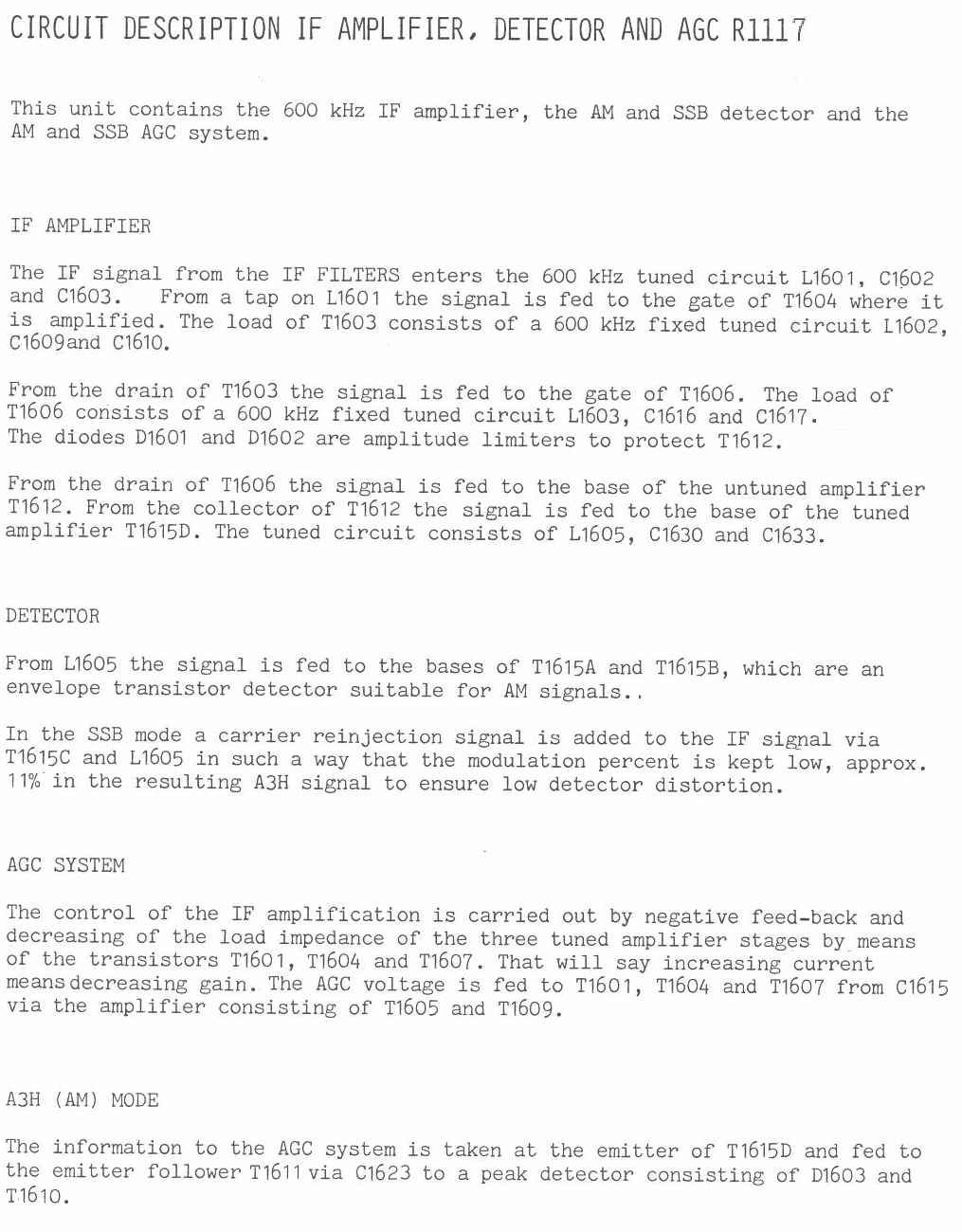

Sailor R1117 IF amplifier detector and AGC page-1

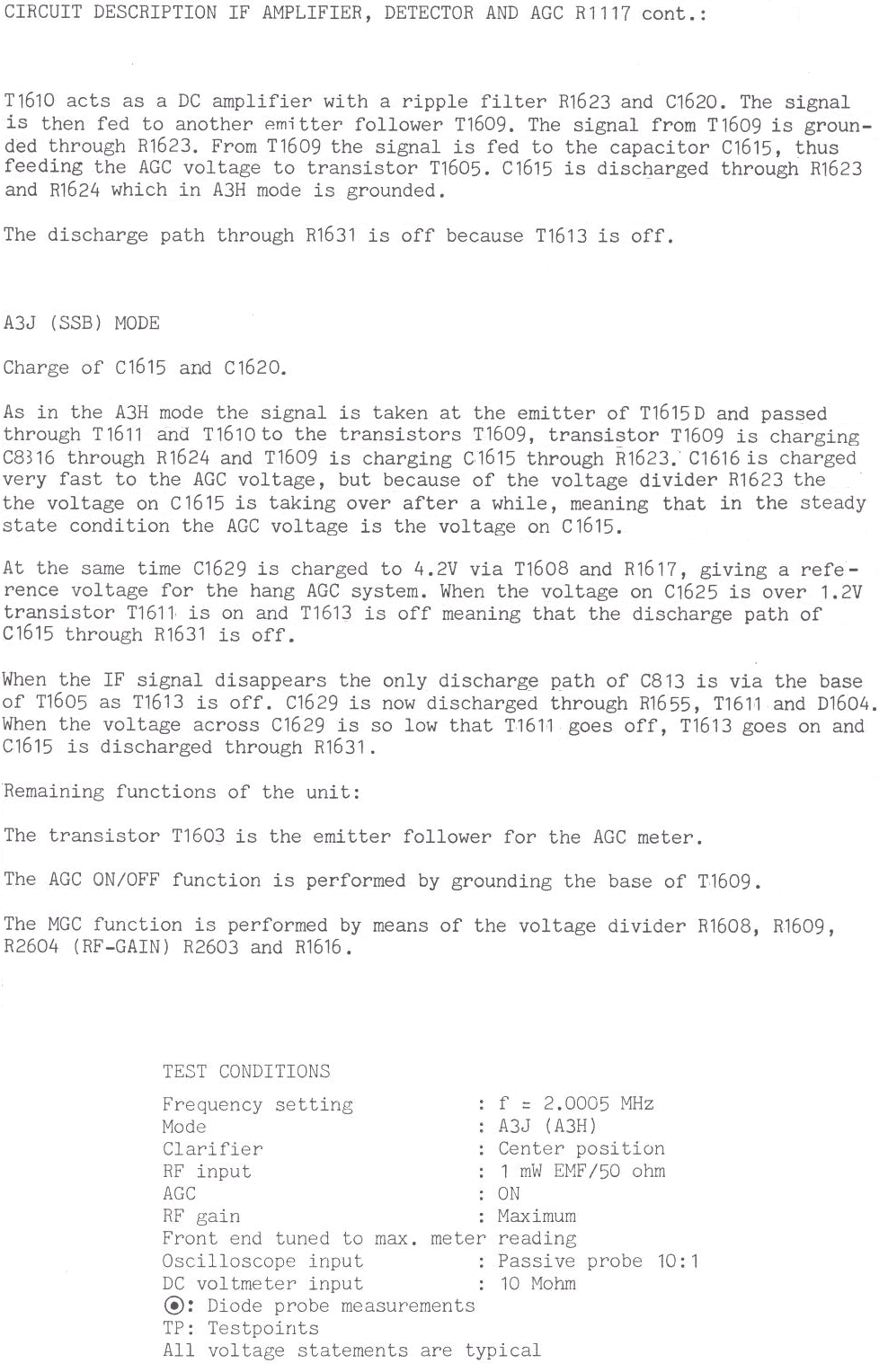

Sailor R1117 IF amplifier detector and AGC page-1

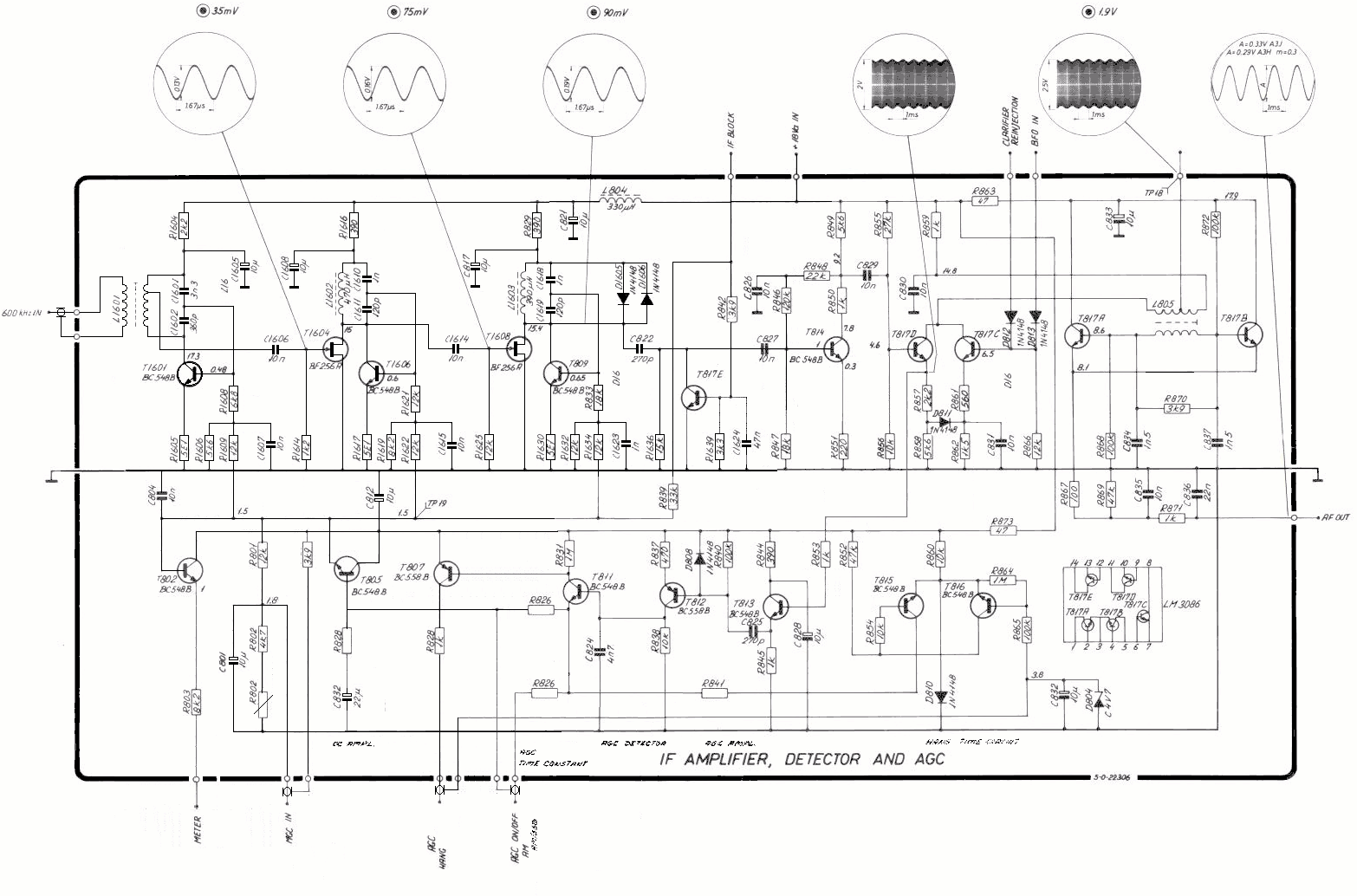

Sailor R1117 IF amplifier detector and AGC schema

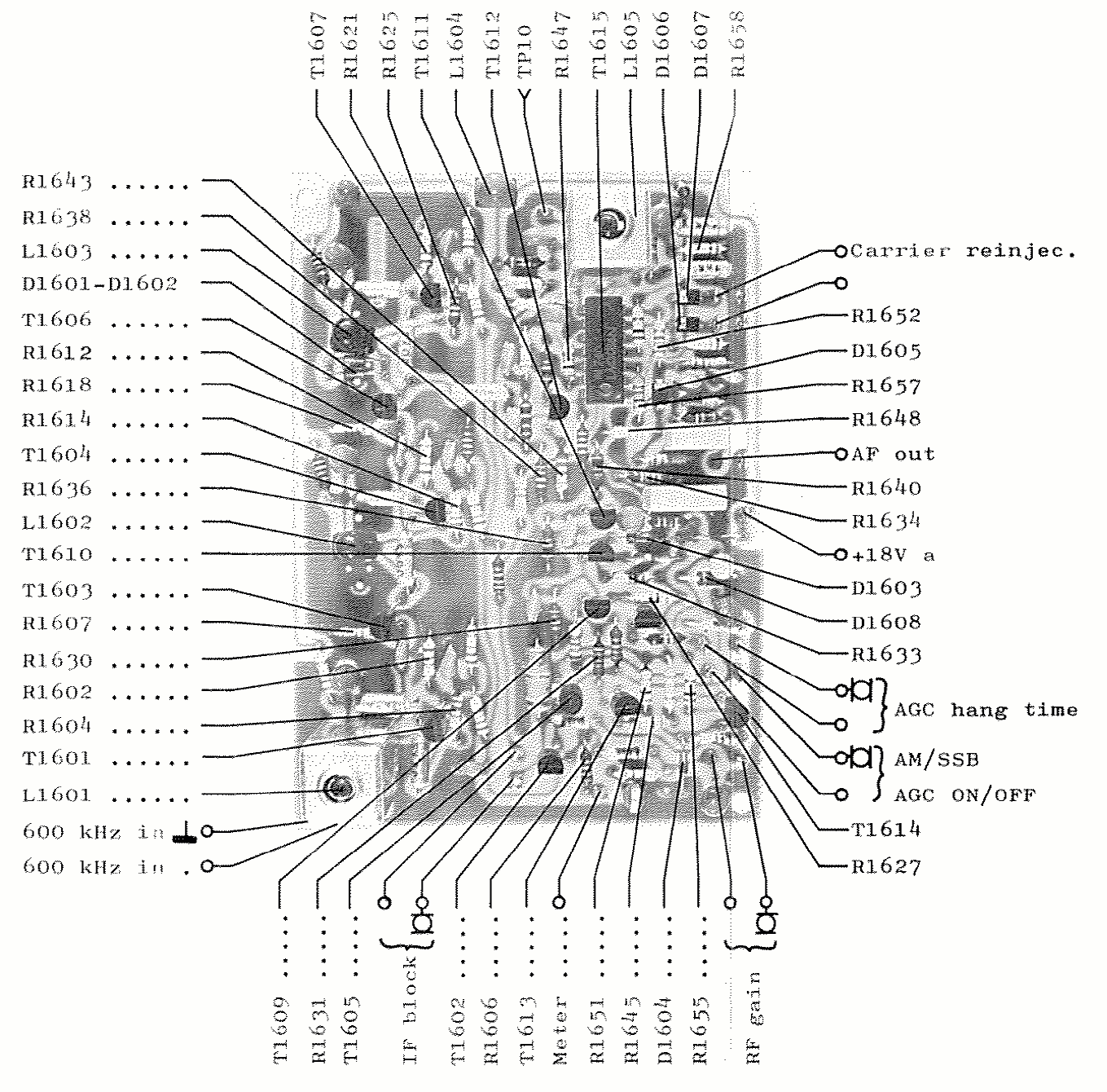

Sailor R1117 IF amplifier detector and AGC view
