Sailor S130X VCO parts list-1
Sailor S130X VCO parts list-2

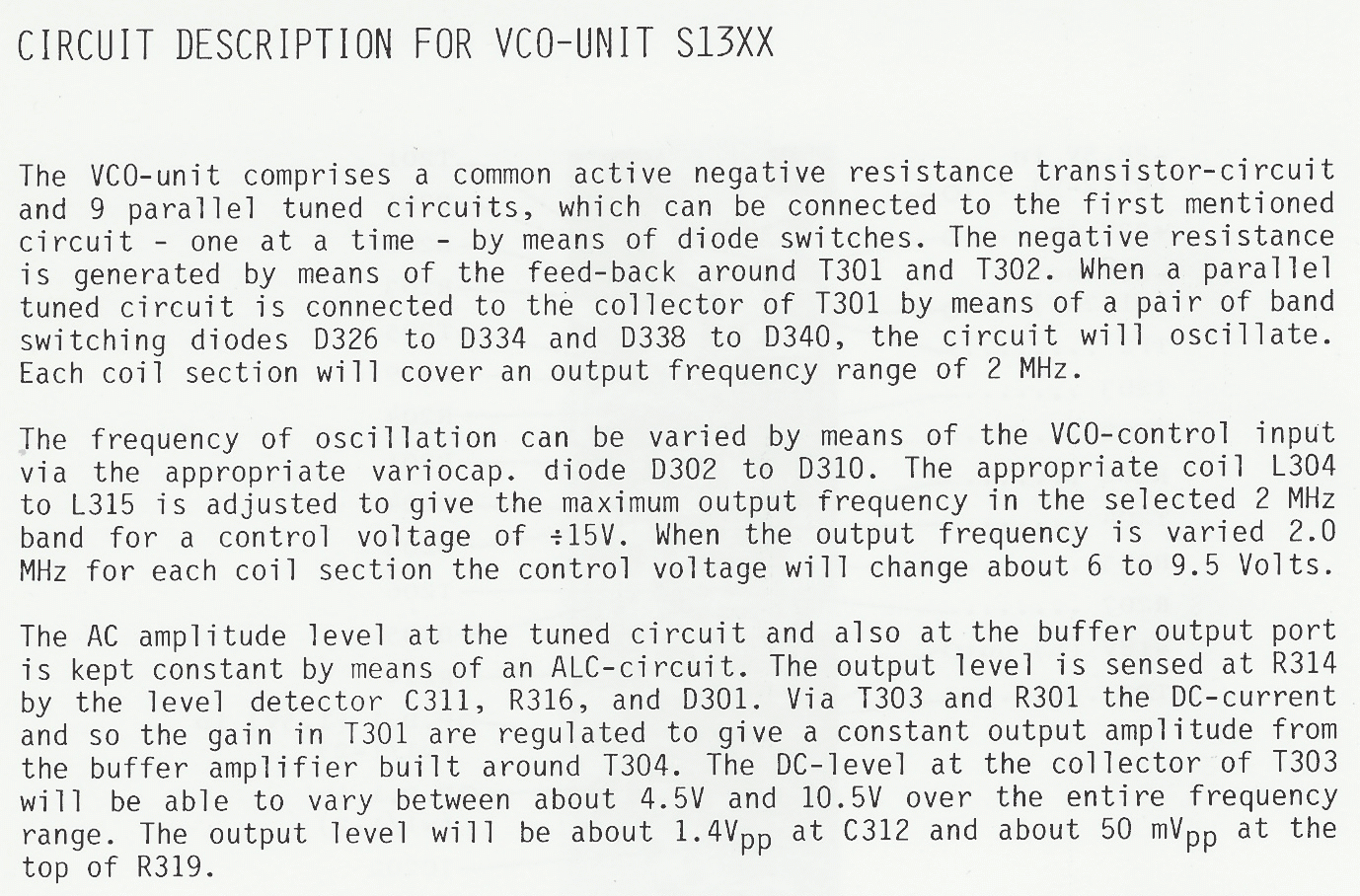

Sailor S1301 VCO unit page-1

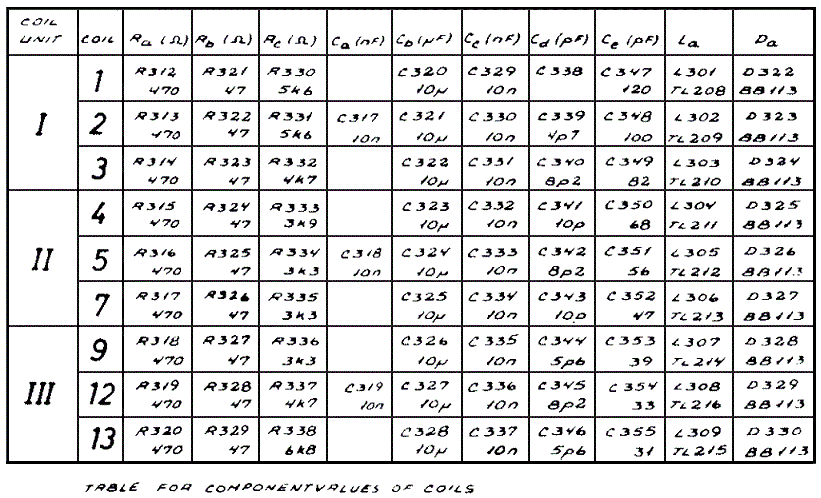

Sailor S1301 VCO unit tabel

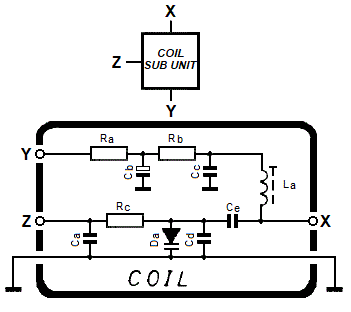

Sailor S1301 VCO unit coils

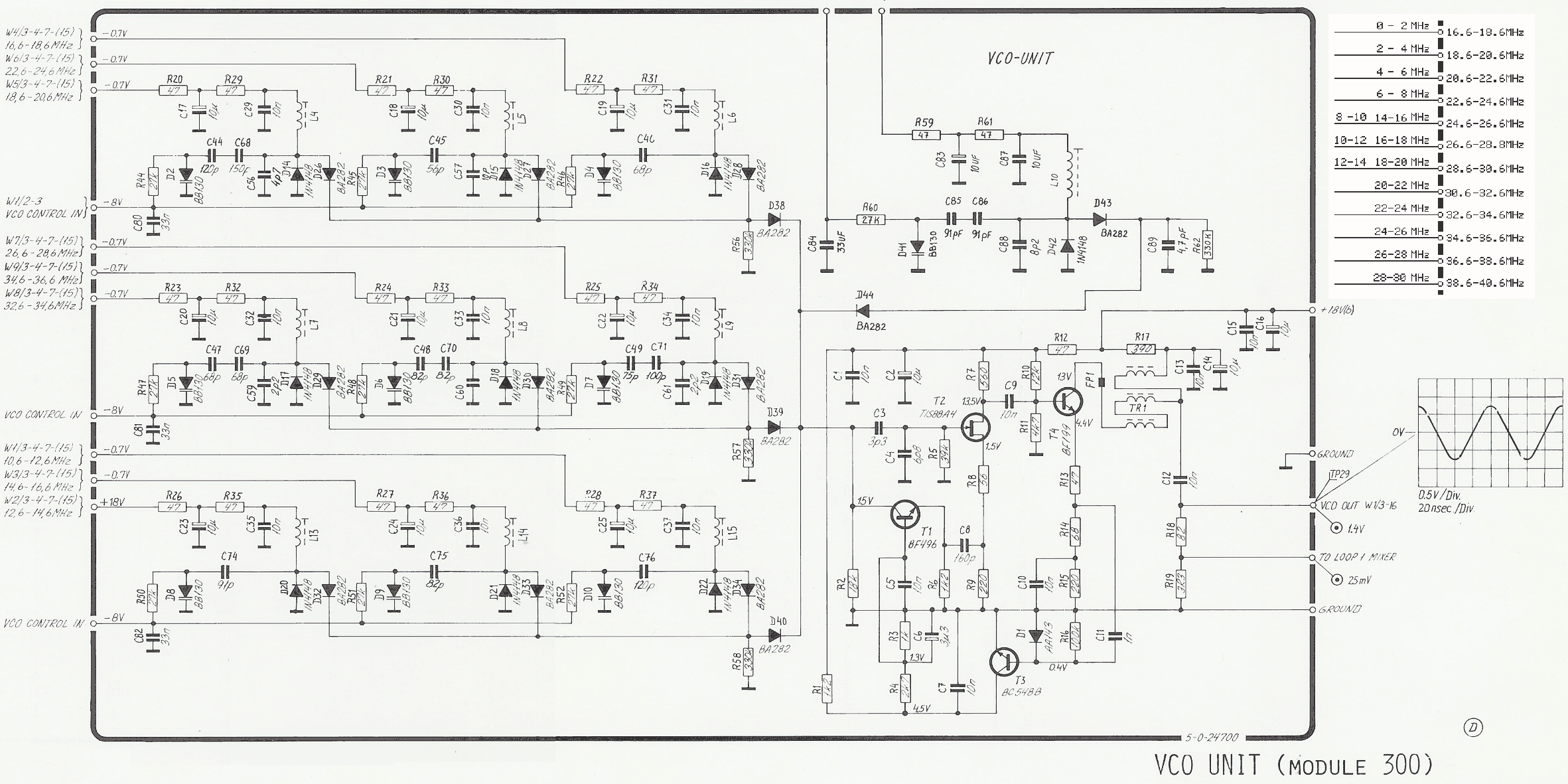

Sailor S1301 VCO unit schema

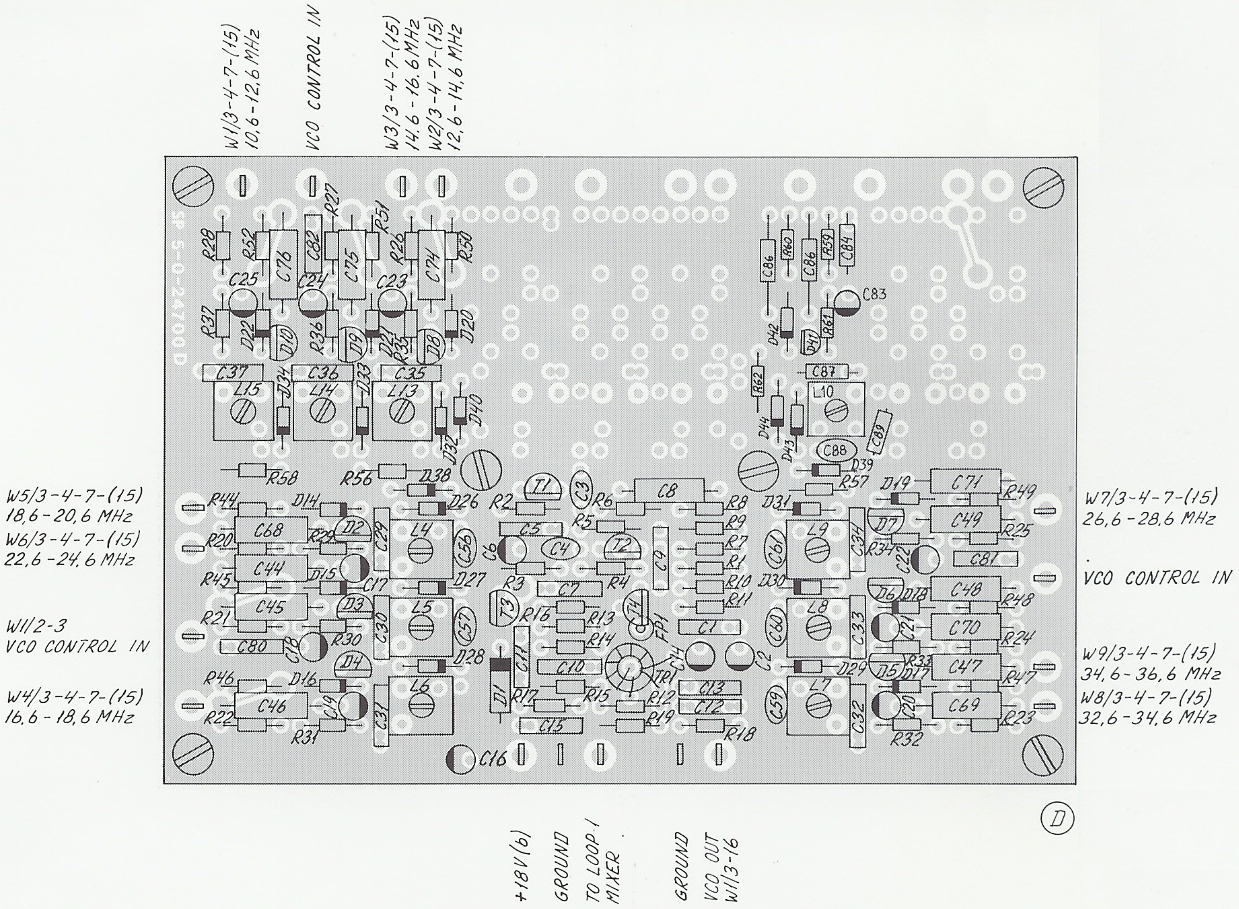

Sailor S1301 VCO unit view

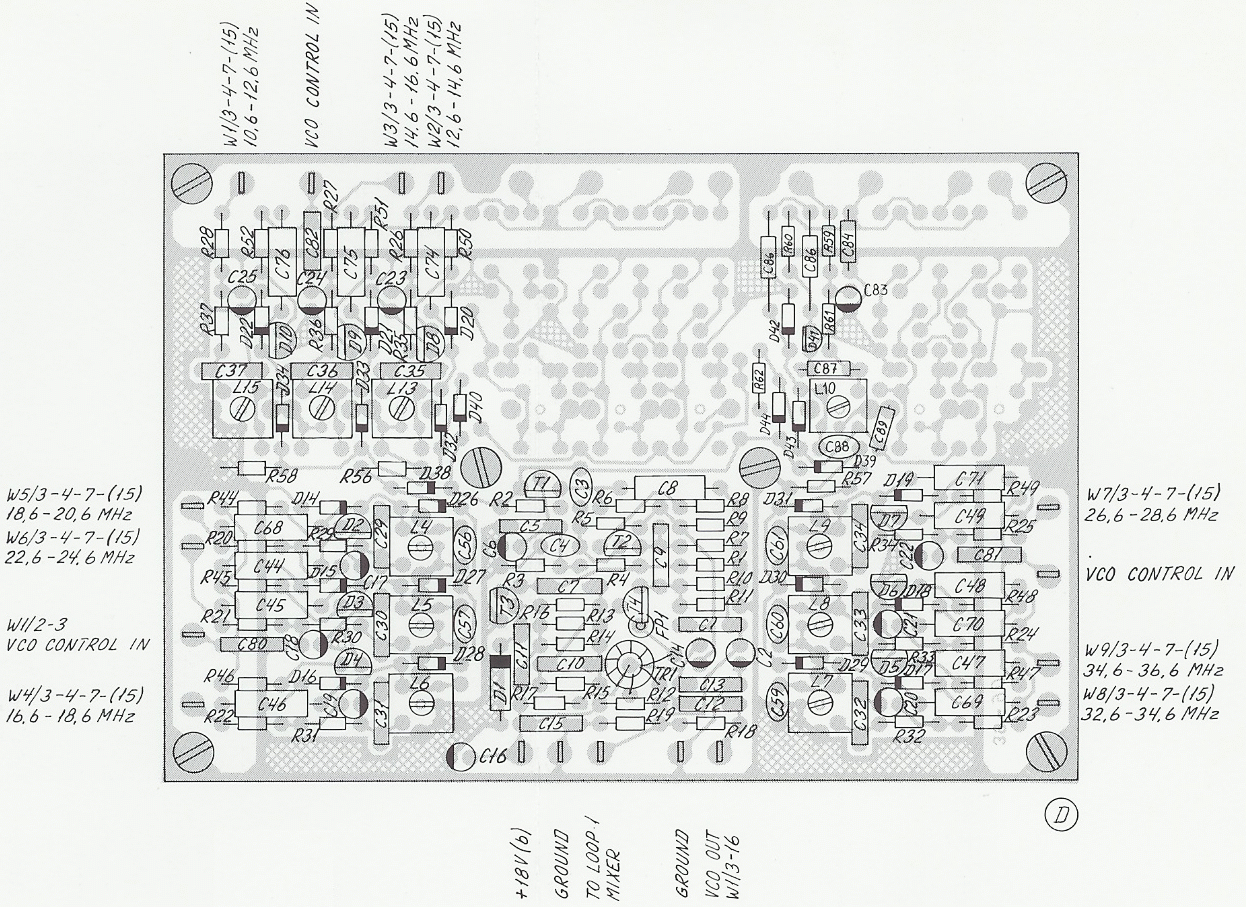

Sailor S1301 VCO unit view
