Sailor S130X VCO parts liste-300

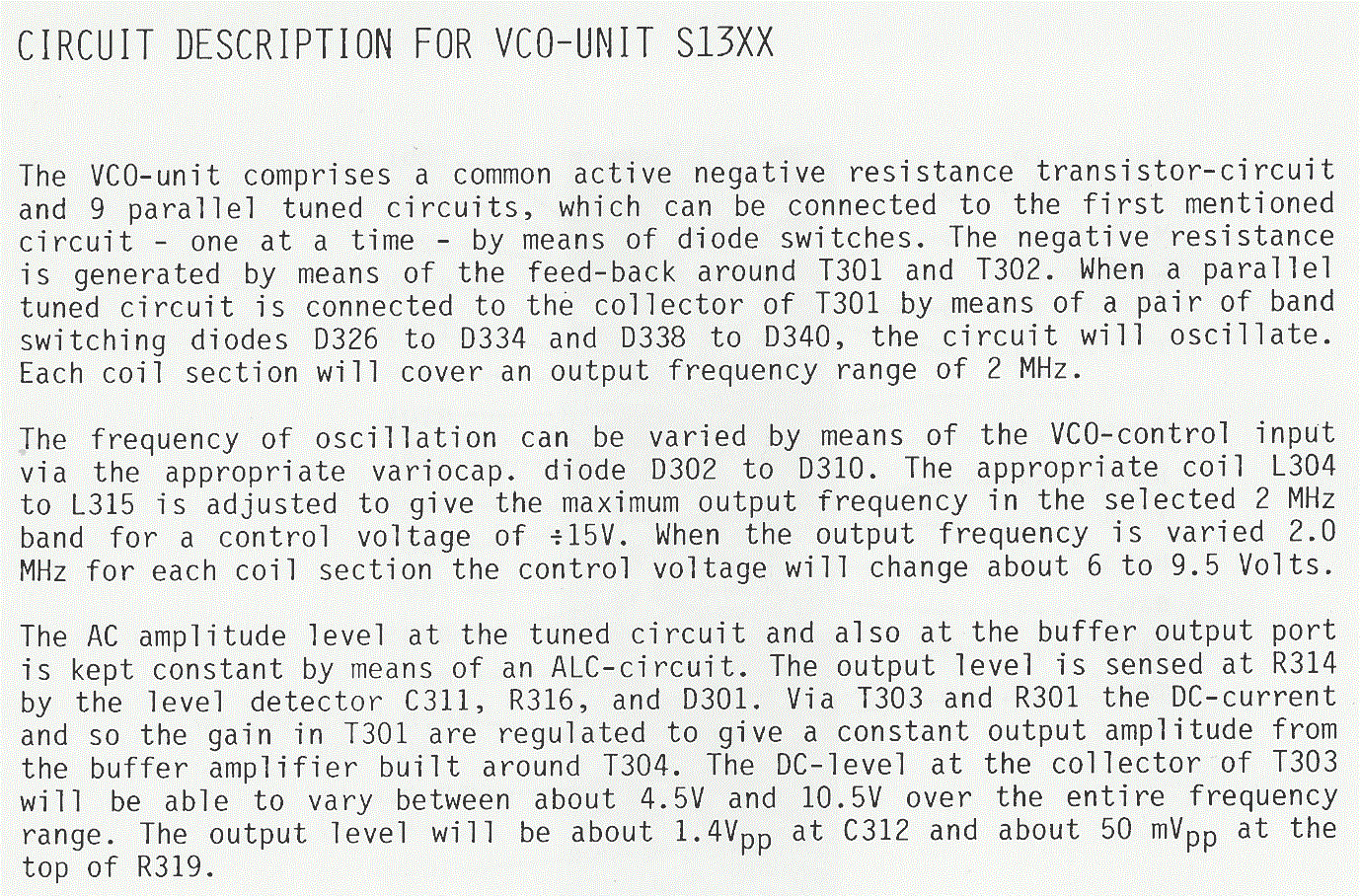

Sailor S130X VCO unit page-1

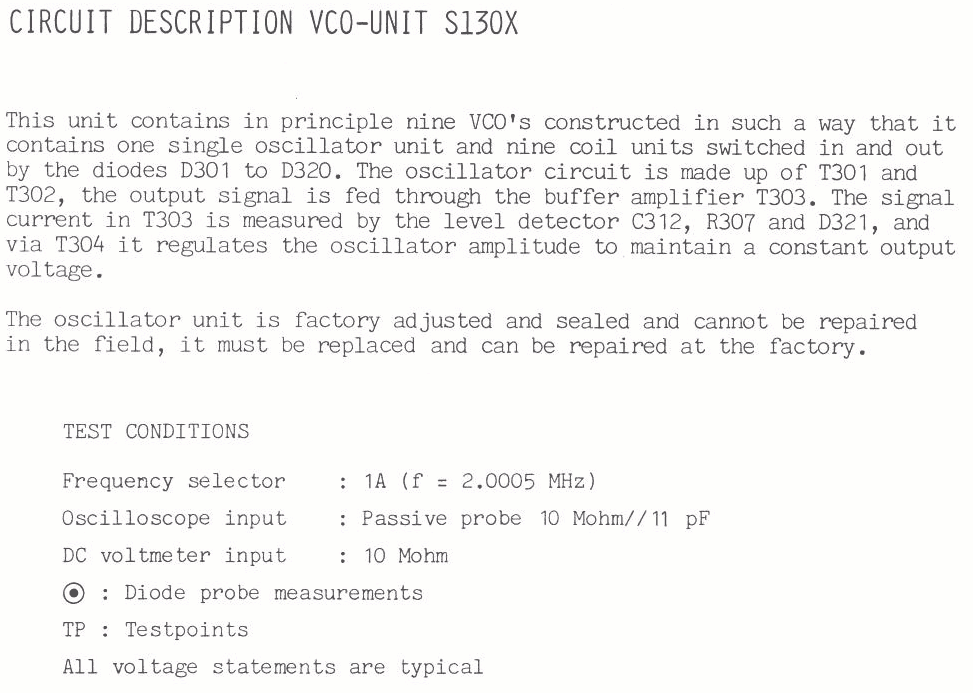

Sailor S130X VCO unit page-2

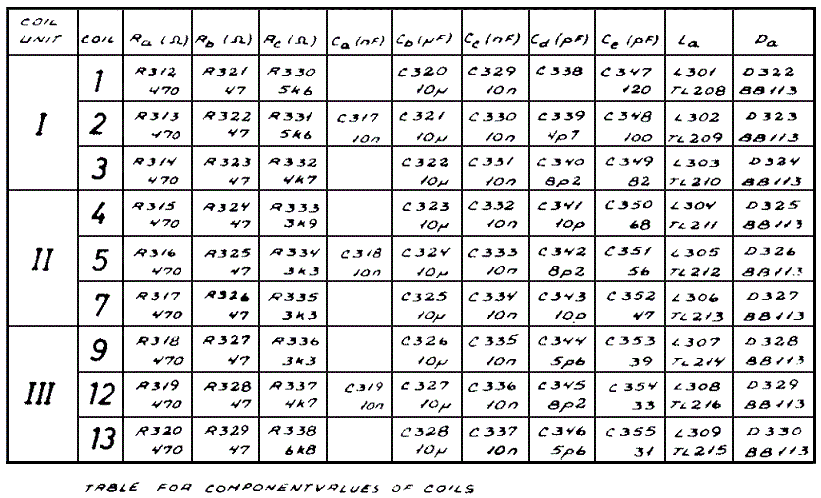

Sailor S130X VCO unit tabel

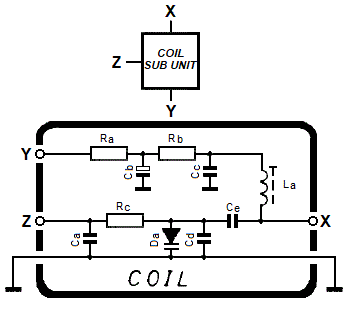

Sailor S130X VCO unit coils

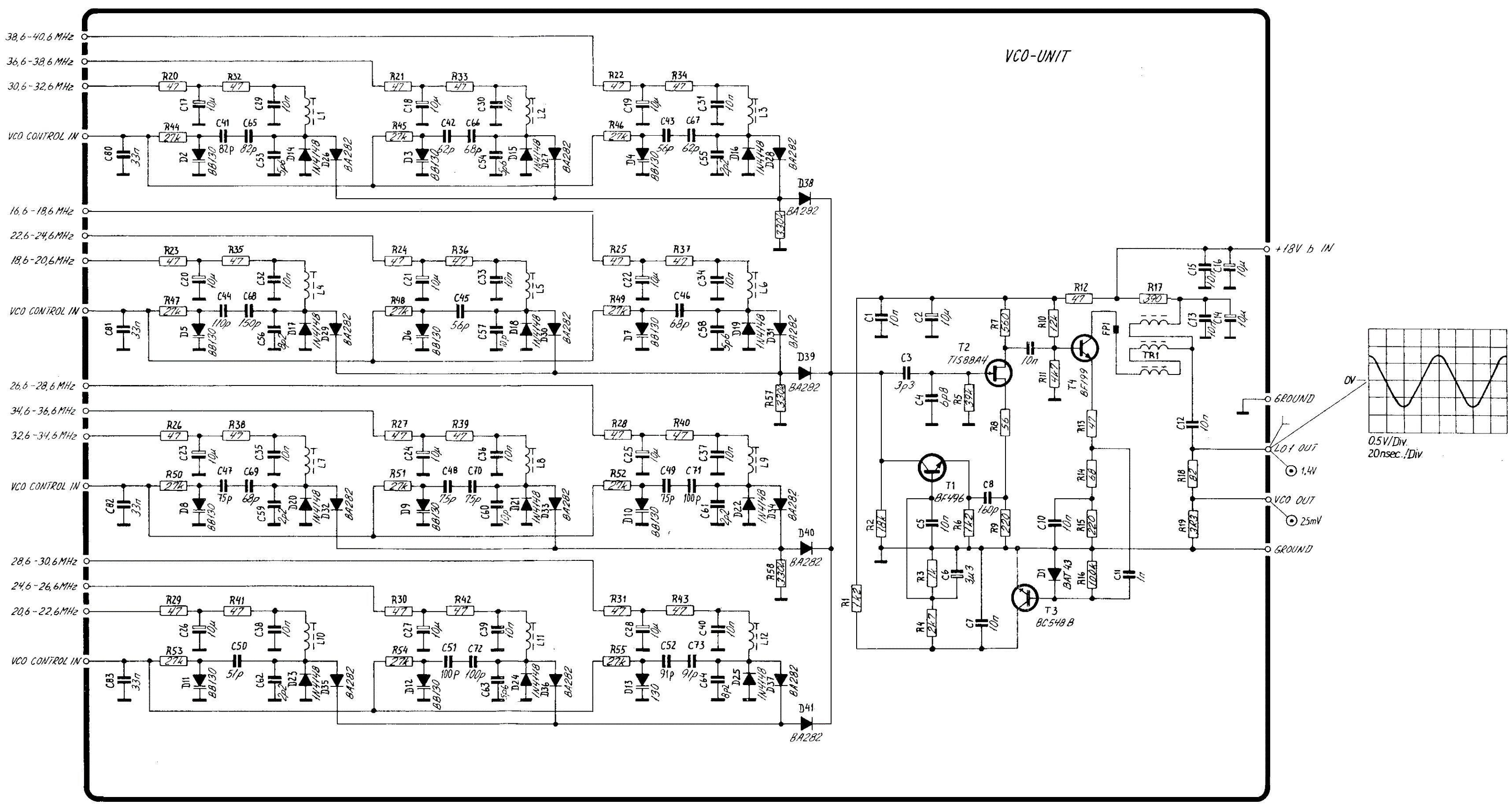

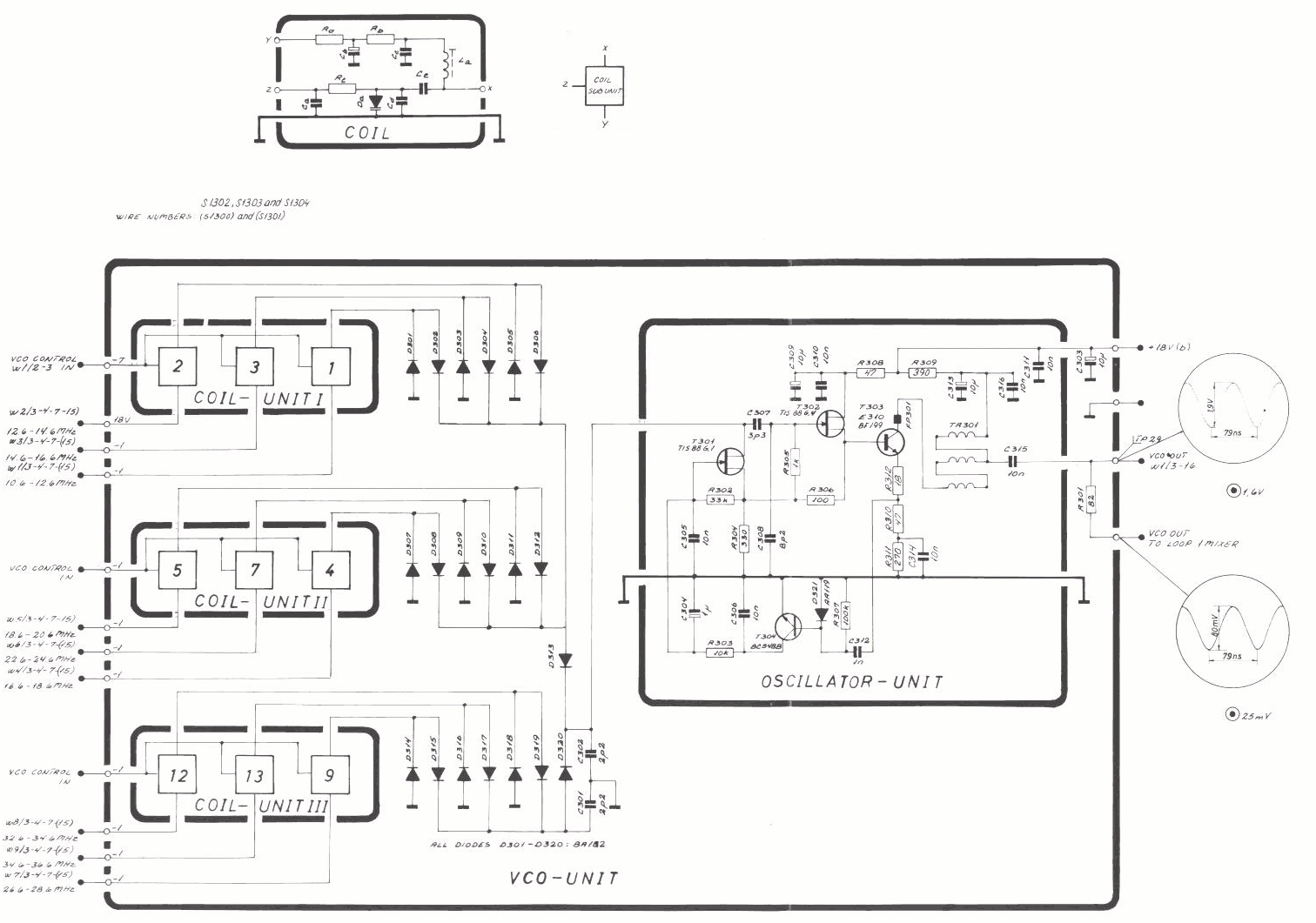

Sailor S130X VCO unit schema

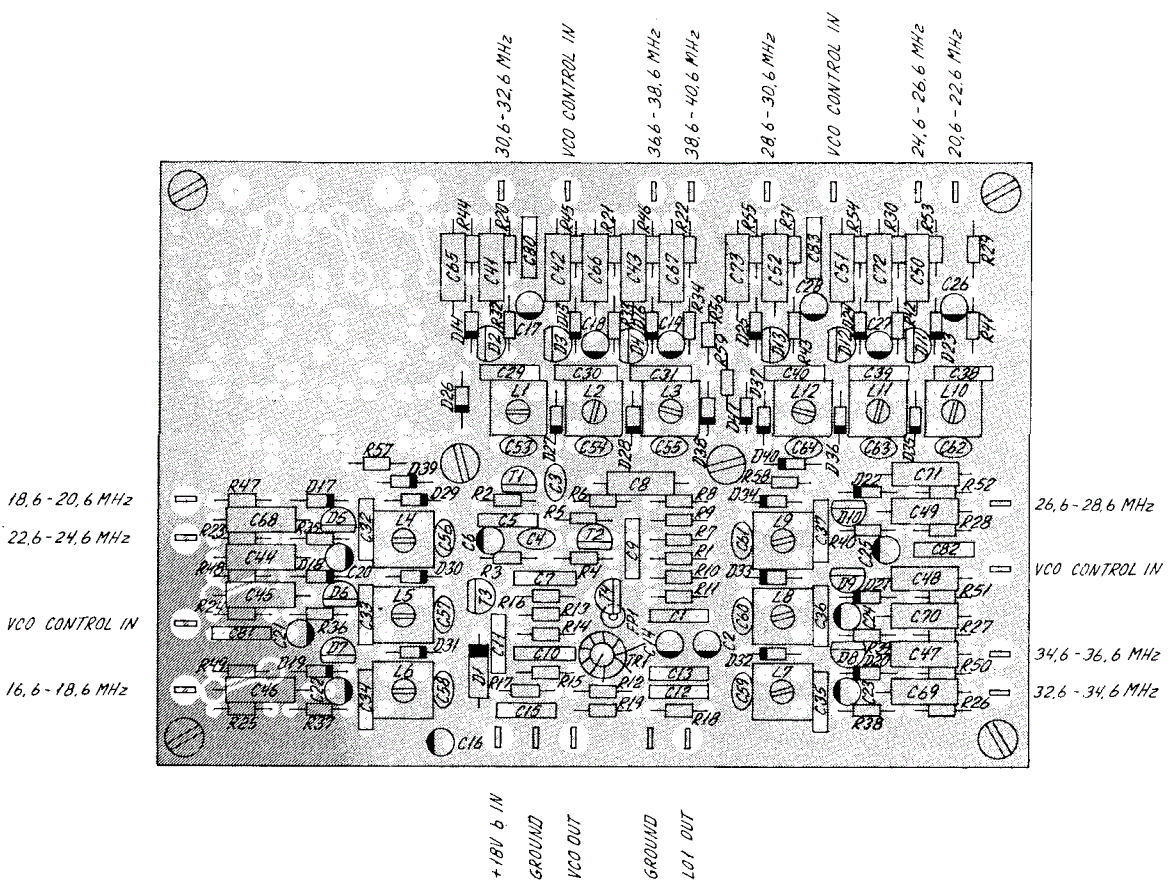

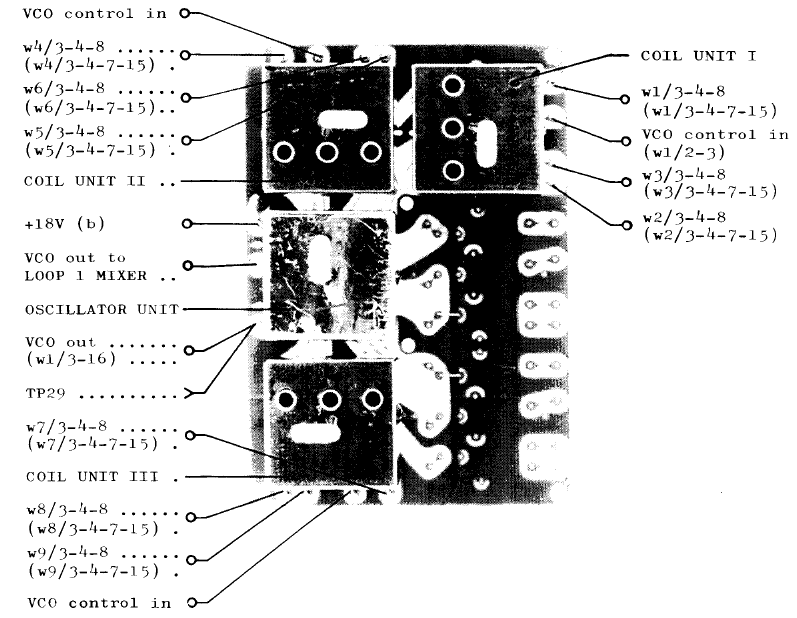

Sailor S130X VCO unit top view and connetions

Sailor S130X VCO unit top view and connetions

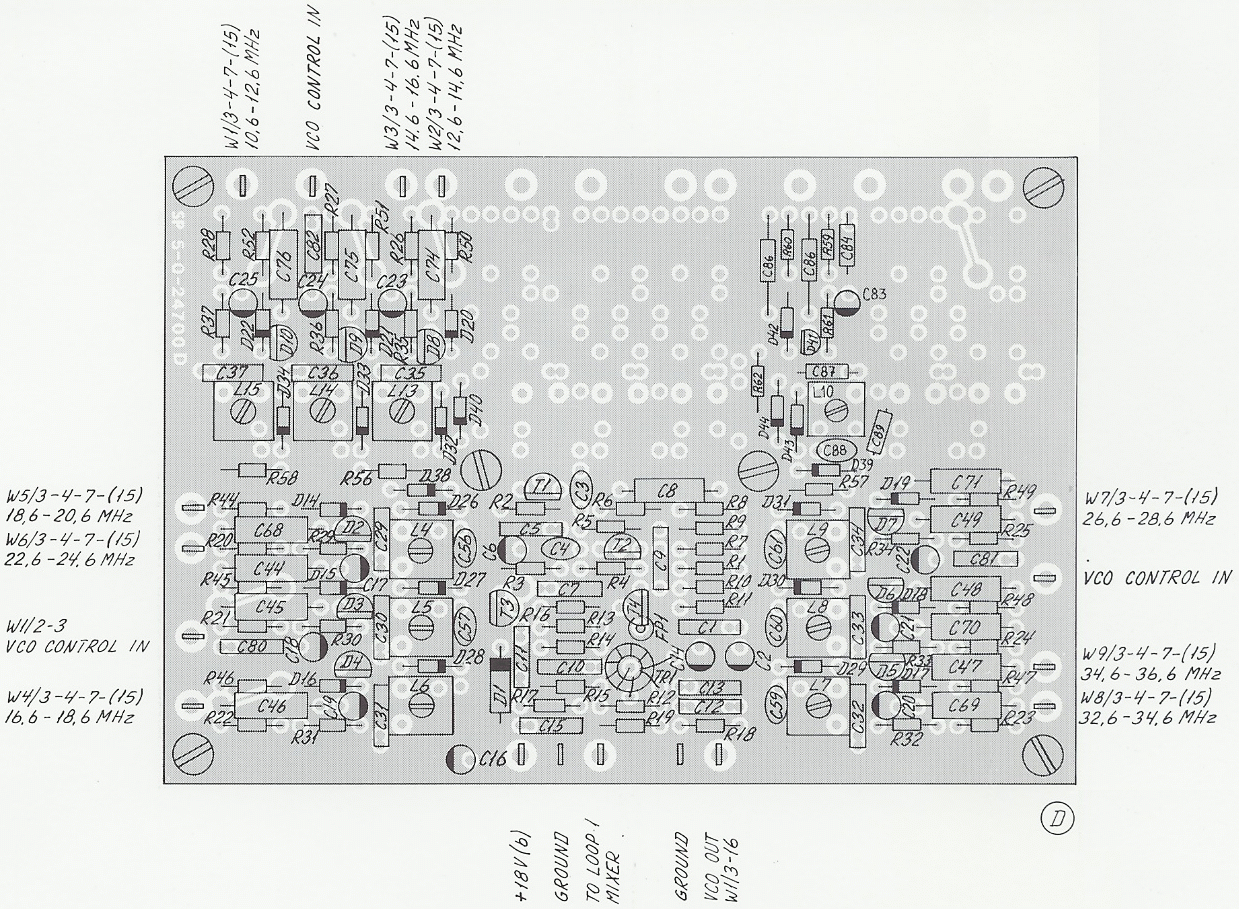

Sailor S130X VCO unit top view

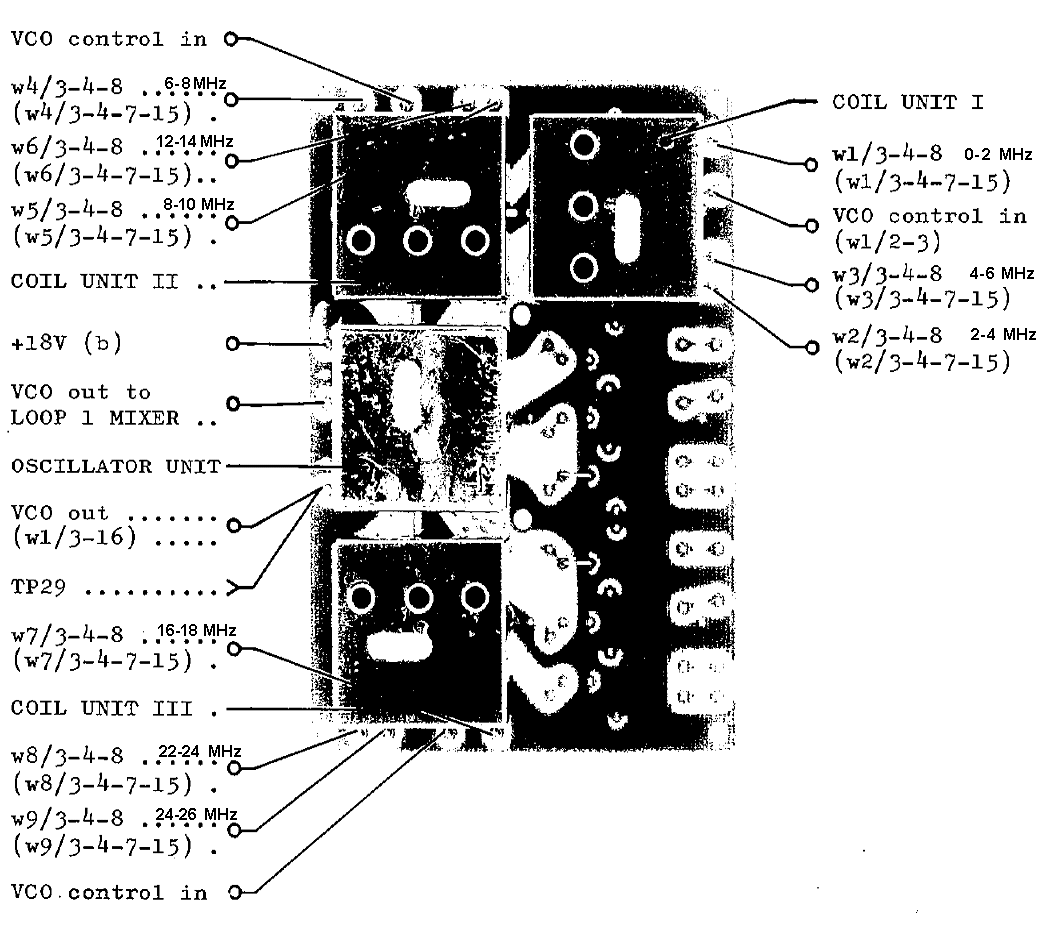

Sailor S130X VCO unit top view and connetions

Sailor S130X VCO unit top view and connetions

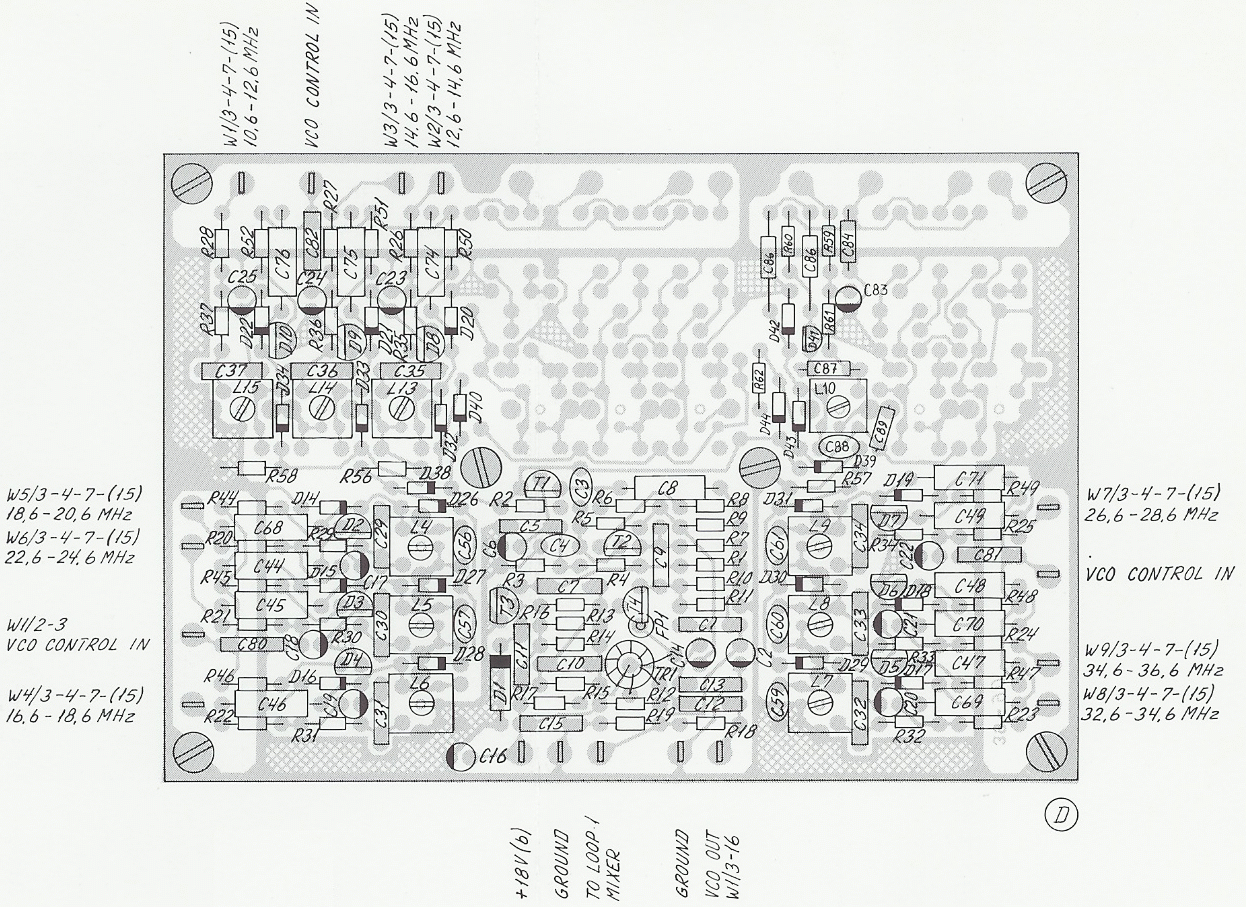

Sailor S130X VCO unit top transparant view and connetions
