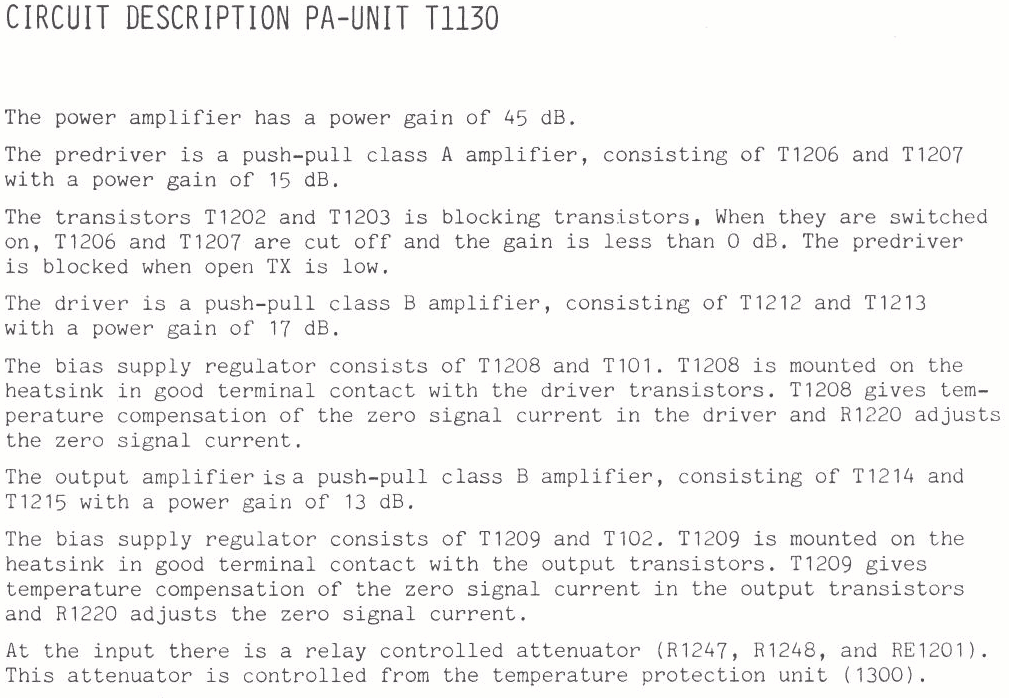

Sailor T1130 Power amplifier page-1 module-1200

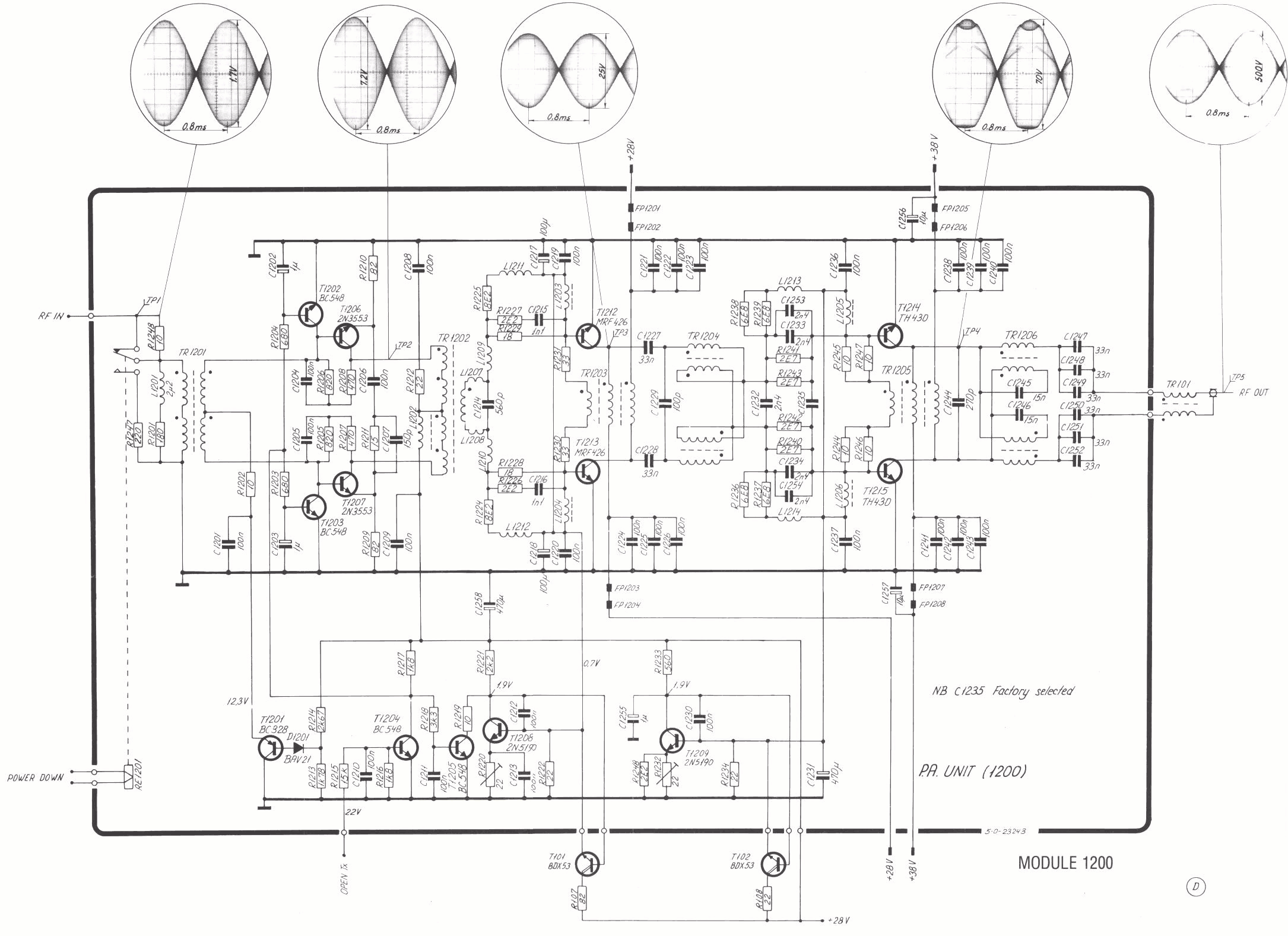

Sailor T1130 Power amplifier schema module-1200

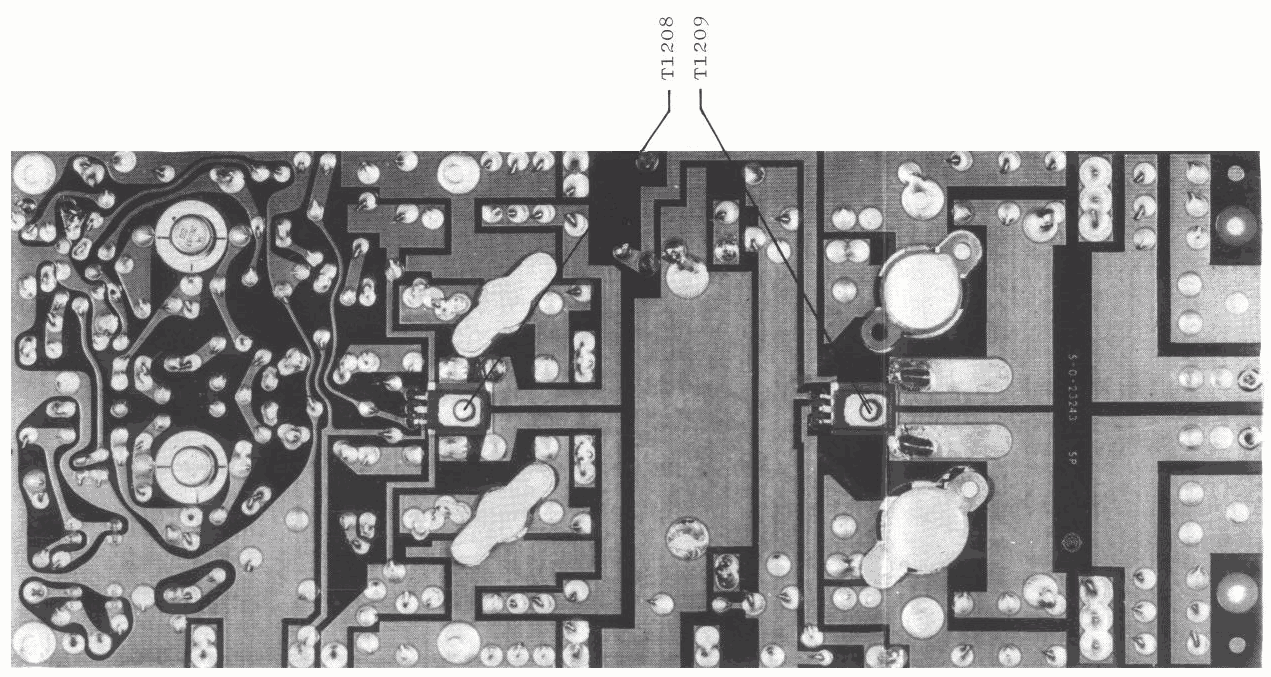

Sailor T1130 Power amplifier view page-1 module-1200

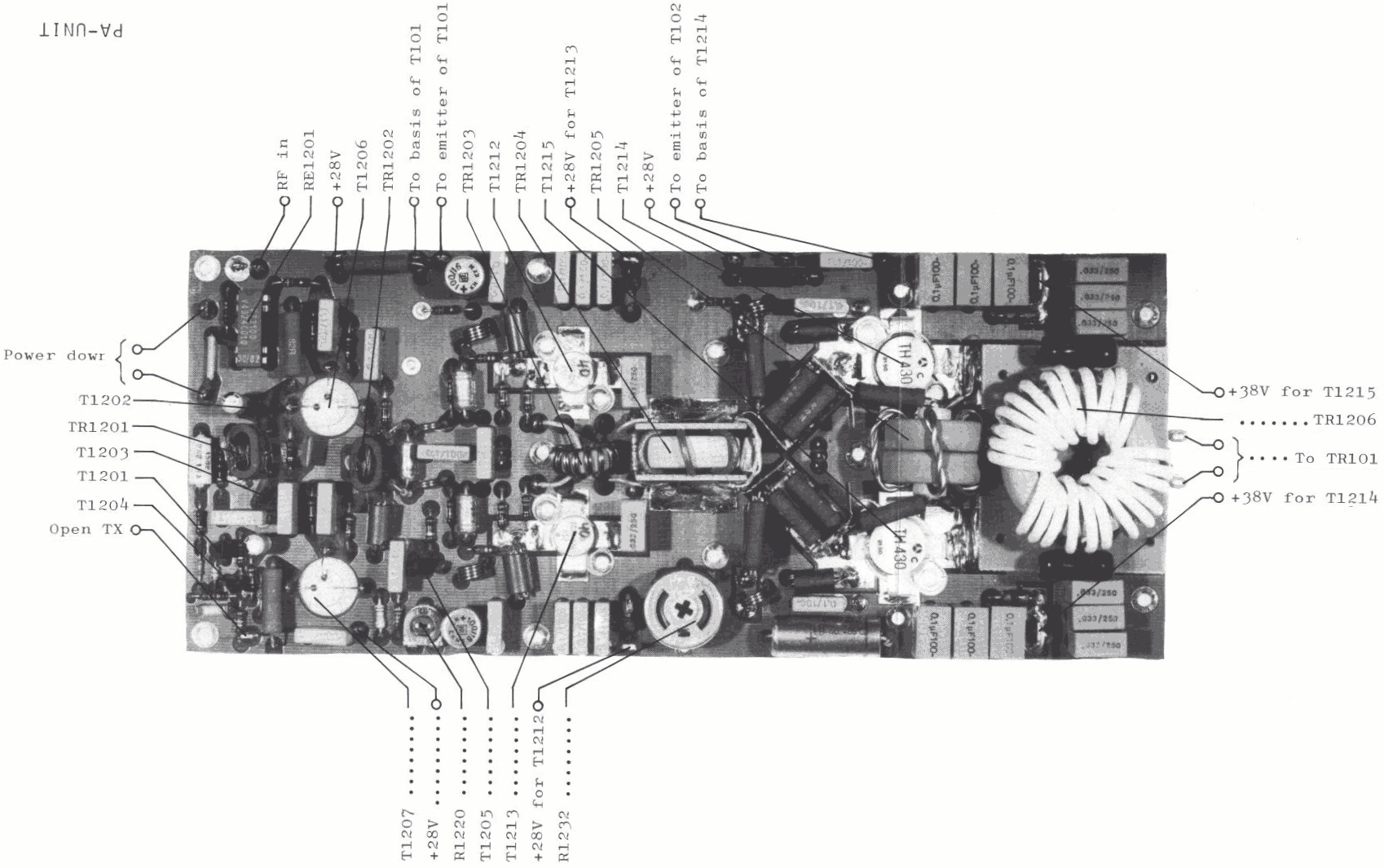

Sailor T1130 Power amplifier view page-2 module-1200
