Jan site

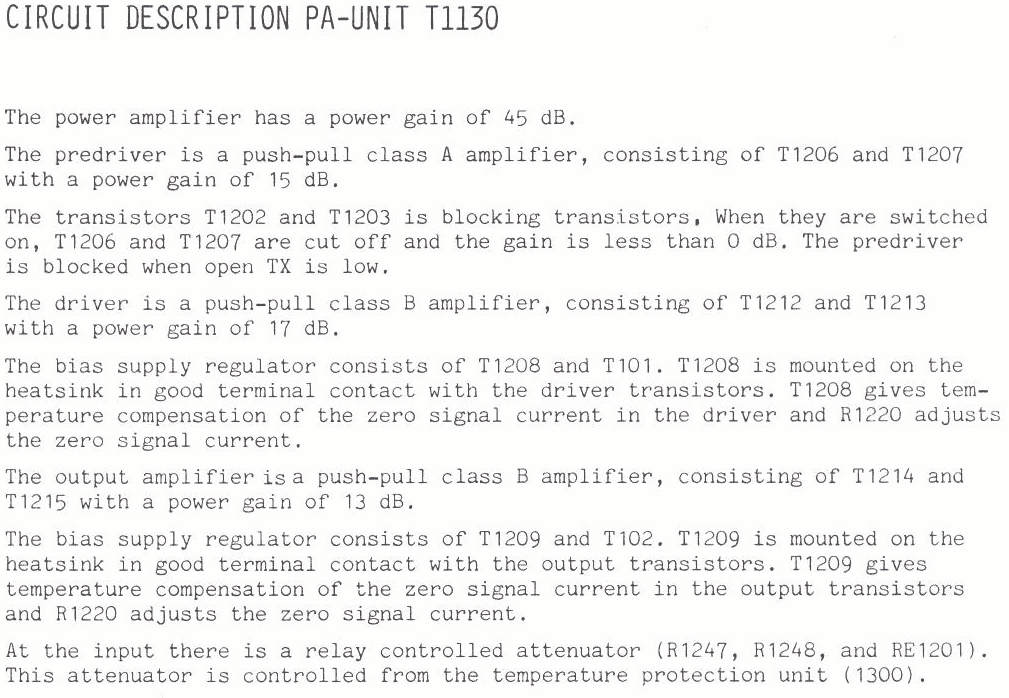

Sailor T1135 Power amplifier page-1 module-1200

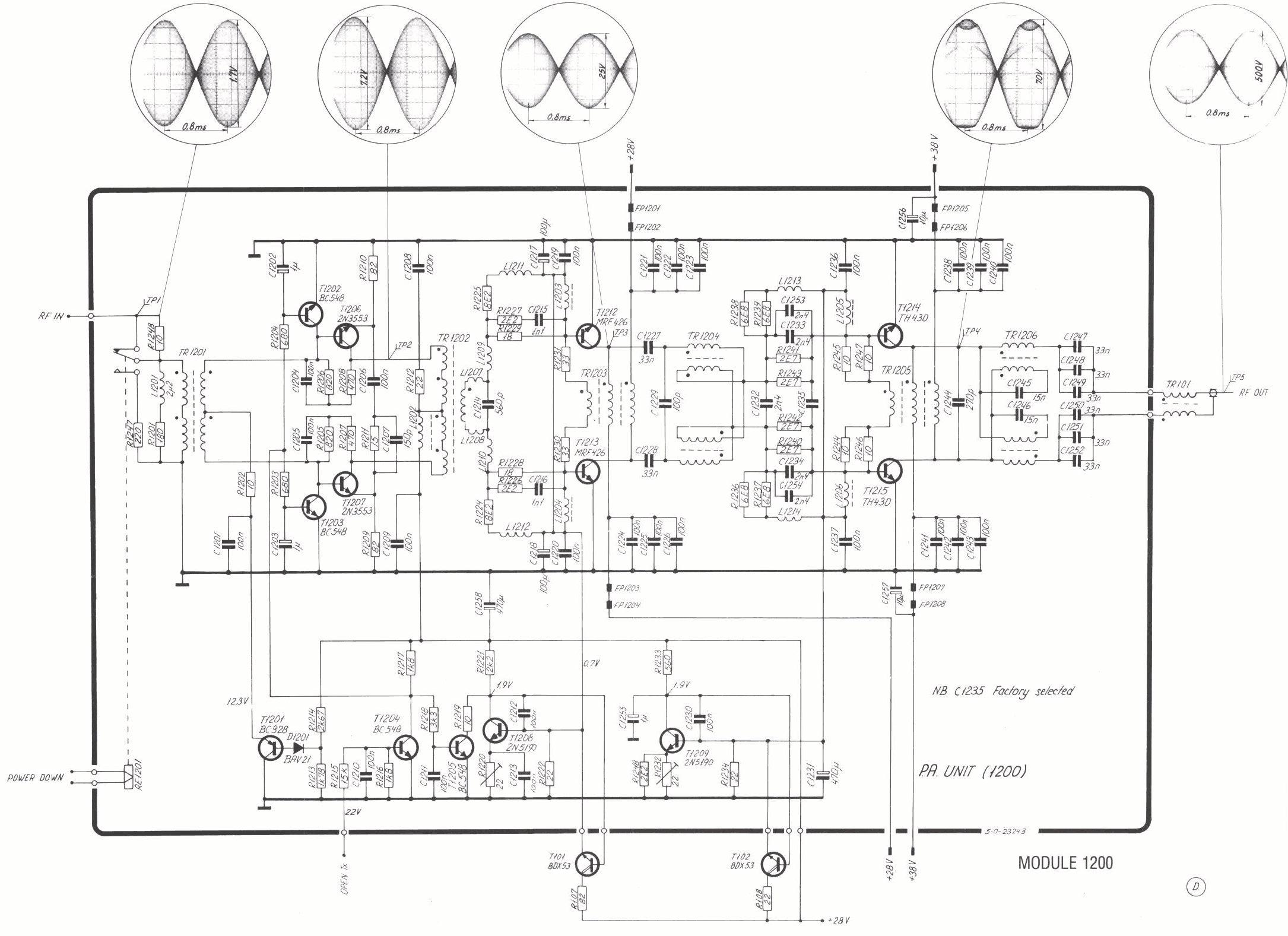

Sailor T1135 Power amplifier schema module-1200

Sailor T1135 Power amplifier view page-1 module-1200

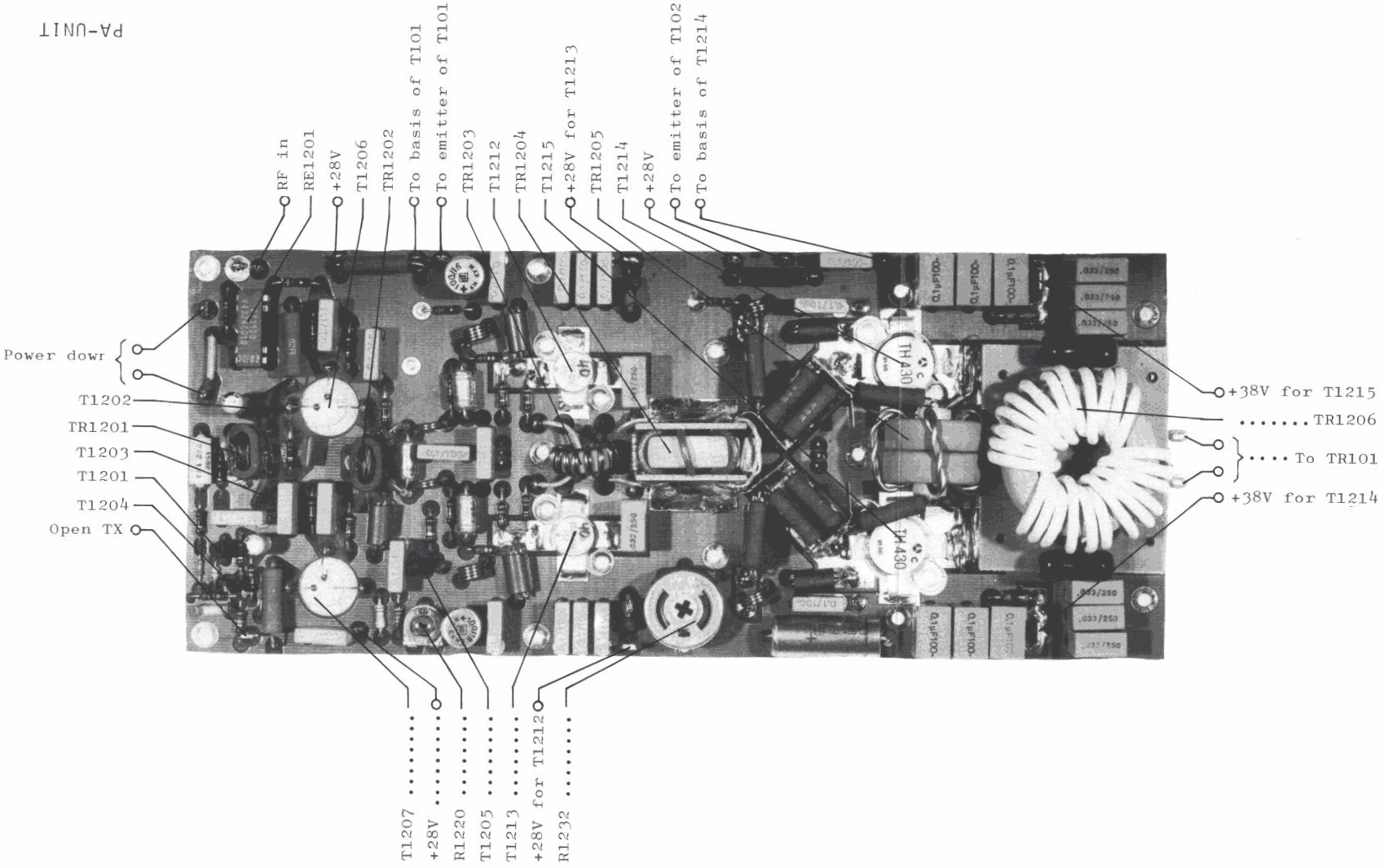

Sailor T1135 Power amplifier view page-2 module-1200

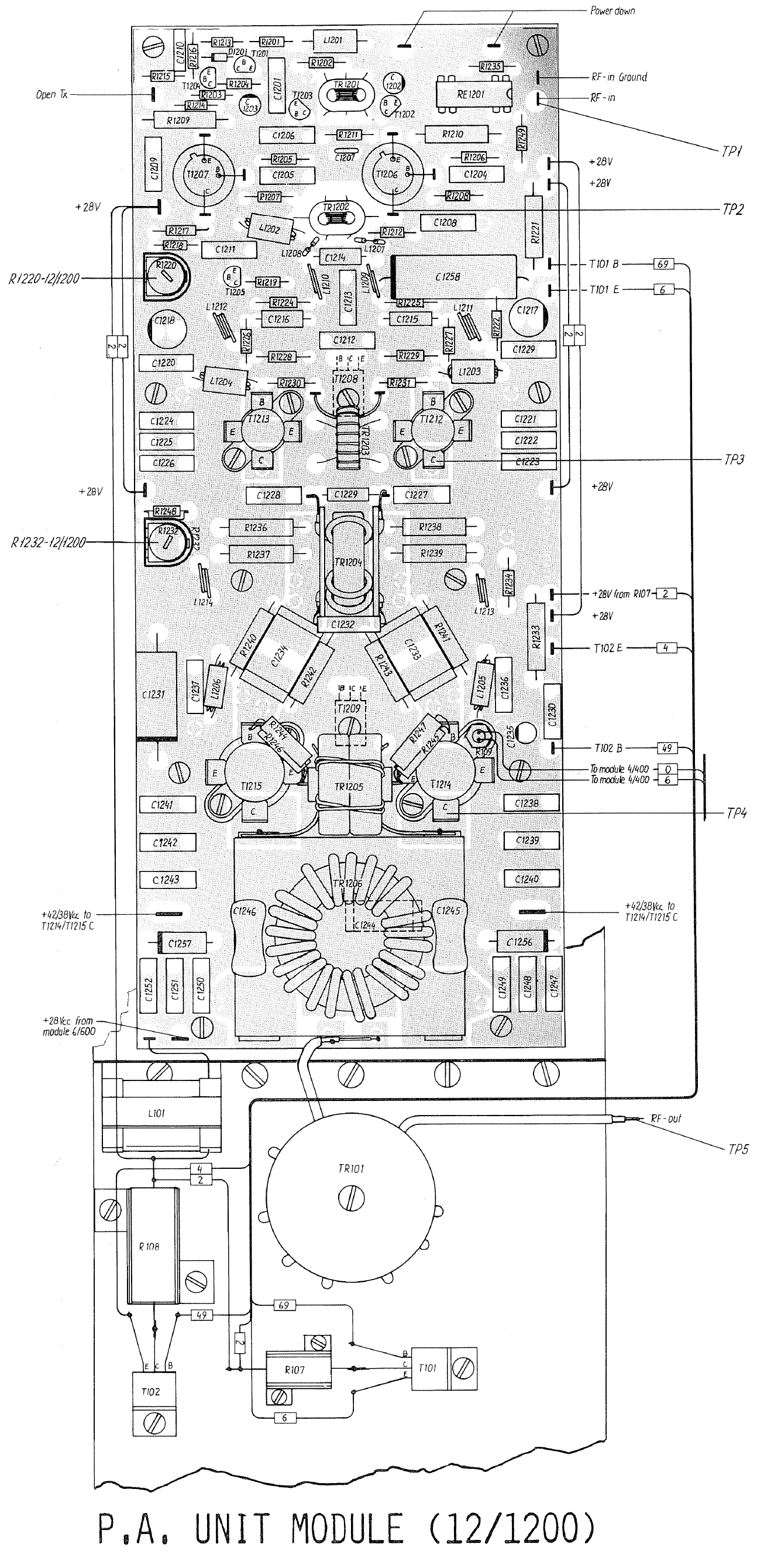

Sailor T1135 Power amplifier module 12(1200) view
