Radio Science, Volume 7, Number 3, pages 351-353, March 1972



Fifty-megahertz Es, 1964-1970

Patrick J. Dyer

Office of Telecommunications, Institute for Telecommunication Sciences
Boulder, Colorado 80302

(Received October 28, 1971.)


Using amateur signals in the 50-MHz band to indicate the presence of oblique-incidence
Es paths, the diurnal, seasonal, and magnetic relationships of the phenomena for the years
1964-1970 were examined. Summer double diurnal peaks were found along with 'off-season'
meteor shower influences.


INTRODUCTION

    Using commonly available amateur equipment for
 50-MHz, observations of Es phenomena were con-
 ducted in the period 1964-1970.
      In general, receiver sensitivities were on the order
 of 1 µv, although the equipment used varied through
 the years of study. Antenna systems also underwent
   some variation, with the average gain realized in the
 7-9 db range. The receiving terminal point was still
 another unfixed item. Observations were conducted
 from San Antonio, Texas, from January 1964
 through early August 1966 and again from No-
 vember 1969 through the end of December 1970.
 In the period between August 1966 and November
 1969, observations were conducted from Austin,
 Texas (some 85 miles northeast of San Antonio).
 Equipment outage caused the loss of September-
 November 1966 data.

MONITORING PRACTICES

   The detection of all instances of 5O-MHz Es-
 propagated signals was noted for onset and dropout
 time (with 5-min resolution). A 30-min fadeout
 period was defined as terminating a given 'opening.'
   As no automatic recording devices were available,
 the time that could be spent monitoring 50 MHz
 varied greatly during the year. The summer periods,
 however, can in many ways be considered near con-
 tinuous.
   Close monitoring of the 30-50-MHz region for
 Es enabled the observations on 50 MHz proper to
 be either intensified or relaxed depending on condi-
 tions noted. This type of "back-up" system did not
 come into use until September of 1967. A frequency
 of 27 MHz (with some 2,000,000 transmitters in
  this country) was often used, especially at night, to
 indicate the lack of any Es likely to reach 50 MHz
 MUF.
   The 50-MHz Es openings were not rated accord-
  ing to strength, quality, distance, bearing, etc. The
 wide variations found in those parameters are thus
  not reflected in these data. As 50-MHz signal sources
  (amateur stations) are not evenly distributed in time
 or space, the data are strongly influenced by that
 factor.

 DATA ANALYSIS

   Much of the following data analysis is patterned
 after earlier amateur radio work [Monroe and Mon-
 roe, 1962, 1964].
   Seasonal.  Figure 1 shows the totals of 50-MHz
 Es minutes observed each month summed for 1964-
 1970. The definite minimum occurs in March with
 an equally definite peak in June (although July
 of a given year may have exceeded June). A sec-
 ondary maximum is evident in the month of De-
 cember. This agrees with the long-known seasonal
 trends.



   Figure 2 presents the yearly sums of 50-MHz
 Es. No clear relationship to the sunspot cycle is
 visible, although the largest value in 1965 cor-
 responded to a period of low solar activity and the
  smallest value in 1969 came during high solar levels.
 The large value in 1968 with high sunspot epoch
 does not agree with the trend found during the down-
 swing of cycle 19 [Monroe and Monroe, 1962].

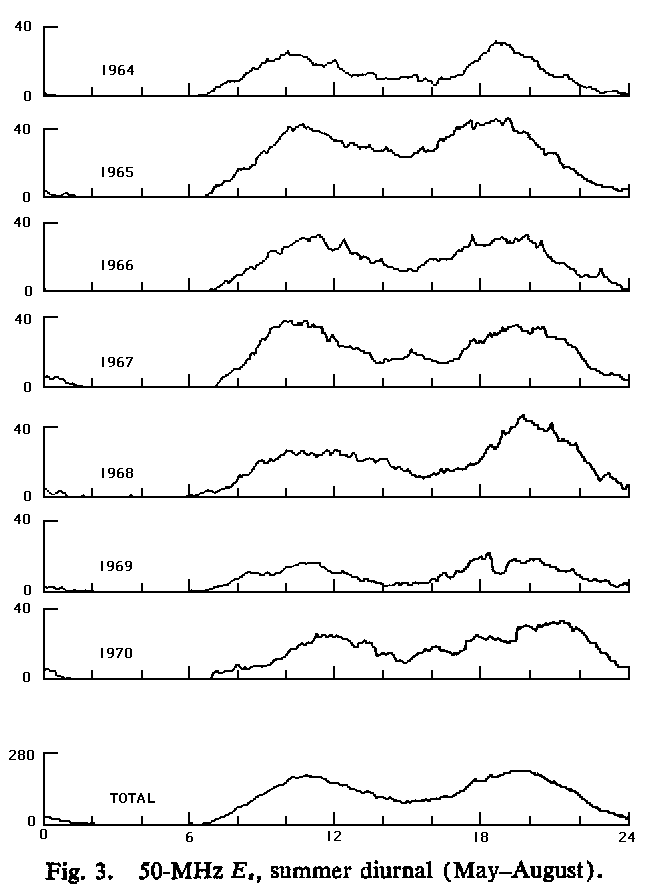

    Diurnal.  Figure 3 is a sum of the diurnal varia-
 tions of the summer months (May-August) for each
 of the 7 years and a sum of those together. Note
 the different scale in the last graph. The double-
 hump maxima show very nicely through these years.



  Figure 4, for December, shows marked contrast
 to the summer diurnal curves. Only those days are
 included when both forenoon and afternoon mon-
 toring were possible in order to avoid biasing the
 evening results. Even then the preference for De-
 cember Es to be an after-dark event is strikingly
 evident.



    In considering the diurnal behavior (all CST),
 it must be kept in mind that the actual solar time
 at the Es patch itself could vary by some two hours
 since the data make no distinction between clouds
 east or west of the observer. The 700-mile radio
 horizon during December, however, is all well into
 darkness by the time of the peak in Figure 4.
   Magnetic relationships.  At the suggestion of
 some who attended the 1970 ESSA in-house Es
 seminar, attempts were made to relate the 3-hour
 Kp indices to the termination of an Es event in prog-
 ress. Very inconclusive results were found with Es
 commencing when Kp's were as high as 7. The 24-
 hour Kp sum is a much more meaningful parameter
 to use.
   Figure 5 compares the daily 50-MHz Es sums
 with the 24-hour (CST base) Kp sum for May-July
 of 1965. During this period the most intense mag-
 netic storm of the IQSY took place, In the period
 around the storm (June 15-22) one can easily see
 the depressing effect on Es, followed by a tremen-
 dous level of Es during the quiet period after. For
 3 of 4 days the daily Es sum ran over 800 min., a
 level not elsewhere duplicated in the 7 years of the
 study.



    Meteor influences.  Figure 6 shows the October-
 December daily sums for 1964-197O combined. The
 abrupt rise in levels in mid-December relates very
 well to the Geminid meteor shower. Later December
 effects may be attributable to the Ursids. Likewise
 the mid-November rise is likely tied to the Leonid
 shower. Less strong peaks in early and late October
 may be linked to the Draconids and the Orionids,
 respectively.




                      CONCLUSIONS

   By using relatively inexpensive equipment to
 monitor a VHF band highly populated with signals,
 many of the commonly observed behavior patterns
  of an oblique path agree with well-established varia-
 tions of Es deduced from other modes of radio prob-
    ing (e.g., vertical incidence, backscatter). Use of the
 large numbers of active 50-MHz stations should al-
 ways be kept in mind when considering any Es, in-
 vestigations related to VHF propagation.


               REFERENCES

 Monroe, M., and D. Monroe (1962), 50 Mc propagation
   effects, CQ, 18 (6), 37-42.
 Monroe, M., and D. Monroe (1964), 50 Mc propagation
   effects, CQ, 20 (11), 82-87.
