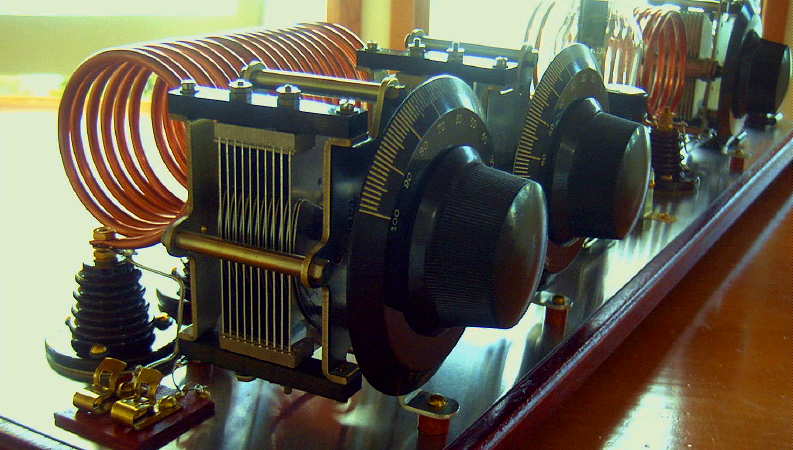

Presented below is a photo exhibition of the numerous homebuilt '29-style transmitters that I have gathered from builders over the past few years. Many of the builders are members of the 'AWAGroup' of builders (see links below) and use these transmitters regularly ... especially during the AWA's annual Bruce Kelley 1929 CW QSO Party, where the chirps, clicks, wind-induced frequency excursions and sometimes surprsingly great-sounding signals from the early days of radio can be heard again.The purpose of this page is to provide inspiration to present builders and those contemplating their first '29-style transmitter project. Hopefully you can find a few ideas from the photographs ... I would love to add your work to the collection as well. It need not be pretty and often the ugliest ones sound the best! Good luck with your '29 adventures.

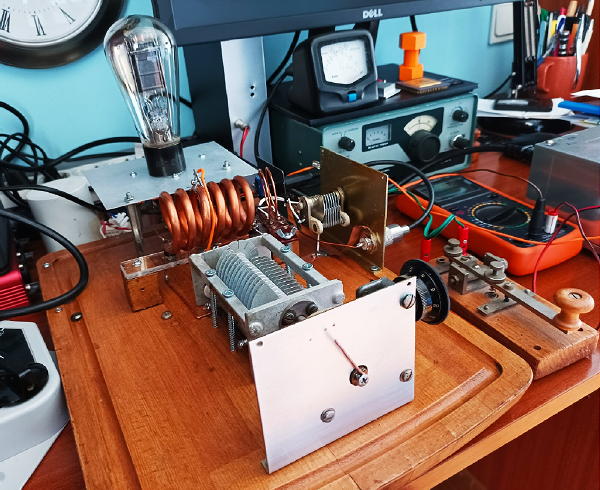

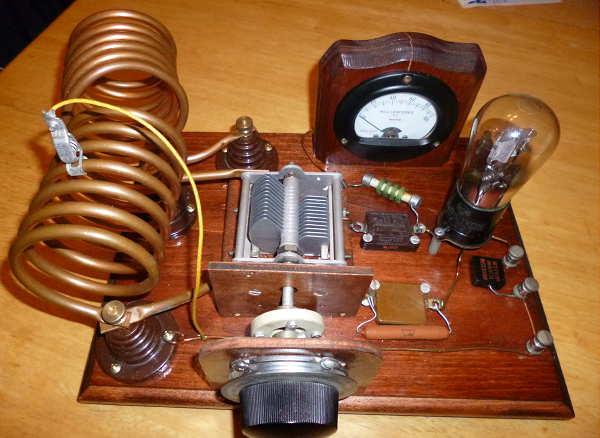

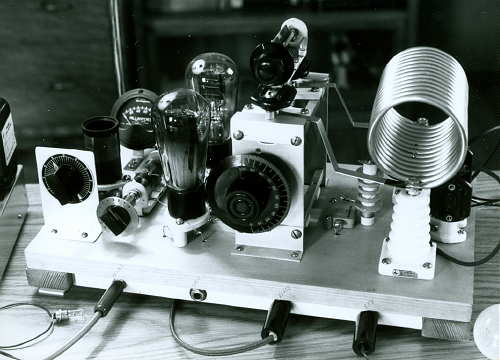

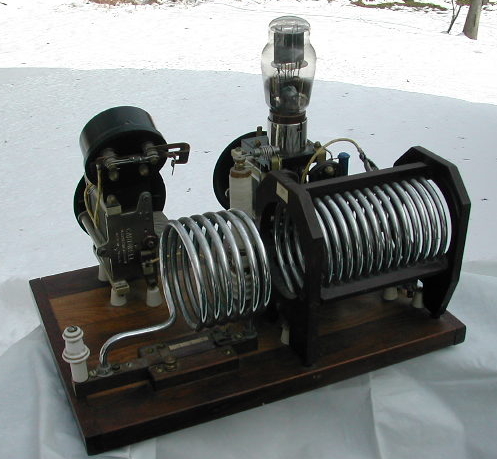

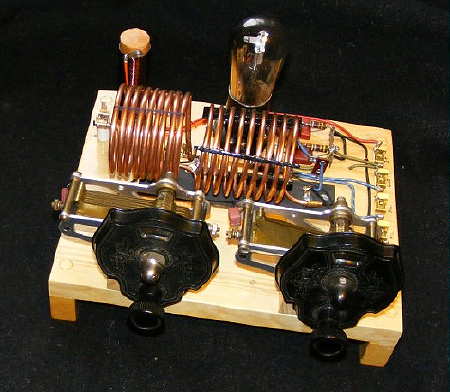

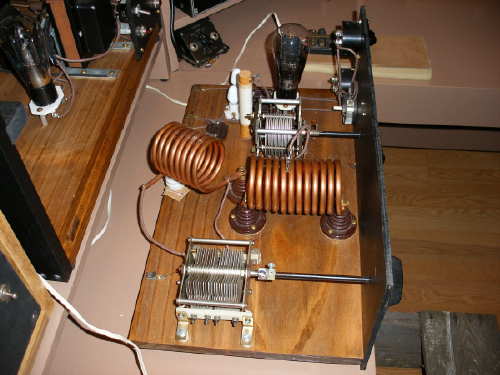

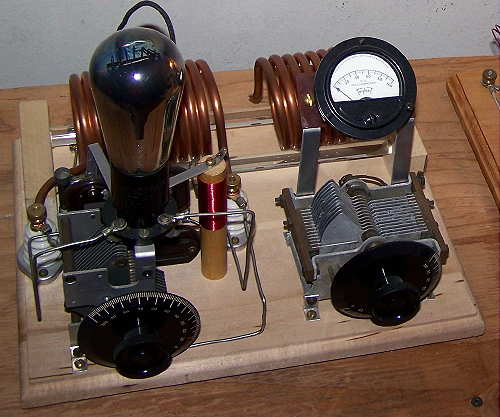

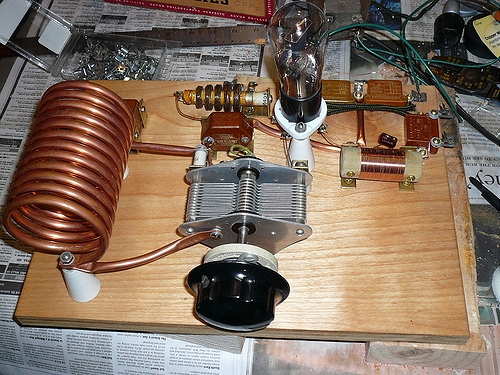

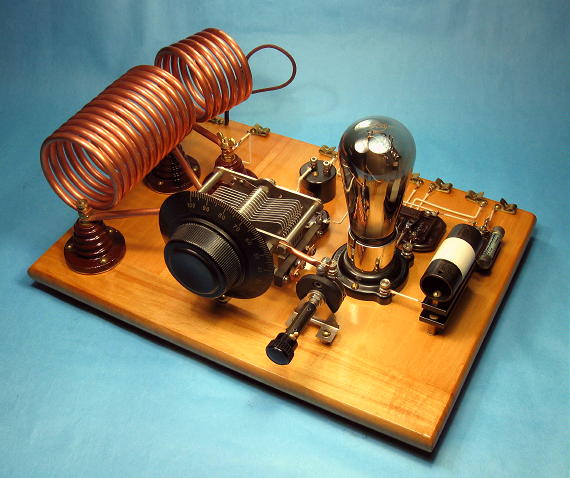

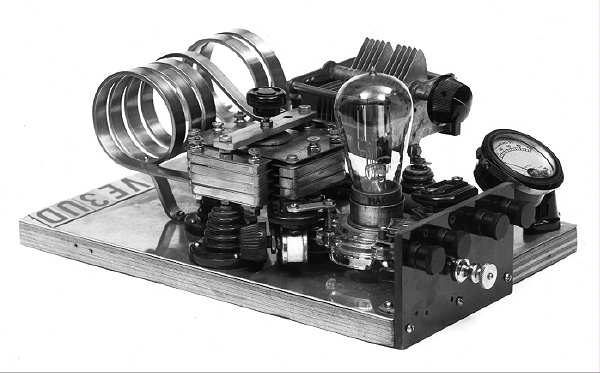

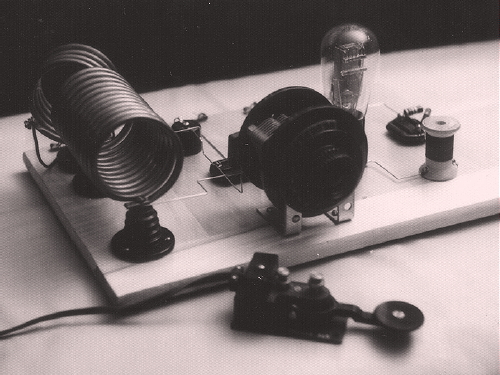

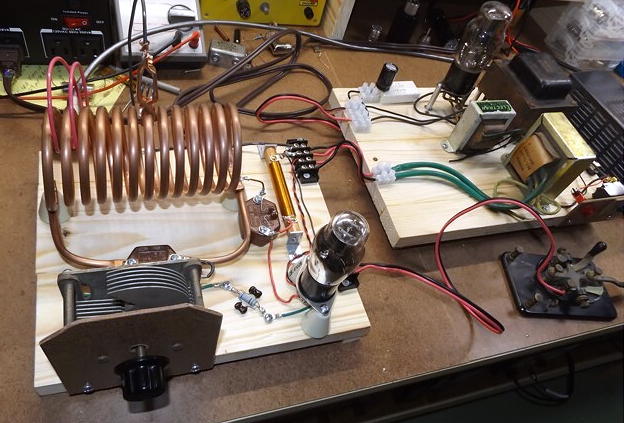

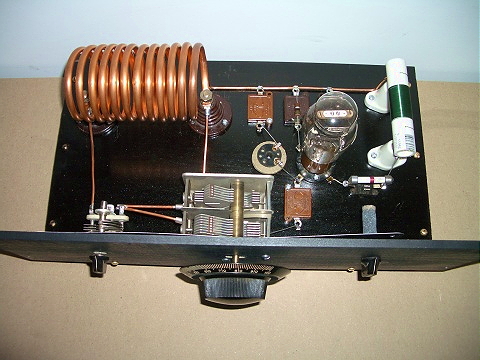

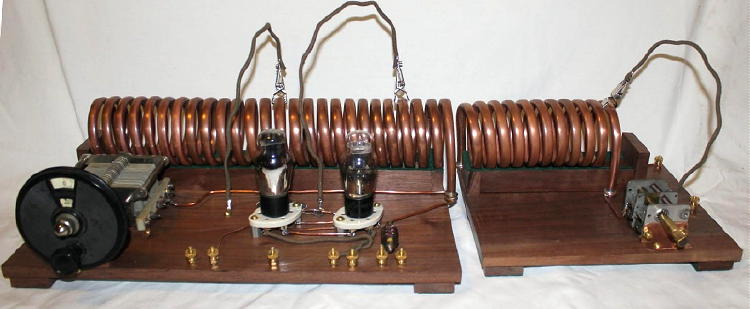

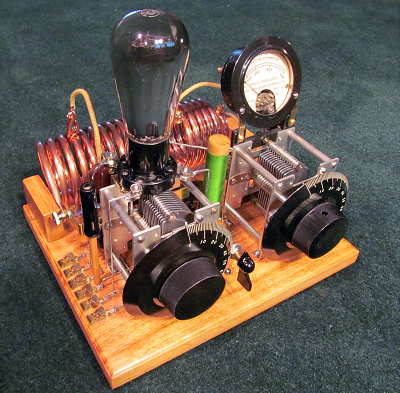

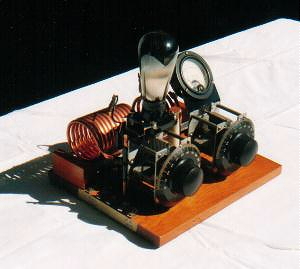

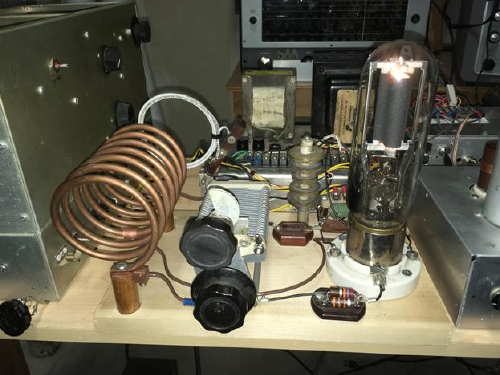

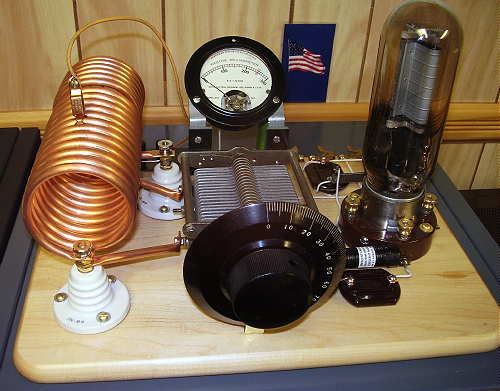

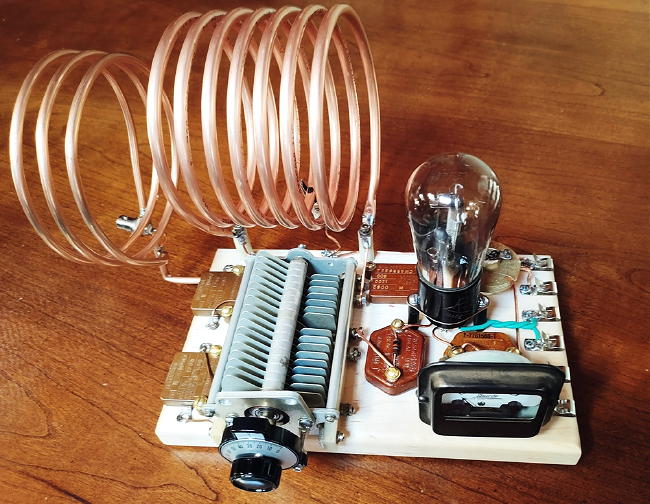

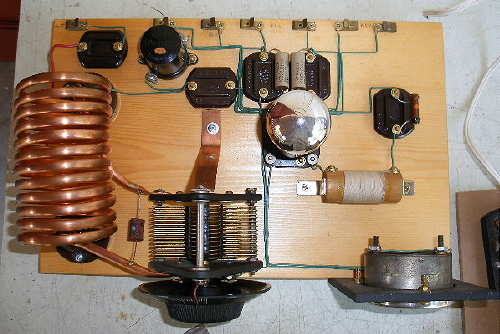

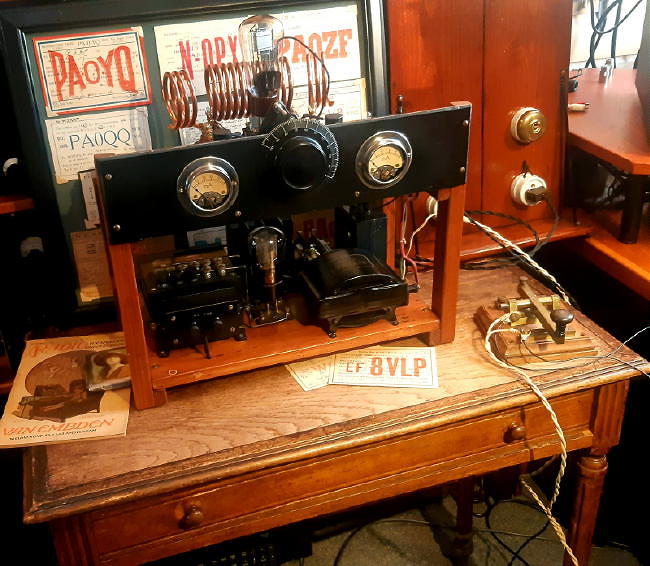

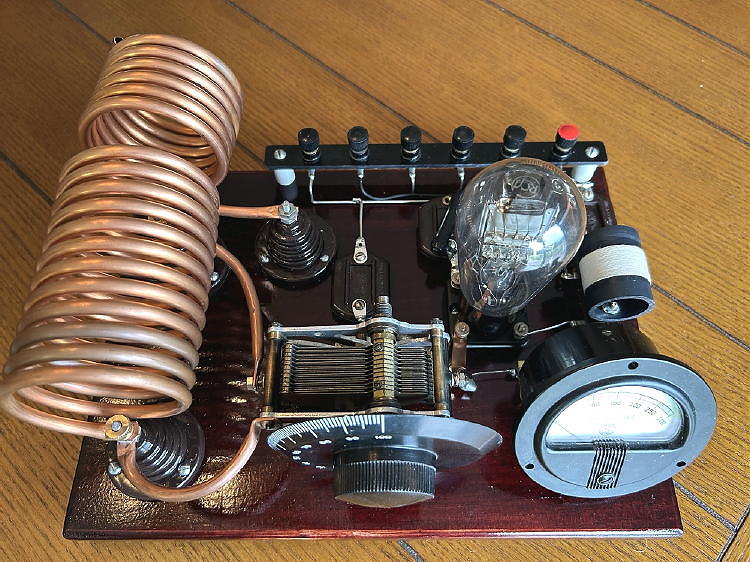

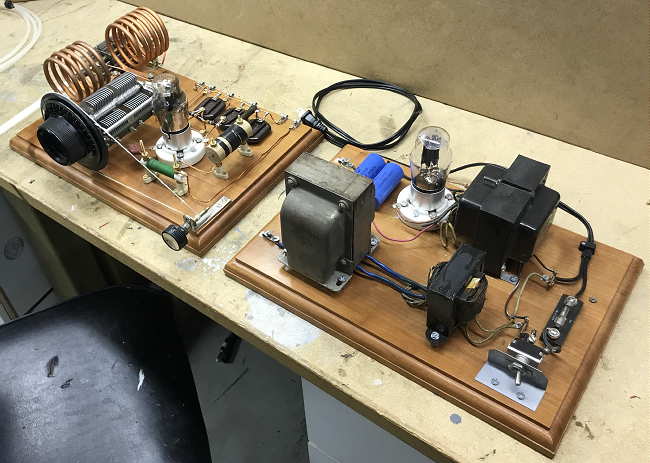

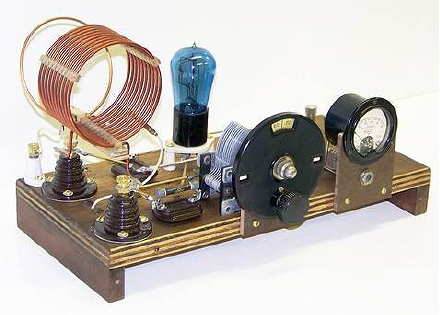

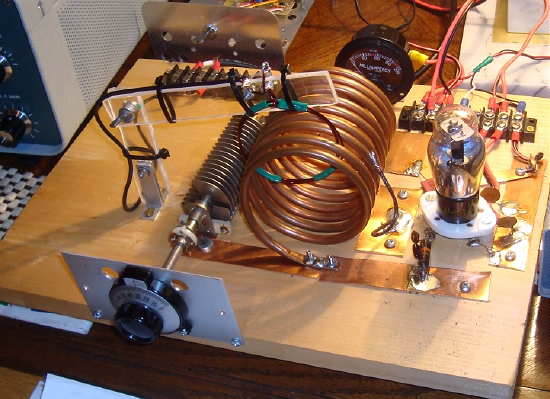

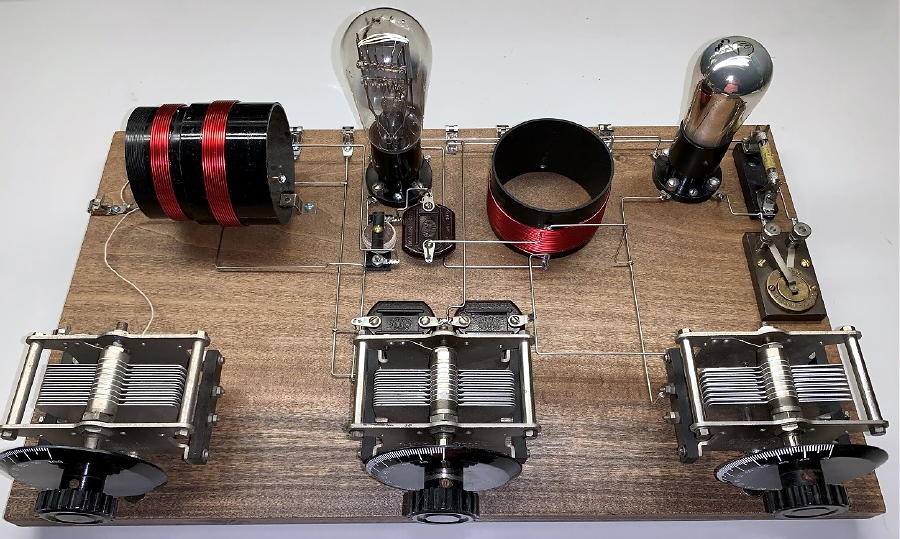

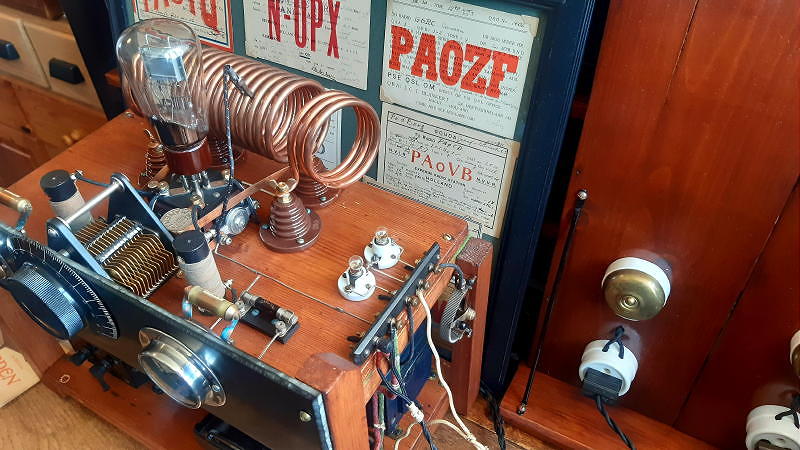

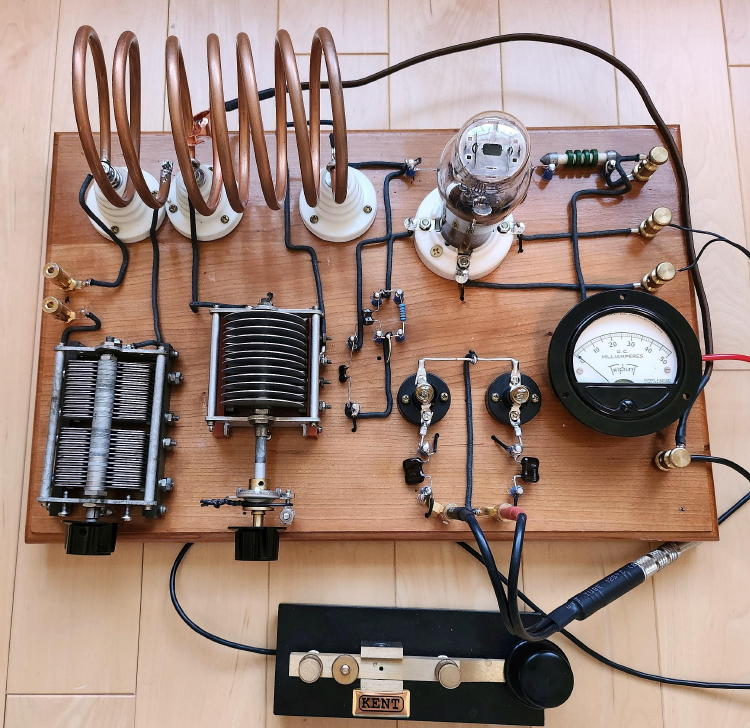

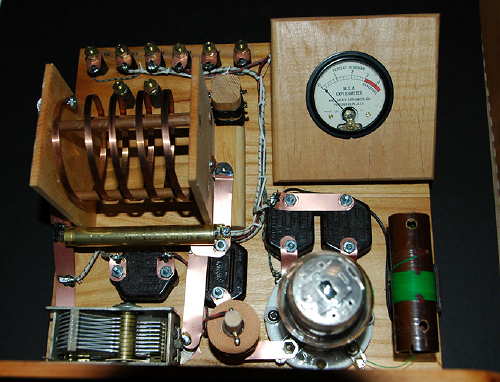

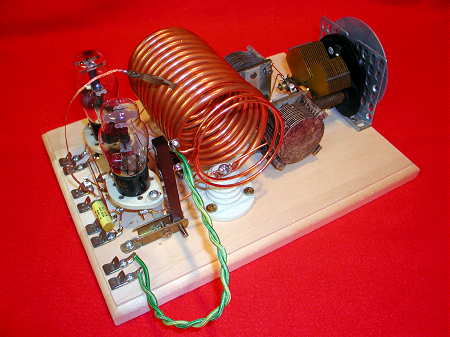

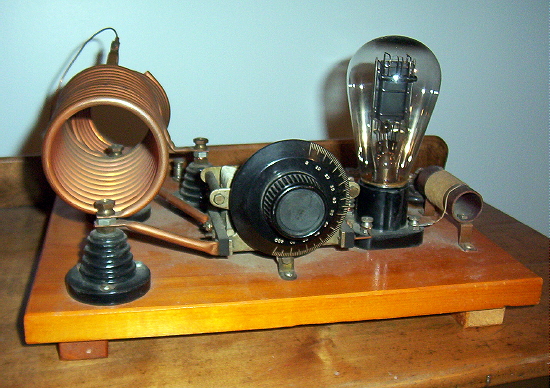

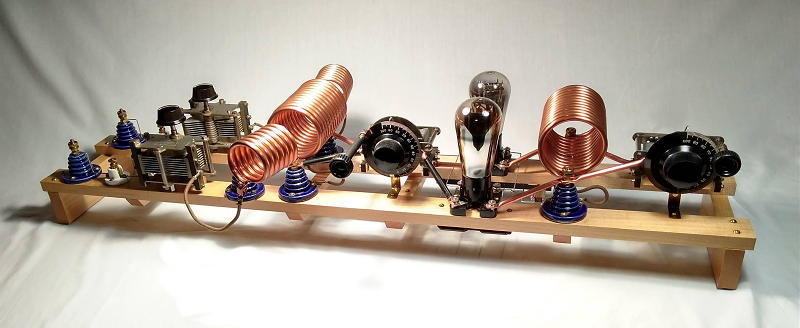

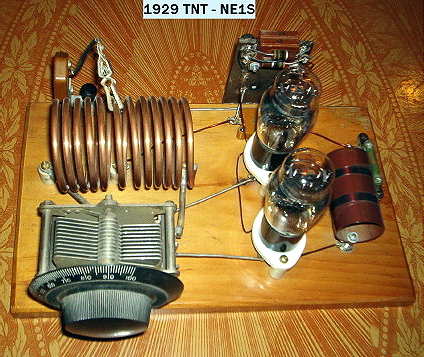

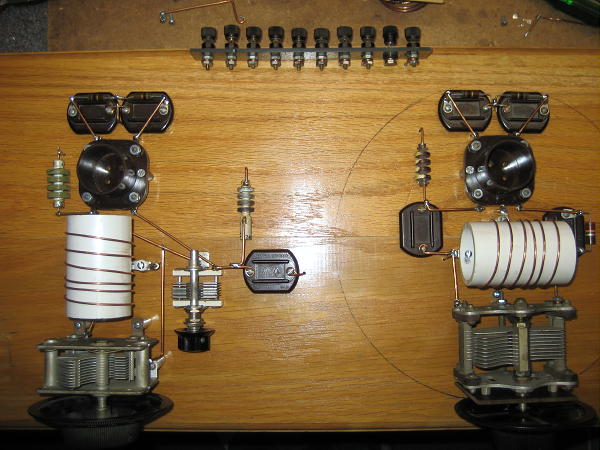

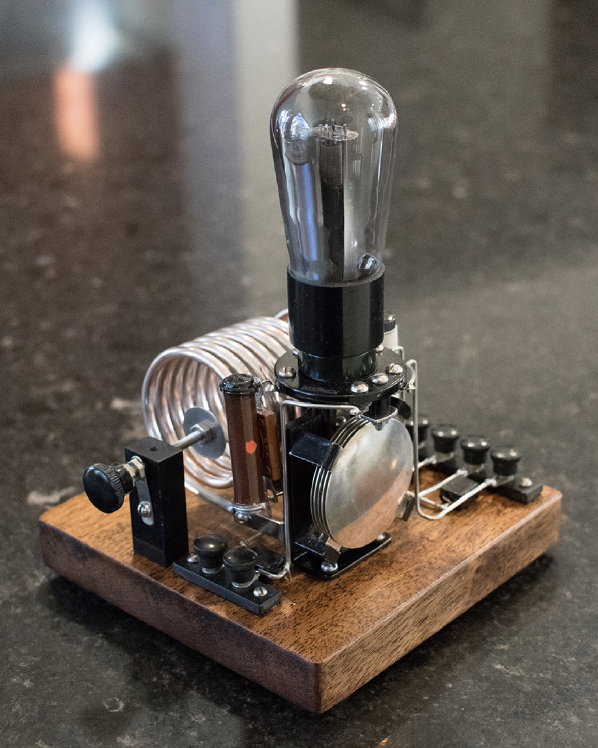

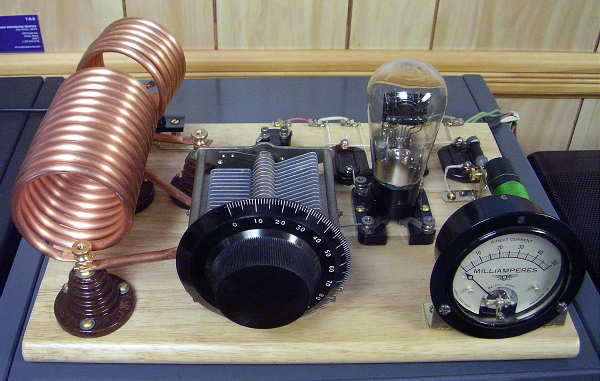

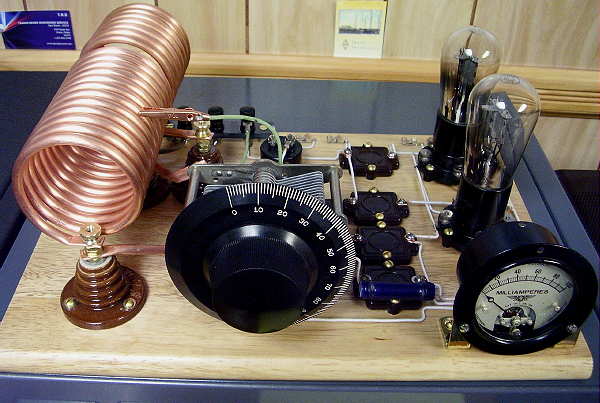

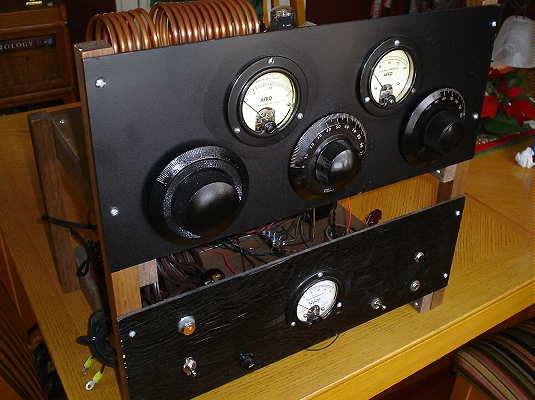

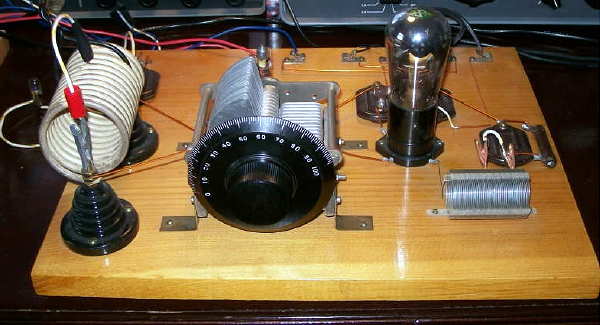

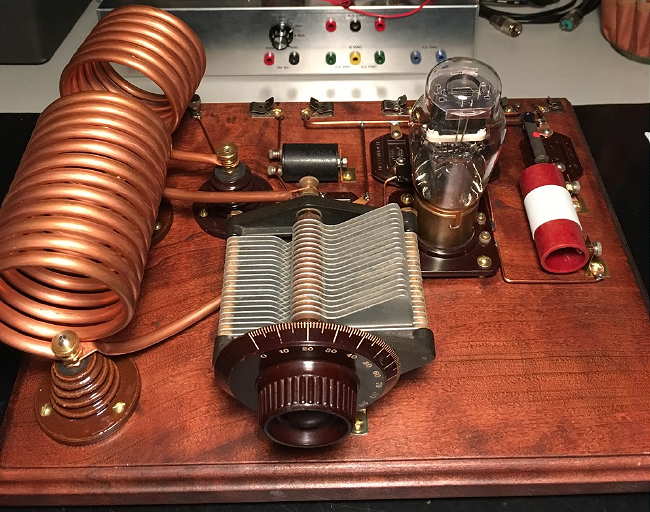

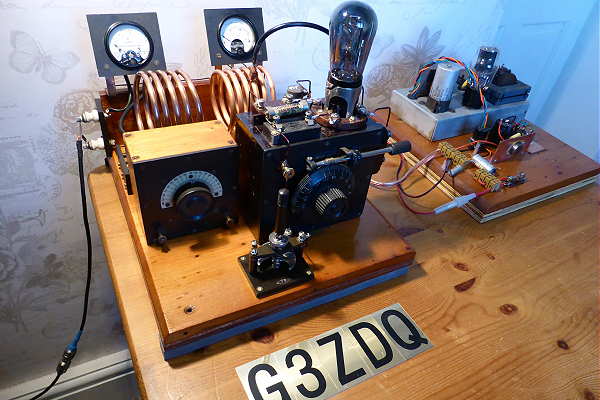

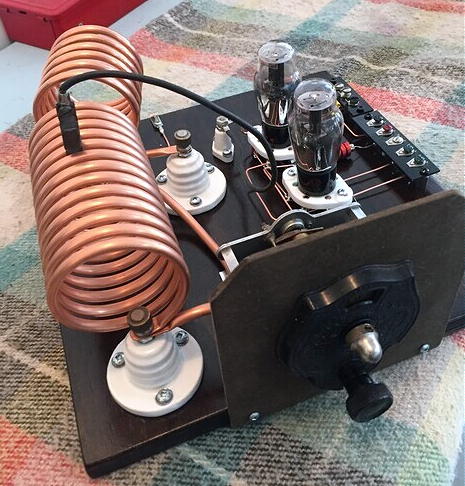

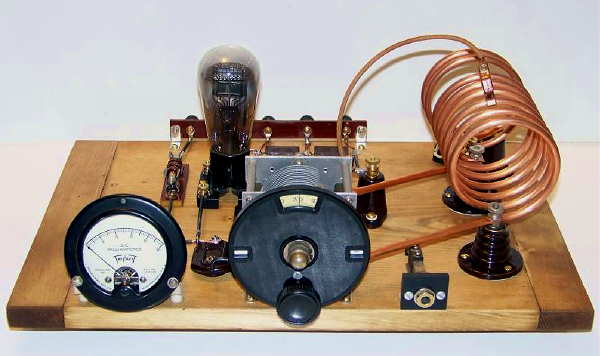

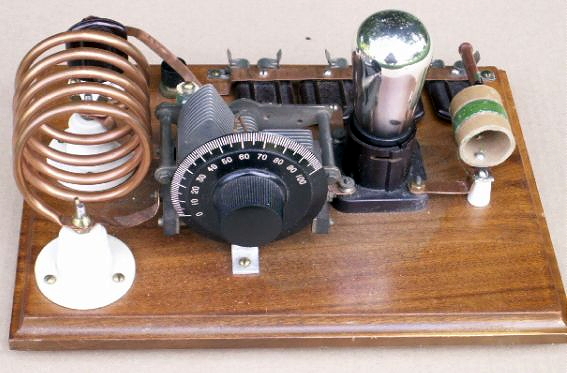

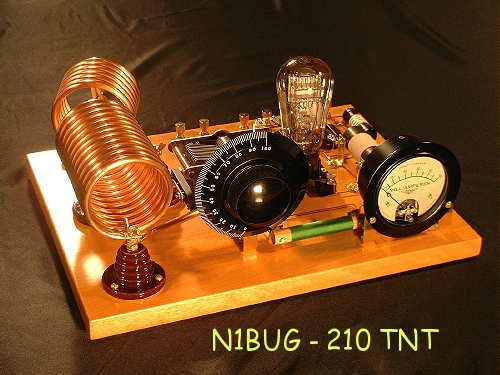

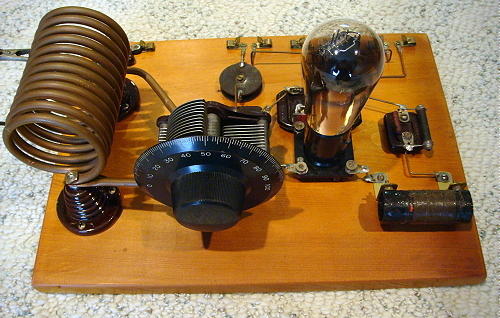

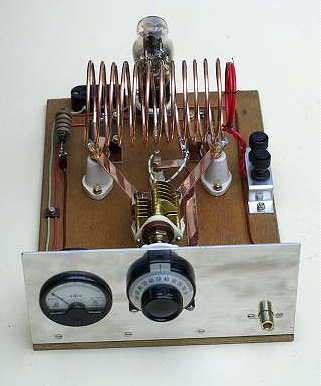

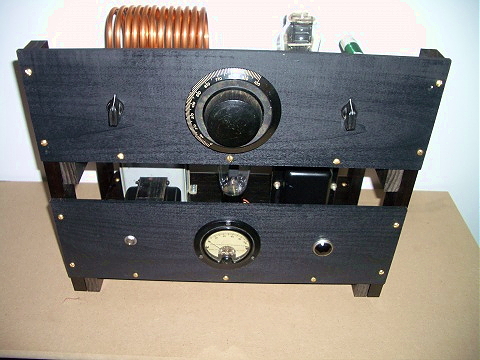

KK7UV - HULL HARTLEY VE3AWA - TPTG P-P 210's KK7UV - TNT VE7SL - HULL HARTLEY N3IBX (SK) - TNT NE1S - TNT NE1S - HARTLEY N1BUG - TNT KK7UV - 245 / 865 MOPA VE7BDQ - P-P 45's COLPITTS KB7NRN - 45 Hartley K5MO - TNT VE3BM (SK) (1929) - TPTG ORIGINAL G3IKR (SK) - HARTLEY K4JYS - TNT N2OUV - TNT WØVLZ - HULL HARTLEY WØVLZ - TNT P-P 210's KØJW - TNT WØNYQ - TNT (245) N2OUV - PR 27's HARTLEY WØLGU - HARTLEY & 210 PA W3GMS - TNT (Original) top view VE3AWA - TNT VE3DWK (SK) - TPTG P-P 210's K8KK - TPTG P-P 210's VE3GRO - HARTLEY VE3UD (SK) - 20m HARTLEY - UV202 W1ZB - TNT DECK / PS top view W2GUM - TNT K1TG (SK) - HARTLEY WA9WFA - HULL HARTLEY W2AMI - HULL HARTLEY rear view KB2FCV - HULL HARTLEY KF6PQT - TNT K4JLH - HARTLEY (211) W1FPZ (SK) - TPTG W5DPM (SK) - HULL HARTLEY WU2D - TPTG W7OIL - 'Double-M' Unity-Coupled '27 KB7NRN - MOPA 47- PAR 46's K6FWT - HARTLEY / PARALLEL '27s KB7NRN - HARTLEY WA3KIO - TNT N2OUV - 211 HARTLEY W7DRA - P / P HARTLEY IZ4KBS - 27 HARTLEY KBØMM - 29 MOPA (10Y's) K7FM - '10 TNT / 40m KBØMM - 211 HARTLEY MOPA 160-40m NF1O - UY227 HARTLEY K1TG (SK) - UNITY COUPLED P-P 45's IK2DED - TNT (Builder Unknown) WB2QMY - TNT UX-201A KK4RF - HARTLEY 27 @ 7 watts K4JYS - 210 HARTLEY G3ZDQ - UX-171A HULL HARTLEY K6KV - Push-Pull 10's TPTG VE7CNF - Colpitts Push-Pull 45's K3IPD - 40m 45 TNT W8PU - '27' HARTLEY N8YE - TPTG W8PU - '10' TNT WB2AWQ - '211' HART KK7UV - '841' Hull Styled 40m TPTG KØSM-Sept 1924 QST HARTLEY -'UV202' KN4RRQ - 160m HARTLEY - 27s WØVLZ - P-P 210s COLPITTS See construction details in Niel's Six-part Blog

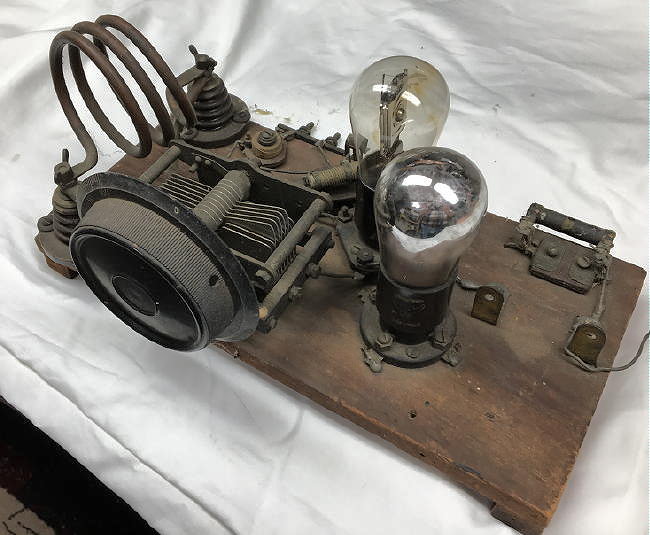

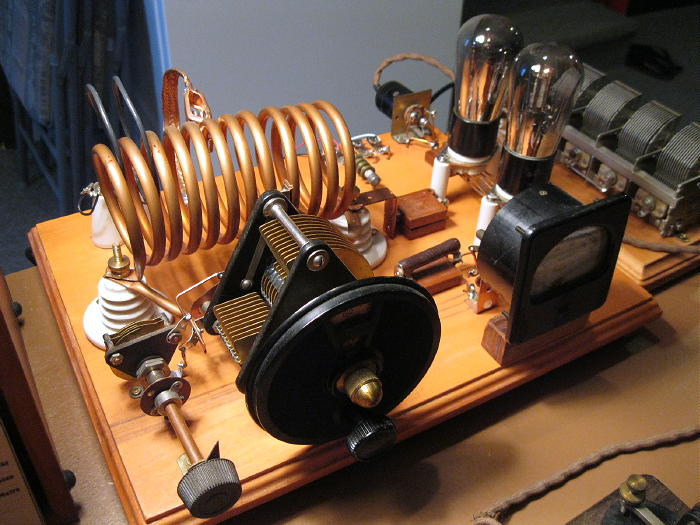

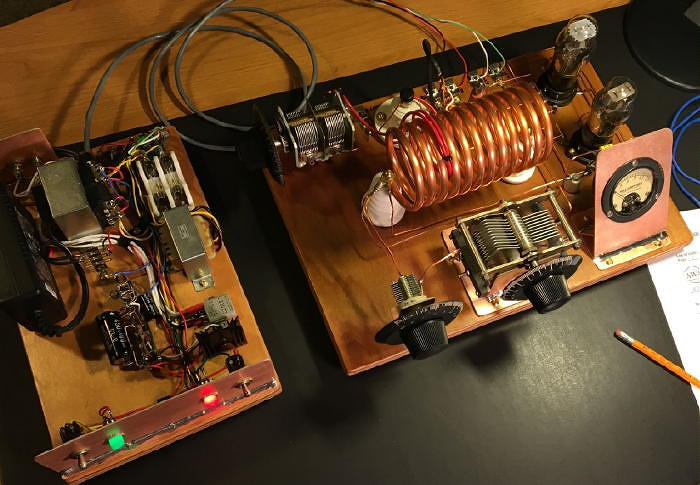

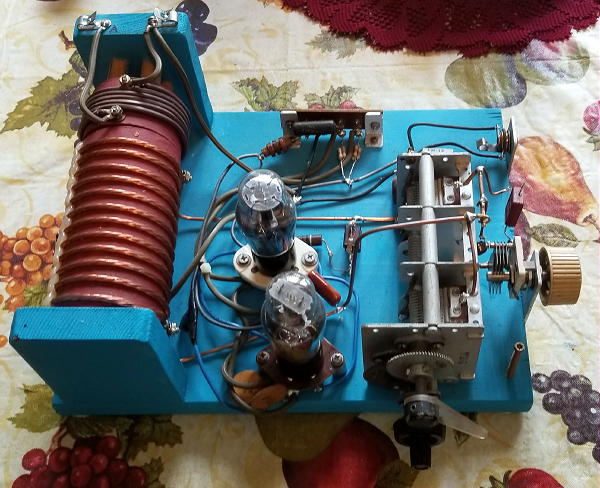

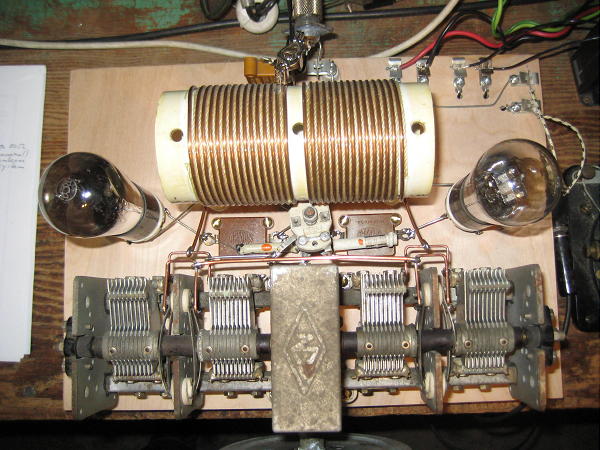

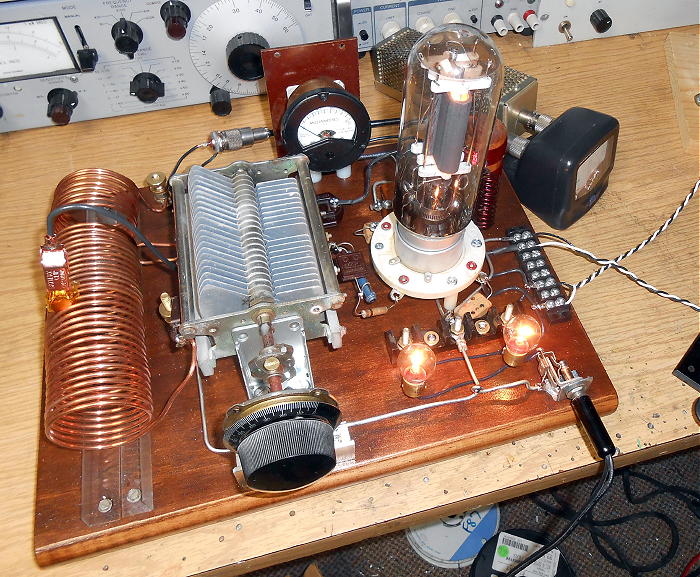

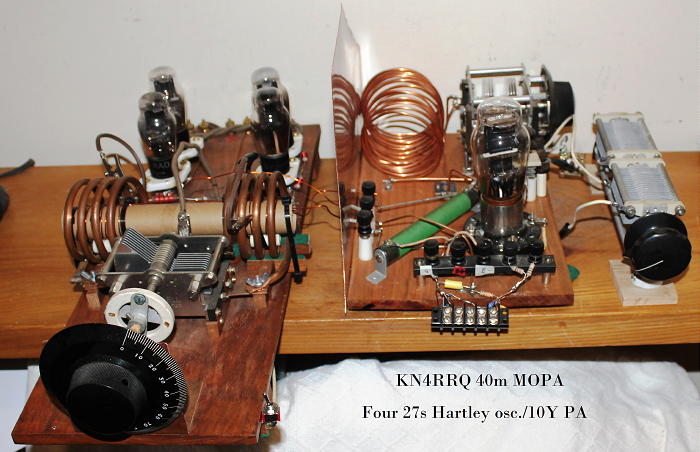

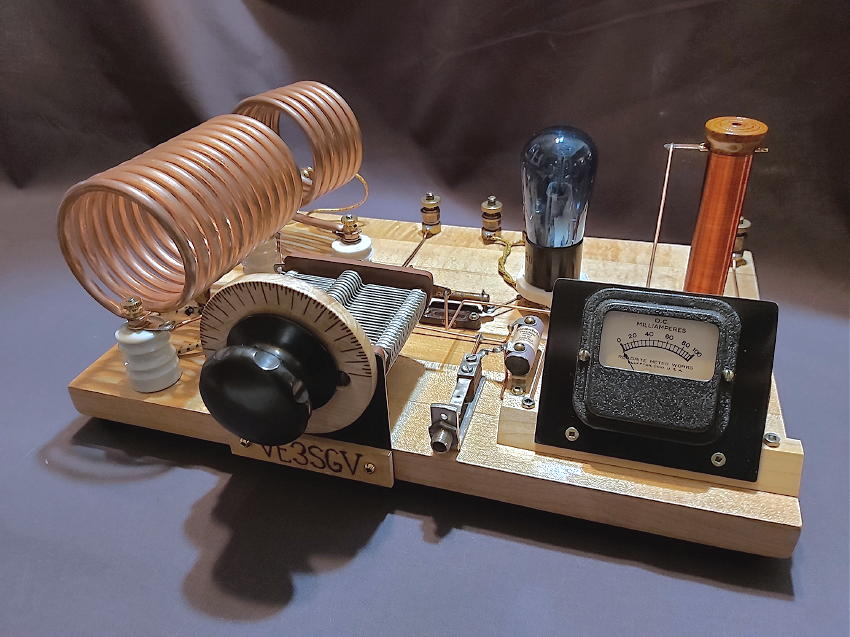

K5CF (sk) - 210 TNT WU2D - 211 160m HARTLEY NE1S - PP 27s 160m HARTLEY W8HOG - 27 HARTLEY W3BBO - 27 HARTLEY / 80 PWR SUPPLY WA3JJT - 27s HARTLEY WK3A - 27s HARTLEY 80m / PWR SUPPLY KK4GFR - Parallel 27s / 76s - HARTLEY W8PU - '25 40m HARTLEY - UX199 VE3SGV - 80m HARTLEY - Arcturus 127 VE3AWA 1BIG HARTLEY - UX-210 KN4RRQ's 4-HOLER HARTLEY VA6FUN - 80m Hartley - parallel 27s KC5U - Colpitts - PP VT-25s W8PU - 1927 MOPA - 301A - 10Y

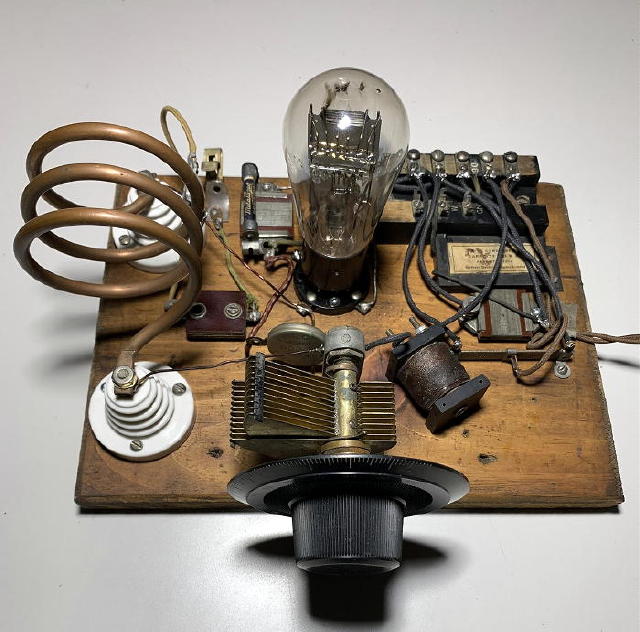

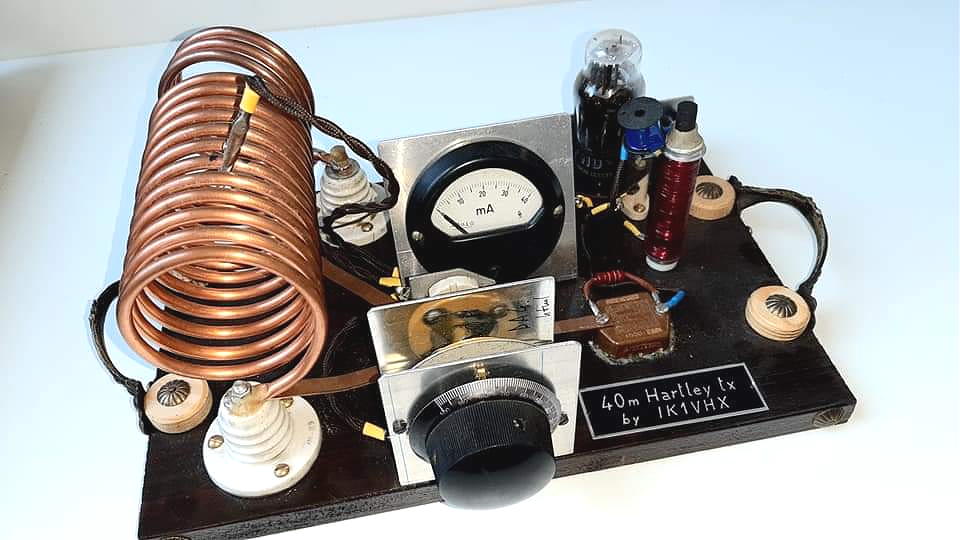

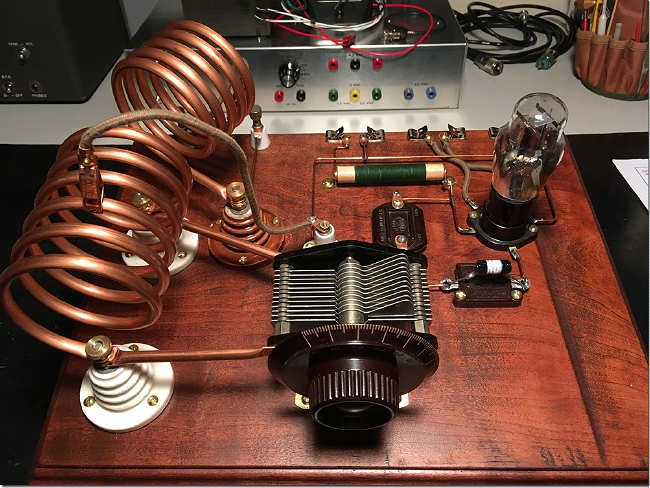

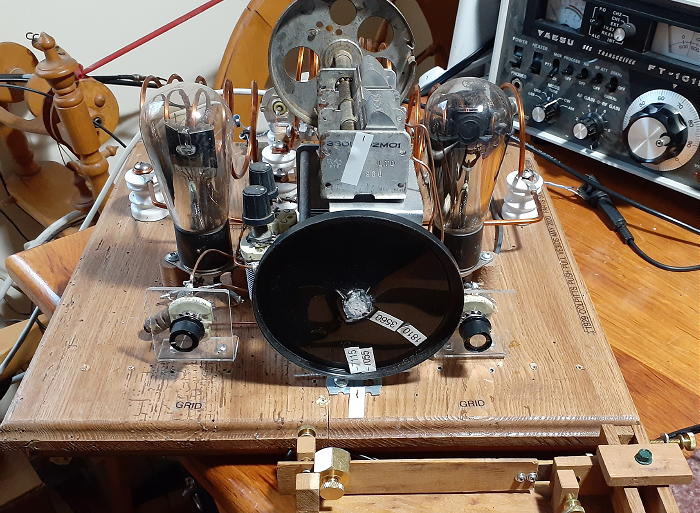

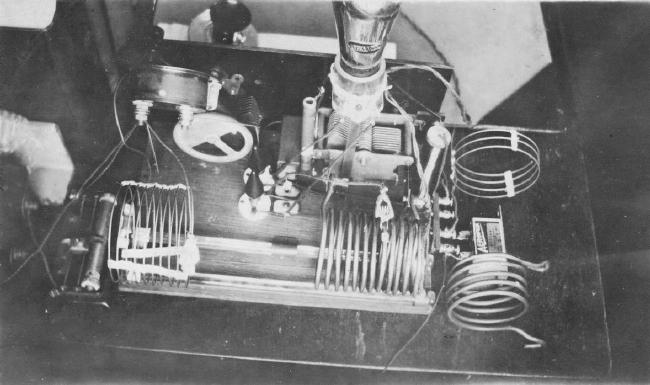

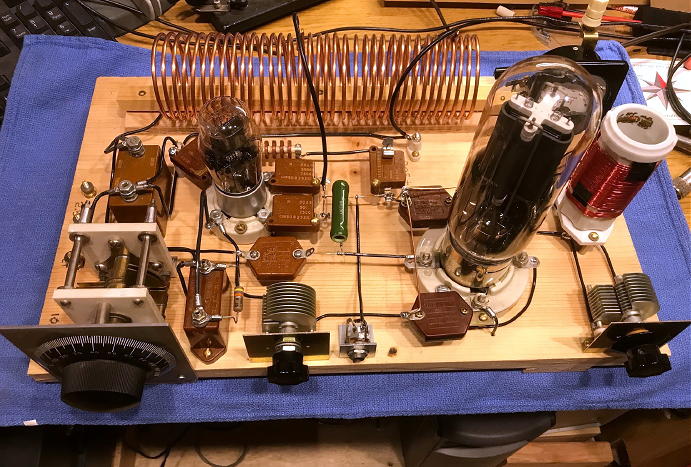

CRYSTAL CONTROLLED! N4LTA - PUSH-PULL 10s COLPITTS AJ8S - HARTLEY - 27 (160/80/40) W8PU - PP Colpitts 10s W8PU - Hull Hartley 3ABW repro - 45 Original 3ABW Hull Hartley circa 1928 KA1QYP - Hartley - 27 W8KGI Hull MOPA - 10s WA6VYN Hull MOPA - 10Ys WA6VYN Hull MOPA WB7WHG 160m MOPA 10 - 211 VE3IDS '29 Colpitts - 45s IK1VHX - 40m Hartley - 27 Original TNT (1930?) as found in an Ontraio yard sale by VE3JXM Above TNT restored by W8PU - 20m - 201A or type 10 KN4RRQ MOPA - Four 27's driving a 10Y WØTMP '29 Hartley - 10 TNT - UX-210 (New England Wireless & Steam Museum W1EPJ) W1MB - TNT - VT-25 (New England Wireless & Steam Museum W1EPJ) KN4RRQ - 20m Hartley (27) WA2FXM - MOPA 45-10 W8PU - TNT KK7UV - 20m PTO Hartley - 227 VE3AWA - TPTG - UX-171A
(If you have a '29 - style transmitter to add to the gallery, please forward via e-mail link below)
