VK6RMS Mt. Saddleback 7250+
Access to the site is by 4 wheel drive only.

At 2000' it offers wide coverage.

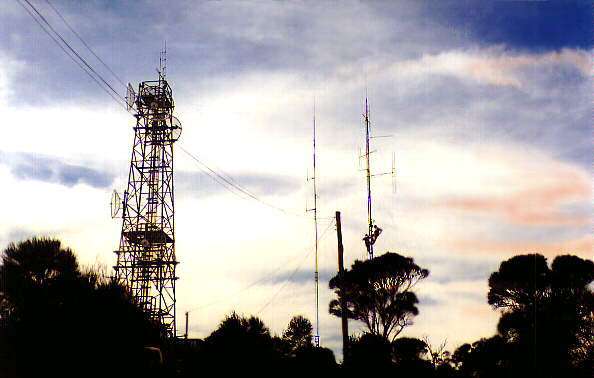

The photo was taken during a visit in 1996 to upgrade the antennas.

The voice repeater's antenna is at the very top and is the lightning arrester.
This Repeater has been operational since the mid 1980's
This voice repeater has been linked to VK6RUF in Perth and VK6RAW in Katanning.
The WIA News is carried by this repeater.
The large tower on the left is SECWA's and the one in the middle, UHF CB.
The people up the tower are Chris VK6JI and Dennis VK6LD
installing the Digi (144.850) antenna.
VK6RMS Update August 1997
 Since the photo above was taken,
the tower showing Chris and Dennis
has been replaced with a taller tower,
and our amateur radio installation
removed from the commercial hut and
installed in our own cabinet.

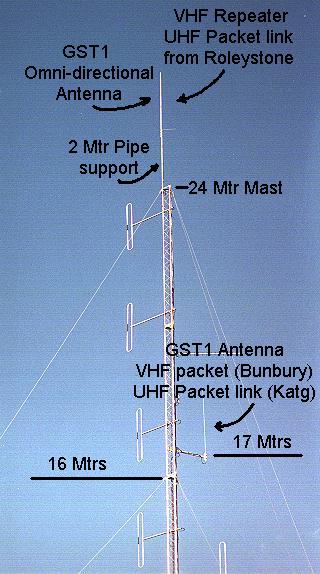

The two antennas used are
amateur commercial GST-1,
dual band 2 metre - 70 centimetre.

The voice repeater is right on top and
the 70 centimetre part of this antenna
is the packet link to Perth.

The lower GST-1
at the 17 metre level
is the 144.850 packet user frequency and
the 70 centimetre packet link to Katanning.

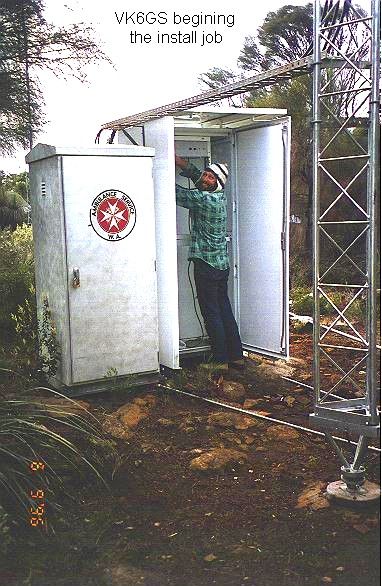

Gary VK6GS in beany
(must have been cold on the day)
starting the equipment installation.

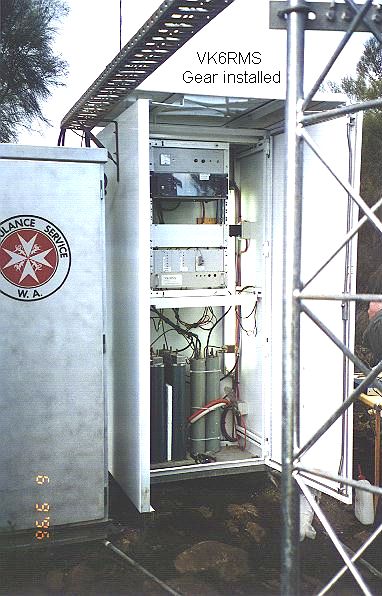

The finished installation....

From the top..

Power supply
Voice repeater

Packet TNC's and
UHF packet radios
144.850 packet radio

Voice repeater's duplexer
and 144.850 cavity filters


Backup battery is behind the cabinet

Lattest photo showing all 11 cavity filters on the site.
