Latitude: 29.830, Longitude: -95.330
Composite images created in 2012 can be found here.
A project continuously run by WØMM since 2010. Webpage courtesy of qsl.net
Next Scheduled Satellite Passes over Houston, TX, USA
* local time is Central Daylight Time. |
About the EnhancementsThis page shows just several of the 35 enhancements WXtoImg provides: |
|

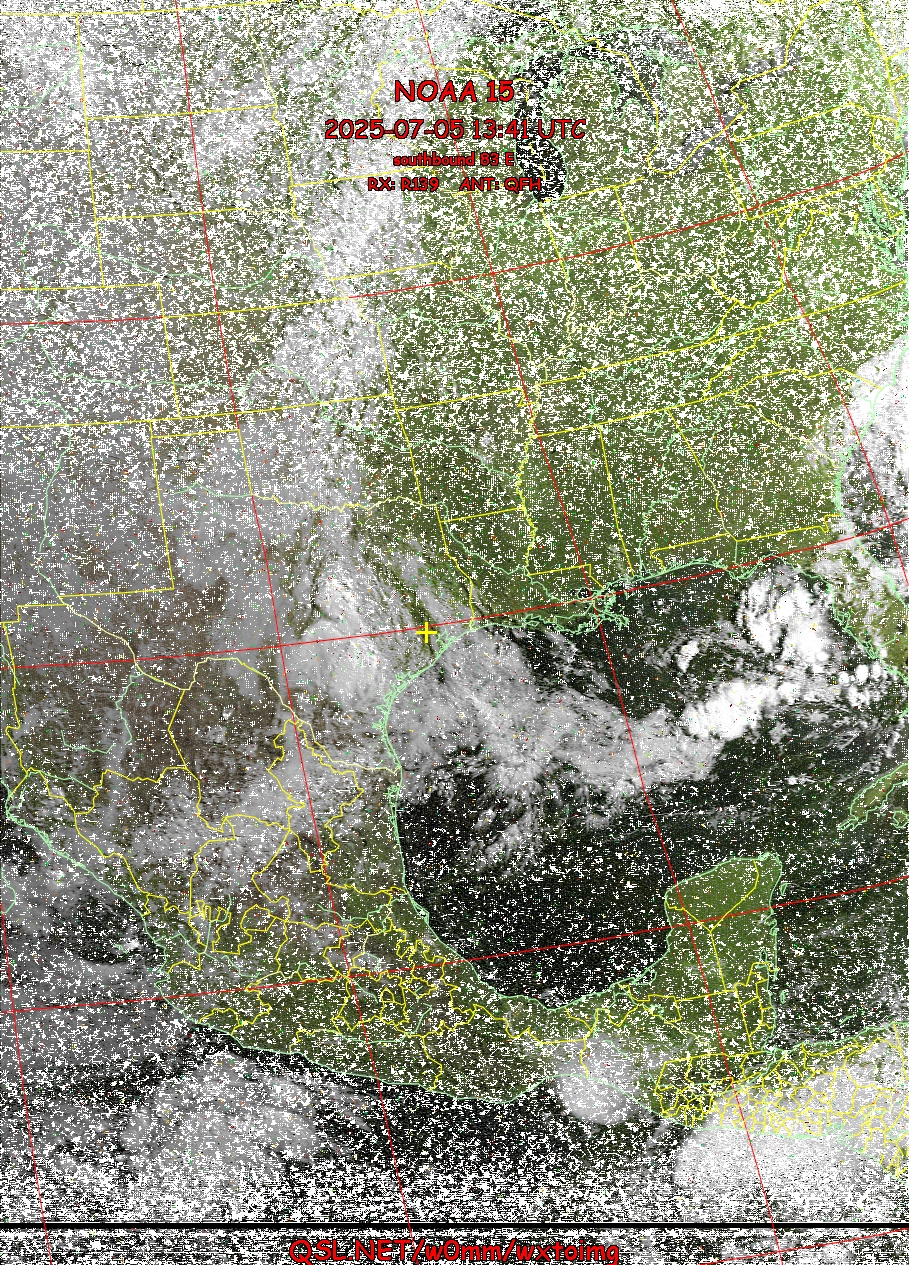

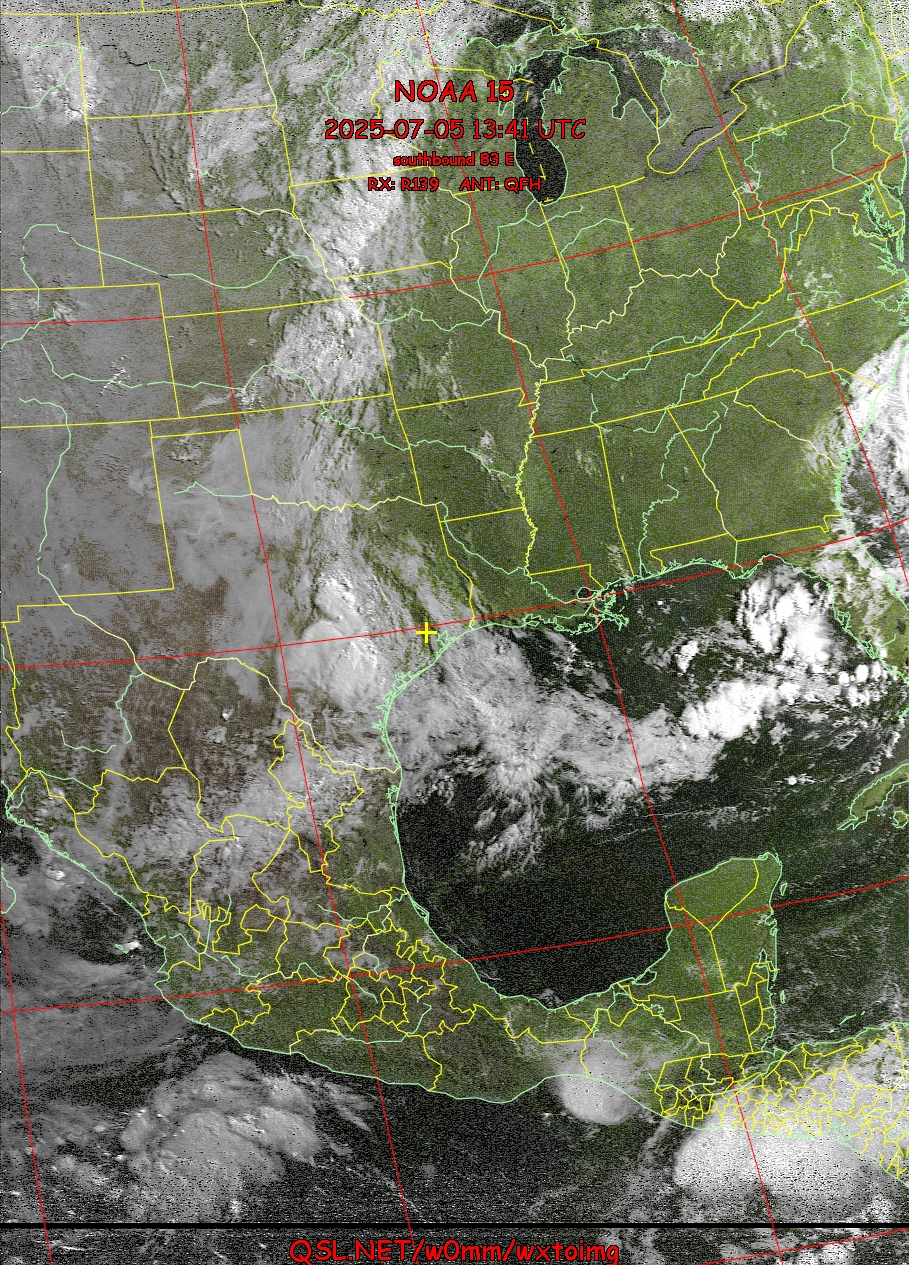

MSA | Multi-Spectral Analysis: combines a sensor 1 or 2 (visible/near infrared) image with a sensor 4 (thermal infrared) image to create a near true color, near visible image of the earth. |

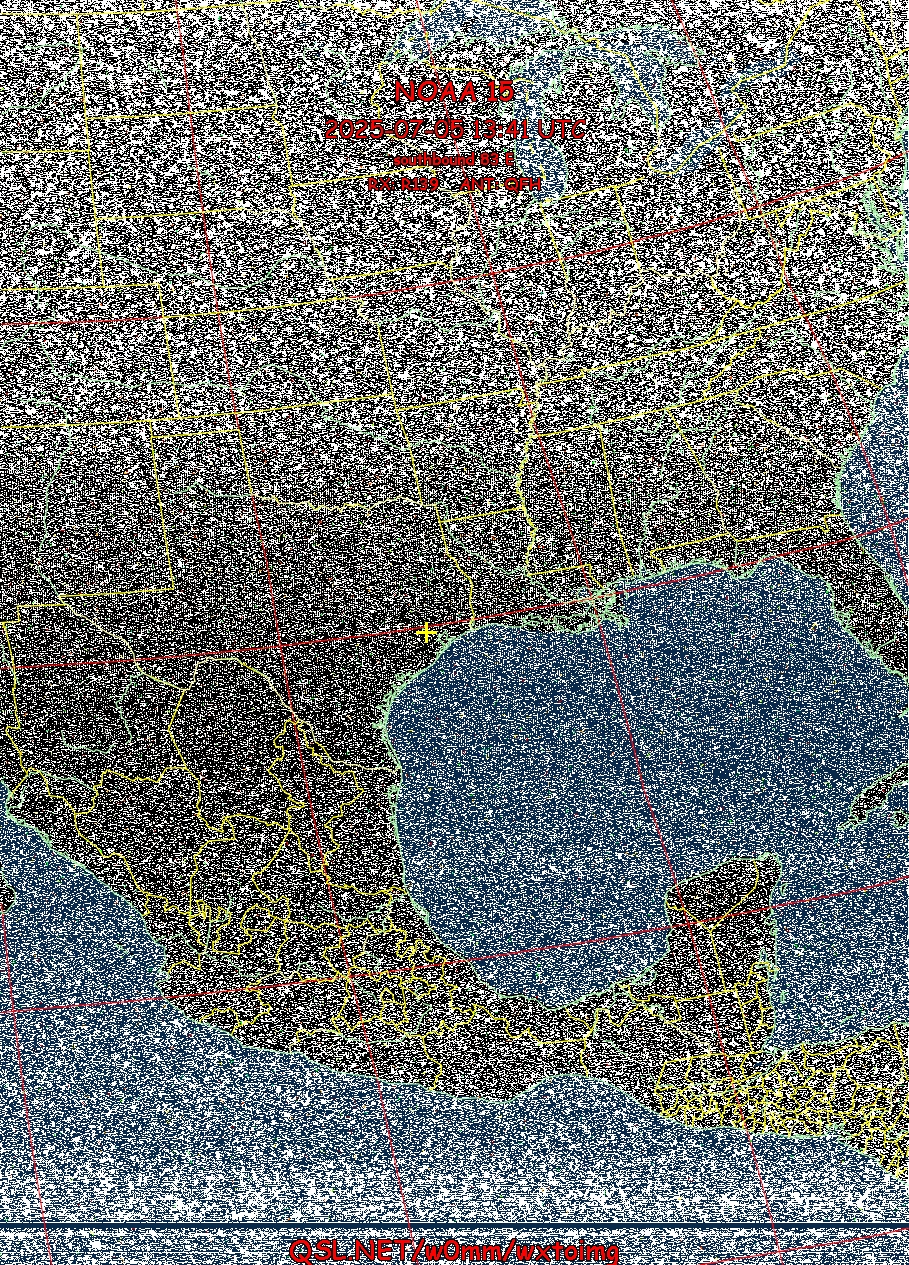

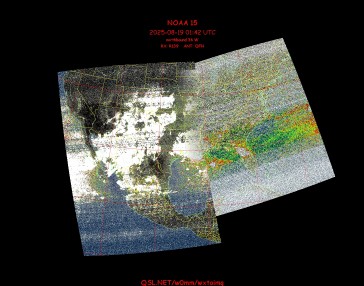

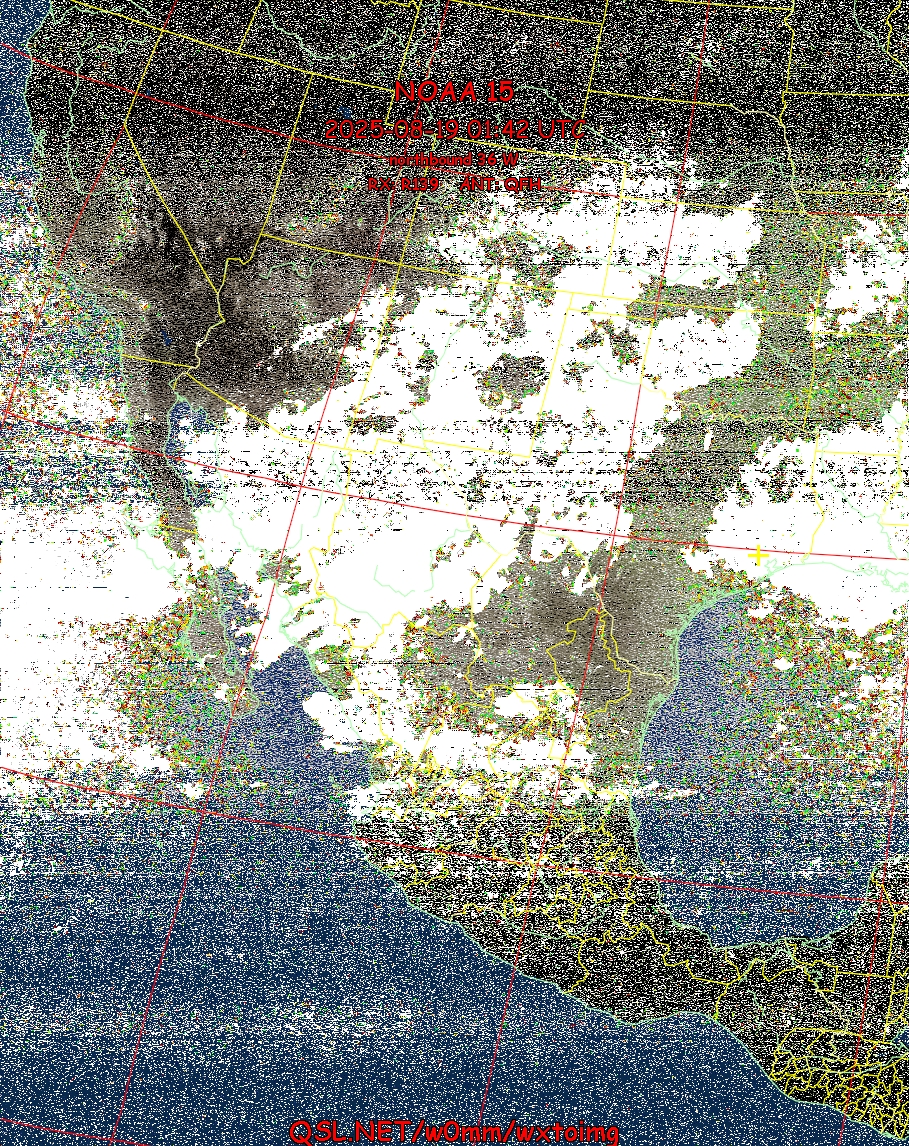

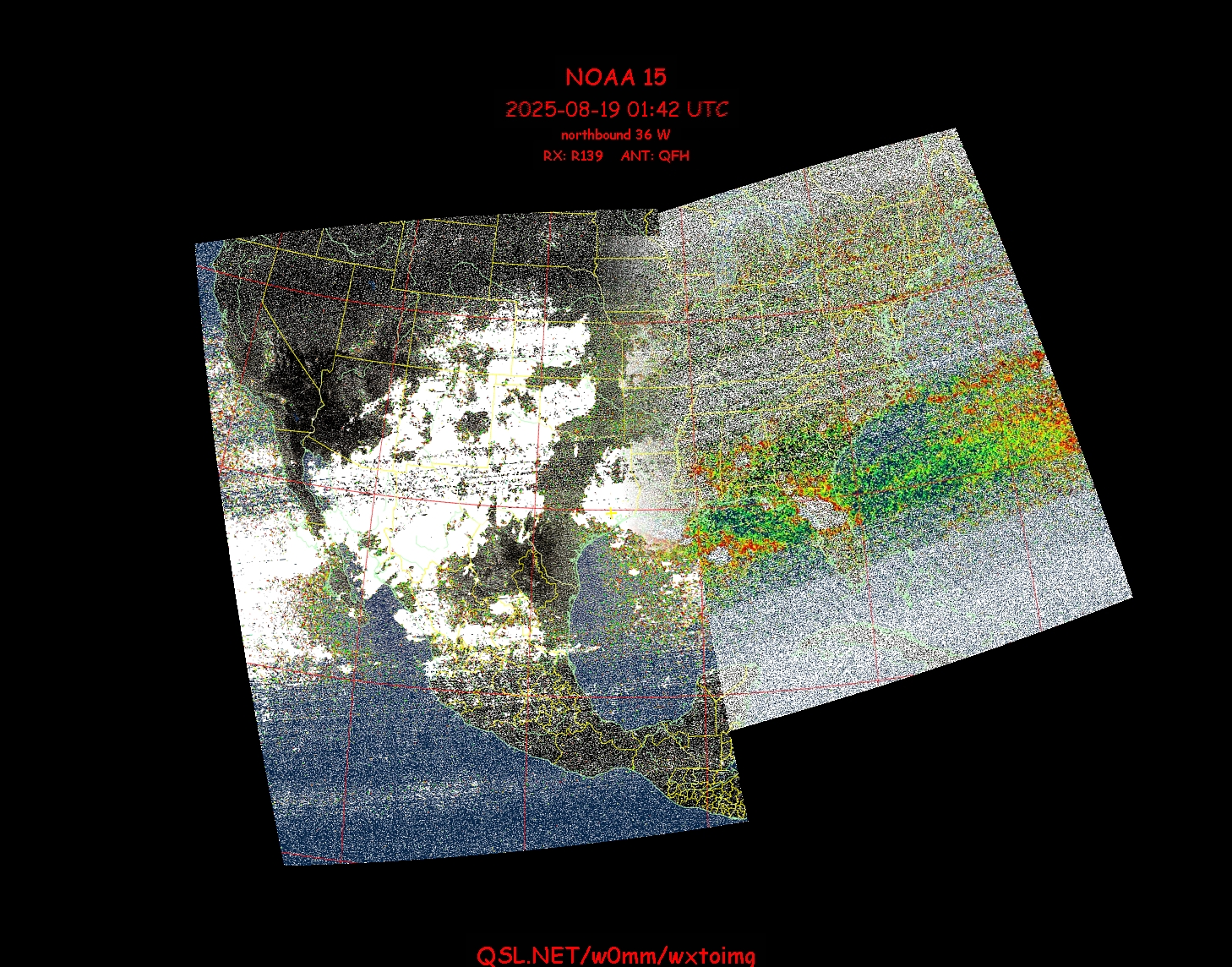

MCIR-precip | Map Colored IR with Precip: uses sensor 4 (thermal infrared) to create a false colored image showing areas of likely precipitation. The likelihood and intensity of precipitation increases as the color goes from green to yellow to orange to red to black to white. |

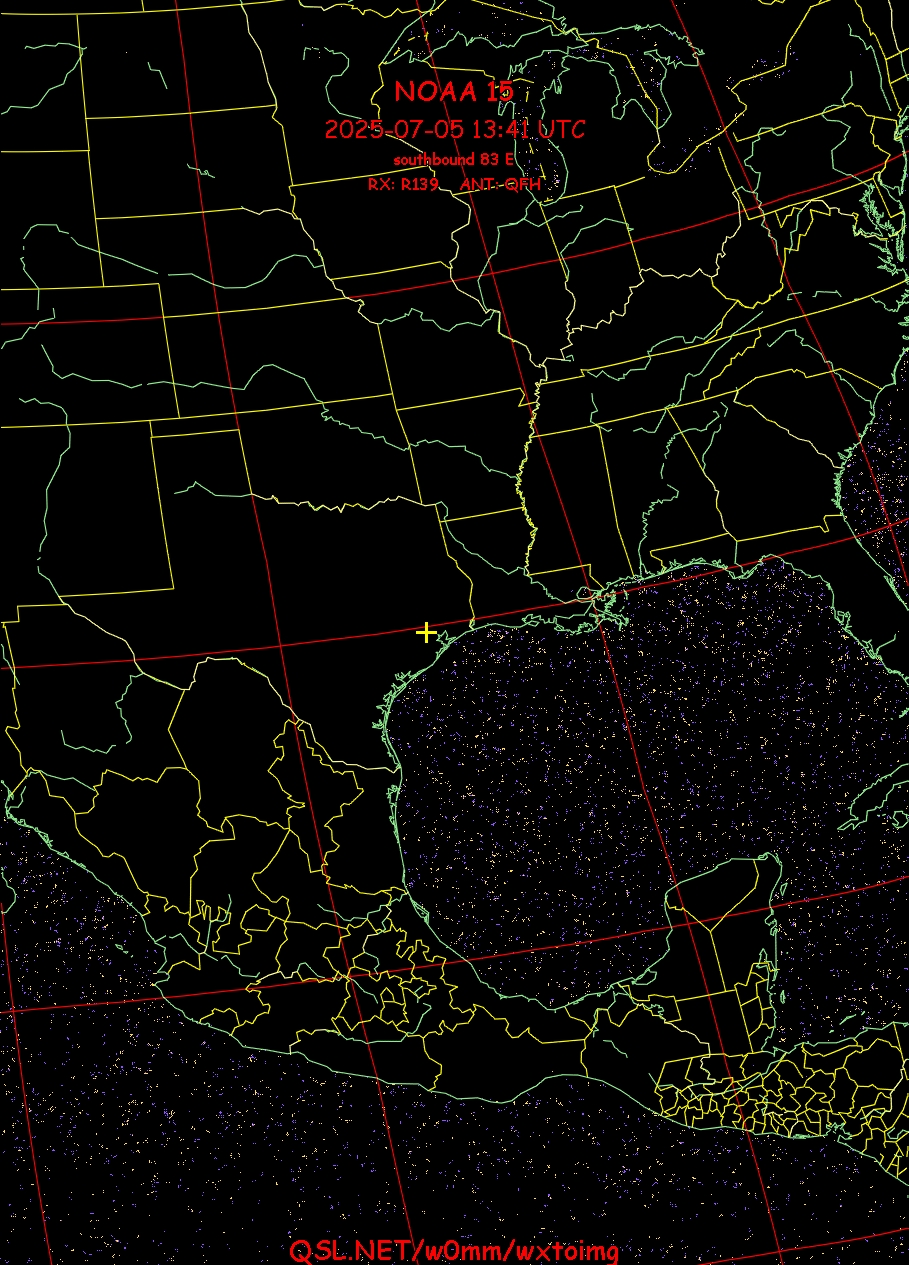

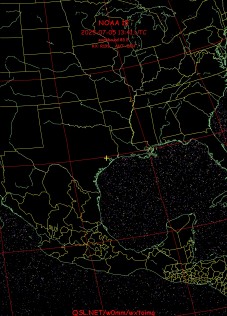

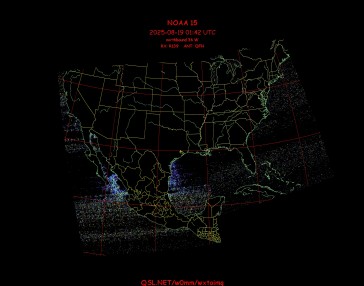

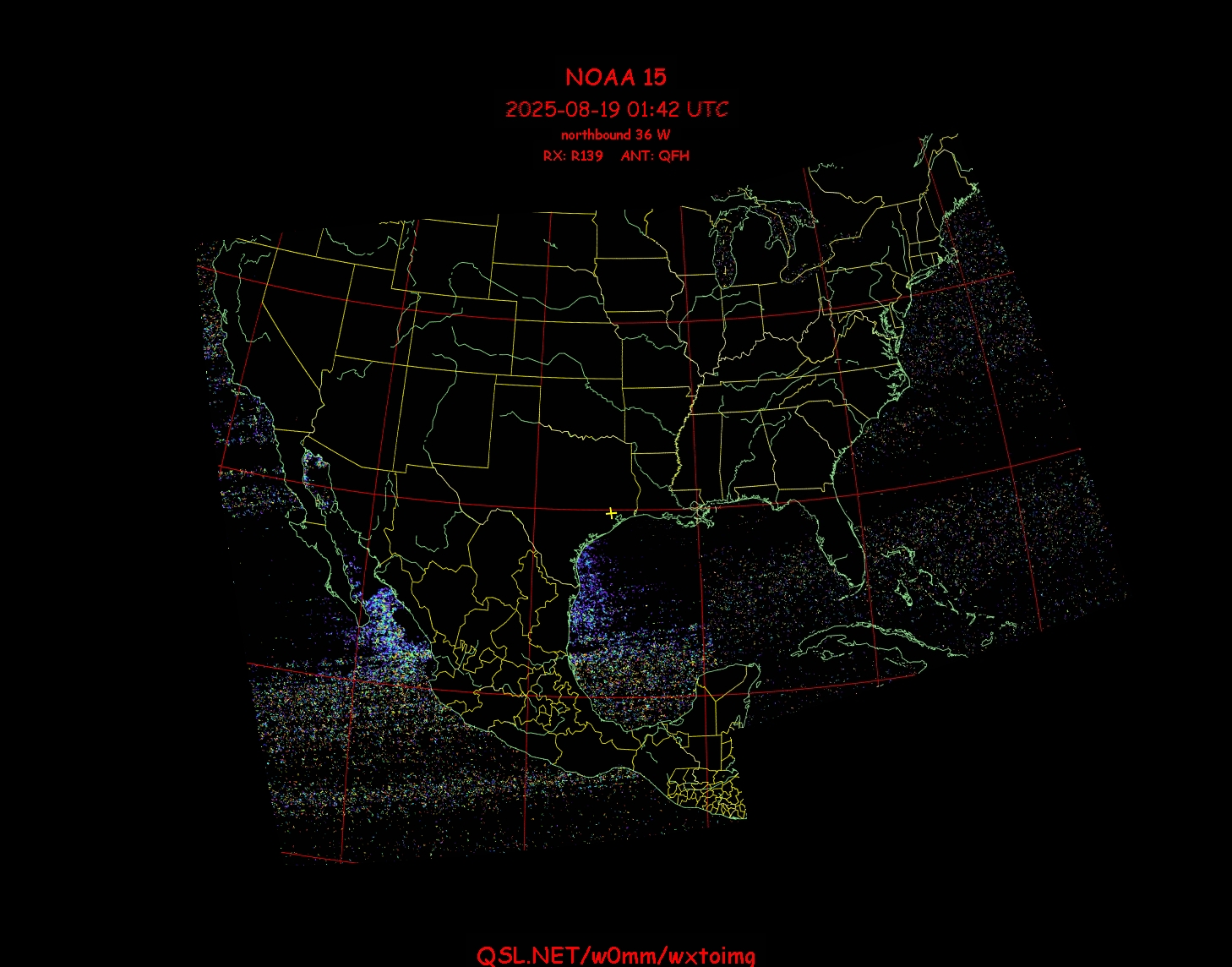

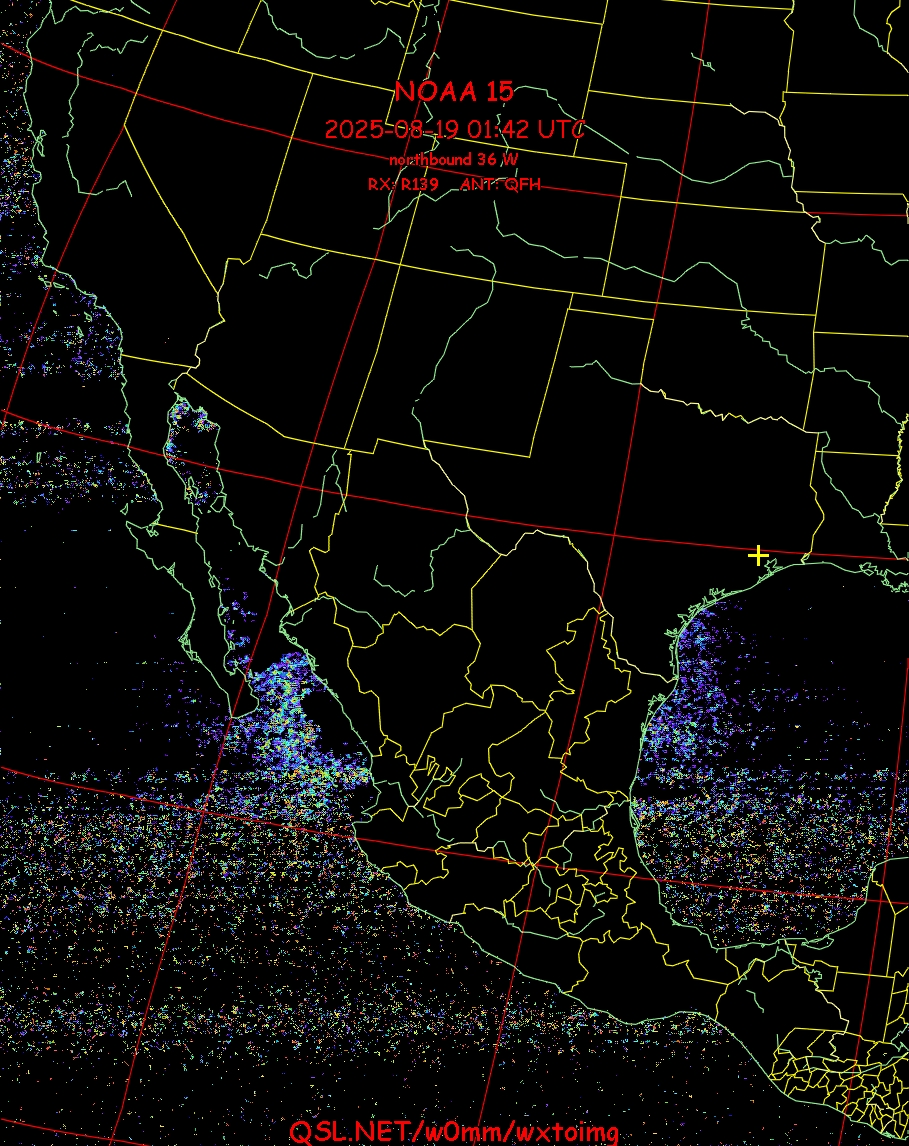

SST (sea) | Sea Surface Temperature: creates a false colored image using the temperatures from a sensor 4 (thermal infrared) image. The black areas indicate land and cold cloud. |
HVCT | HVCT false color: creates a false colored image by
combining
a sensor 1 or 2 (visible/near infrared) image with a sensor 4 image (thermal infrared) to create an image in which clouds are tinted by their temperature. |

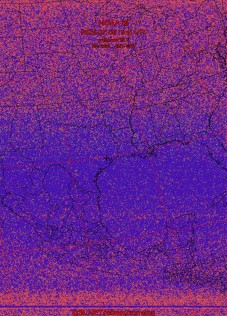

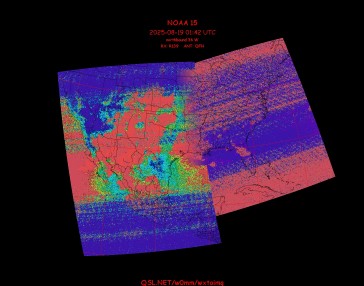

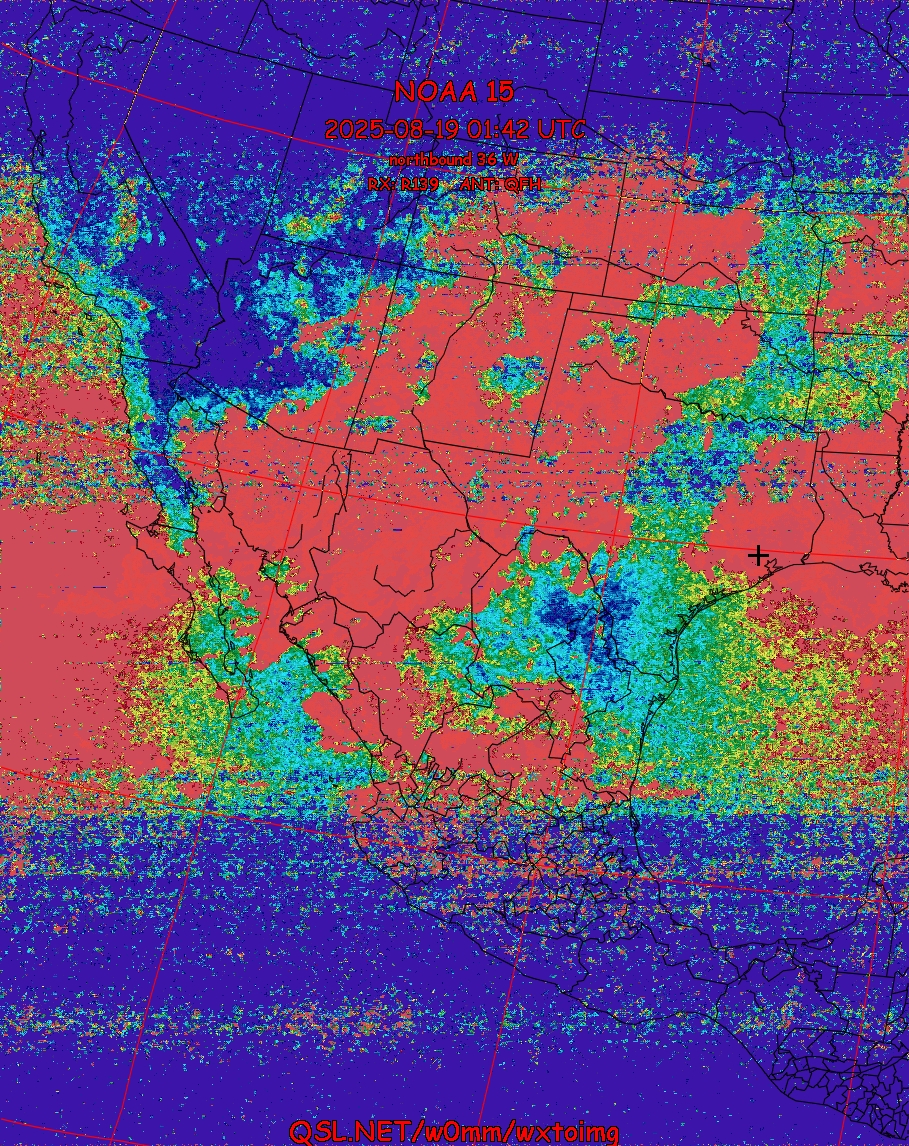

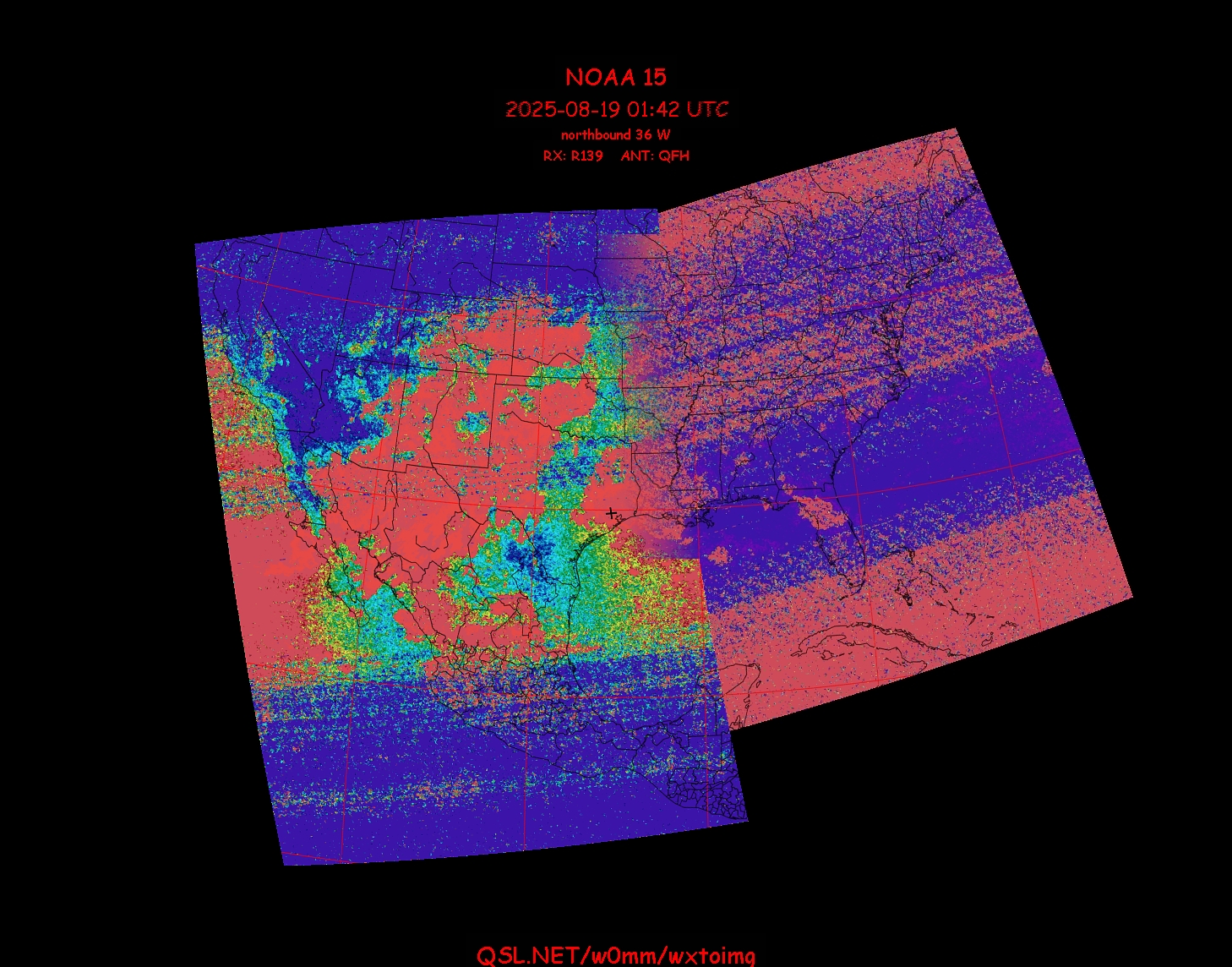

Thermal | Thermal: creates a false colored image using the temperatures from a sensor 4 (thermal infrared) image. Covers the full range of temperatures from very cold cloud tops to hot deserts. |

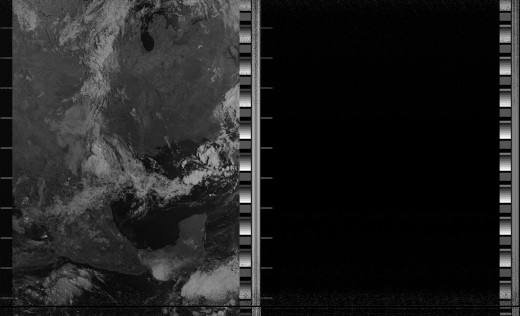

Pristine | These are images as as they come from the satellite
without
alteration. The earth appears "upside down" on Northbound passes. The two images are the two channels sent by the satellite with channel A (left) switching between sensor 1 (visible) or 2 (near-IR) during the day and sensor 3 (mid-IR) at night and channel B (right) showing sensor 4 (thermal-IR) at all times during normal operation. |
Worldwide Satellite Image links (some stations may not be on line anymore)
|
North
America |
South America |
Europe |
Asia |
Africa |
Oceania |
---|---|---|---|---|---|
KO4BEP, Fayetteville, NC* |
(discontinued) |
Hideaway, Durrus, Ireland | Les Avirons, Réunion Island |
||
(discontinued) |
(discontinued) |
||||
(discontinued) |
Wilthen, Germany |
VK6NAD, Australia |
|||
(discontinued) |
(discontinued) |
(discontinued) |
|||
(discontinued) |
Kochi, Japan |
Eden Park, Victoria, Australia
|
|||
(discontinued) |
(discontinued) |
F2FT,
Cassis, France |
(discontinued) |
(discontinued) |
|
Colebrook, CT |
(discontinued) |
(discontinued) |
Somerset, Tasmania, Australia* (discontinued) |
||
Tobaccoville, NC |
(discontinued) |
Moscow, Russia |
(discontinued) |
Brisbane, Australia |
|
Wausau, WI |
(discontinued) |
(discontinued) |
(discontinued) |
||
(discontinued) |
LU8FJH, Rosario, Argentina (off) | Eichstadt, Germany* |
(discontinued) |
||
VA3ROM, Thunder Bay, ONT, Canada* (discontinued) |
LU7DRR, Buenos Aires, Argentina* (discontinued) |
(discontinued) |
|||
(discontinued) |
(discontinued) |
Fevik, Norway* |
(discontinued) |
||
KA7OEI, West Jordan, UT* |
(discontinued) |
Ferndown, Dorset, UK* |
(discontinued) |
||
Sebastopol, CA |
|||||
San Francisco, CA* |
|||||
(discontinued) |
Tampere, Finland |
||||
Port Alberni,
BC* |
|||||
(discontinued) |
|||||
Wuppertal, Germany |
* Pristine images available
