Revival Project
For Free. How bad can it be? Well pretty bad. The 15V and the 65V rails are both dead.

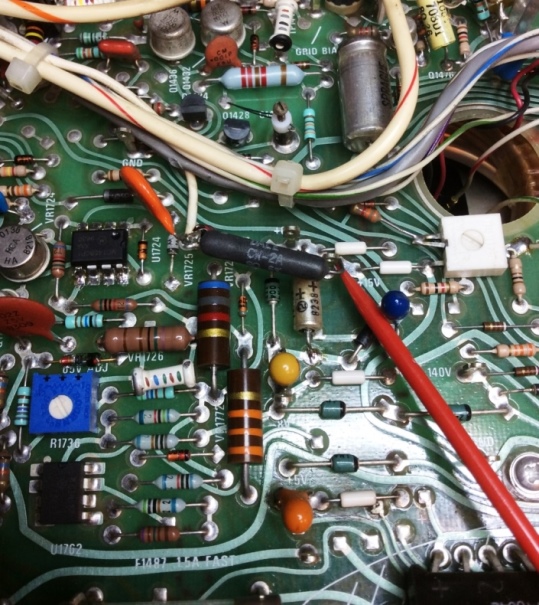

The swizzle stick points to 'Kludge 1' so named cause I can't find it anywhere
in the manual. Correction. With a little help from vladimirshs
on Tekscopes user group. Doh! Right there on Schematic 13. CRT heater decoupling. And I guess
the modern term is Bodge.

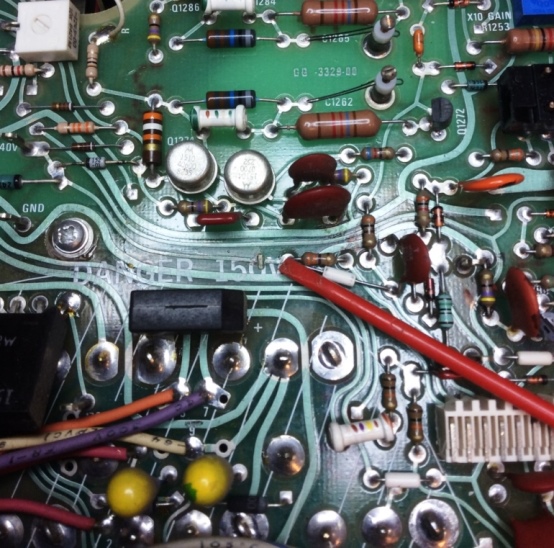

Kludge 2 is an intentionaly cut 140V rail just left of the swizzle stick. What's that all about? vladimirshs has one with same so obviously it's oem.
