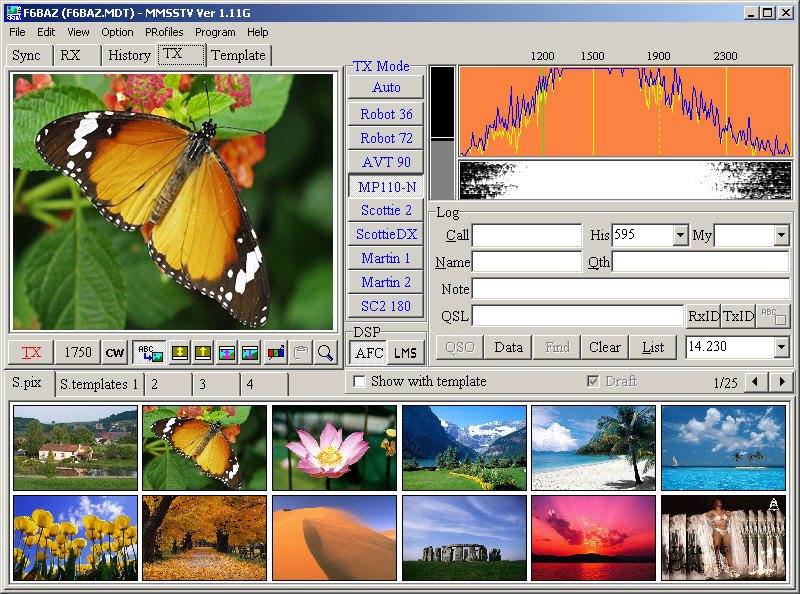

STEP 1: Edit the [RADIO] section of the MMSSTV.ini file

[RADIO]

PortName=COM13

BaudRate=115200

BitLen=1

Stop=0

Parity=0

flwXON=0

flwCTS=0

usePTT=0

ByteWait=0

Cmdxx=148

CmdInit=

CmdRx=\$FEFExxE01C0000FD

CmdTx=\$FEFExxE01C0001FD\w10

FileGNR=

OpenGNR=0

PollType=3

PollInterval=5

STEP 2: Edit the [RADIOMENU] section of the MMSSTV.ini file

Note: in USA on the 30-, 17-, and 12-meter bands, SSTV must be a narrow version As well as selecting a narrow mode in MMSSTV,

You may want to set the Filter for 10.132 Mhz, 18.117 Mhz, and 24.927 Mhz to ’03’, the narrowest by default, and manually adjust this filter to suit. USE MP73-N video on these bands.

[RadioMenu]

Menus=18

Cap1=1.890 MHz LSB - USA/Canada Call Freq.

Cmd1=\$FEFExxE00500008901FD\$FEFExxE02600000101FD

Cap2=1.916 MHz LSB - USA/Canada Call Freq.

Cmd2=\$FEFExxE00500609101FD\$FEFExxE02600000101FD

Cap3=3.845 MHz LSB - USA/Canada Call Freq.

Cmd3=\$FEFExxE00500508403FD\$FEFExxE02600000101FD

Cap4=3.857 MHz LSB - USA/Canada Call Freq.

Cmd4=\$FEFExxE00500708503FD\$FEFExxE02600000101FD

Cap5=7.171 MHz LSB - USA/Canada Call Freq. (Advanced and Extra Class Only)

Cmd5=\$FEFExxE00500101707FD\$FEFExxE02600000101FD

Cap6=7.180 MHz LSB - USA/Canada Call Freq. (Proposed General Class)

Cmd6=\$FEFExxE00500001807FD\$FEFExxE02600000101FD

Cap7=7.228 MHz LSB - USA/Canada Nets

Cmd7=\$FEFExxE00500802207FD\$FEFExxE02600000101FD

Cap8=10.132 MHz USB - USA Narrow Call Freq. 200w PEP (Use MP73-N)

Cmd8=\$FEFExxE00500201310FD\$FEFExxE02600010103FD

Cap9=10.142 MHz USB - USA Narrow Call Freq. 200w PEP (Use MP73-N)

Cmd9=\$FEFExxE00500201410FD\$FEFExxE02600010103FD

Cap10=14.230 MHz USB - Intl. Call Freq.

Cmd10=\$FEFExxE00500002314FD\$FEFExxE02600010101FD

Cap11=18.117 MHz USB - USA Narrow Call Freq. (Use MP73-N)

Cmd11=\$FEFExxE00500701118FD\$FEFExxE02600010103FD

Cap12=21.340 MHz USB - Intl. Call Freq.

Cmd12=\$FEFExxE00500003421FD\$FEFExxE02600010101FD

Cap13=24.930 MHz USB - USA Narrow Call (Use MP73-N)

Cmd13=\$FEFExxE00500709324FD\$FEFExxE02600010103FD

Cap14=28.680 MHz USB - USA/Canada Call Freq.

Cmd14=\$FEFExxE00500006828FD\$FEFExxE02600010101FD

Cap15=28.690 MHz USB - USA/Canada SSTV Repeaters

Cmd15=\$FEFExxE00500006928FD\$FEFExxE02600010101FD

Cap16=28.700 MHz USB - USA/Canada SSTV Repeaters

Cmd16=\$FEFExxE00500007028FD\$FEFExxE02600010101FD

Cap17=50.680 MHz NFM - USA/Canada - use MP73-N (All Classes Except Novice)

Cmd17=\$FEFExxE00500006850FD\$FEFExxE02600050103FD

Cap18=50.950 MHz USB - USA/Canada (All Classes Except Novice)

Cmd18=\$FEFExxE00500009550FD\$FEFExxE02600010101FD

The [RADIOMENU] section is at the bottom of the Mmsstv.ini file:

Note: This is the set up address for United States for 14.230 Mhz. If your country has different standard frequencies, change the highlighted format to display your desired frequency:

This is actually two separate Command Sets

\$FEFExxE00500002314FD\$FEFExxE02600010101FD

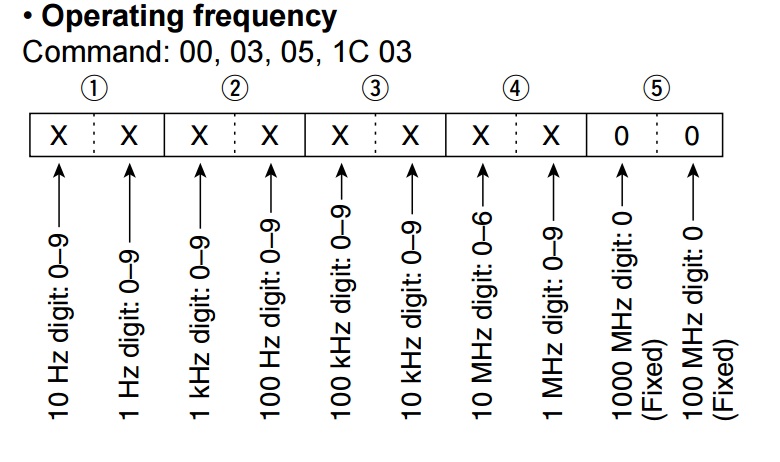

The FIRST Command Set Controls the Frequency

00002314 = 14.230.000 MHz

\$FEFExxE0 – start sequence (xx is changed by MMSSTV to the number in [RADIO]> Cmdxx,

E0 - refers to your computer

05 – set frequency

00002314 = 14.230.000 MHz

FD – end sequence.

The SECOND Command Set Controls the Modes and Filters

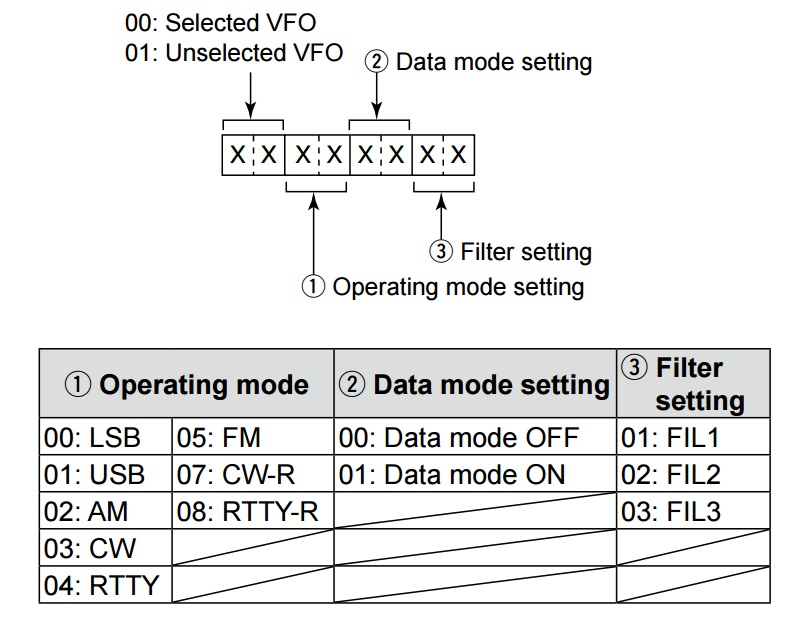

\$FEFExxE02600010101FD

010101 = USB / DATA MODE ON / FILTER 1

\$FEFExxE0 – as above, starts sequence and addresses radio

26 – set VFO

00 – Set CURRENT VFO

01 – Set to Upper Sideband (change to 00 for LSB)

01 – DATA mode (set to 00 for normal SSB – non-DATA)

01 - Filter setting 1 (The widest filter. Set to 03 for Narrow on 30, 17, and 12 meters )

Slow Scan Television (SSTV)
Frequencies

Click link to download frequency list... SSTV Frequencies.pdf
