Photo film processor
On this page you will find the technical information for building the electronic
control unit of my homemade film processing machine. To see the rest
of this film developing apparatus, look at the relevant article in the photography section of this site.
Developing a color film is a simple procedure of putting it in a sequence
of several chemical baths, for reasonably precise times at reasonably precise
temperatures and with sufficient agitation. It can be done by hand, but when
one has to develop films pretty often, that soon gets old! And there is another
large advantage to a processing machine: Consistency. With a machine, the
process will be exactly the same every time, so there are no nasty surprises
with under- or overdeveloped films, color shifts, and the like.
This machine essentially does three things: It controls the process temperature,
provides constant agitation of the chemical baths, and performs the timing.
The operator must pour in and out the liquids by hand.
Here is the schematic diagram of the controller. You can click on it to obtain a 600dpi version for high quality printing.
The heart of the circuit is a Basic Stamp 2p microcontroller. It has a program
loaded that contains several film processing algorithms. For each of them,
the process temperature, the bath sequence, the bath names, and durations,
are stored. The program offers the options via a menu, displayed on a 16x2
character alphanumeric backlit LCD, while user input is through two pushbuttons.
A small speaker gives confirmation beeps, and is also used to signal the
end of the process time for each bath.
The processor reads a Dallas DS18S20 digital temperature sensor, which is
immersed in the water bath, and uses this information to display the temperature
on the LCD, and to control the phase angle of conduction for the heater.
For this purpose, a proportional-integral control characteristic is implemented
in software. This routine generates an analog output value, which is output
on a digital pin through pulse width modulation, and used in an extremely
simple but effective optocoupled phase control circuit. The power device
is an insulated-tab TRIAC which can be mounted directly to the metal box
of the processor. This TRIAC can easily control de machine's 2000 Watt heater.
Rotation control is implemented completely separate from the microprocessor.
555 chips are so cheap that it's not worth the effort to put the rotation
control routine into the Basic Stamp, which would generate some difficulties
with precise timekeeping, since the Stamp has no realtime multitasking. And
anyway the power and interface circuit would be necessary. So I used two
555 timers, connected in such a fashion that the rotation motor runs 30 seconds
to one side, then stops for one second, runs 30 seconds to the other side,
stops, and so on. To control the rotation speed, the entire "reversomatic"
circuit is powered from an adjustable voltage regulator. This IC must be
mounted with insulation, as its tab is connected to the internal circuit.
A simple switch is used to enable or disable rotation.
The power supply for the electronics is totally conventional. There isn't
much to say about it, except that an auxiliary 12V input is provided. You
can connect any 12V battery here. During normal operation, the internal voltage
is higher and the battery will just sit there, but in the event of a power
failure the battery keeps the electronics running, thus saving your film
from suspended processing! Depending on the likelihood of power failures
in your area, this can be an important feature. The heater of course
stops working when the power fails, but given the large thermal mass of the
30 liters of water used in this processor, the temperature holds stable enough
to complete processing without severe degradation.
Two DIN connectors are used for the rotator deck and the temperature sensor.
They are wired in such a way that accidental connection of the wrong device
to an outlet will not cause any damage. Actually, it would be perfectly possible
to use a single 5-pin connector for both the motor and the sensor. If you
don't mind having the two units bound together by a sort of umbilical cord,
you can do that.
The line voltage outputs to the heater and circulation pump use standard
wall outlets. For line power input, you can use a directly connected cable,
or some kind of appropriate input connector. Make sure it's beefy enough
to handle the 2kW power of the heater! Many connectors made for electronic
equipment are not.
There is also a DB-9 serial port. This is directly connected to a PC serial
port. Using the software provided for free on the Parallax web site,
you can load the software for the Basic Stamp without even opening the box.
This is convenient specially to quickly add algorithms for new film processes
you may want to run, or to tweak the parameters for some special kind of
process.
The software I'm using presently implements only
the Tetenal 3-bath process for E6 slide films. I have three versions of it,
for the first, second and third use of each batch of chemistry, considering
the slightly longer process times in each consecutive use. The times are
exactly those recommended by Tetenal, which works great for me, while the
temperature is set one half degree higher than the nominal process temperature,
to compensate for the slight cooling when taking the processing tank out
of the water bath for filling in the chemistry. The temperature and times
can be easily varied in the software.

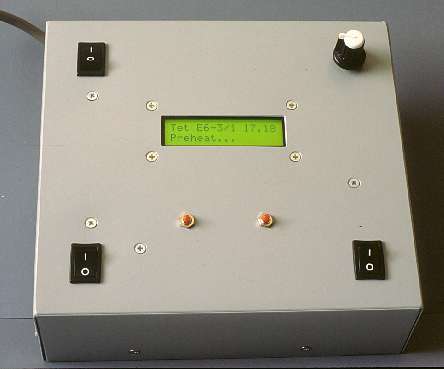

The box for this project was made from a single piece of 1mm thick aluminum
sheet. It was cut and bend to the proper shape to form a slanted top and
the side walls, complete with bent corners to attach the bottom cover. The
entire box was spray-painted gray.
This project grew in parts. I first built a simple temperature controller
with the Basic Stamp and the phase control circuit, and later added the rest.
For that reason, the circuit was assembled on two perfboards - I ran
out of space on the original temperature controller board, and instead of
tearing it all apart and assembling a new, larger board, I simply added a
second board. It's the law of the minimal effort! Of course, you are free
to use a single board...
Many of the parts, such as the transformer, perfboards, and most small components,
came from my well-stocked junk box. I have an obsolete VCR there, several
low density floppy drives (even some Ataris!) and other computer parts, and
a large load of old communication equipment. In that way, projects such as
these come cheap! The only expensive purchases were the Basic Stamp and the
serial input display. They are really expensive, adding well over 100 dollars
for the two. I think this is my last project using these devices. I'm now
(mid of 2003) finally doing what I should have done a lot of time ago: Starting
to play with bare-bones PICs and parallel input displays. They do essentially
the same as the Basic Stamp and serial display, but cost only a fraction.
Specially the PIC costs about one tenth of what the Basic Stamp costs! So,
my next projects will be cheaper!
I want to stress again the point of safety, which I already brought up in
the relevant article on my photo section: This photo processor requires you
to put your hands into a tub full of water, which contains electrical devices
directly connected to the AC line. You may even be touching a grounded water
pipe with another body part! If there is any insulation failure, this means
almost certain death. Don't take it lightly! Putting a finger into a wall
outlet causes a nasty shock and some pain, but usually nothing more. It is
survivable in almost all cases. But getting shocked with one hand in the
water and the other (wet) hand on a grounded faucet, will in all likelihood
kill you by heart fibrillation! So, if you build this project, be sure to
know what you are doing, and to do it correctly:
- All metal parts of this machine must be bounded together.
- The machine must be well grounded at all times.
- The electrical circuit from which it is powered must have a ground fault interrupter of suitable sensitivity.
- Before every use, you must check that the wires going into the water, very
specially that of the line-powered immersed circulation pump, are in perfect
condition.
- Do not wet the controller while working. It's a good idea to place a clear
plastic bad over it during use. Saran wrap is also great for this.
