Transverter 5.7GHz Portable (rev. 5) |
Transverter 5760MHz to 144/432MHz using modern parts. This is the last updated version of 5.7GHz transverter. Adjustments are not required due to ceramic band pass filters. Excellent image and LO rejection, all spurious are less than -53dBc/ IF 144MHz/ 1W output. RX 1dB compression point at -36dBm/5760MHz, gain 28dB.
Features:
- Low consumption on RX state (0.3A/12V), designed for portable use / backpack.
- Integrated LNA QPL9504, optimized for minimum noise figure.
- RX gain up to 28dB, adjustable by optional attenuator.
- TX output 1W, RFPA5542 power amplifier.
- Splitted RX/TX ports for external SMA coaxial relay.
- Low phase noise PLL using MAX2871 and 125MHz reference, 10MHz OCXO main reference.
Power supply voltage of PLL board is maximum 6V, otherwise SNA586 MMIC will be damaged!
PLL Jumpers Configuration
J1 IF selection: OPEN 144MHz / CLOSE 432MHz
J2 IF +1MHz: OPEN IF / CLOSE IF+1MHz (145MHz or 433MHz)
J3 Test: OPEN Normal use / CLOSE 5760MHz carrier output (J1 & J2 OPEN)
*Restart is required after jumpers modification.
Gerber files and uC firmware are free, only for ham radio use, non commercial!
Note: RFFM4527 marking: OKOD, OF5X, OJF4, OJEQ, O2JT, O2JS, O2JR...
RFFM4527 is discontinued / obsolete item but is still available on Aliexpress (tested OK 27/12/2024).

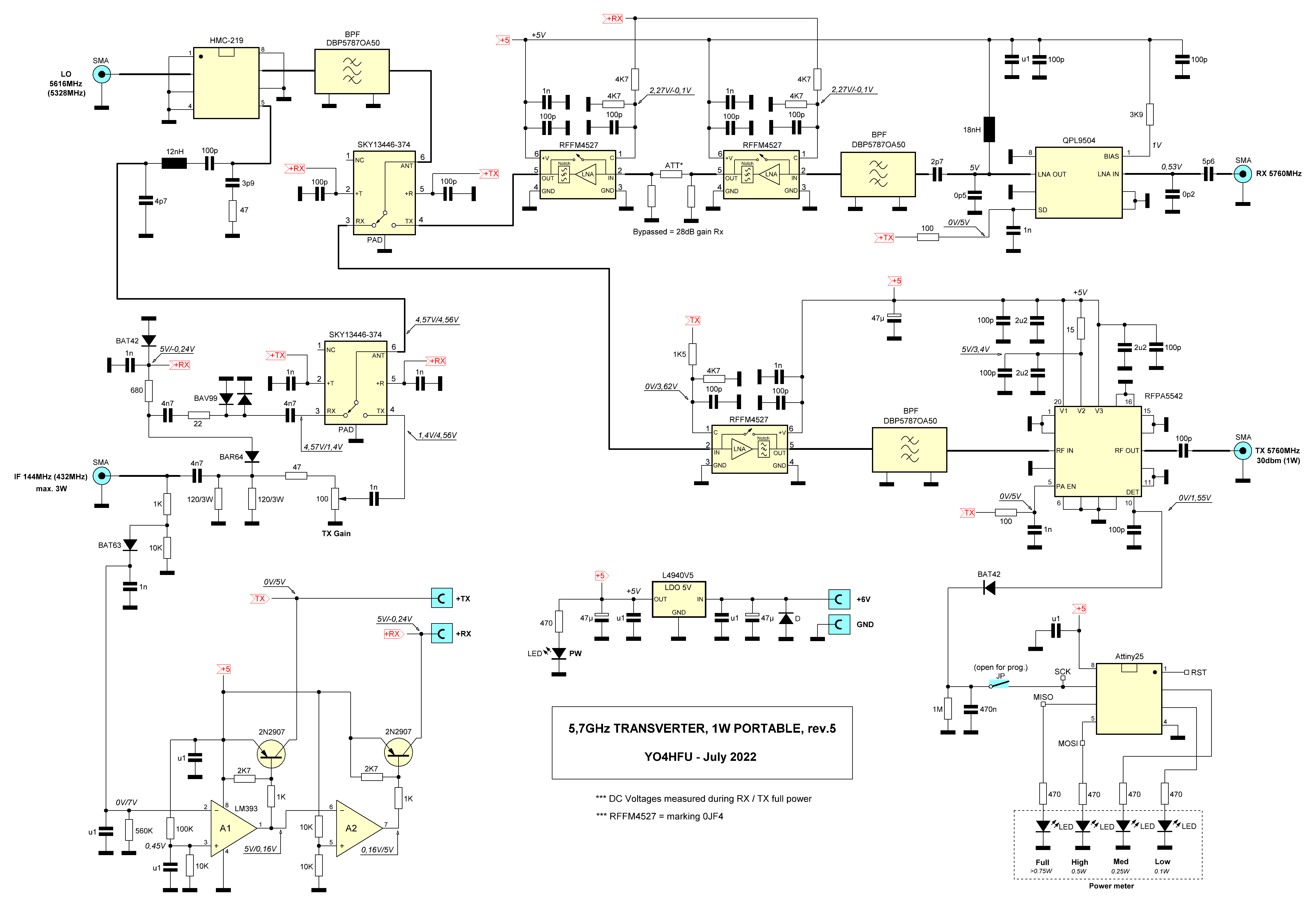

Schematic of 5.7GHz Transverter Portable v.5

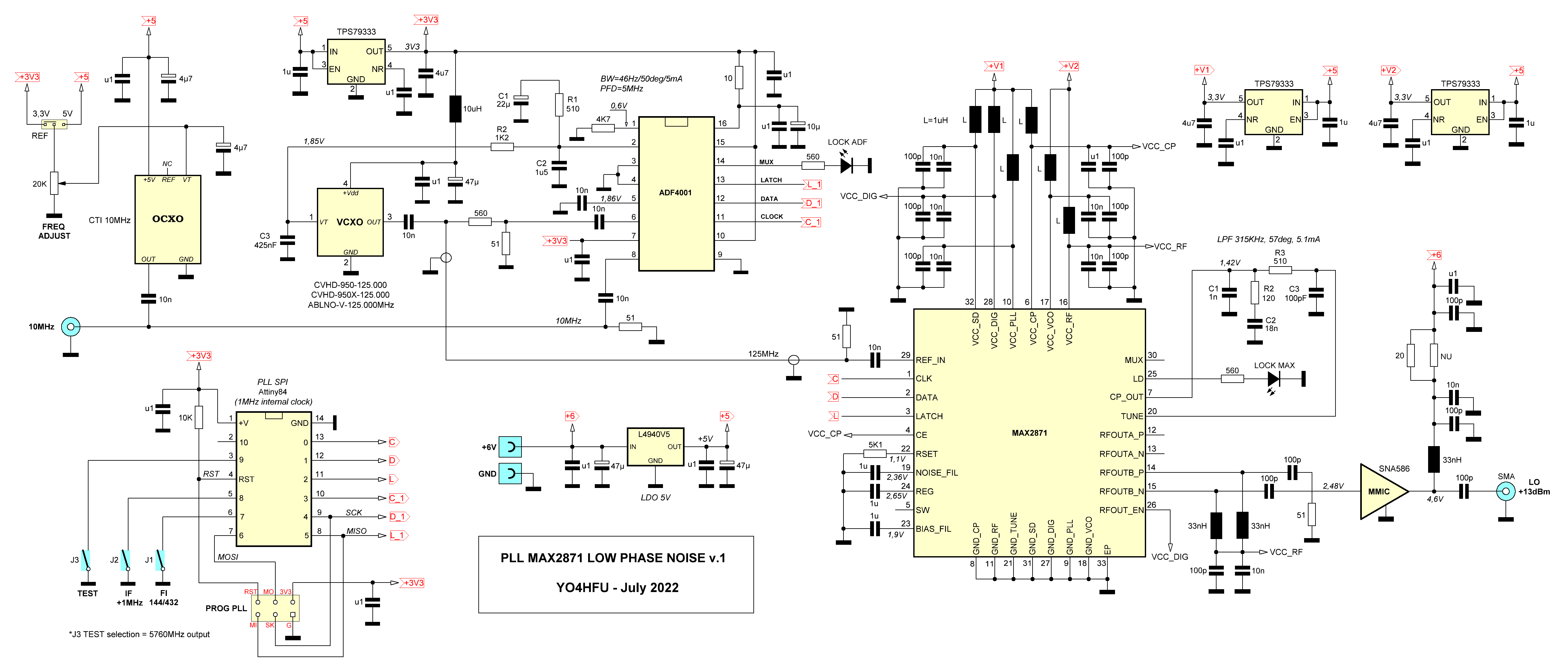

Schematic of MAX2871 PLL Low Phase Noise v.1

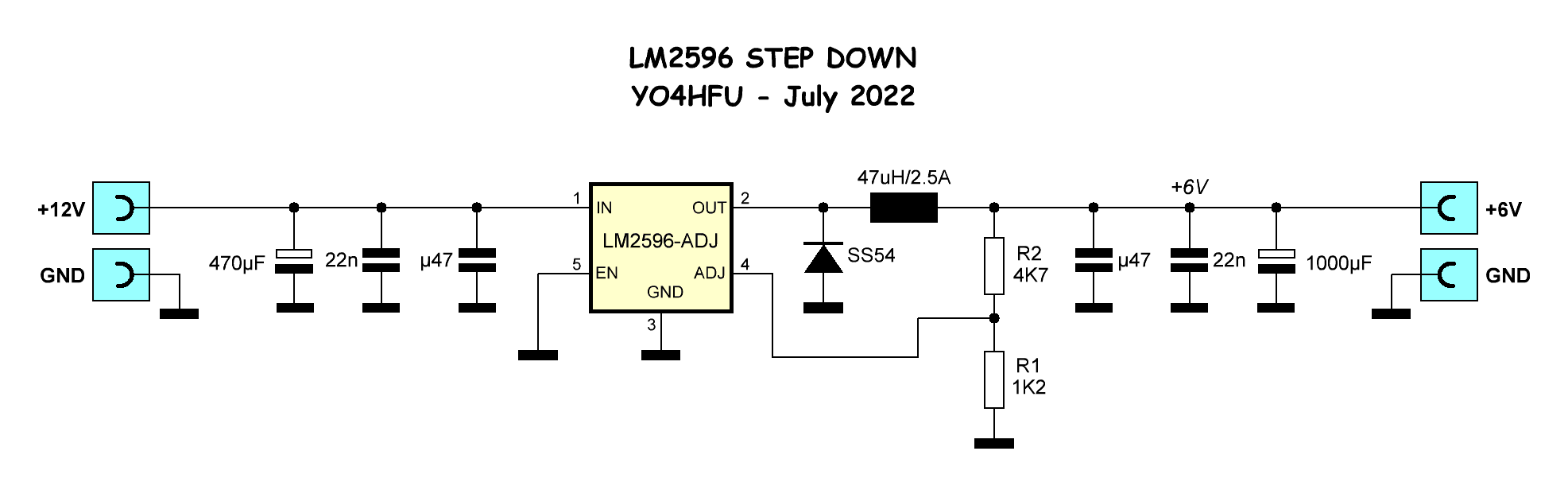

Schematic of LM2596 Step-down
PCB 5.7GHz Transverter Portable v.5
PCB 5.7GHz MAX2871 PLL Low Phase Noise v.1
PCB LM2596 Step-down
Firmware Attiny84 PLL Controller v.1 (Default Fuse Bits - 1MHz internal)
Firmware Attiny25/45/85 LED "power meter" v2 (Default Fuse Bits - 1MHz internal)
Top view 5.7GHz board & PLL board

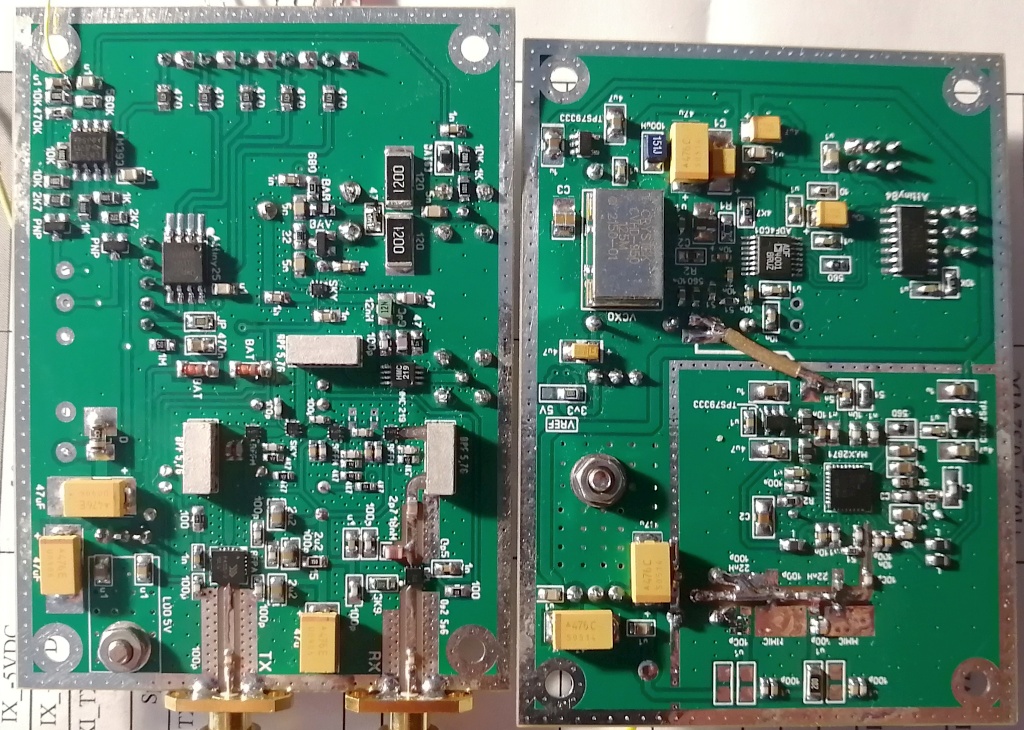

Bottom view 5.7GHz board & PLL board

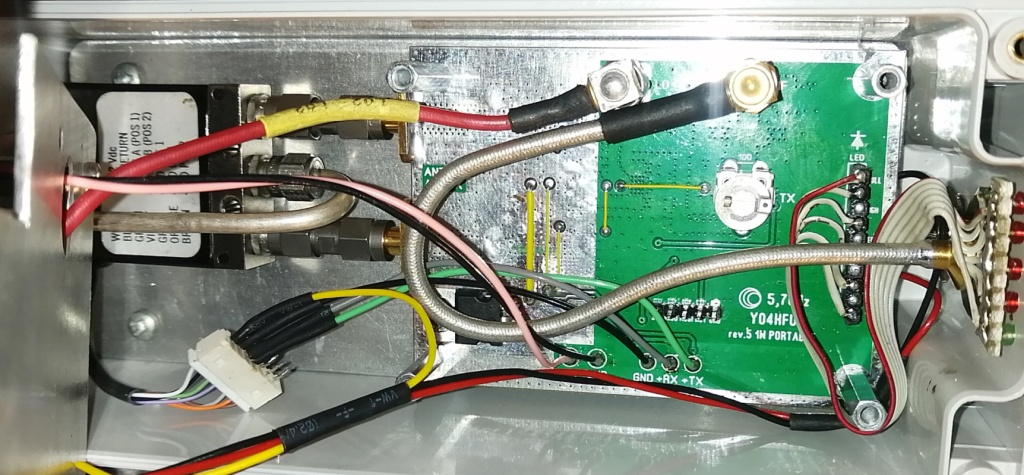

Internal view 5.7GHz board

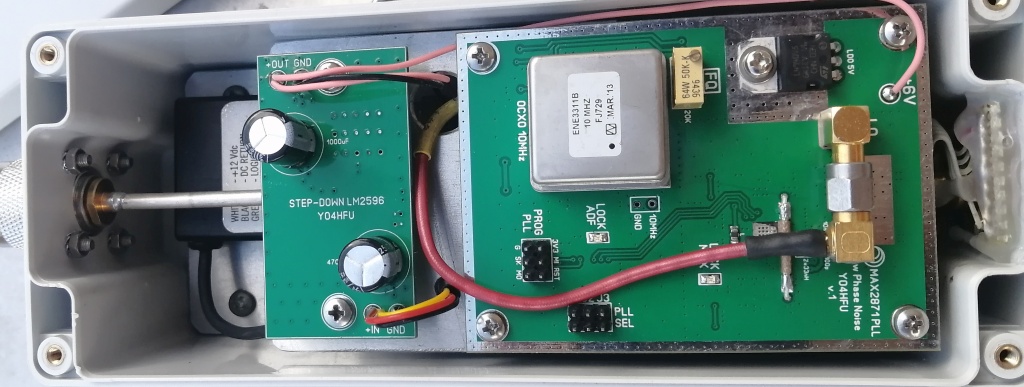

Internal view PLL board

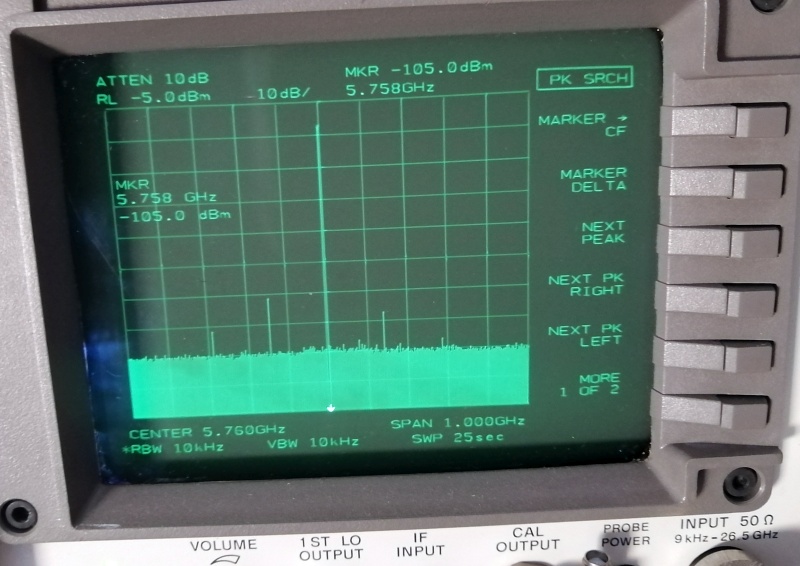

TX output spectrum at full power, IF = 144MHz

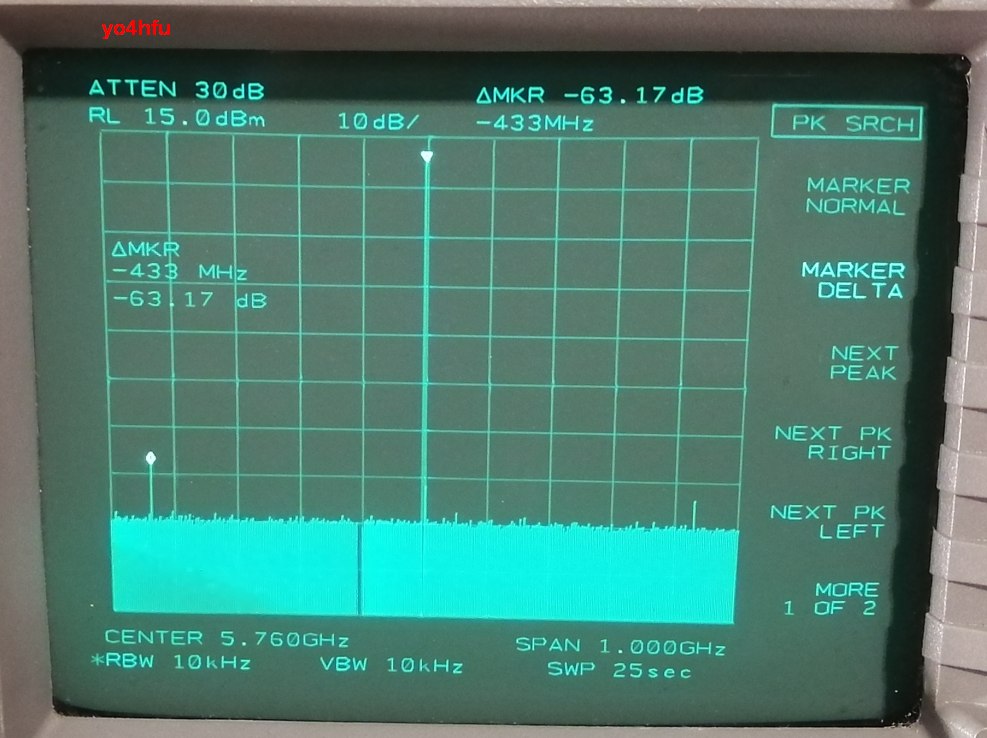

TX output spectrum at full power, IF = 432MHz

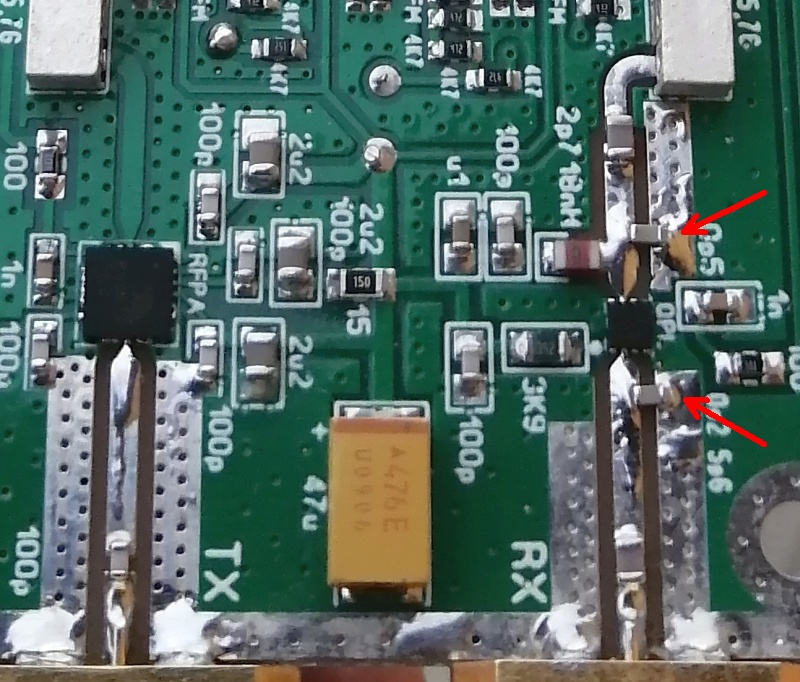

QPL9504 LNA - capacitors position for best NF

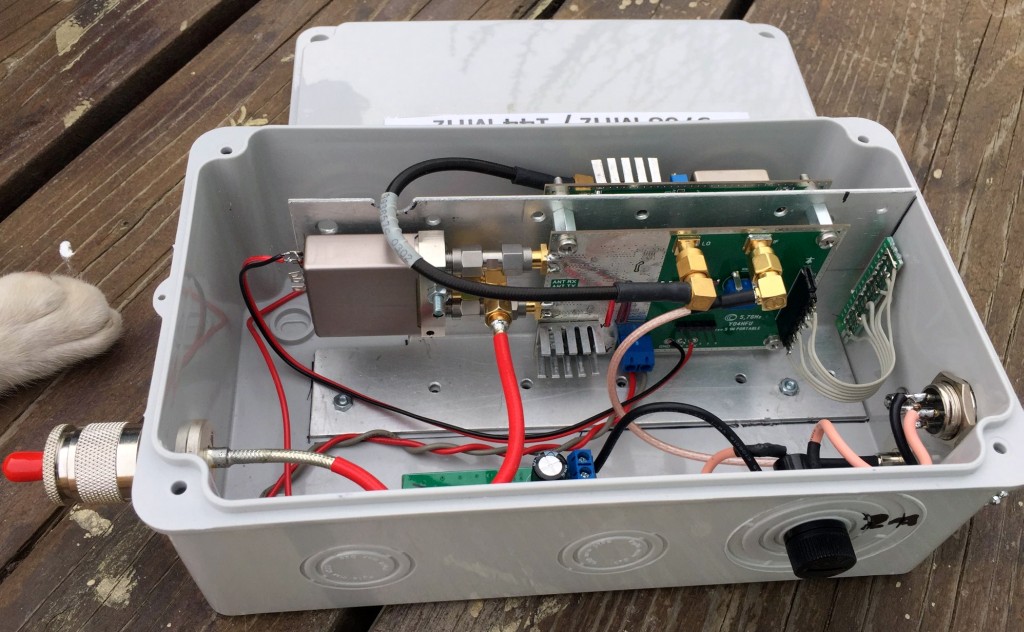

YO3FWL 5.7GHz transverter
PA0PLY 5.7GHz transverter
