CM Design by Nicolae Crisan - YO5OUC
CM 15 February 2016
CM Resonance at 52.35 MHz
CM More details at http://antennex.com (antenneX Issue No. 228 - April 2016)
CE
SY f=52.35 'the frequency in MHz
SY D=0.002 'diameter of the radiator's wire in mm
SY lambda=300/f 'wave length in meters
SY A=2.21 'length
SY B=2.21 'width
SY h=0.088 'distance from ground
SY Dl=A/10 'Grid width
SY nrs=10 'number of segments
GW 1 nrs -A/2 -B/2 h A/2 -A/2 h D/2
GW 2 nrs -A/2 -B/2+Dl h A/2 -B/2+Dl h D/2
GW 3 nrs -A/2 -B/2+Dl*2 h A/2 -B/2+Dl*2 h D/2
GW 4 nrs -A/2 -B/2+Dl*3 h A/2 -B/2+Dl*3 h D/2
GW 5 nrs -A/2 -B/2+Dl*4 h A/2 -B/2+Dl*4 h D/2
GW 6 nrs -A/2 -B/2+Dl*5 h A/2 -B/2+Dl*5 h D/2
GW 7 nrs -A/2 -B/2+Dl*6 h A/2 -B/2+Dl*6 h D/2
GW 8 nrs -A/2 -B/2+Dl*7 h A/2 -B/2+Dl*7 h D/2
GW 9 nrs -A/2 -B/2+Dl*8 h A/2 -B/2+Dl*8 h D/2
GW 10 nrs -A/2 -B/2+Dl*9 h A/2 -B/2+Dl*9 h D/2
GW 11 nrs -A/2 -B/2+Dl*10 h A/2 -B/2+Dl*10 h D/2
GW 12 nrs -A/2 -B/2 h -A/2 B/2 h D/2
GW 13 nrs -A/2+Dl -B/2 h -A/2+Dl B/2 h D/2
GW 14 nrs -A/2+Dl*2 -B/2 h -A/2+Dl*2 B/2 h D/2
GW 15 nrs -A/2+Dl*3 -B/2 h -A/2+Dl*3 B/2 h D/2
GW 16 nrs -A/2+Dl*4 -B/2 h -A/2+Dl*4 B/2 h D/2
GW 17 nrs -A/2+Dl*5 -B/2 h -A/2+Dl*5 B/2 h D/2
GW 18 nrs -A/2+Dl*6 -B/2 h -A/2+Dl*6 B/2 h D/2
GW 19 nrs -A/2+Dl*7 -B/2 h -A/2+Dl*7 B/2 h D/2
GW 20 nrs -A/2+Dl*8 -B/2 h -A/2+Dl*8 B/2 h D/2
GW 21 nrs -A/2+Dl*9 -B/2 h -A/2+Dl*9 B/2 h D/2
GW 22 nrs -A/2+Dl*10 -B/2 h -A/2+Dl*10 B/2 h D/2
GE 1
GN 1
EK
EX 0 6 4 0 1 0 0
EX 0 17 4 0 6.12e-17 1 0
FR 0 0 0 0 f 0

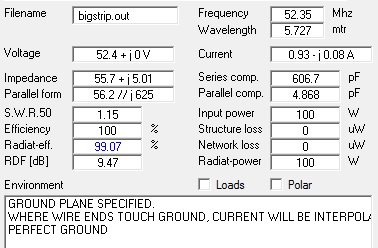

EN
