MGF 1302 GaAs FET Low Noise Amp. (1998.-2000.)

(TXT in Serbian)

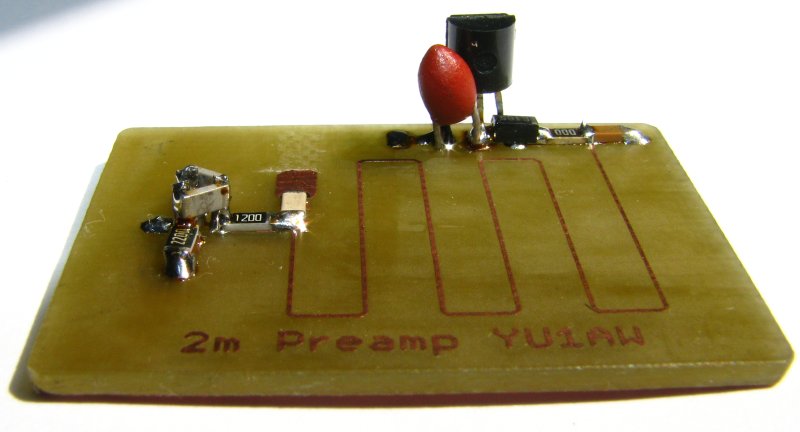

Built by Saša, YU1EO:     144 MHz

 Built by Aleksandar, YZ1SAN:     144 MHz

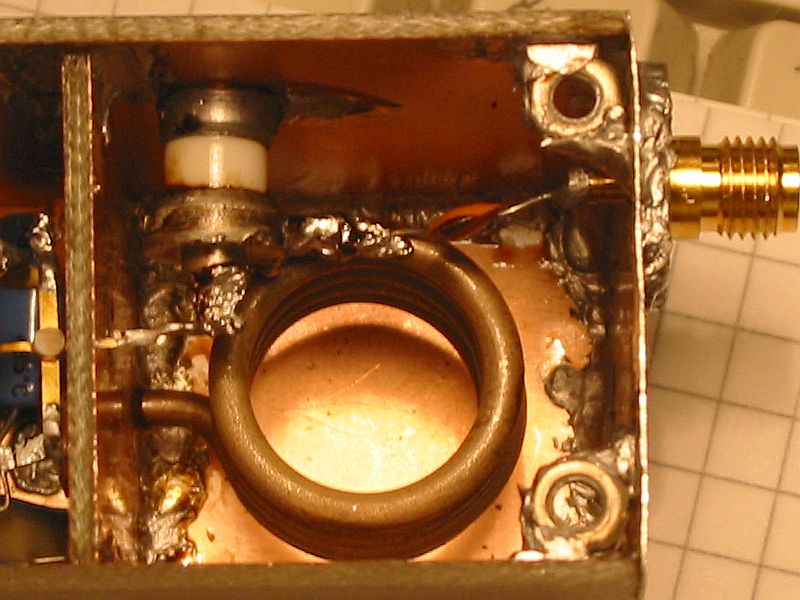

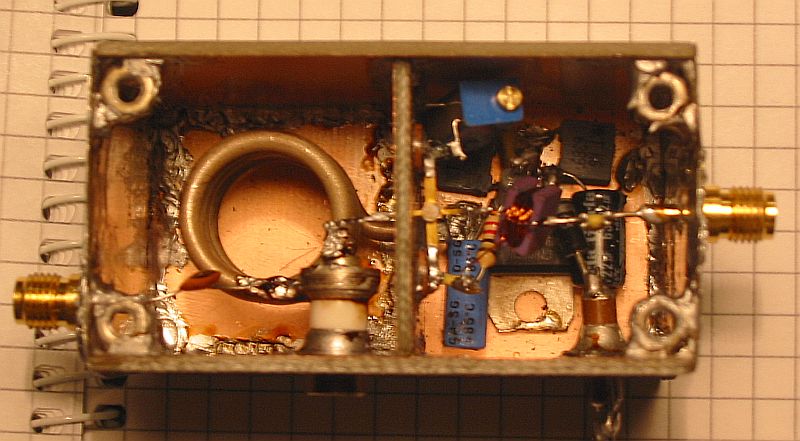

 Built by Cristi, YO3FFF:          144 MHz

Built by Mircea, YO5AXB:    144 MHz

                    144 MHz

all pictures:  MFG1302 2m-YU7MS.zip (1.1 MB)

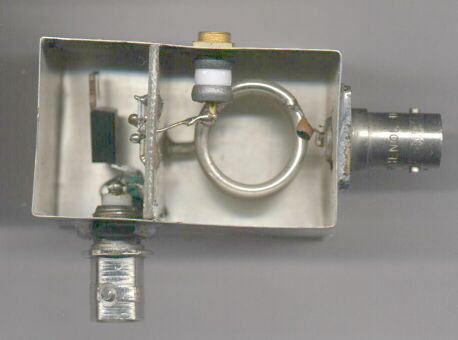

Built by: Miška, YU7MS

AutoCAD files in DWG format for Printed Circuit Boards:

MGF1302 144 MHz - PCB            MGF1302 432 MHz - PCB

All PCBs made of 1.6 mm double side FR4 or G10 epoxy (Er=4.8). Back side left as ground plane.

All used SMD components are type 1206.

AutoCAD files in DXF format for Printed Circuit Boards:

MGF1302 144 MHz - DXF           MGF1302 432 MHz - DXF

New! Not yet published in magazines

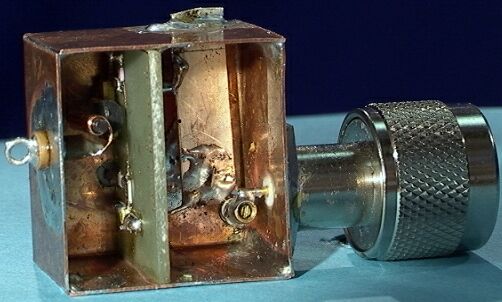

Built by Jože, S51ZO:     1296 MHz

AutoCAD file in DWG format for Printed Circuit Board:

MGF1302 1296 MHz - PCB

All PCBs made of 1.6 mm double side FR4 or G10 epoxy (Er=4.8). Back side left as ground plane.

All used SMD components are type 1206.

AutoCAD files in DXF format for Printed Circuit Boards:

MGF1302 1296 MHz - DXF
