The 10-Element-50-Ohm-Leightweight-Yagi for 70cm

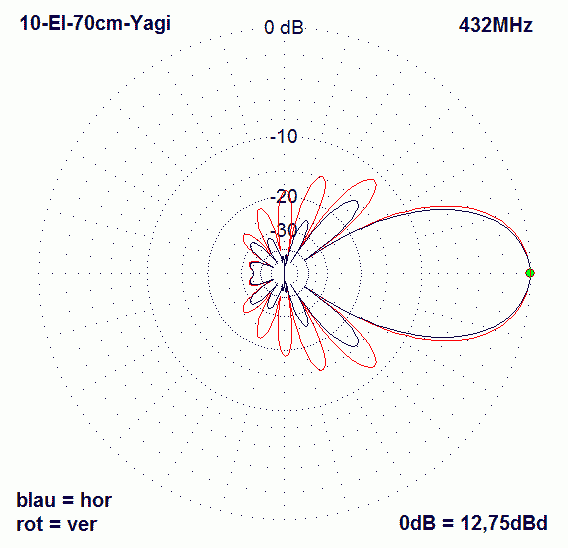

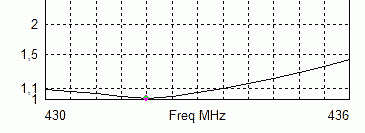

Gain 12,5dBd, F/B >25dB 3dB-angles: hor 32,6° , ver 35,0° Vertical stacking distance 1,45m |

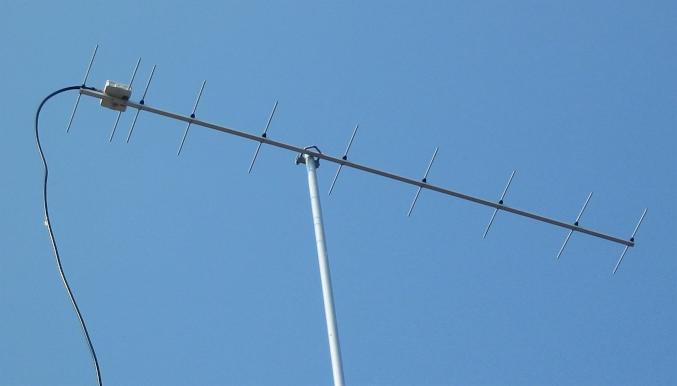

The 10-El.-Yagi built by Michal, SP5TWA
with 6-mm- Elements |
Position | Length (4 mm) | Length (5 mm) | Length (6 mm) | |
Reflector | 0 mm | 338 mm | 337 mm | 335 mm |
Radiator | 145 mm | 328 mm | 325 mm | 323 mm |
Director 1 | 200 mm | 308 mm | 305 mm | 302 mm |
Director 2 | 375 mm | 297 mm | 294 mm | 291 mm |
Director 3 | 625 mm | 291 mm | 288 mm | 285 mm |
Director 4 | 910 mm | 288 mm | 285 mm | 282 mm |
Director 5 | 1200 mm | 285 mm | 282 mm | 279 mm |
Director 6 | 1485 mm | 285 mm | 282 mm | 279 mm |
Director 7 | 1770 mm | 289 mm | 286 mm | 283 mm |
Director 8 | 1985 mm | 285 mm | 282 mm | 279 mm |
