Impedance 50 Ohm Gain 5,2 dBd, F/B 18dB Weight only 220g!
The picture shows the Yagi built by Graham, 2E0XGA |
| Details | 2-El.-2m | 3-El.-2m | 4-El.-2m | 5-El.-2m | 6-El.-2m |
| 7-El.-2m | 7-El.-70cm | 9-El.-70cm | 10-El.-70cm | 12-El.-70cm | 14-El.-70cm |
| Stacked 5-El-2m 25-Ohm new | 7-El.-2m 25+28-Ohm new | 8-El.-2m 28-Ohm new | 10-El.-70cm 28-Ohm new |

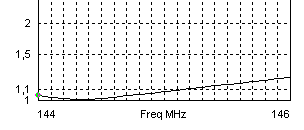

The 3-Element-2-m-Yagi, Boom 85 cm, 50 Ohm
Second version with 50-cm-Boom see down
|
Impedance 50 Ohm Gain 5,2 dBd, F/B 18dB Weight only 220g!
The picture shows the Yagi built by Graham, 2E0XGA |
Lengths and Positions of the Elements
| Position | Length (3,2 mm) | Length (4 mm) | Length (6 mm) | |
| Reflector | 0 mm | 1049 mm | 1046 mm | 1024 mm |
| Radiator | 480 mm | 981mm (4mm) | 980 mm | 973 mm |
| Director | 850 mm | 889 mm | 882 mm | 868 mm |

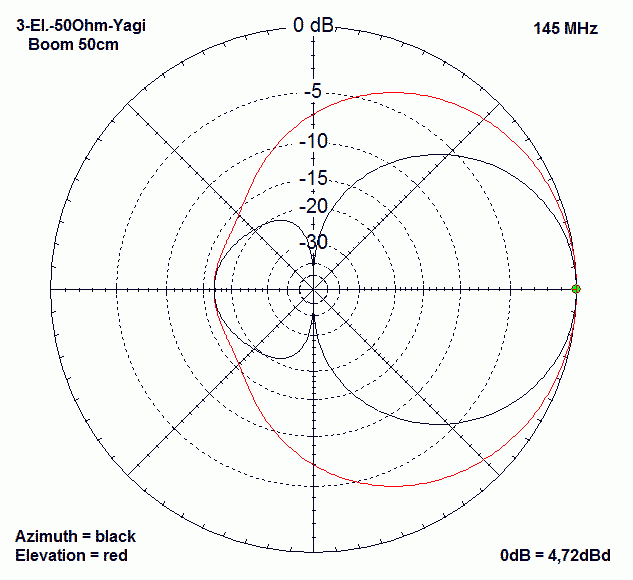

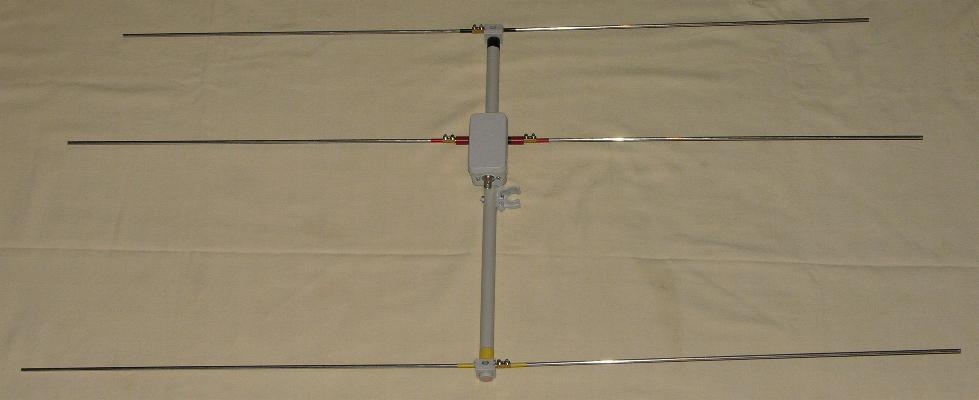

The 3-Element-50-Ohm-2-m-Yagi, Boom 50 cm

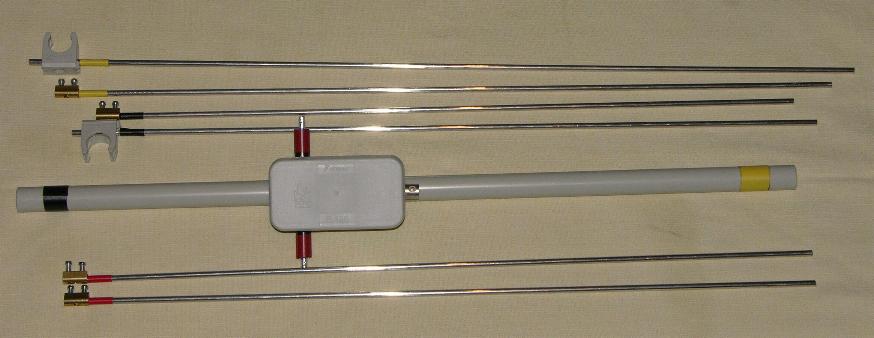

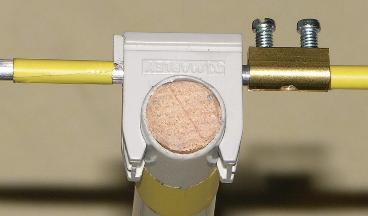

The Yagi was built with two halves for each element, for details show the photos below
|

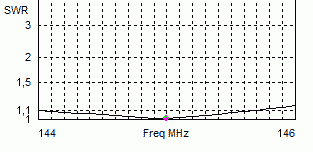

Broadband Version Gain 4,72 dBd F/B = 16,5 dB
|
|

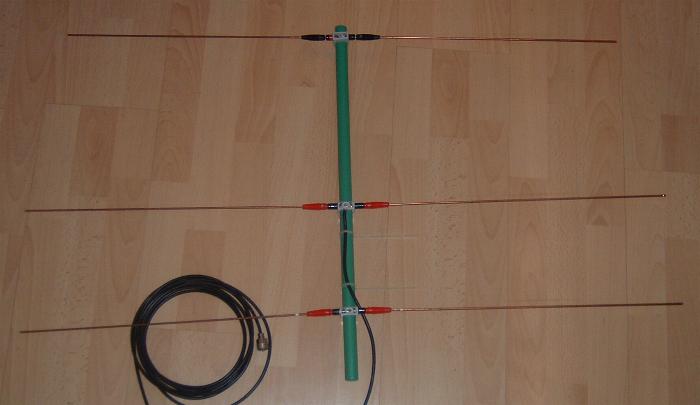

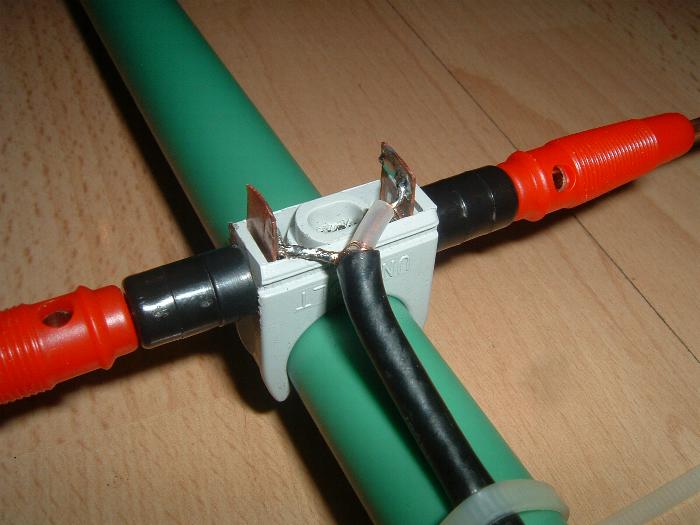

Two pictures by Stipe, 9A5NLO. The Yagi is completly dismantable with connectors
Lengths and Positions of the Elements
| Position | Length (2,4 mm) | Length (3,2 mm) | Length (4 mm) | Length (6 mm) | |
| Reflector | 0 mm | 1040 mm | 1039 mm | 1039 mm | 1036 mm |
| Radiator | 300 mm | 1022 mm | 1020 mm (4mm) | 1020 mm | 1018 mm |
| Director | 470 mm | 936 mm | 931 mm | 926 mm | 915 mm |
