ADVANCED LESSON 45

LEARNING OBJECTIVES and NOTES
Demodulation

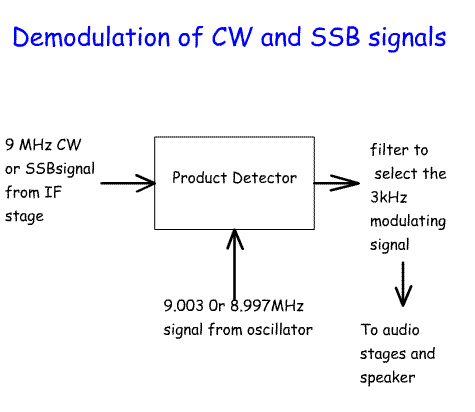

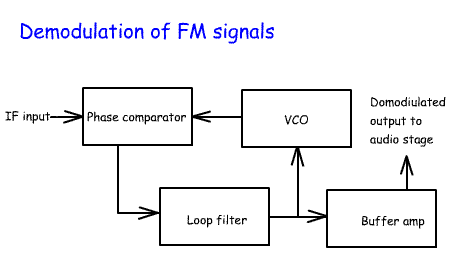

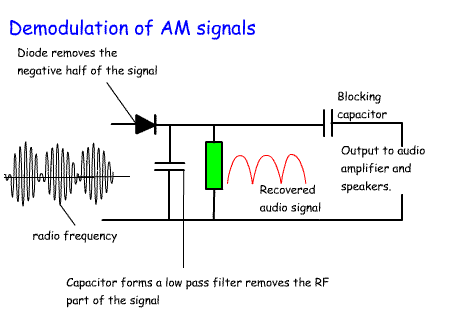

4o.1 Understand the operation of AM, CW, SSB and FM demodulators AM demodulation The audio alters the amplitude of the radio wave. The first stage is to pass the AM signal through a diode to remove one half of the RF signal. Step two is to remove the RF signal be passing the signal through a low pass filter The third stage is to pass the signal through a blocking capacitor. The audio has now been recovered and can be amplified for output by a speaker. CW demodulation and SSB demodulation NB This can also be used to demodulate one sideband from an AM signal. The product detector works as follows: The SSB or CW signal is mixed in the product detector with a a crystal oscillator set at either 3kHz above or below the signal coming from the IF stage. For example a signal on 9.000MHz from the IF stage is mixed with a crystal oscillation on 9.003MHz in a product detector. One of the results of the mixing process is the difference 9.003-9.000 = 3kHz The 3kHz signal is filtered out This is amplified by the audio amplifier to produce a 3kHz tone from a loudspeaker By switching to a crystal of 8.997MHz the opposite sideband can be demodulated. FM demodulation An FM signal is modulated by shifting the frequency of the carrier in line with the audio. There are a variety of FM demodulators often in the form of microchips that will convert the frequency changes of a signal into an audio output. One common type is the phase locked loop. When the carrier is not modulated the voltage is set to mid position. If the carrier is frequency modulated with a 3kHz tone, the phase comparator will note the difference and send a different voltage to the VCO. Thus, changes in the frequency of modulation will be converted to a varying voltage that can be amplified and applied to an audio amplifier.
LEARNING OBJECTIVES and NOTES
Automatic Gain Control

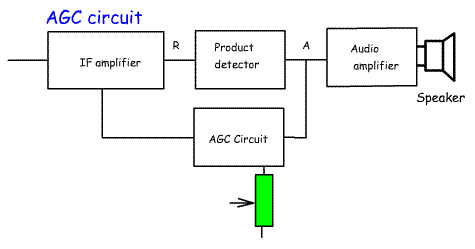

4p.1 Understand the derivation and use of an AGC voltage. As the signal increases in strength, the AGC reduces the level of amplification so that the audio stays at a fairly constant level and so that the IF amplifier is not overdriven causing distortion. The first step is to sample the signal, This can be done at audio frequencies before the audio amplifier (point A) or at RF frequencies after the final IF stage (point R). The signal is rectified to produce a DC voltage which is used to control the IF gain of the receiver. There are chips specially designed to carry out all the functions of the AGC system. Some IF amplifiers require an increasing negative voltage to reduce their gain. In this case the positive voltage would have to be inverted to form a negative voltage. The AGC circuit may have switched capacitors to alter the delay time of the AGC and a variable resistor to adjust the threshold where the AGC starts to operate.

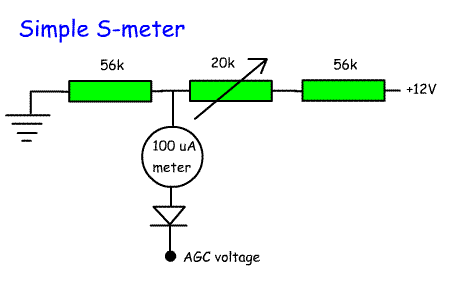

Recall that automatic gain control circuits can also be used to drive S meters. Most receivers have an S-meter to indicate the strength of the signal. This can be derived from the AGC circuit. In the simple circuit shown opposite a 50uV signal is applied to the 50 ohm antenna socket and the variable resistor adjusted for half scale deflection. This is S9. If an attenuator is available, introduce 6 dB attenuation. This is S8. Continue this until the meter is calibrated from S1 to S9. A 100uV input = S9+6dB A 500uV input = S9=20dB A more complex S-meter would include a transistor buffer to isolate the the AGC from the S-meter circuit. It should be noted that even commercial S-meters vary widely in their calibration. This is not too important as S-meters are generally used to give comparisons and of course in contests everyone is S9!!!
