4NEC2 Model of 9 element KLM log-fed yagi


A local friend gave me this KLM beam (construction details here). This is my 4 NEC2 model I used to learn what to expect from it.

Spreadsheet used to set up NEC wire segments (Open Document)
4NEC2 code

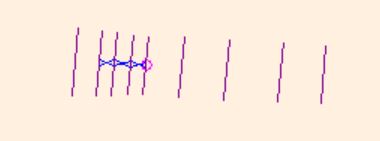

Model geometry

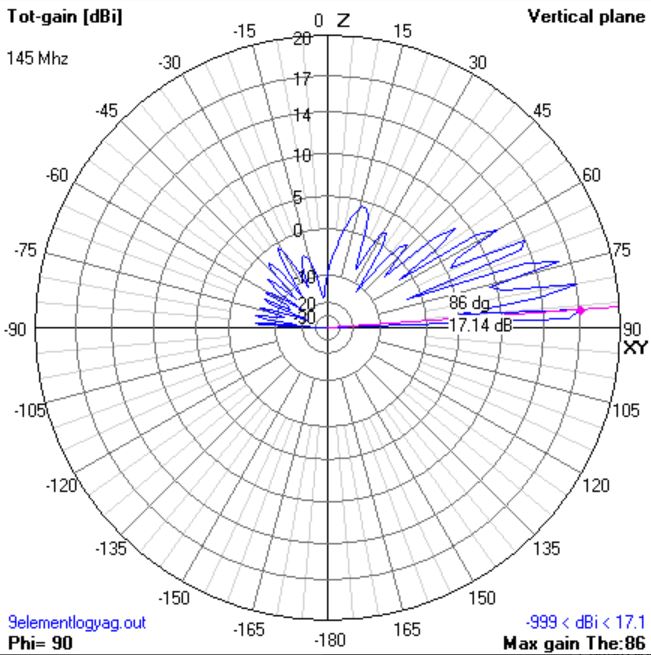

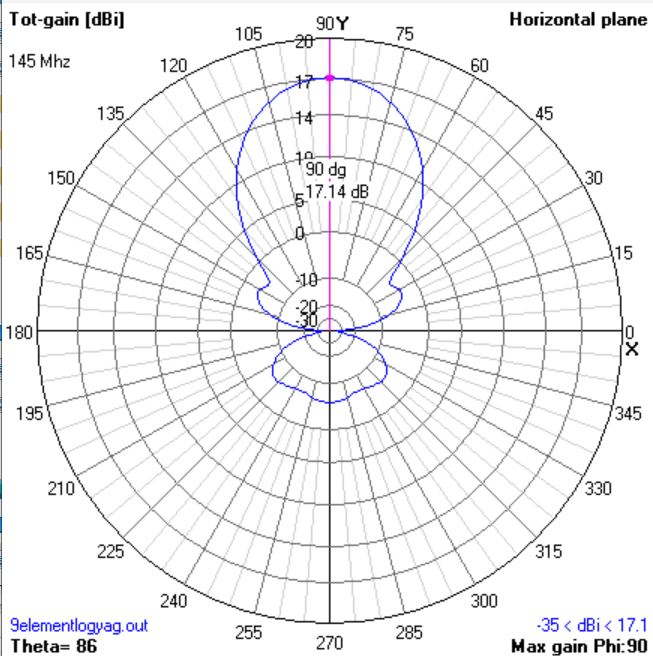

Azimuthal and elevation patterns
