230
230 radio, 5 tube 1 band standard AM BC band, loop antenna, IF 455kHz. Production year 1952.
qa
329
Model # 329 AM/FM/CB radio. The Freq. range is AM 530-1625 KHz, FM 88-108 MHz and CB 26.5-27.5 MHz 40 channels.
It can run off Batteries or wall outlet, ferrit rod loop antenna and telescope antenna, made in Hong Kong. Production year 1979.
qa
612
612 radio, 6 tube 1 band standard AM BC band, loop antenna, IF 455kHz. Production year 1954.
qa
7002
7002 clockradio, solid state, made in Hong Kong. Production year 1973.
qa
AT-22
AT-22 Antenna Tuner. This is the matching antenna tuner for the SBT-22 crystal controlled transceiver (2 MHz to 18MHz).
Supplementary photos
qa
AT-25B
AT-25B Antenna Tuner made by Hallicrafters mounted in a Hoffman enclosure. This is a remote antenna tuning device designed to tune a random wire antenna.
It has a stepper motor driving a 6 position switch, with 6 individually tunable variable capacitors plus an airwound coil.
Supplementary photos
qa

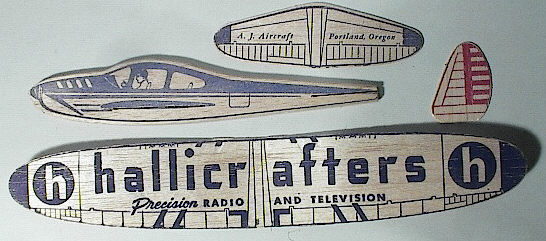

Balsa wood glider
Balsa wood glider. Promotional item. Production year 1940.
qa

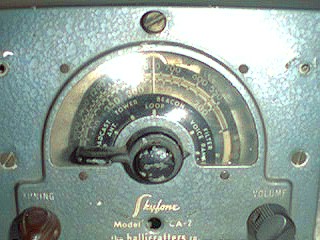

CA-2
CA-2 Skyfone. Aircraft transceiver, 7 tubes. TX crystal controlled 2-7MHz 10W output with 6V6 as PA, 2 band receiver 195-410kHz and 540-1610kHz, IF 455kHz. Production year 1947.
Supplementary photos
qa
DD-1
DD1 "Skyrider Diversity" Receiving System For Short-wave Reception. 25 tubes, covering .54-46MHz in 6 bands. IF 455kHz. 250-300 produced totally, production year 1937-38.
See also link 1
Catalogue Sheet
qa
EC-600
EC-600 Farmradio for use in rural areas without electricity, covering 540-1680kHz. IF 455kHz. 4 tubes. Production year 1946.
qa
FM-48
FM-48 2 band radio in walnut case covering standard AM/FM BC bands, IF 455kHz and 10.7MHz. 9 transistors. Made in Japan. Production year 1967.

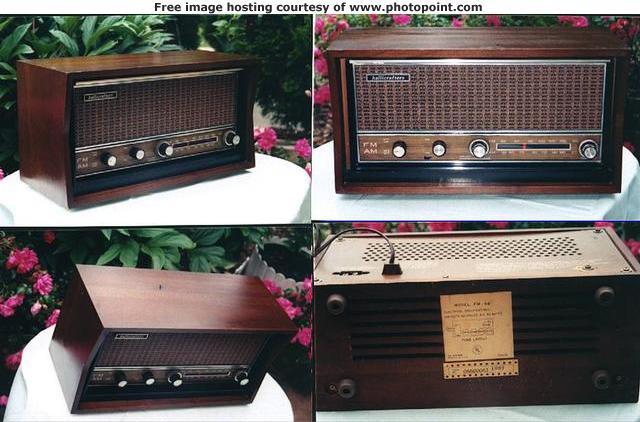

FM-66
FM-66 6 tube 2 band AM/FM radio, IFG 455kHz and 10.7MHz . Production Year 1966.
qa

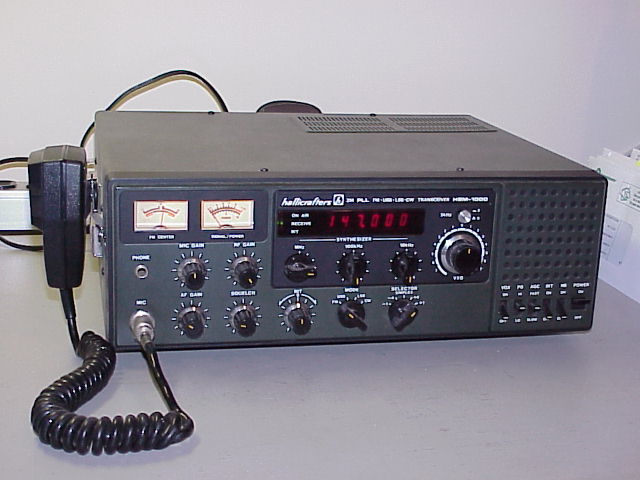

H2M-1000
H2M-1000 Allmode solid state 2 meter PLL transceiver 144 - 148MHz, 800 channels. 12W. Production year 1977.
qa
HC-100
HC-100 "Hand Command" 2 channel FM VHF walkie talkie 148-173MHz, 2W output. 26 transistors. Leather case, slide in battery pack. Production year 1968-71.
qa
HC-4120
HC-4120 Multiline Desk telephone. Features 1 to 4 telephone lines, Tone or Pulse, FCC Registered, Hearing Aid Compatible, 9 Ft. handset/10 Ft Line Cords
qa

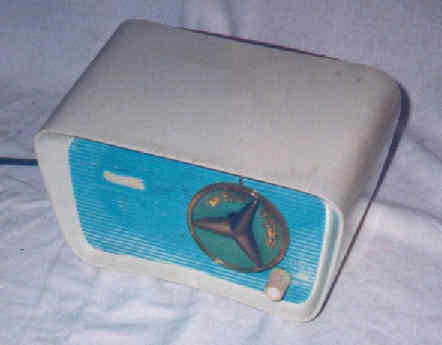

HT-202
HT-202 AC/DC table top radio. This radio is not listed in "Dachhis" Hallicrafters collectors book. Made in Canada which is not uncommon,
Hallicrafters made several models in Canada, but followed the US model numbers with them. This radio has also been marketed under the name
"Travellers" in the US, so Hallicrafters may have subcontracted some of their domestic stuff.
MR-150
MR-150 Mobile mounting bracket for SR-150. Production year 1961-1963.
Supplementary photos
qa

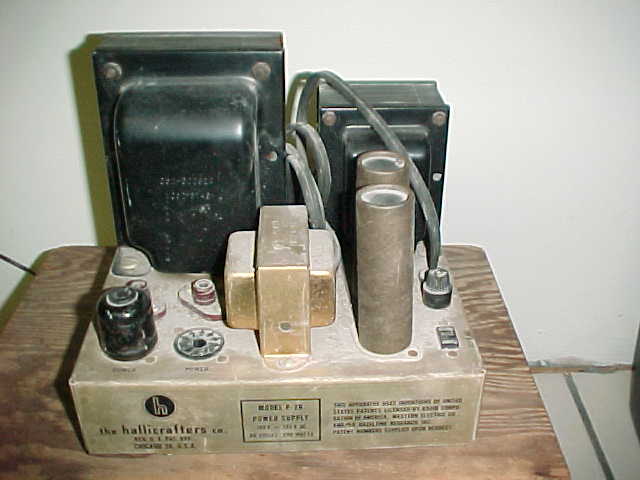

P-26
P-26 Power Supply for HA-2 and HA-6 transverters. Production year 1962.
qa
P-2000
P-2000 Power Supply for Hurricane Transceiver. Production year 1965.
Supplementary photos
qa
RC-10
RC-10 Shortwave AM receiver 3-12MHz. IF 455kHz. Crystal-controlled and receives on four fixed channels. Production year 1965.
Supplementary photos
qa
SBT-100
SBT-100 6 channel, 2-18 MHz HF transceiver. 100 watts out, covering SSB, AM and CW modes. The radio is pretuned for
each frequency and has a separate antenna port for each or a common port for multiband antennas. 45 transistors, 2 tubes. Production year 1969-77.
See also link 1
qa
SM-40
SM-40 "External S-meter" For S-40, S-40A and S-40B. Production year 1946-55.
qa
SP-44
SP-44 "Skyrider Panoramic" 10 tubes Panoramic frequency spectrum receiver. Use with any receiver with IF 455kHz. Shows spectrum 100kHz either side. Production year 1946.
Supplementary photos
qa
ST-83
ST-83 AM/FM tuner. 455kHz and 10.7MHz IF. 12 tubes. Designed to be used with amplifier A-84. Production year 1954-55.
Supplementary photos
qa
VP-2
VP-2 Vibrator Power Supply for running SX-28 from 6VDC source. Production year 1941-42.
qa
