MixW

MixW is a very functional program for digital modes PSK31,PSK63,PSK125,RTTY,SSTV and other .

MixW supports all types of contest for digital modes even and SSB , CW.

MixW is a paid program but it also works without being purchased with MixW version 2.20f .

Please visit the page to download - http://www.mixw.net/index.php?j=downloads ,

and download MixW version 2.20f .

insert V to Create

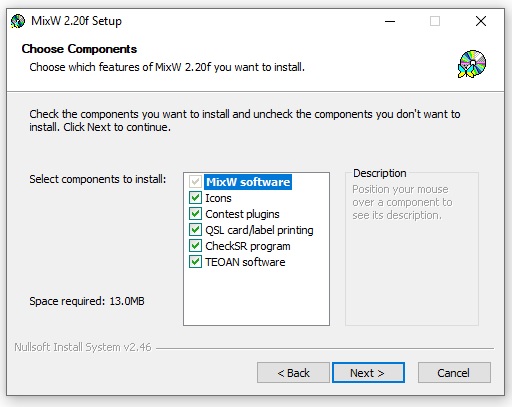

install on disk C . Once the installation is complete - start MixW, and it will appear

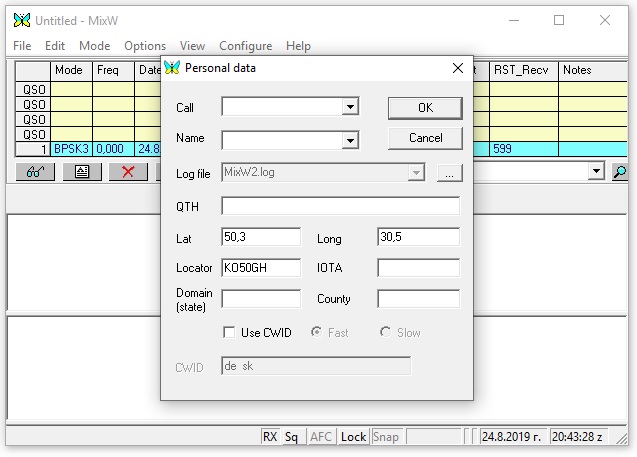

fill in Call:/Your Call/ ; Name: /Your name/ and other and press OK.

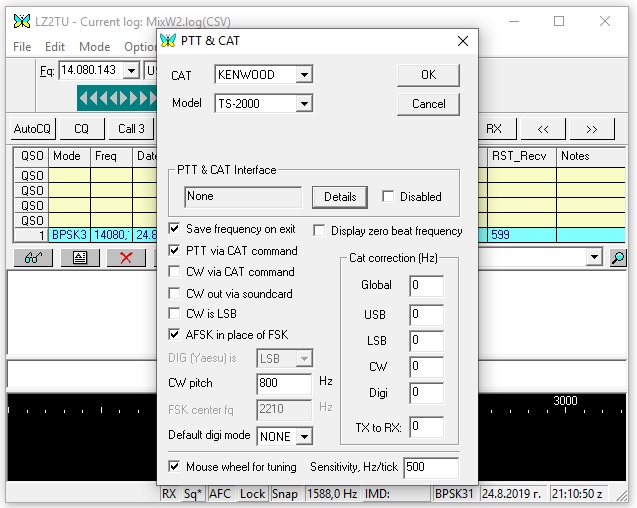

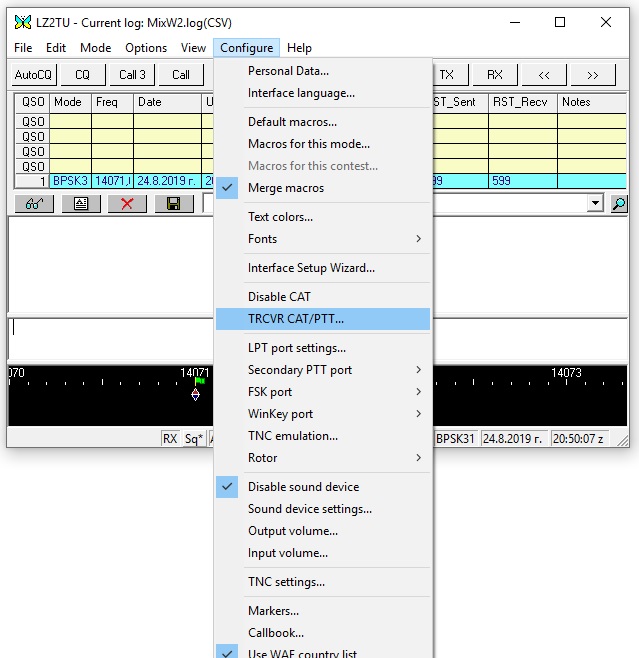

then open now "TRCVR CAT/PTT" in Configure and fill in as shown Rig:

CAT : KENWOOD

Model : TS-2000

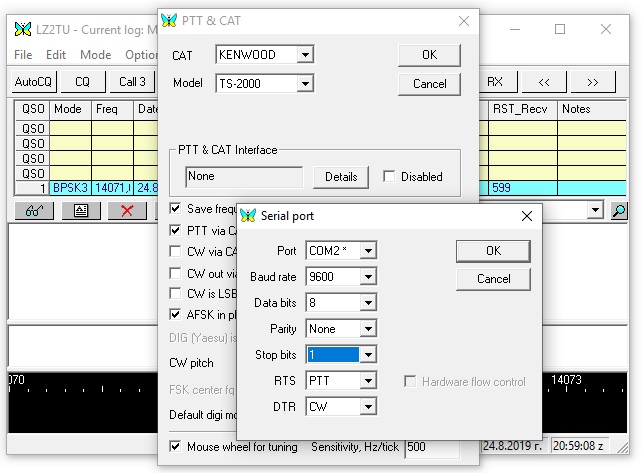

Now press Details and fill in:

Port : COM2 /or that you have selected in a device manager/

Baud rate : 9600

Data bits : 8

Parity : None

Stop bits : 1

RTS : PTT

DTR : CW

and press OK

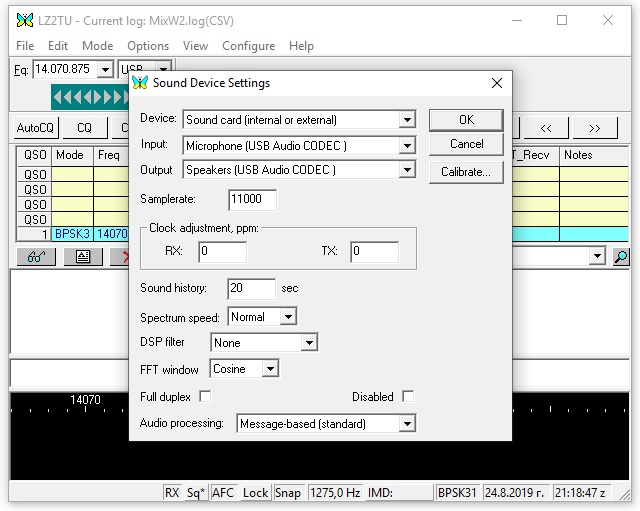

Now open Sound device settings in Configure :

and fill in as : Device :

Sound card(internal or external)

Input: Microphone (USB AUDIO CODEC)

Output: Speakers(USB AUDIO CODEC)

Samplerate : 11000

and press OK

ALT-512 it's already set up for work, but learn the help to get it working ...
