MSHV

LZ2HV created this wonderful program based on WSJT , but with a different vision and a lot of differences.

There are many features including automatic linking as a robot. There are all modes for both VHF and HF also FT8 and FT4 .

Please visit the page to download the latest version - http://lz2hv.org/mshv,

Note the following before you begin the installation -DO NOT INSTALL IN PROGRAM FILES,
install on disk C and plug the USB cable into the computer and the transceiver ALT-512

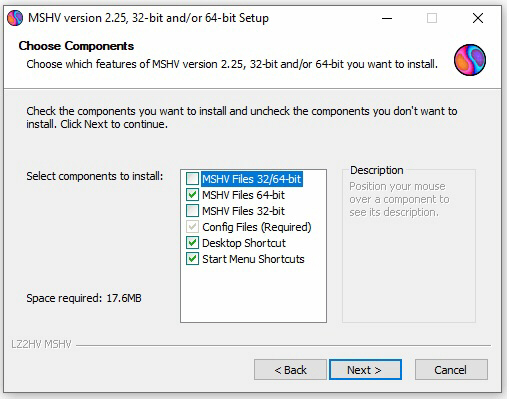

insert V to Create MSHV Desktop Icon

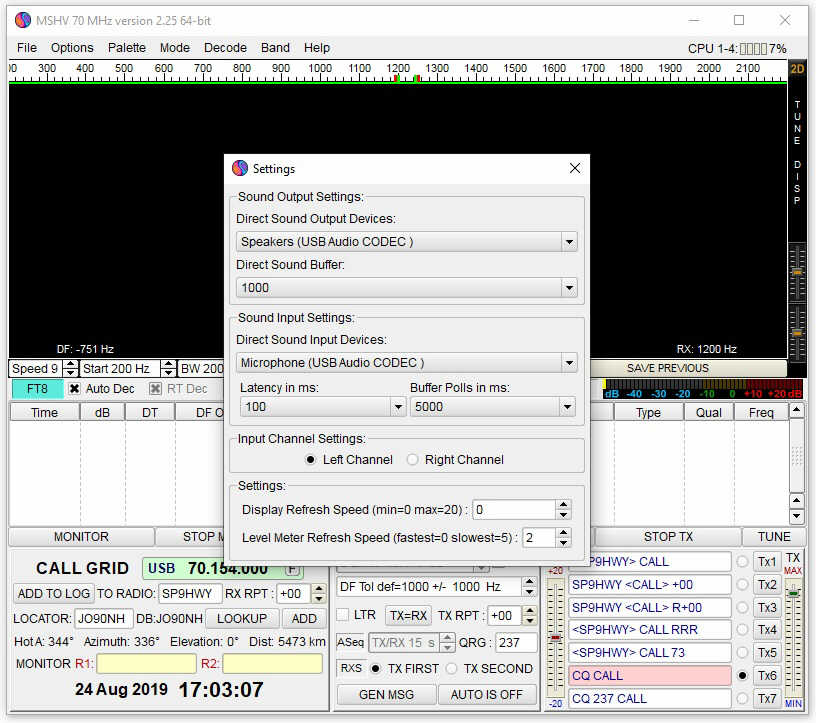

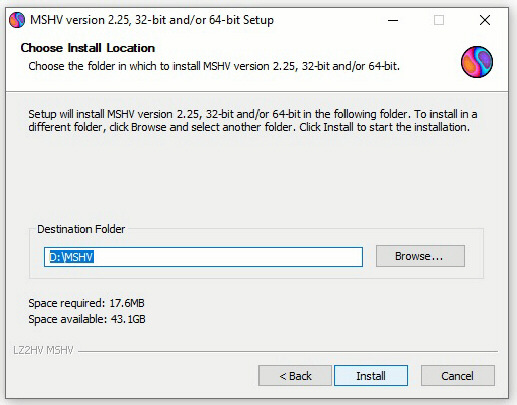

install on disk C or D. After the installation is complete and the MSHV starts, open Sound Settings... in directory Options .

select :

Output: Speakers(USB AUDIO CODEC)

Input: Microphone(USB AUDIO CODEC

and close the window.

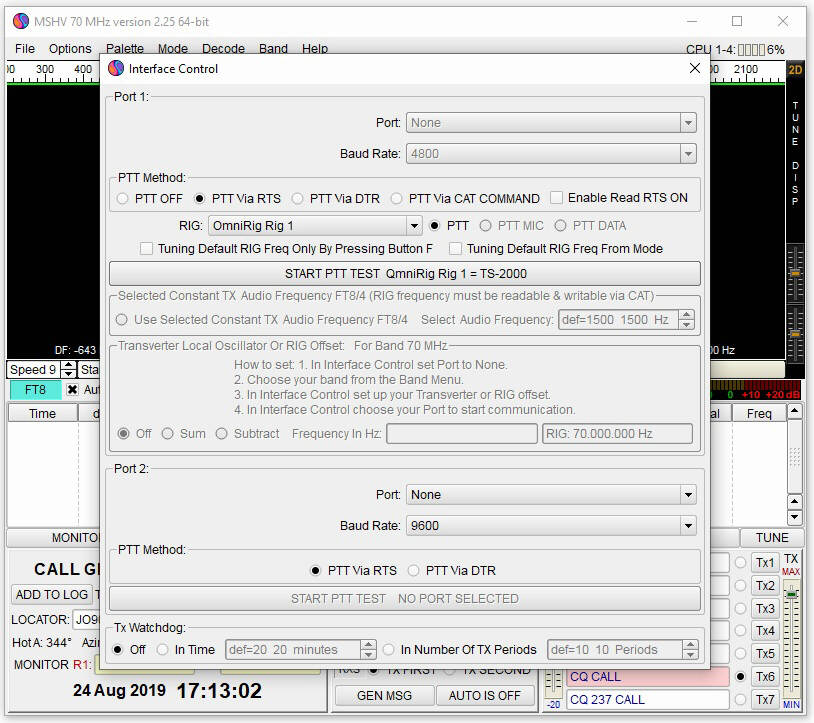

Please open Interface Control ... in directory Options .

Select :

PTT Via RTS

RIG: OmniRig Rig1

and close the window.

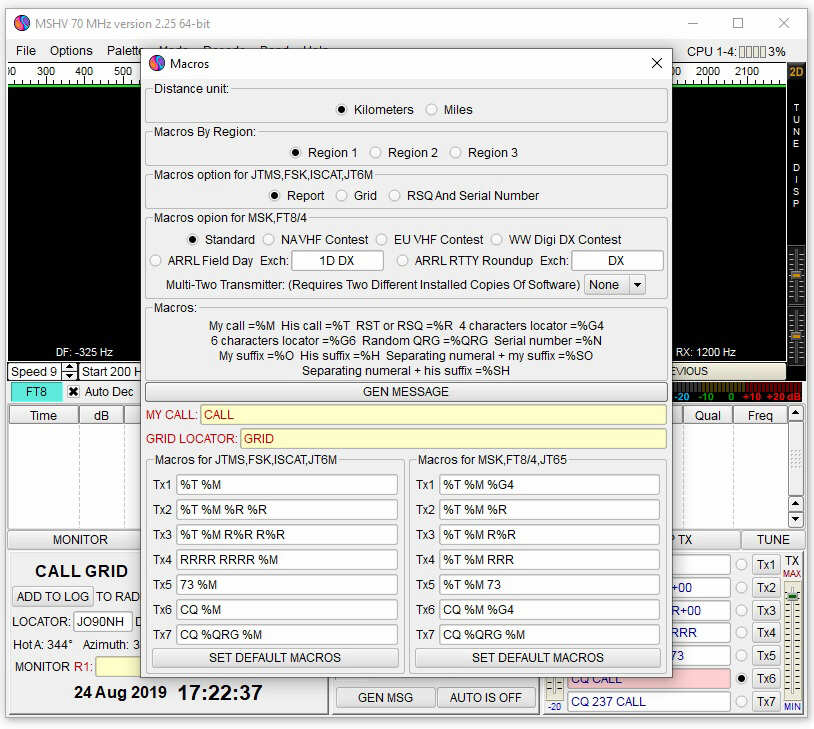

Please open Macros ... in directory Options .

select :

MY CALL : /YOUR CALL/

GRID LOCATOR: /YOUR LOCATOR/

and close the window.

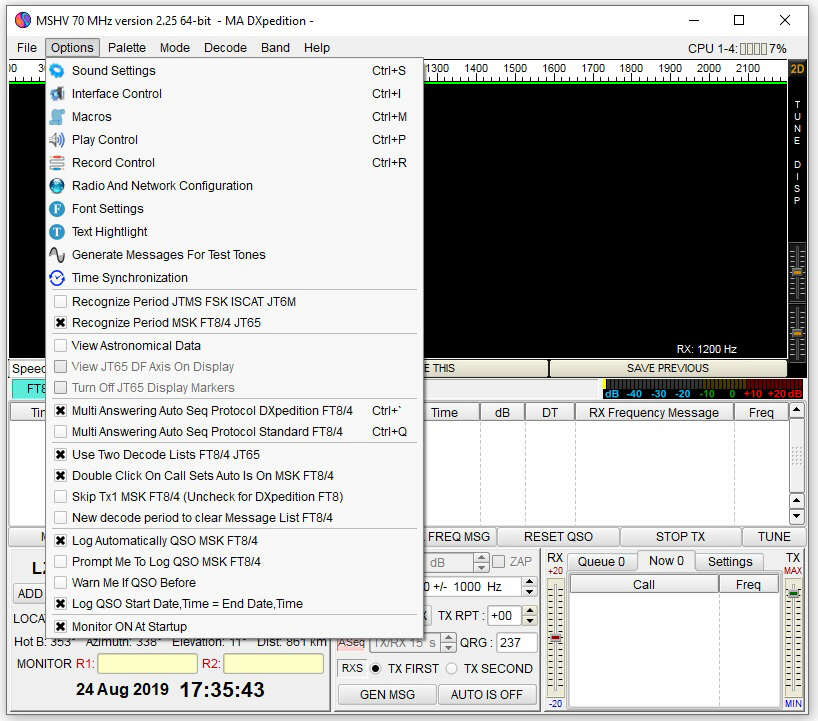

Now check the boxes in directory Options /the window will close after each checkmark/.

ALT-512 it's already set up for work, but learn the help to get it working ...
