Projects (mostly digital modes)

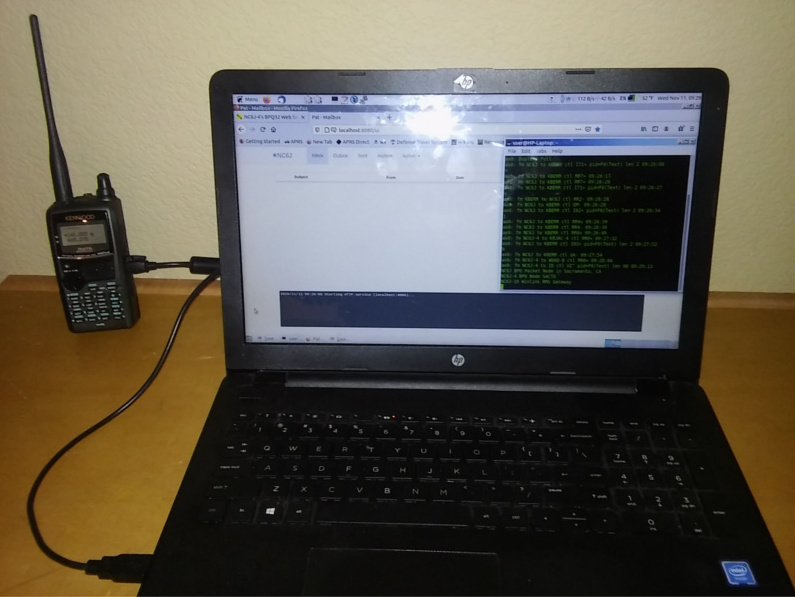

HT packet with just a USB cable
Just completed and tested a small form factor packet
station:
Kenwood TH-D72A
USB cable
Linux laptop with:
AX.25
tmd710 tncsetup
(https://github.com/fmarier/tmd710_tncsetup/blob/master/tmd710_tncsetup.c)
Pat (https://github.com/la5nta/pat/releases)
This setup would also work with WInklink RMS Express and
OutpostPM (in Wne on Linux)
SignalinkUSB cable for military radios
Are you a commo guy in the military, or a civilian with a
surplus military radio? Are you wondering how you can
quickly interface a Signalink USB to that military radio for
amateur digital operation?
Look no more, the answer is easy, explanation and diagram
below.
If you need to connect a Signalink USB to a PRC-150,
PRC-104, PRC-117, PRC-119, etc, you'll need to get a
U-229/UG1connector to solder up your cable. (It's that
connector that hooks up your handset or other device to the
six pin connector on the radio). If your commo repair shop
won't give you a spare, you can order them from Newark,
Mouser, and of course Amazon and eBay.
Connecting U-229 to Singalink USB with a CAT5 cable, just
install the jumpers straight across in the Sigalink, cut one
end off a CAT5 cable, and solder as shown below
U-229, (you solder this)
---------------------------Signalink USB (RJ45 connector on
CAT5)
PIN
Description
Pin Description
A
GND: ground
GREEN
6 GND
B
SPK: speaker, WHITE/ORANGE
1 SPK
C
PTT: push to talk WHITE/GREEN
3 PTT
D
MIC: sound in
ORANGE
2
MIC
Now you are ready to take your laptop, Signalink USB, cable
and use a PRC-150 for digital modes on HF.
