23 cm

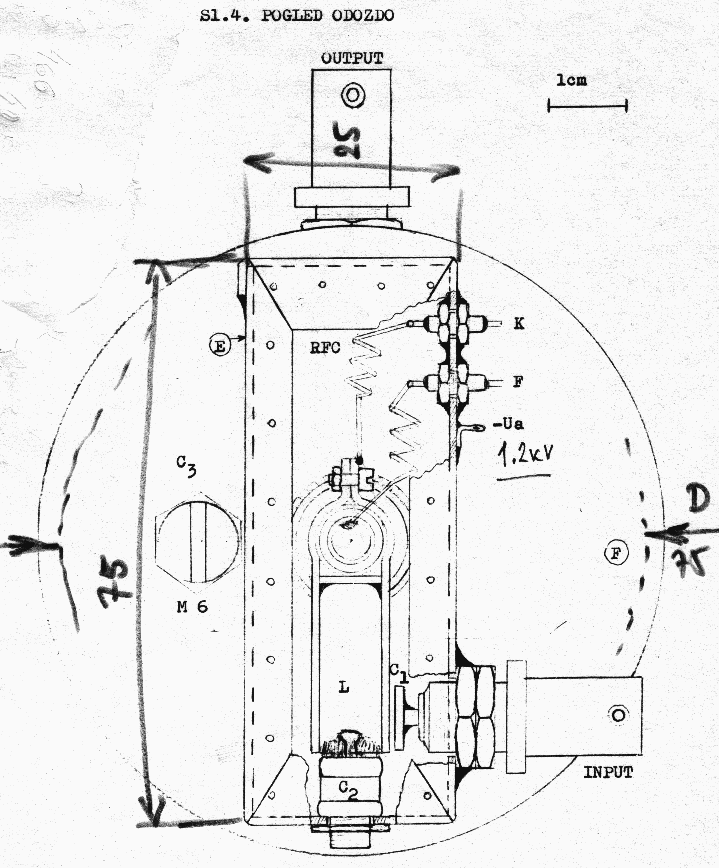

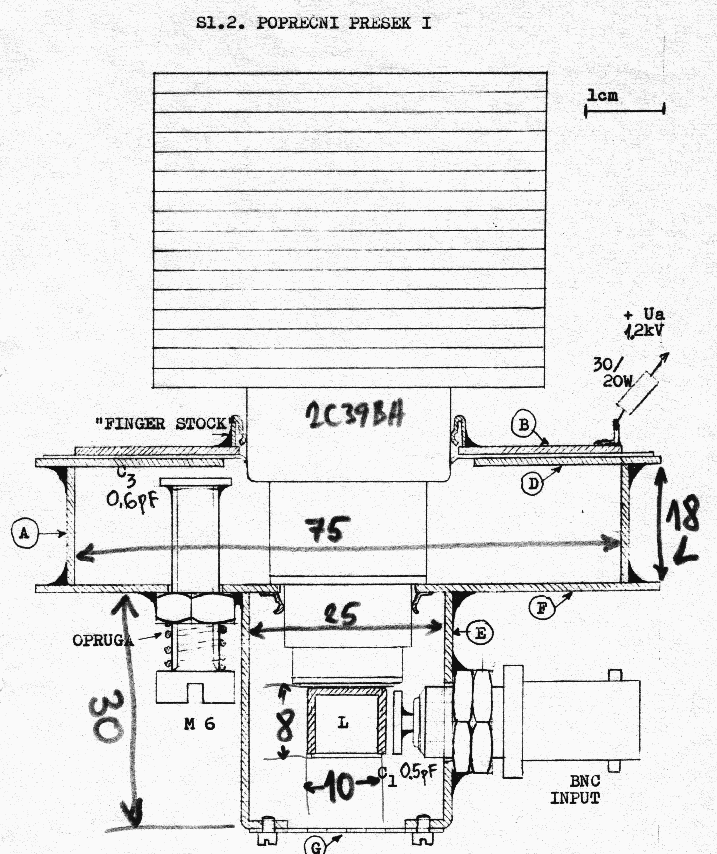

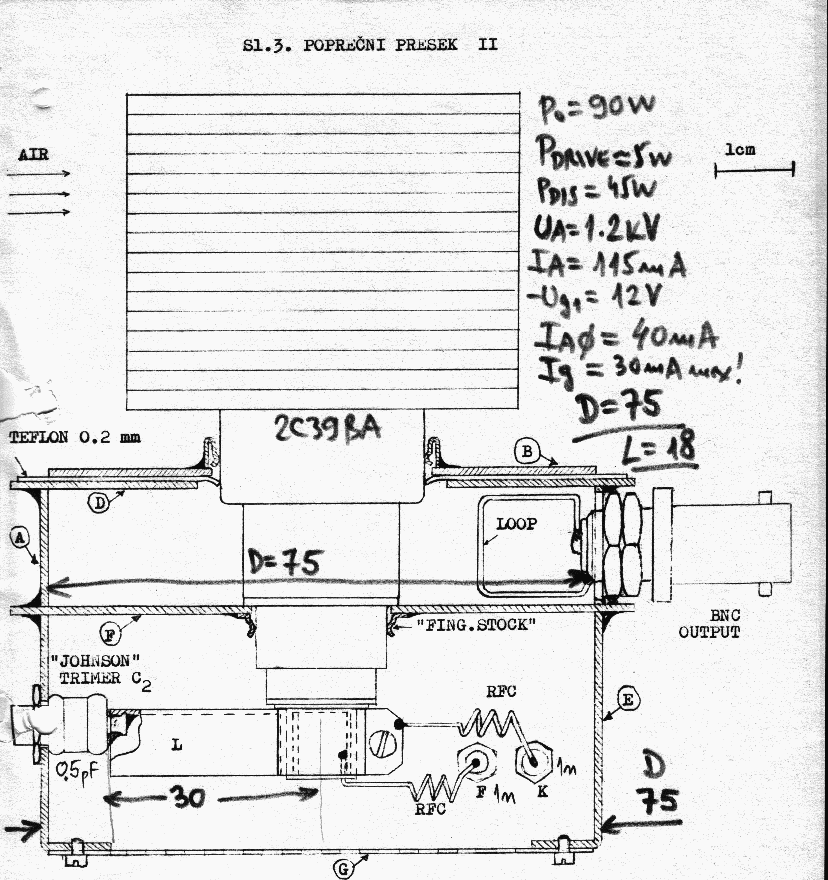

2C39BA 23cm Cavity PA

 1    2    3

All other is same, or very similar, as in  YD1270 23 cm PA design

Read it please!

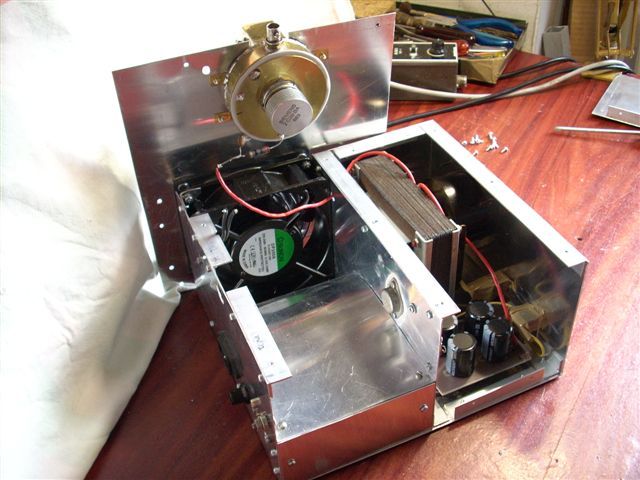

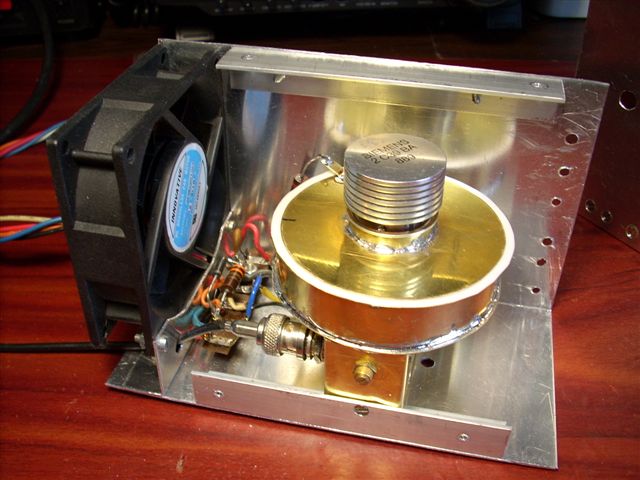

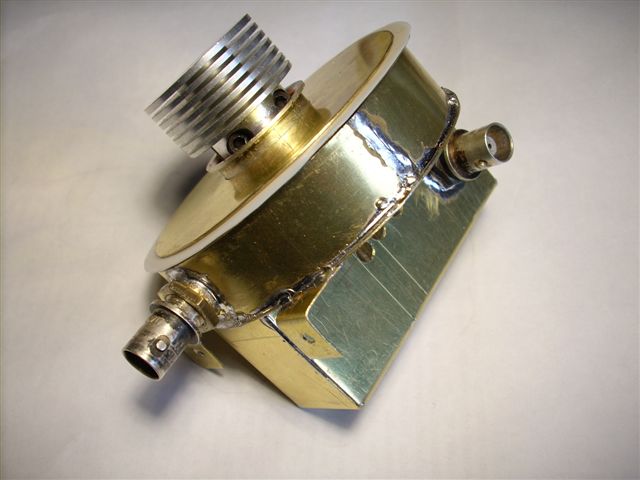

Built by Saša, YU1EO
