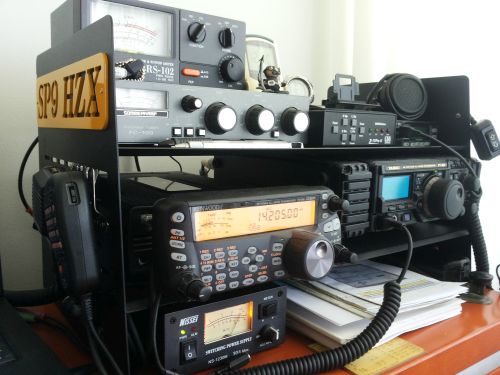

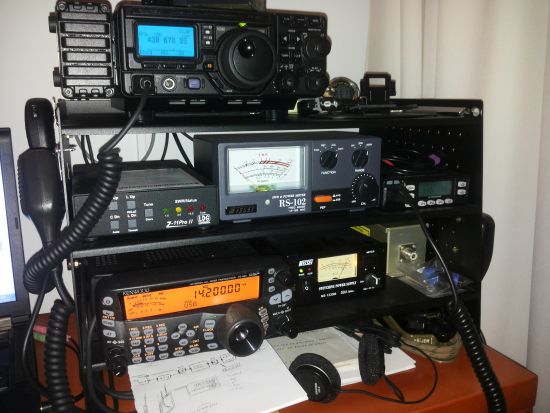

RIG
HF equipment:

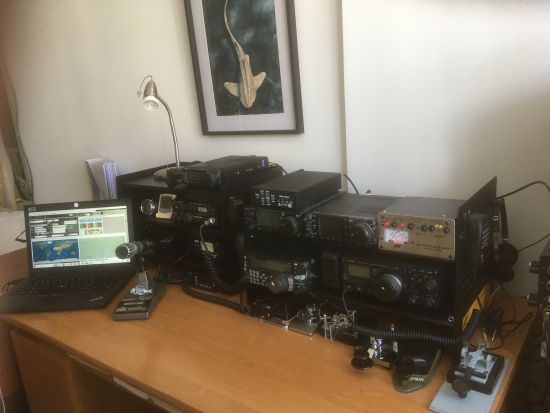

Always barefoot,the best mobile/portable/base radios :

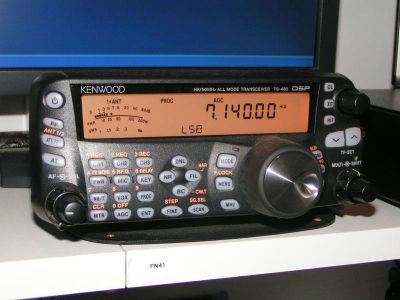

- Kenwood TS480SAT + MC43S + MC60 + (filter Kenwood SSB 1,8Khz YF-107SN, CW 270 Hz YF107CN)
- Yaesu FT897D + FP30 + FC30 + Mike MH59A8J MH31 + (filter Collins SSB 2,3 Khz YF-122S, CW 300Hz YF-122C)
- Icom IC7000 + Mike HM151
- Yaesu FT891 + Mike MH31A8J + FC50
- Icom IC703 Plus + mike HM103 + (filter Icom SSB 1,8Khz Icom FL-222)
- TenTec Scout 555 + mike TT700
- Icom IC706MKIIG + mike HM103 + (filter FL101 CW 250Hz,FL223 SSB 1,9khz)

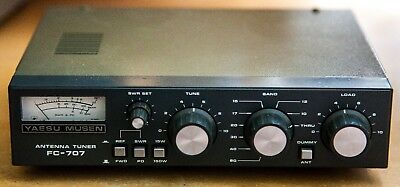

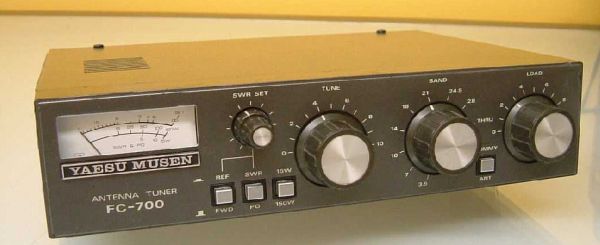

-Antenna Tuner FC-707 Musen (3.5-30Mhz)
-Antenna Tuner AT-130 Kenwood (3.5-30Mhz)

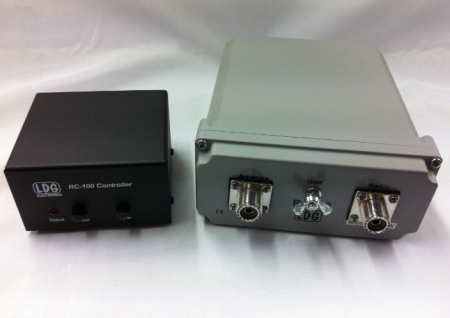

-Transmatch LDG RT100 + controler RC100 (1.8-54Mhz)(min pwr 0.1W)
-Transmatch LDG Z-11Pro (1.8-54Mhz)

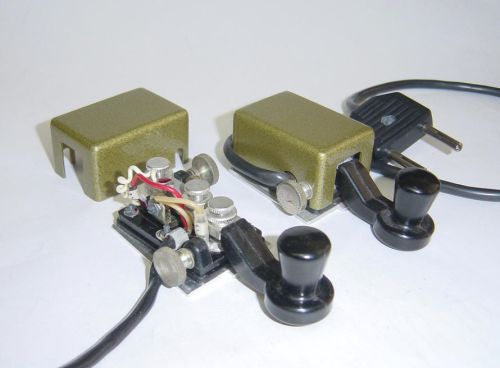

-The Czech Army straight Morse key RM-31 (1960)

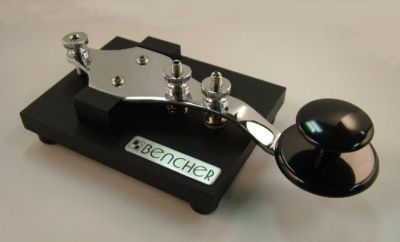

-Staight Key Bencher RJ2
-MFJ 564B Iambic Key Paddles

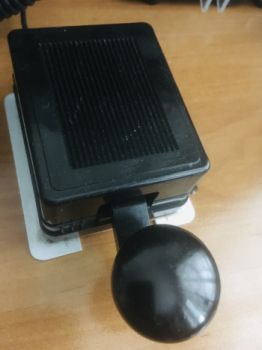

-Straight key TKF Ukrainian Army

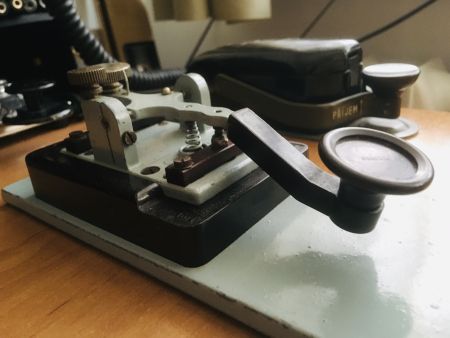

-Junker Straight Key

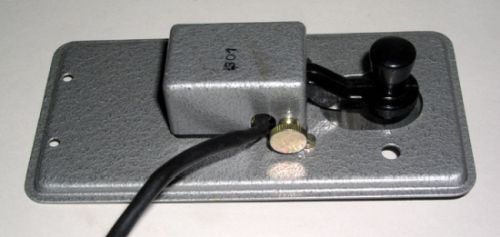

-T2 Mini Straight Key

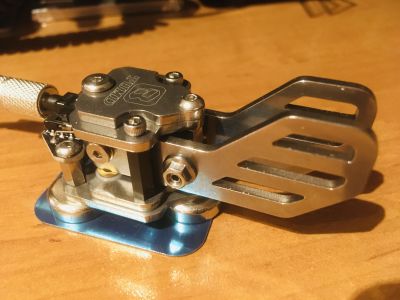

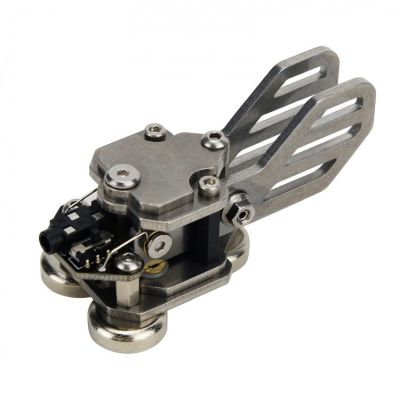

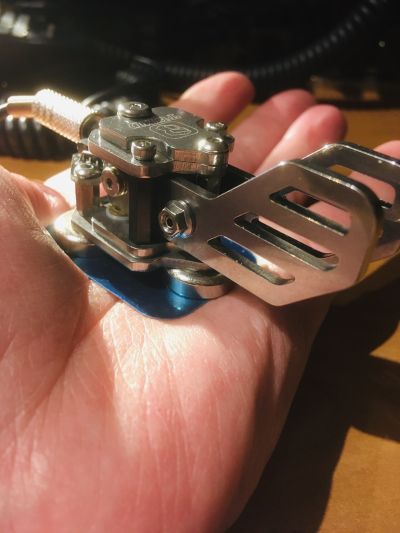

-HamGeek Iambic Key

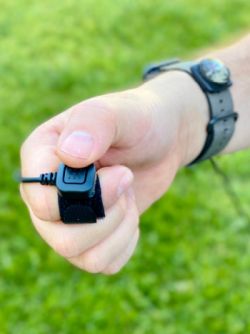

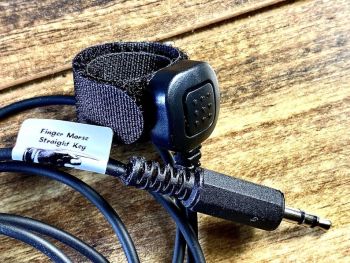

-Finger Morse CW Straight Key
-Yaesu earphones YH-55

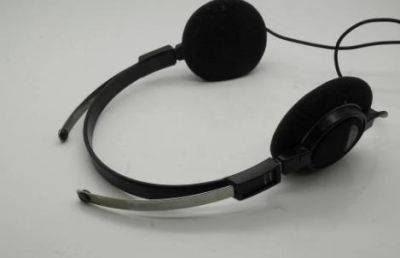

-Kenwood earphones HS6
HF antennas:

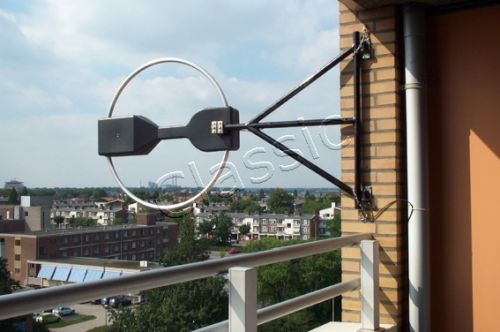

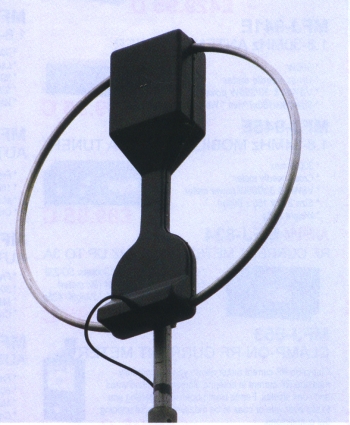

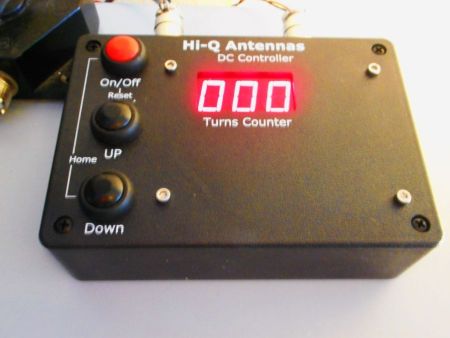

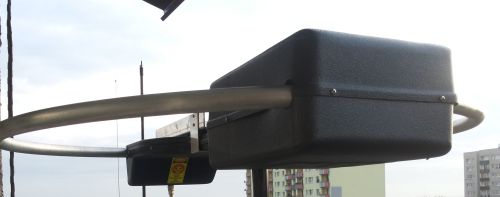

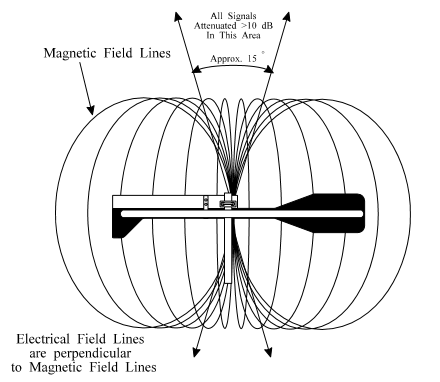

-Motorized Magnetic loop MFJ 1788X 40-15m + Super HiQ Loop Remote Control (150W) dia 36"

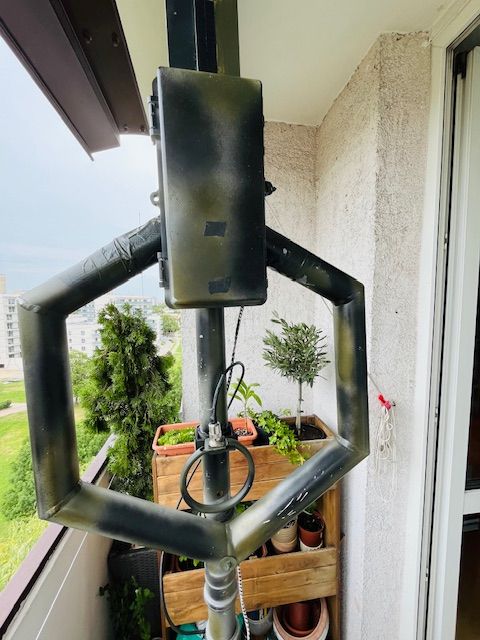

-Home Made QRP portable motorized Magnetic Loop 40 - 10m (20W) dia 70cm

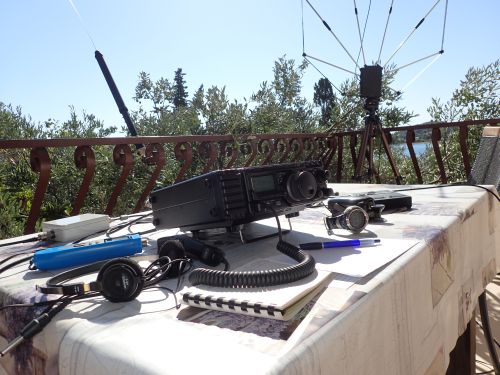

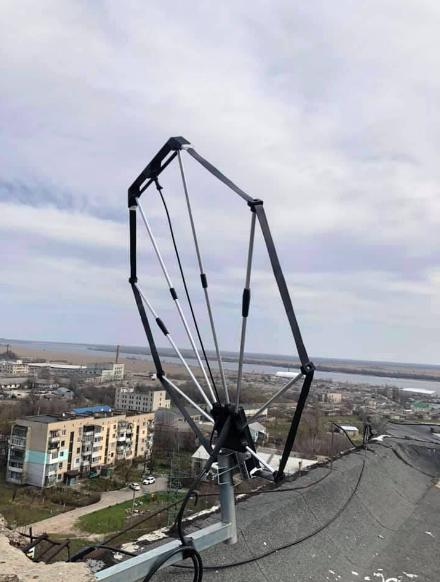

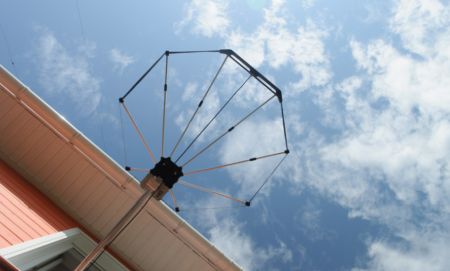

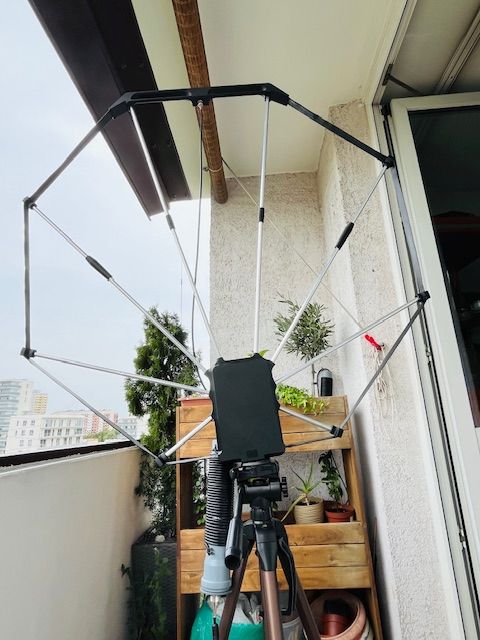

-Russian Spiderloop A100 30-10m Portable motorized HF antenna with automatic tuning(3-50Watt) dia 1m by R1CK
-Kenwood MA-5 mobile helical antenna 80,40,20,15,10m + bumper mount VP-1(200Watt)
Base element 1245mm/ 49 inch
3.5 Mhz element 185mm/ 7-9/32 inch
7 Mhz element 1250mm/ 49-7/32 inch
14 Mhz element 1150mm/ 39-15/16 inch
21 Mhz element 485mm/ 19-3/32 inch
28 Mhz element 165mm/ 6-1/2 inch
3.5 Mhz adjusting unit 510mm/ 20-1/8 inch

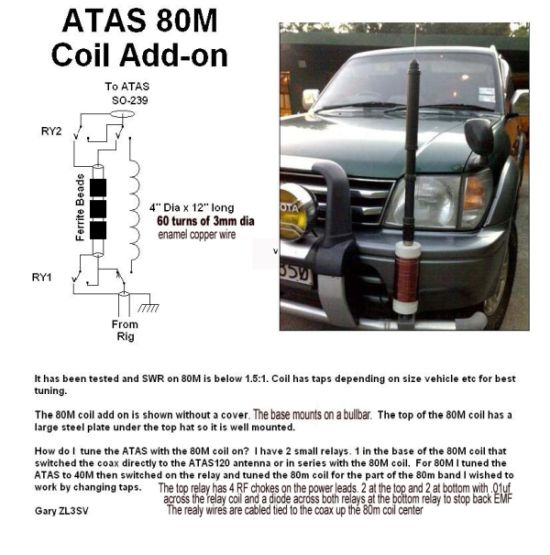

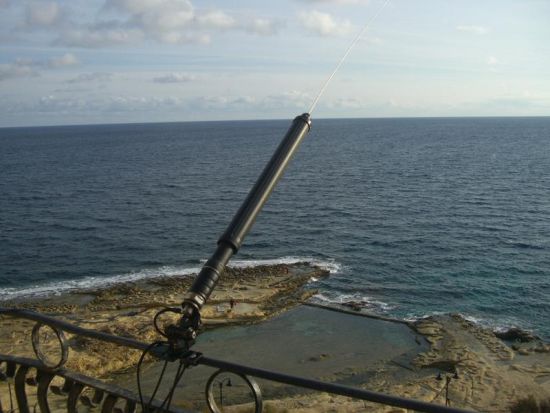

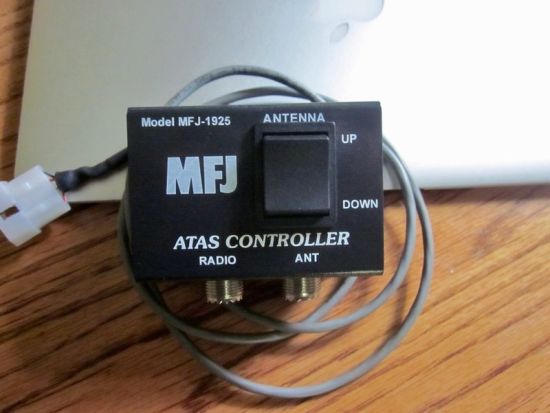

-Yaesu ATAS-120A (40m-70cm)(120 Watt)1.4-1.6m(4.59-5.24 feet)
-Australian Outbacker Perth 80-10m (300 Watt)2.1m (1.2m shaft with 1m tip) by Terry Clinch VK6LTC
-Australian Outbacker Outreach 80-6m (500Watt)3.6m (Split 8’ shaft (2 x 1.2m sections) and 1.2 meter stinger) by VK6LTC
-Australian Outbacker OBA811 CLASSIC 80-6m (500Watt)1.6m (1.5m shaft with 25cm tip by VK6LTC

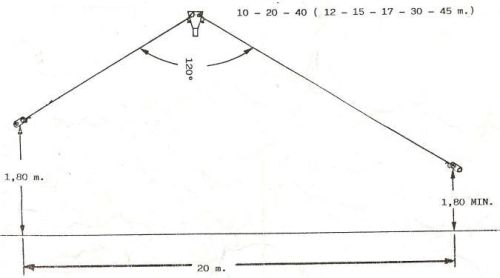

-Italian Inverted V antenna 40 -10m WINDOM (200W)(abt 20m long)

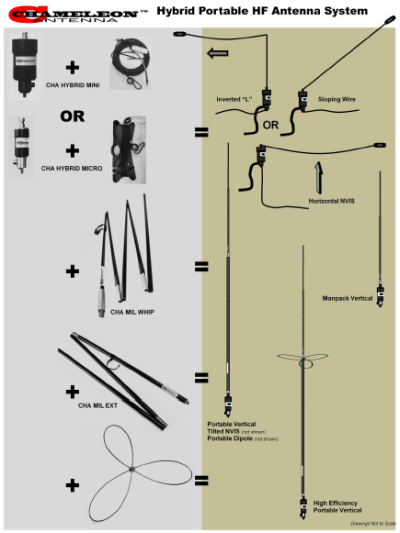

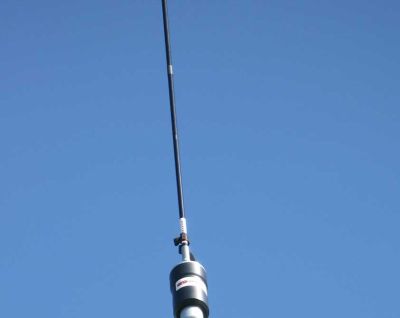

-Chameleon Micro Hybrid horizontal/sloper/inverted L(160m-6m) (100W SSB,50W CW) 60foot length

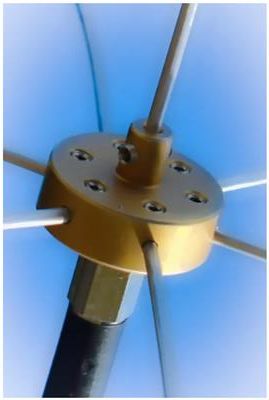

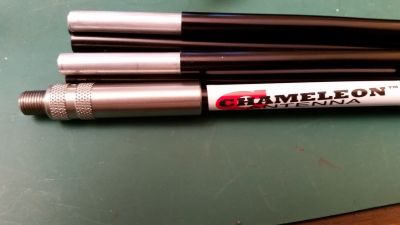

-Chameleon Micro Hybrid + Mil Whip + Cap Hat dia 80cm + Mil Ext 18'2"/6m (160-6M)

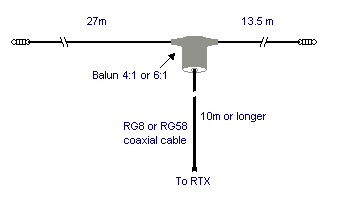

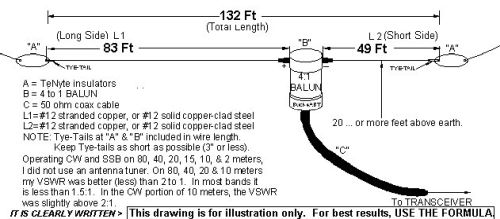

-Full size Windom 41,4m long (80-10m)

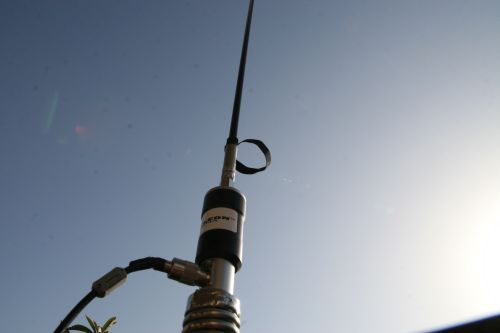

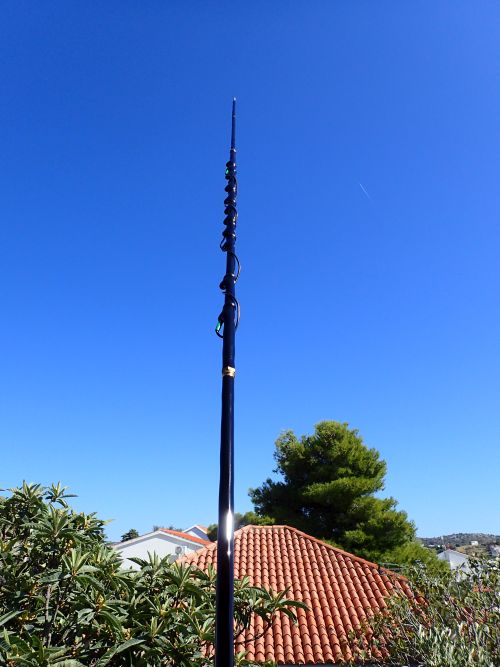

-Tank Whip 275cm/9 foot + SlideWinder DX Coil (40-10m) by M1ECC

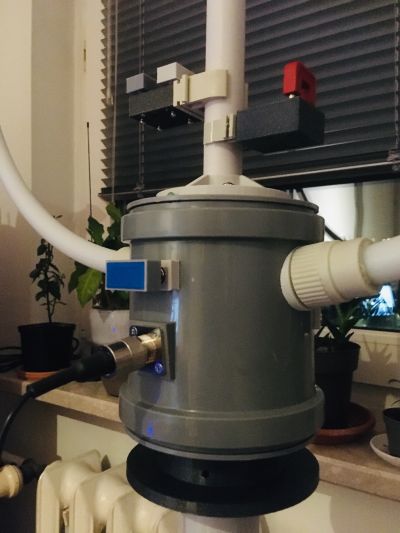

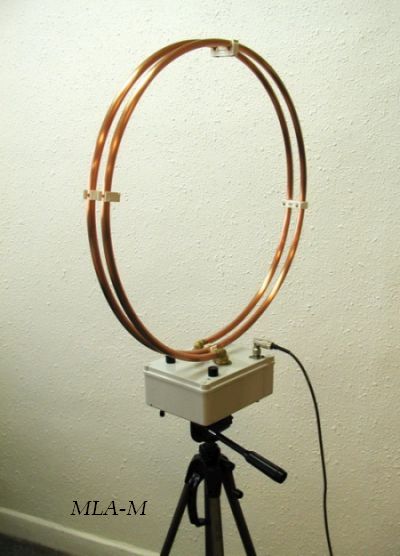

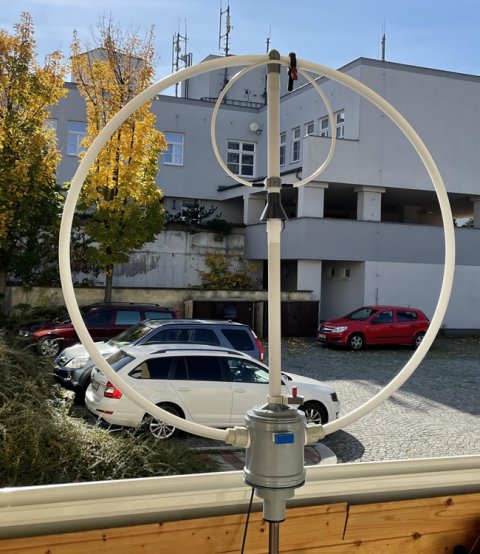

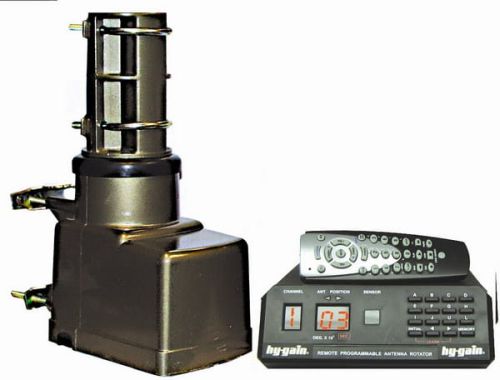

-Magloop OK2ER MLA-S(RT/R) 40W-80W, 80-10m dia80cm,integrated rotator,remotely tuned by CB4M DUO,feeding with coaxial cable

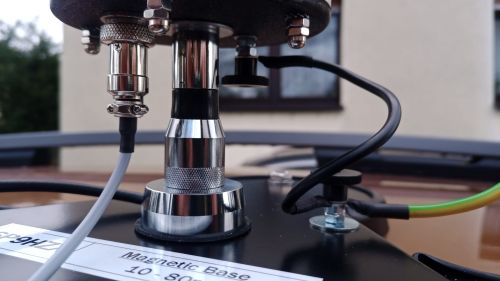

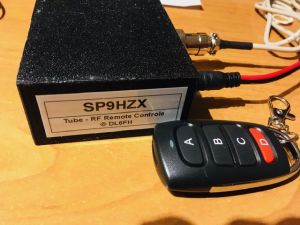

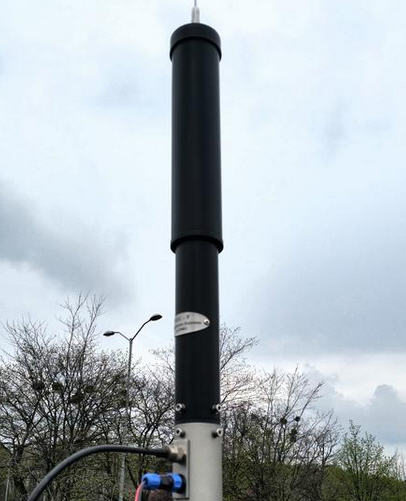

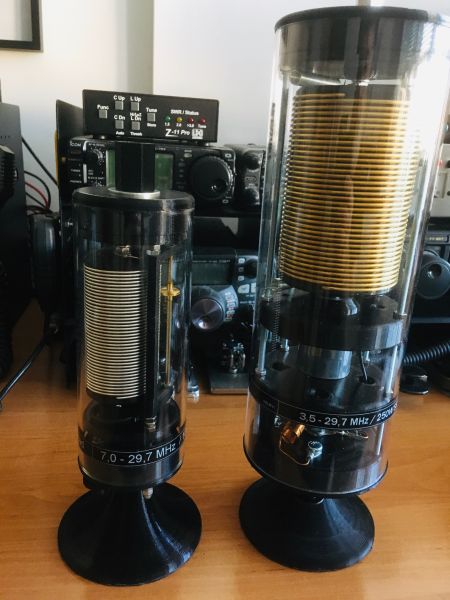

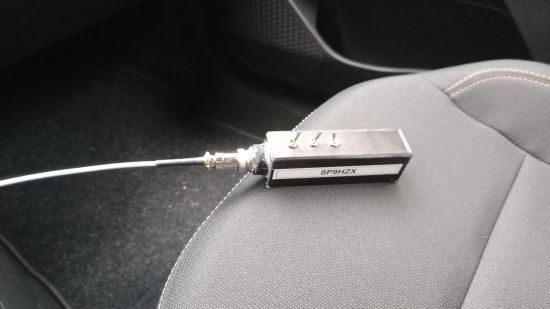

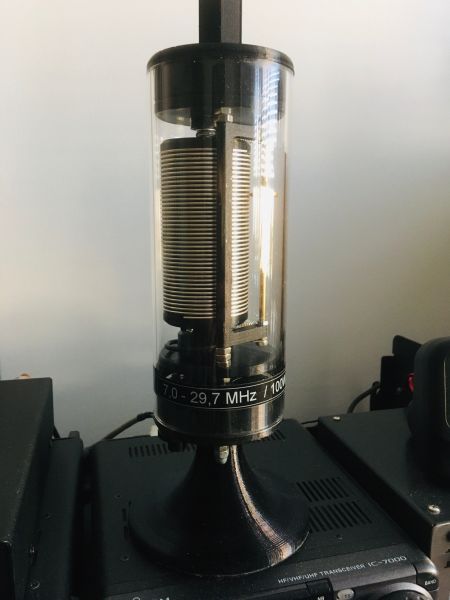

-DL6FH remotely controlled coil 100W (40-10m)+ 560cm long whip or 150cm long whip

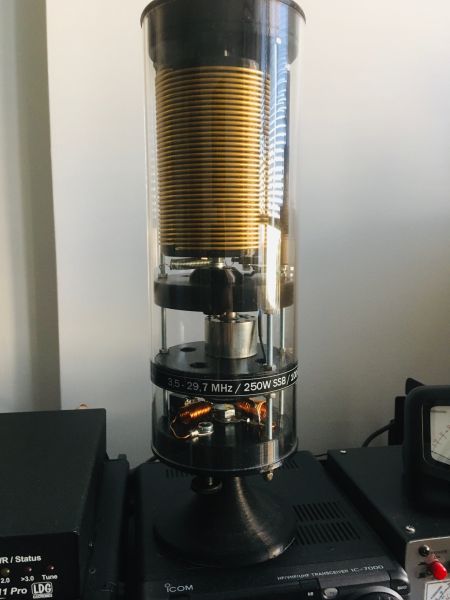

-DL6FH remotely controlled coil 250W (80-10m)+ 560cm long whip or 150cm long whip
-Portable MLA K1FM ,80m-10m, 40W, tuned manually

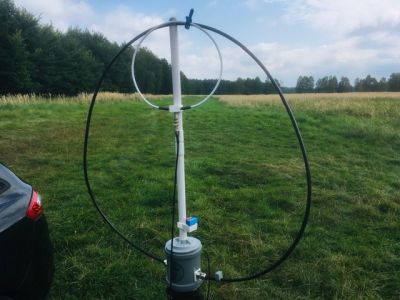

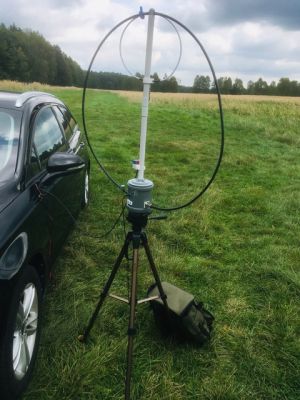

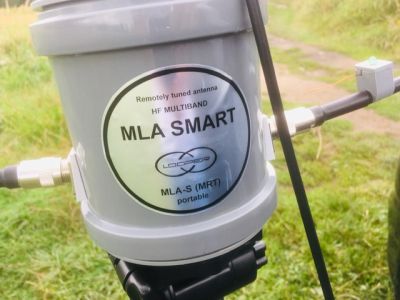

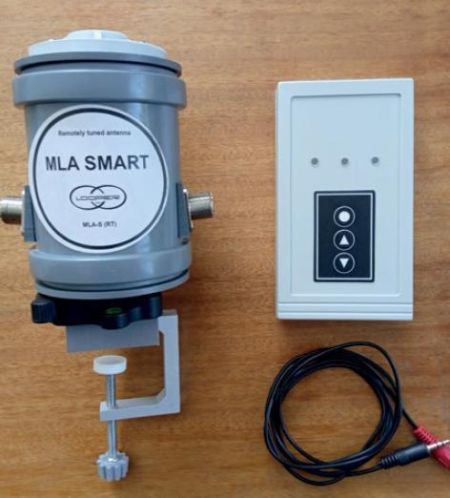

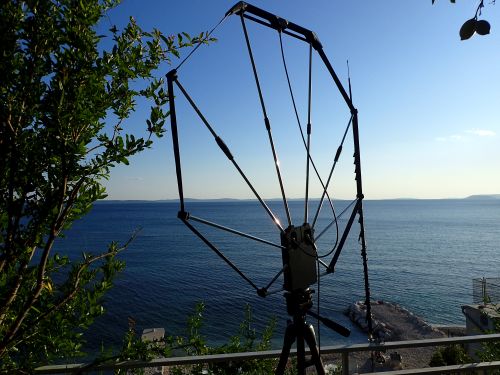

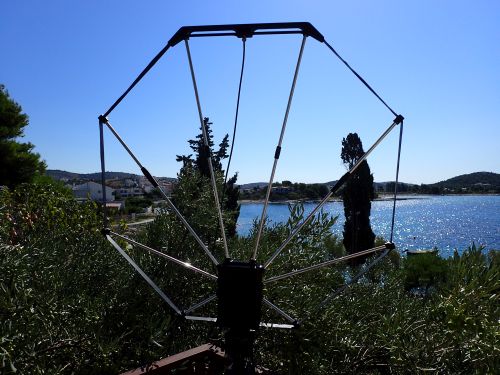

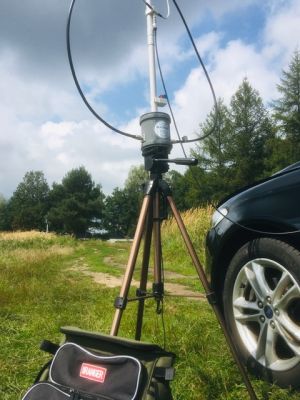

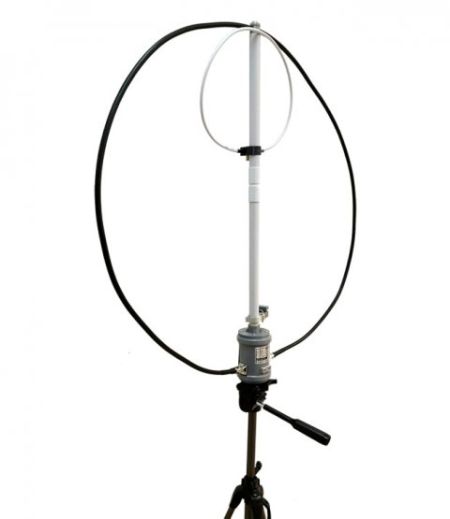

-Portable MLA OK2ER MLA-S (MRT),80m-10m,50W,dia 80cm,remotely controlled by CB4M MINI
-6m antenna:Sigma Ampro6,155cm

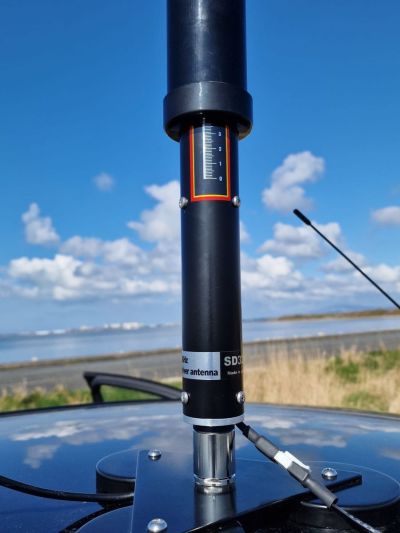

-Diamond SD330 (80-10m)- 1,85m/73", 200W
VHF/UHF RIG :

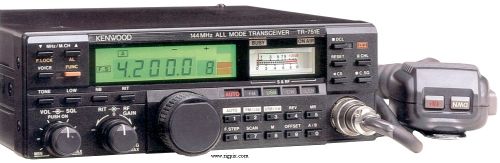

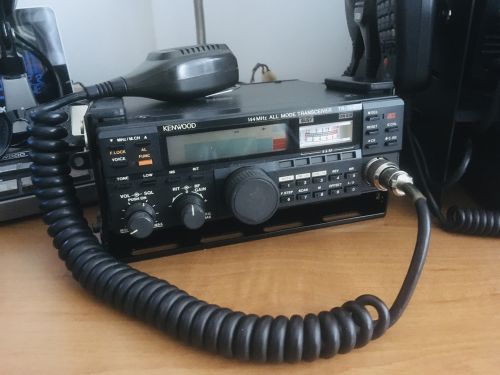

-Kenwood TR751E 2m

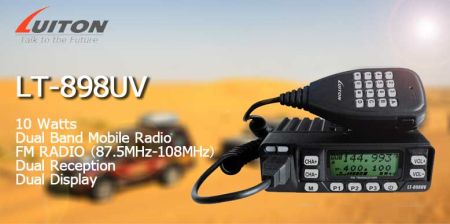

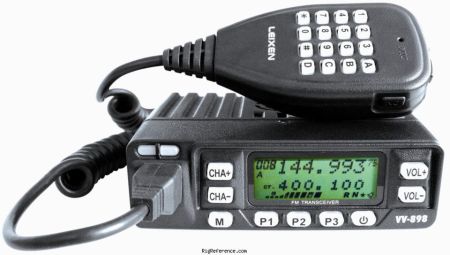

-KENWOOD TH21E 2m, LT898UV Luiton 2m/70cm,Yaesu FT65E
VHF/UHF ant:
-2m/70cm MR77 Diamond,DIAMOND NR-780R
- OK2ER 70cm magloop dia 6cm

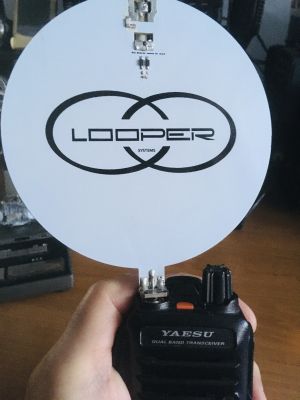

- OK2ER 2m magloop dia 12cm

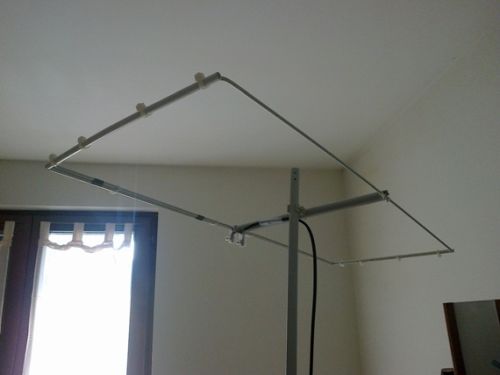

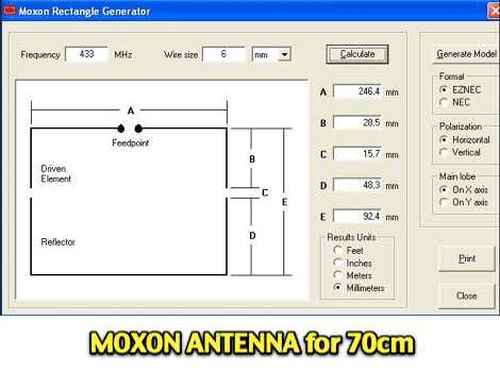

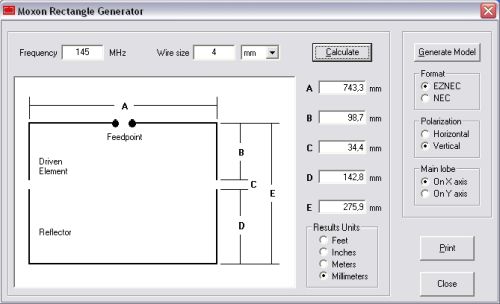

-432 MhZ Moxon,144 Mhz Moxon
-Power supply by OE8PPK 13,8V/35A

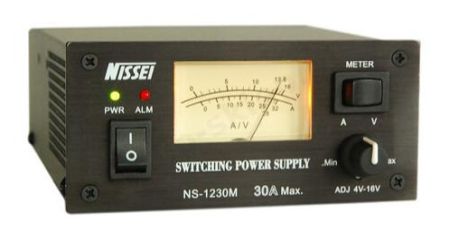

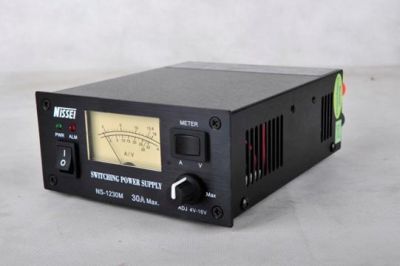

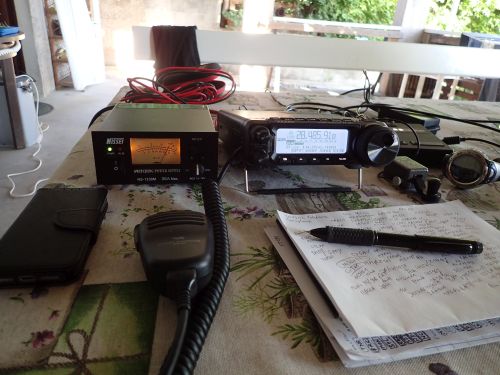

-Power Suppy Nissei NS1230M 13,8V/30A

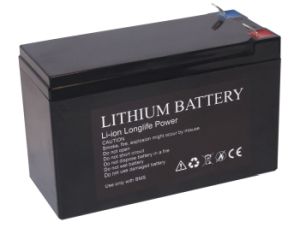

-Battery Li ion 3S 17Ah 12V, only 0,860kg

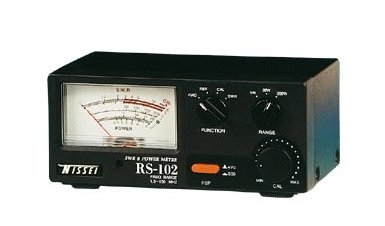

-SWR meter Nissei RS102 (1,8-200 Mhz)

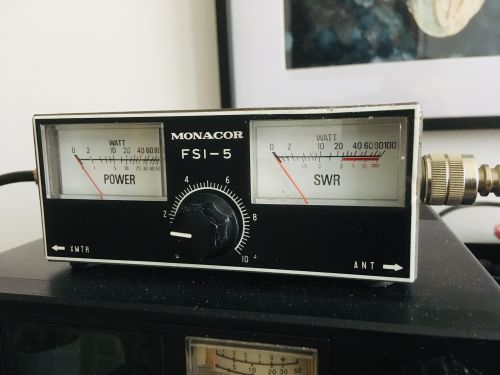

-Power/SWR Meter FSI-5 Monacor (3.5-150 Mhz) 1kW
-SWR meter IN-20 (1,8 -170 Mhz)
-Kenwood MJ-88

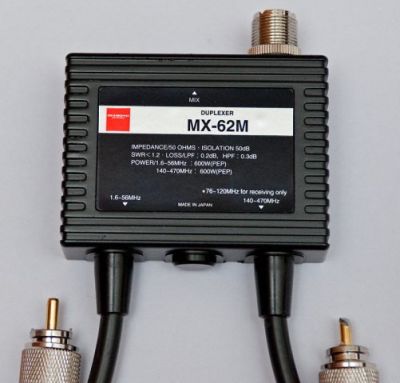

-Duplexer MX62M

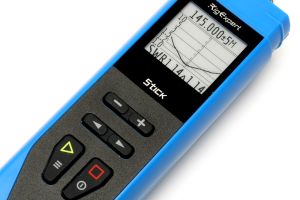

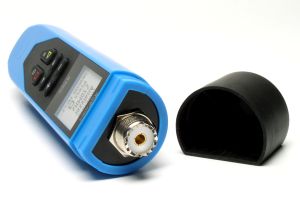

-Antenna analyzer Stick 230 Rig Expert (100Khz-230Mhz)

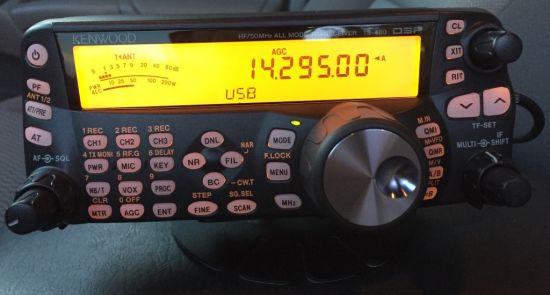

TS480SAT
-- 160-6m - 5-100W SSB/CW/FM
-- 160-6m - 5-25W AM

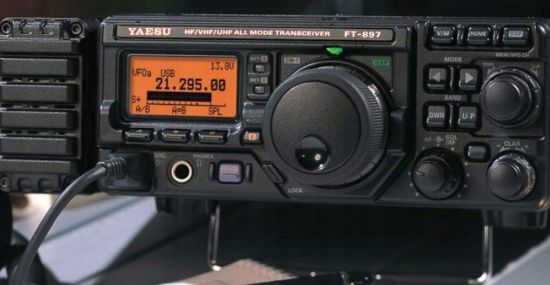

FT897D
-- 160-6m - 5-100W SSB/CW/FM
-- 160-6m - 5-25W AM
-- 2m - 50W SSB/CW/FM
-- 2m - 12.5W AM
-- 70cm - 20W SSB/CW/FM
-- 70cm - 5W AM

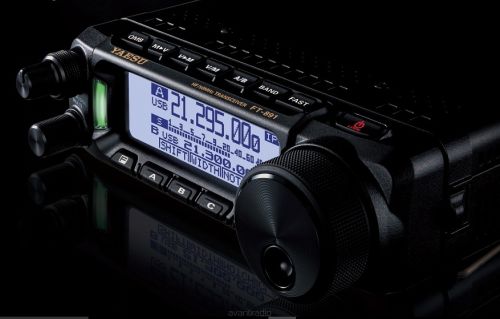

FT891
-- 160-6m - 5W-100W SSB/CW/FM
-- 160-6m - 5-40W AM

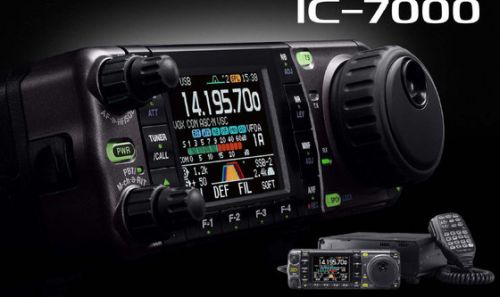

IC7000
-- 160-6m - 2-100W SSB/CW/FM
-- 144Mhz - 2-50W SSB/CW/FM
-- 430Mhz - 2-35W SSB/CW/FM
-- 160-6m - 1-40W AM
-- 144Mhz - 2-20W AM
-- 430Mhz - 2-14W AM
IC703Plus
-- 160-6m - 0.1-10W SSB/CW/FM
-- 160-6m - 0.1-4W AM

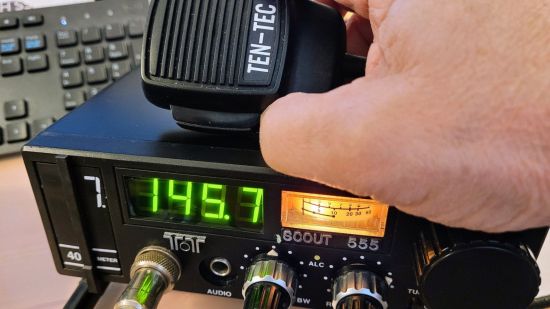

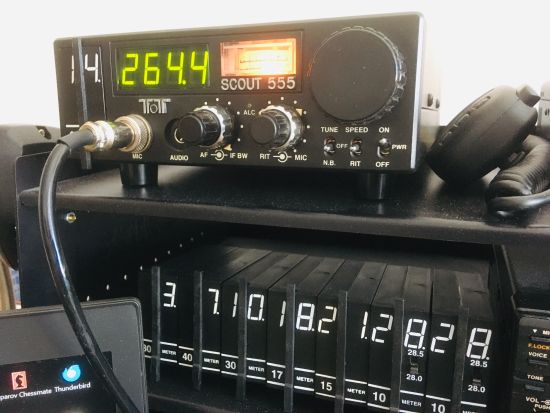

TT SCOUT 555
-- 160-10m - 5-50W SSB/CW
IC706MKIIG
-- 160-6m - 5-100W SSB/CW/FM
-- 160-6m - 2-40W AM
-- 2m - 5-50W SSB/CW/FM
-- 70cm - 2-20W SSB/CW/FM
TR751E
-- 2m - 5-25W Hi/Lo SSB/CW/FM
LT898UV
-- 2m - 4/10W FM

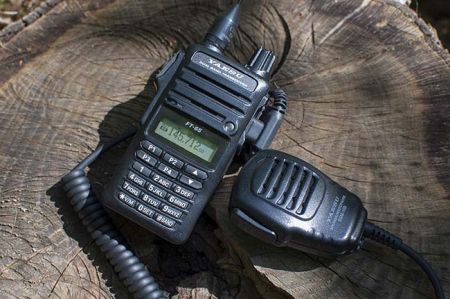

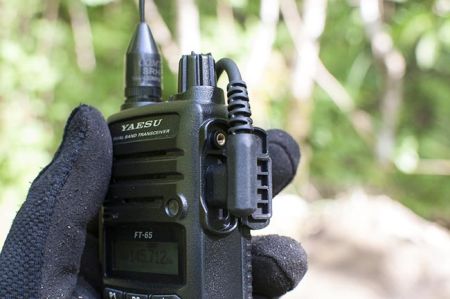

FT65E
-- 2m/70cm - 5/2.5/0.5W FM
TH21E
-- 2m - 1/0.1W FM
Scout 555_manual

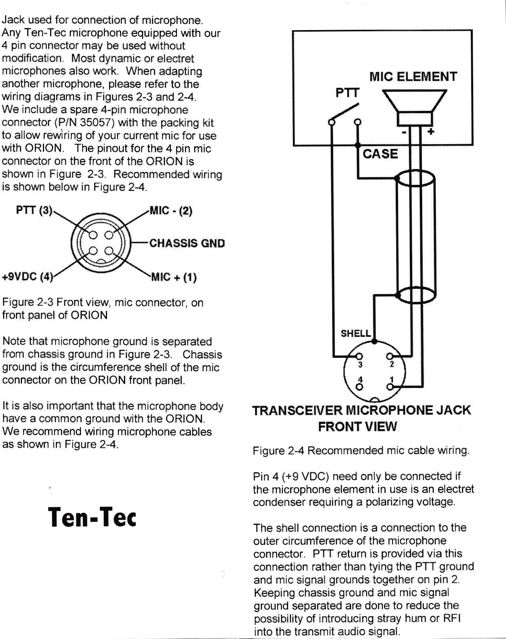

Scout 555_mike
Scout 555_repair
NA5N Scout 555 website
TS480sat EXPAND INFO
TS480sat Instruction Manual
TS480sat Service Manual
MC60 circuit
TS480SAT MARS
TS480SAT mods IW2NOY
FP30 Technical Supp;ement(1)
FP30 Technical Supp;ement(2)
FT897_sch
FT897 Service Manual
FT897 Alignment
FT897D Manual
FT897D serial-number-codes
Yaesu FT897D info
FT897 Operating Manual
FT897 Internal View
FT897 External View
BHI_DSP_on_FT-897D_WEB
yaesu_ft-897_897d_technical_supplement
FT897D MARS mod
FT897D MARS
FT897D mods
FT897D mods1
FT897D mods2

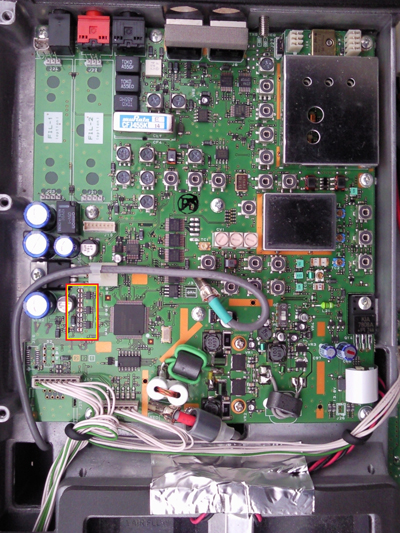

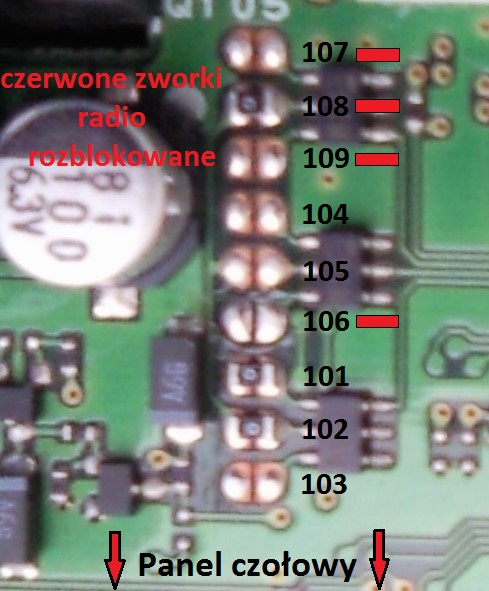

FT897D Freq mods Photo1Photo2

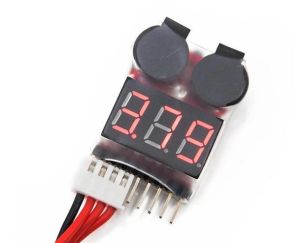

How to replace FNB78 with LiPo Battery by IU3HVW
A cheap charger for the FT-897 by G4APB

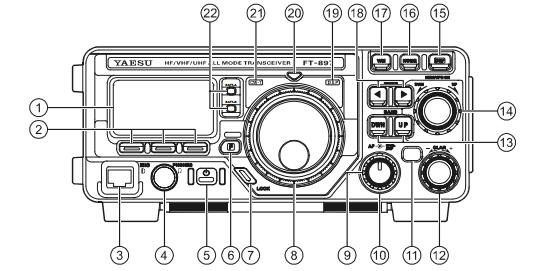

The hard reset(the master reset) resets all memories and settings to the factory default settings. The soft reset has 2 different resets with different results.
To perform the Hard (master) reset:
Back up all settings if it is possible, using a programming program such as Chirp or Yaesu's programming software.
Power down the radio.
Hold the [HOME] button (Button #16) while turning on the rig with the POWER button (Button #5).
The radio will be reset to factory default settings.
To perform the Soft reset:
There are 2 soft resets. The first soft reset resets all memories and the following settings to their factory default values:
Menu # 06 (AM Step)
Menu # 33 (DCS Code)
Menu # 52 (FM Step)
Menu # 56 (MEM Tag)
Menu # 76 (RPT Shift)
Menu # 82 (SSB Step)
Menu # 83 (Tone Frequency)
To perform this reset:
Back up all settings if it is possible, using a programming program such as Chirp or Yaesu's programming software.
Power down the radio.
Hold the [VM] button (Button #17) while turning on the rig with the POWER button (Button #5).
The radio will be reset to the above settings.
The second soft reset resets all menu settings except the following settings to their factory default values:
Menu # 06 (AM Step)
Menu # 33 (DCS Code)
Menu # 52 (FM Step)
Menu # 56 (MEM Tag)
Menu # 76 (RPT Shift)
Menu # 82 (SSB Step)
Menu # 83 (Tone Frequency)
To perform this reset:
Back up all settings if it is possible, using a programming program such as Chirp or Yaesu's programming software.
Power down the radio.
Hold the [F] button Button #6) while turning on the rig with the POWER button (Button #5).
The radio will be reset to the above settings.
Back up all settings if it is possible, using a programming program such as Chirp, RT Systems, or Yaesu's programming software.
Power down the radio.
Hold both the [BAND UP] button and [BAND DWN] button (Buttons #13) simultaneously while turning on the rig with the POWER button (Button #5).
The relays will start clicking while cleaning. When the cleaning is done, the radio will be in it's normal state.
If the relay cleaning doesn't work for your problem, consider running one of the Factory Reset procedures.
IC703 Service Manual

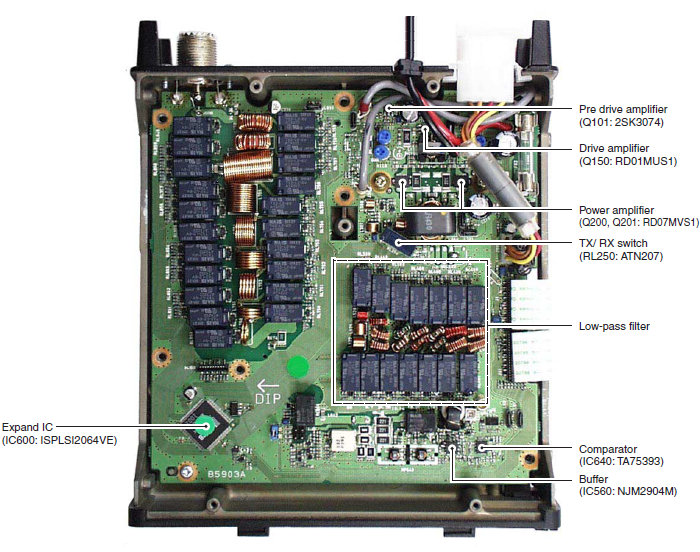

IC703 photo inside1
IC703 photo inside2
IC703Plus MARS
IC 7000 Service Manual
MH59A8J Manual
MH-59A8J TechSupplement
IC7000 FAQ
IC7000 MARS
tr751e_service
FT891 Advance Manual
FT891 CAT
FT891 Technical Supplement
FT891 MARS
IC706MKIIG service manual
80m 15 Khz - 40m 25 Khz - 30m 50 khz - 20m 200 Khz - 17m 220 Kz - 15m 250 Khz - 12m 250 Khz - 10m 600 Khzhz
A rough-tough, HF antenna.Both mobile and portable. 80m-75m-60m-40m-30m-20m-17m-15m-12m-10m- 6metre bands. 3.6m tall (3 pieceshaft)- Split 8’ shaft (2 x 1.2m sections) and 1.2 meter stinger including 38cm adjustable stinger. The outreach antenna breaks down and packs into a 1.2metre PVC tube for easy portability and storage. Providing sufficient ground system or counterpoise is used the Outreach can also be used as a portable antenna system . This antenna breaks down to a 1.1m packed length for easy portability.
HF mobile champion
80m-75m-60m-40m-30m-20m-17m-15m-12m-10m-6 meter bands.
1,7m 2-piece shaft,Each section is 0.8m long with 33cm adjustable stinger
The PERTH covers all HF bands, 80-40-30-20-17-15-12-10m
Mobile antenna is 1.7 metres long assembled, with 90cm tuning spike fully extended.
It consists of 80cm main-shaft with a 90 mm 2 piece tuning spike.
The PERTH is ideally suited to fender, gutter or trunk mounting applications, or can be bull bar and tow hitch mounted.
It is easily transported, packing down to 820mm long.
With Outbackers unique integral, L/C matching circuit this antenna mates perfectly with all modern 50 Ohm HF transceivers

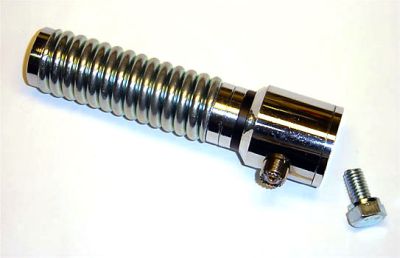

OSMXHDSS Outbacker Extra Heavy Duty HF Mobile antenna Mount with a Stainless Steel base and 304 Stainless steel parallel steel spring. Suitable for antenna up to 3.6 metres in length
MFJ1788/1786 remote control schematic
Frequency range: 10 - 30 MHz
Wave impendance: 50 Ohm
Impedance matching (SWR): <1.5
Peak output power: 70 W
Output power (100% duty cycle): 50 W
Overall dimensions (antenna module): 1.5 x 1.2 x 0.02 m
Package size:0.53 x 0.28 x 0.12 m
Total height of antenna doesn't exceed 1 m when assembled. Nothing compared to height of most dipole antennas
Compact design, two mounting types - to minimise or completely reduce HF radio noise.
Built-in tripod mount for vertical placing. Perfect for usage at open spaces
Detachable module allows horizontal installation. Turn it into proper balcony magnetic loop just in a matter of seconds.
Maximum cable length for automatic mode to operate correctly: 50 m
Rapid tuning
Average tune time when working in close range - 2 sec., when changing band - up to 11 sec.
Manual mode
Use antenna without transmitting devices at all - you can simply tune it by ear.
When dissassembled, antenna fits in handbag with length less than 0.5 m
integrated internal Lion rechargeable battery with an analogue solution based on the idea of 7N3WVM to improve the user comfort
Frequency range: 3.5 to 28 MHz Input
impedance: 50 Ohm Maximum usable
power: 40 W SWR when tuned: 1:1.0,
CB4M MINI - remote tuning system
max 1:1.2 Input connector: BNC
Antenna dimensions: 0.80 x 0.17 x 0.90 m
Antenna weight: approx. 1.6 kg
Loop diameter: 80 cm
MLA-S (R_RT) Rotating
MLA-S (RT_R)
- 80-10m remotely controlled coil + 5,6m telescopic whip
The smaller coil 18cm x 7cm, 100 Watts, L 30uH
- 40-10m remotely controlled coil + 1,5m whip
VP1 - bumper mount
CHA-JAWMOUNT-5
ATAS120A_mechanical details
ATAS-120A_operating instructions
ATAS120A_technical supplement

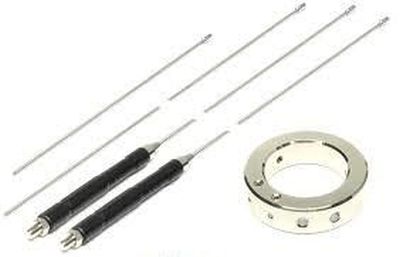

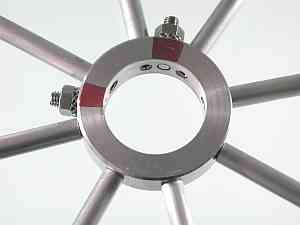

atbk-100_manual
ATAS120A schematic
atbk100_notes

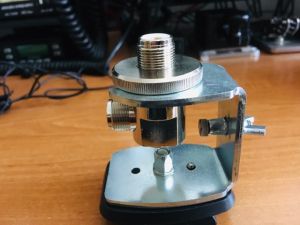

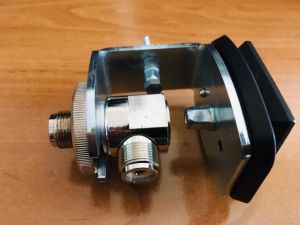

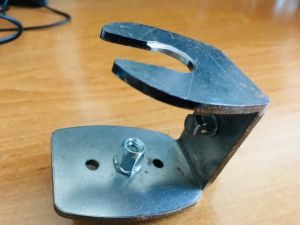

Home made mount with holes for mounting both UC1 and 3/8" sockets.And there is also a threaded hole for mounting a small mast for e.g. a magloop antenna.
Such suction cup lifter is very strong and it can be used on any smooth surface,car roof,window or any tiles.It is as strong as magnetmount and it doesn't scratch the surface.I use it in portable activity when there is no possibility to use magnetmount or other mounts

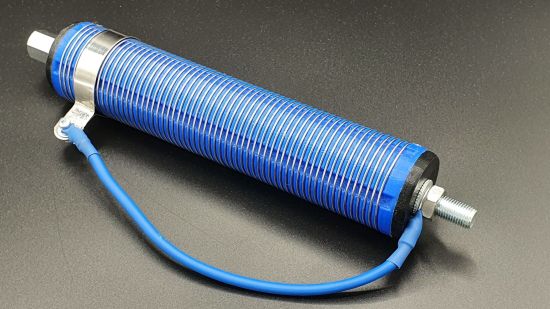

The SlideWinder DX Coil operates from 40 to 10m metres with a 102" or 108" whip. I use this coil with 9ft Tank Whip. Power rating 100 Watts SSB, 100 Watts CW and 25 Watts with digital modes. Coil length 240mm and diameter 40mm. Standard 3/8 24 antenna mount

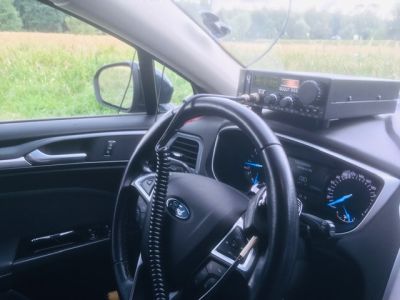

While driving or being static mobile I use tripple magmount MFJ336S Goliath,magmount Watson W-300S or SIRIO MAG 145 PL and capacitive plate (home made or MAT50).

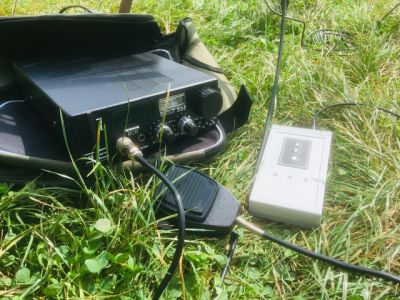

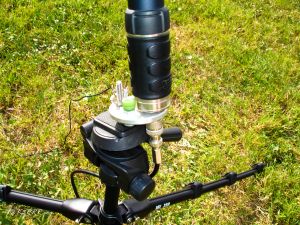

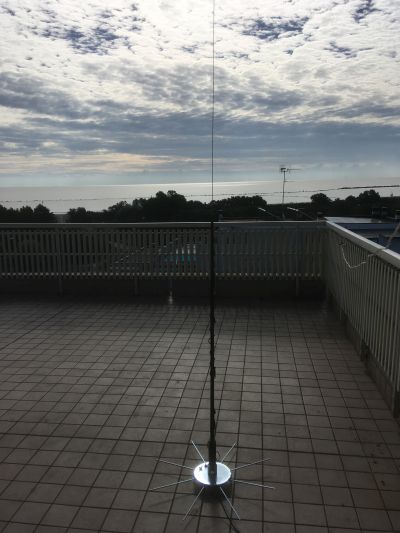

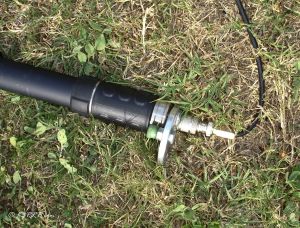

Being portable I use a tripod,stinger in the ground,3 cup suction glass sucker and some radials or Faraday fabric (108cm x 90cm) instead of radials.Besides very useful jaw mount and also other mounts and adapters.The same when mobile antenna is mounted on a guardrail.

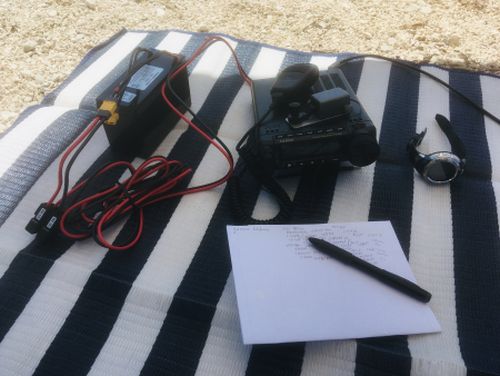

When I am on the seashore the antenna is directly in salty waters or put as close as possible.

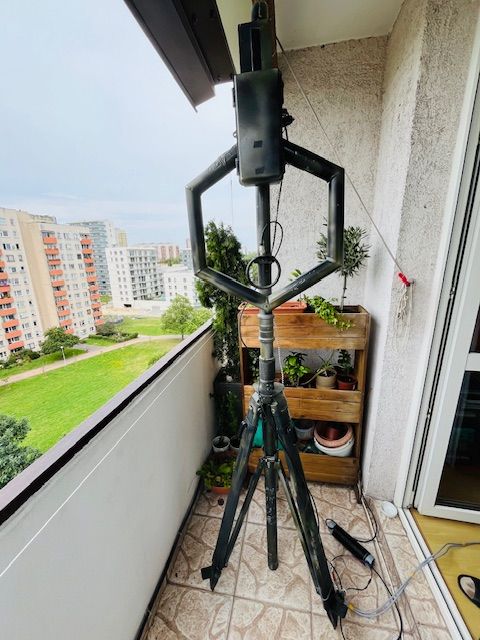

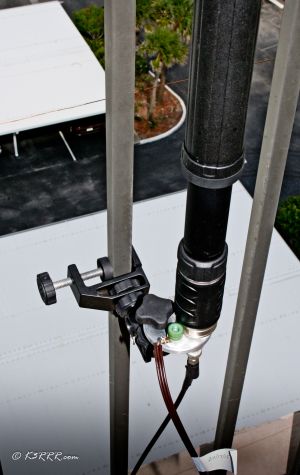

My magloops are usually mounted on a tripod,special mount on a guardrail or suction cup lifter on a appropriate surface.
Generally antenna tuner is unnecessary for magloops and mobile whips as my antennas (both mobile and magloops) are resonant.

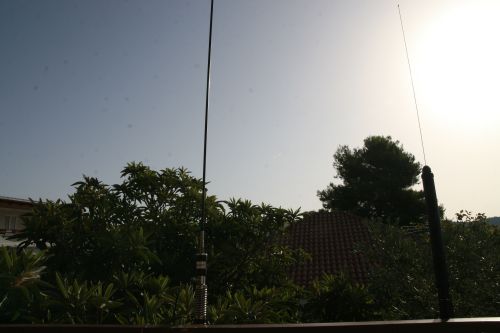

I have been successfully using mobile and magloop antennas for donkey years,literally in all extreme weather conditions (-25 to +43C,both very dry and very wet) and different places such as balcony,terrace,indoors,seashore,mountains,forests,from hand,boats and car roof,of course.
Instead of radials I often use Faraday fabric 108cm x 90cm. It does its job perfectly,it isn't inferior to radials at all,it doesn't occupy so much place and is less complicated to spread.

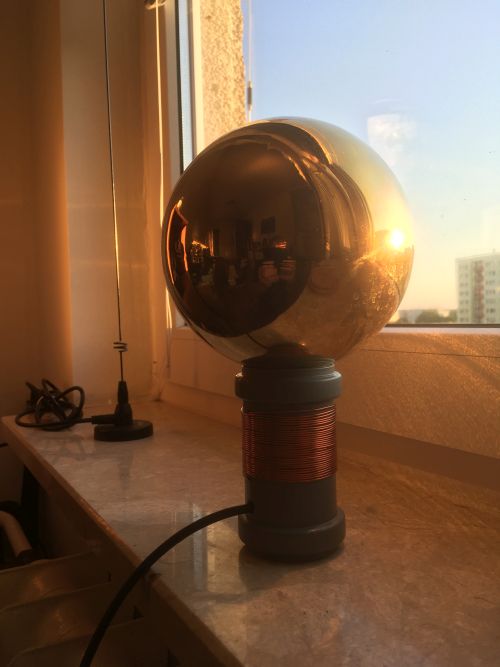

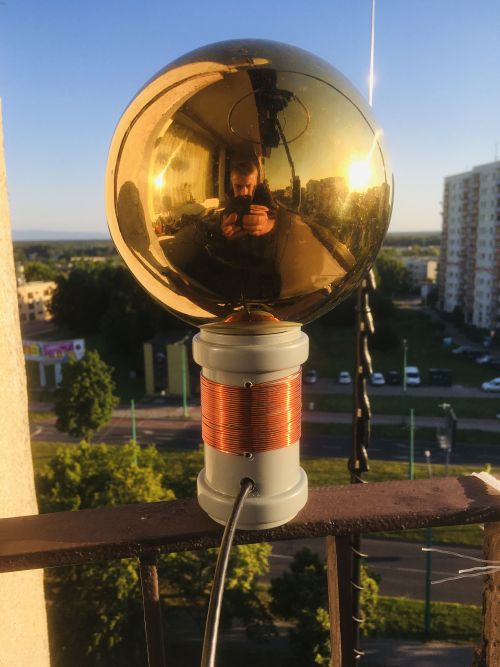

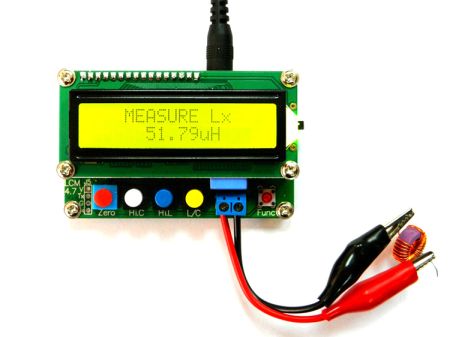

CAP ball 40m antenna.I use it both indoor and outdoor,also mobile.Good results! Probably the smallest 40m antenna. Power 100Watts. Dia 150mm, C 9.9pF,L 49.61uH. Bandwidth abt 100kHz
SDC1 manual

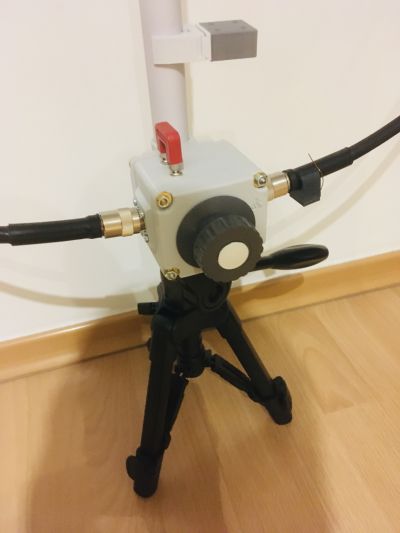

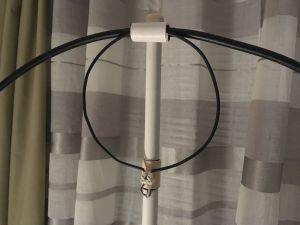

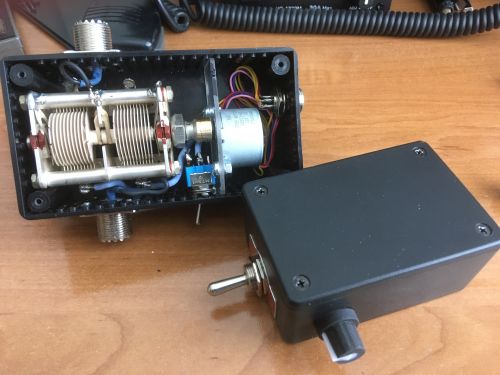

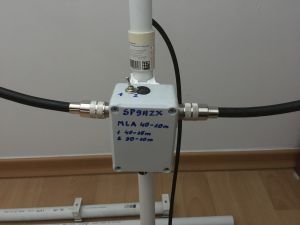

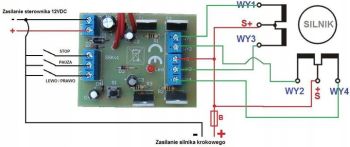

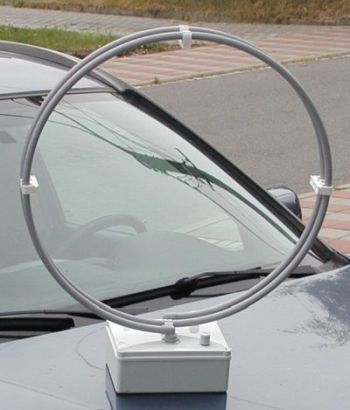

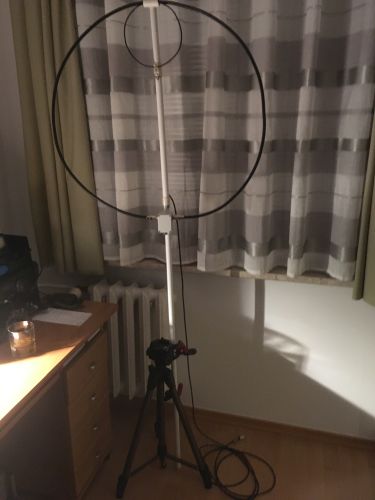

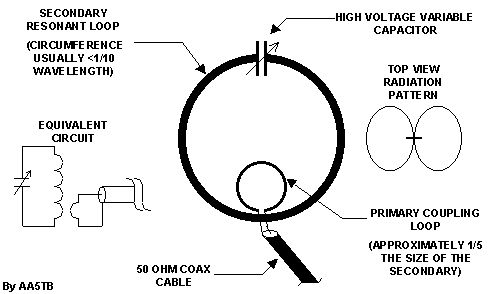

Portable folding motorized magnetic loop antenna 40-10m 20W:

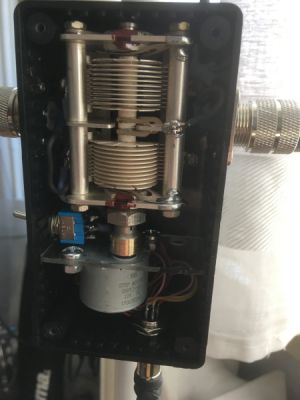

Motorized Variable Air Capacitor 2 x 4pF - 120pF/600V and 12V tuning motor installed within water-proof box
The Main Loop dia 69cm (RG213 - coax lenght is 2170 mm )
The Coupling Loop dia 19cm (4mm copper wire)
The feeder RG58

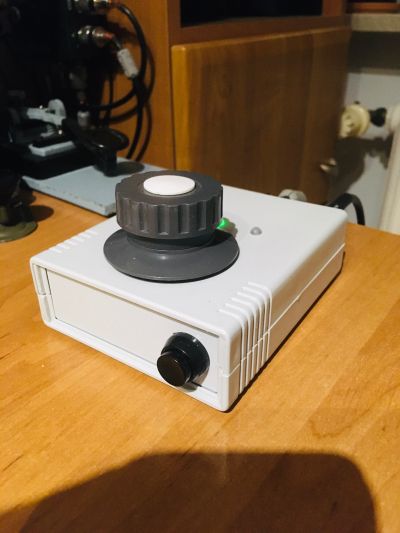

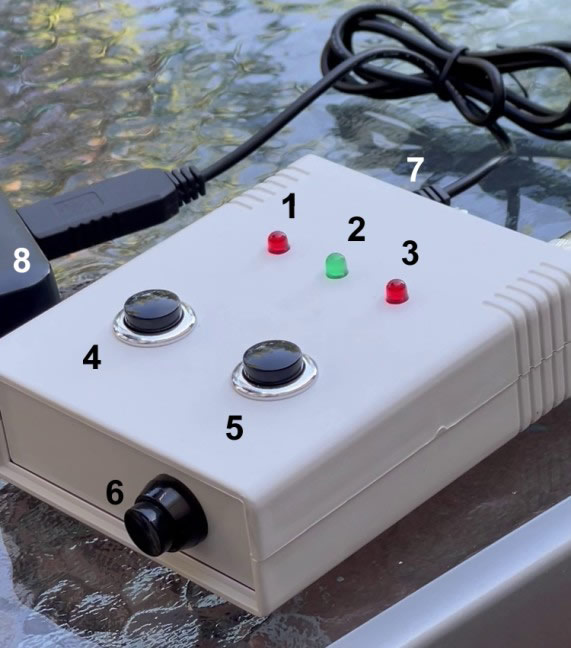

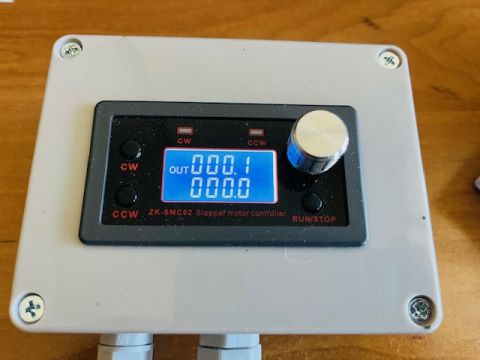

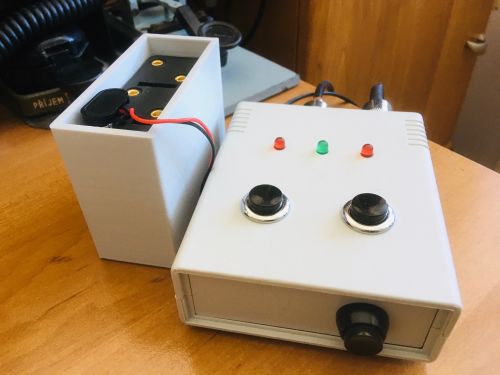

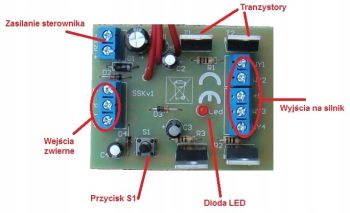

Control unit with 2 push buttons (increase/decrease) and a speed control knob
Total weight: +/- 1kg
The SWR on all bands is 1:1

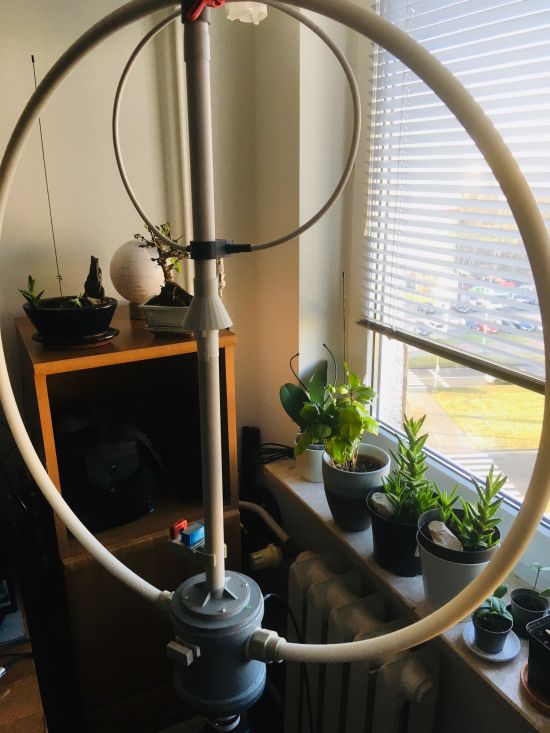

Great holidays and portable antenna.But also often used indoors or outside on the balcony with great results. Both SSB and CW.
Setup AntScope2-1.0.16
kenwood-th-21-service-manual
LDG_Z-11Pro
Nissei RS-102
FSI-5 Monacor Manual 2
Podręcznik Radiooperatora Krótkofalowca - SP5AFL,SP5XM,SP5KM
Antennas - K.Rothammel
Anteny - SP6LB
